Madera

Madera 1.1 – 1.6 gpf (4.2 – 6.0 Lpf) Chair Height Back Spud Elongated Bowl

The Madera Back Spud Elongated toilet bowl is designed to operate between 1.1 gpf – 1.6 gpf  when paired with a high efficiency flush valve to provide water savings. With a 16-1/2 inch height, this floor mounted toilet is designed for ADA accessible installations. The floor mounted toilet bowl has a 2-1/8 inch trapway and siphon action flushing technology to reduce clogs.

White 3249001.020 DISCONTINUED   Substitution Available (3463001.020)
List Price: $217.00
ADA Compliant Cal Green Environmental Product Declaration WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Floor-mount, elongated flushometer bowl, less seat
  • High Efficiency Toilet (HET) operates in the range of 1.1 gpf – 1.6 gpf (4.2 Lpf – 6.0 Lpf)
  • 16-1/2" (419 mm) Chair Height for accessible applications
  • Static weight load of 2,500 lbs (1,134 kg)
  • 2-1/8" (54 mm) fully-glazed trapway
  • 10" (254 mm) or 12" (305 mm) rough-in
  • Condensation channel
  • Powerful direct-fed siphon jet action
  • 1-1/2" (38 mm) inlet spud
Technical Features
  • Floor-mount, elongated flushometer bowl, less seat
  • High Efficiency Toilet (HET) operates in the range of 1.1 gpf – 1.6 gpf (4.2 Lpf – 6.0 Lpf)
  • 16-1/2" (419 mm) Chair Height for accessible applications
  • Static weight load of 2,500 lbs (1,134 kg)
  • 2-1/8" (54 mm) fully-glazed trapway
  • 10" (254 mm) or 12" (305 mm) rough-in
  • Condensation channel
  • Powerful direct-fed siphon jet action
  • 1-1/2" (38 mm) inlet spud
Nominal Dimensions: 28-1/4 in x 14 in x 16-1/2 in (718 mm x 356 mm x 419 mm)
Description
Net Weight
SKU
Color
List Price USD
Madera 1.1 – 1.6 gpf (4.2 – 6.0 Lpf) Chair Height Back Spud Elongated Bowl
59 lb (26.8 kg)
3249001.020 *
White (020)
217
Optional Components (Not Included)
Commercial Heavy Duty Open Front Elongated Toilet Seat
3 lb (1.4 kg)
5901100.020
White
46
spacer
Commercial Heavy Duty Open Front Elongated Toilet Seat With EverClean® Surface
3 lb (1.3 kg)
5901110T.020
White
57
Substitutions
Madera 1.1 – 1.6 gpf (4.2 – 6.0 Lpf) Chair Height Back Spud Elongated EverClean® Bowl
59 lb (26.8 kg)
3463001.020
White
440


Models marked with * are discontinued, but product may still be available while supplies last.

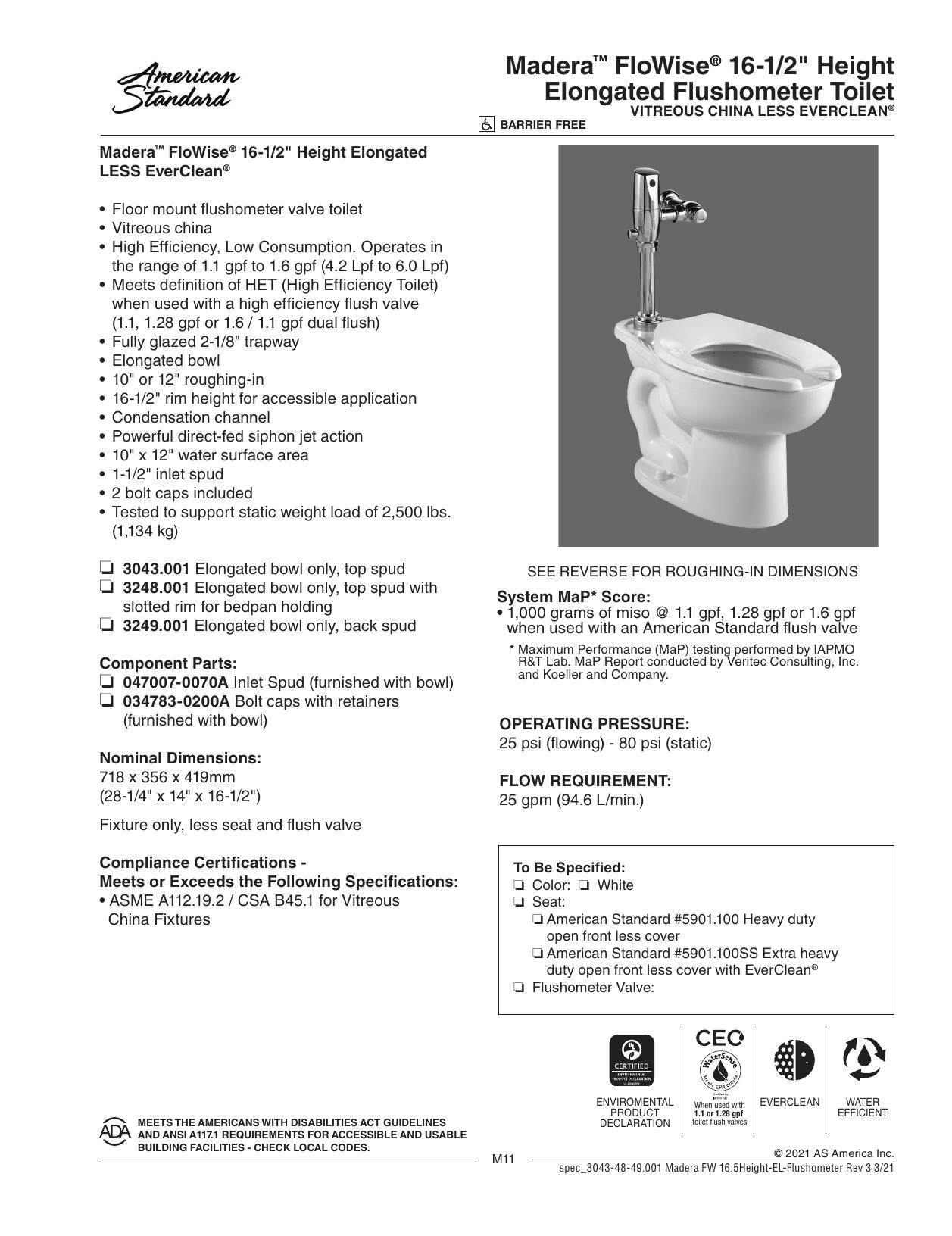

Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Front to Back Length: 16-1/2
Bowl Shape: Elongated
Brand: American Standard
Cal Green: Yes
Category: Commercial Toilet
Chair Height: Standard
Color / Finish: White
Collections: Madera
WaterSense: Yes
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Flush Technology: Flushometer
Gallons Per Flush (min-max): 1.1 - 1.6 GPF
MAP Performance Rating: 1000
Height: 16-1/2
Length: 28-1/4
Length: 28-1/4
Width: 14
Residential or Commercial: Commercial
Subcategory: Floor Standing Commercial Toilet
Toilet Mount Type: Floor Mount
Trapway Diameter: 2-1/8
Toilet Type: Floor_Standing_Toilet_Bowl
Warranty: 1 Year Limited Warranty
Download All Supporting Documents

Specification Sheet

Installation Instructions

Environmental Product Declaration
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
2D CAD Files
.dwg icon 2D CAD File
REVIT Files
.zip icon REVIT File
There are no videos currently available for this product
3D Objects are not currently available for this product
