Madera

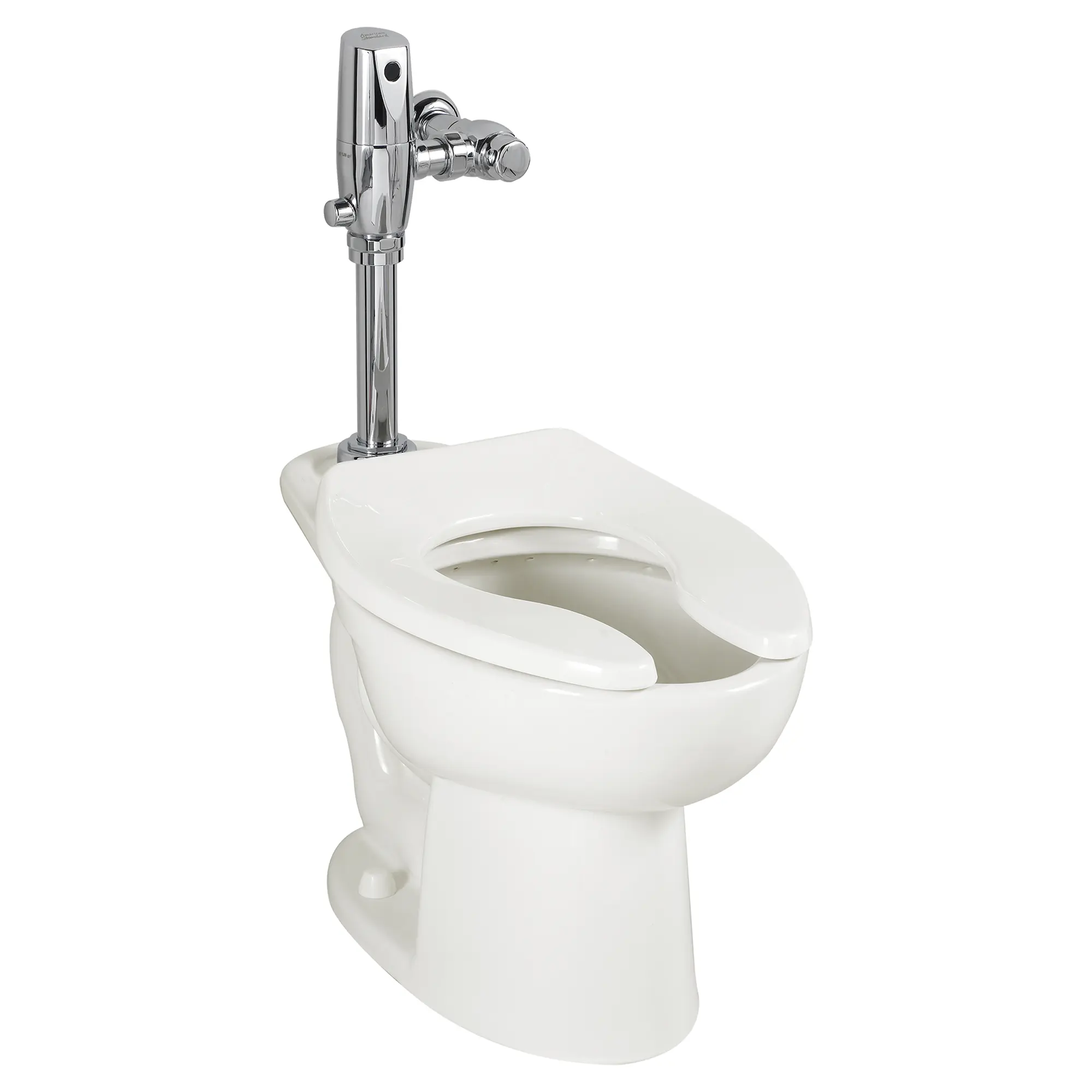

Madera 1.0 - 1.6 gpf (3.8 - 6.0 Lpf) 15" Height Top Spud Elongated EverClean® Bowl

The Madera Elongated Floor-Mount Toilet from American Standard withstands the rigors of constant use while ensuring a powerful flush at a lower flush volume to conserve water when combined with the Ultima Selectronic Flush Valve. This standard height toilet achieves the highest MaP score of 1,000 grams at 1.1 – 1.6 gpf, and an effective, efficient 800 grams at 1.0 gpf.

White 3451001.020 DISCONTINUED
List Price: $186.00
Cal Green Environmental Product Declaration Everclean WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Compatibility: Works with the American Standard Ultima Selectronic Exposed Toilet Flush Valve 1.0 gpf-1.6 gpf/3.8 Lpf-6.0 Lpf, sold separately
  • Highest Maximum Performance (MaP) score: Achieves highest score of 1,000 grams when combined with 1.1 – 1.6 gpf; achieves impressive score of 800 grams when combined with 1.0 gpf
  • Antimicrobial surface: EverClean® protects against mold, mildew, odor- and stain-causing bacteria
  • Powerful flush: Direct-fed siphon jet flush action
  • Standard bowl height: 15" (381 mm) rim height
  • Fully glazed trapway: 2-1/8" (54 mm); 2" (51 mm) minimum ballpass
  • Inlet spud: 1-1/2" (38 mm)
  • Rough-in: Available in 10" (254 mm) or 12" (305 mm)
Technical Features
  • Floor-mount, elongated flushometer bowl, less seat
  • High Efficiency Toilet (HET) operates in the range of 1.0 gpf – 1.6 gpf (3.8 Lpf – 6.0 Lpf)
  • Maximum Performance (MaP) score of 1,000 grams at 1.1 - 1.6 gpf
  • EverClean® antimicrobial surface protects against mold, mildew, odor- and stain-causing bacteria
  • Standard 15" (381 mm) rim height
  • 2-1/8" (54 mm) fully-glazed trapway
  • 10" (254 mm) or 12" (305 mm) rough-in
  • Condensation channel
  • Powerful direct-fed siphon jet action
  • 1-1/2" (38 mm) inlet spud
Nominal Dimensions: 27-1/4 in x 14 in x 15-3/8 in (692 mm x 356 mm x 391 mm)
Description
Net Weight
SKU
Color
List Price USD
Madera 1.0 - 1.6 gpf (3.8 - 6.0 Lpf) 15" Height Top Spud Elongated EverClean® Bowl
50 lb (22.8 kg)
3451001.020
White (020)
186
Optional Components (Not Included)
Commercial Heavy Duty Open Front Elongated Toilet Seat
3 lb (1.4 kg)
5901100.020
White
43
spacer
Commercial Heavy Duty Open Front Elongated Toilet Seat With EverClean® Surface
3 lb (1.3 kg)
5901110T.020
White
53
Download Specification Sheet
Front to Back Length: 15
Bowl Shape: Elongated
Brand: American Standard
Cal Green: Yes
Category: Commercial Toilet
Chair Height: Standard
Color / Finish: White
Collections: Madera
WaterSense: Yes
Everclean: Yes
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Flush Technology: Flushometer
Gallons Per Flush (min-max): 1.6 GPF
MAP Performance Rating: 1000
Height: 15-3/8
Length: 27-1/4
Width: 14
Residential or Commercial: Commercial
Subcategory: Floor Standing Commercial Toilet
Toilet Mount Type: Floor Mount
Trapway Diameter: 2-1/8
Toilet Type: Floor_Standing_Toilet_Bowl
USMCA Compliant: Yes
Warranty: 1 Year Limited Warranty
Download All Supporting Documents

Specification Sheet

Installation Instructions

Environmental Product Declaration
Download All Design Files
There are no videos currently available for this product
3D Objects are not currently available for this product
