Features
- Child-sized rim height: A very low seat height, 10 ¼ inch (260 mm), designed specifically for children, toddlers, and small people to ensure comfort and ease of use
- High-efficiency water savings (HET): Consumes only 1.28 gpf (4.8 Lpf), making it an eco-friendly and cost-effective choice
- Perfect for specialized projects: The ideal fixture for daycares, kindergartens, schools, hospitals, and pediatric bathrooms
- Reliable flushing power: Strong siphon flush action with a 2 1/8 inch (54 mm) fully glazed trapway for dependable performance
- Quality two-piece construction: Built from durable vitreous china and backed by a limited lifetime warranty on the chinaware
- Installation specs: 10-inch (254 mm) rough-in
- Please note: Seat is sold separately
Technical Features
- Combination bowl and tank, less seat
- 10-1/4" (260 mm) rim height
- High efficiency toilet (HET) 1.28 gpf/4.8 Lpf
- 10" (254 mm) rough-in
- Siphon flush action
- 10" x 9" (254 x 229 mm) water surface area
- Color-matched trip lever
- 2-1/8" (54 mm) fully glazed trapway - 2" (51 mm) minimum ballpass
- MaP score of 500 grams at 1.28 gpf/4.8 Lpf
Nominal Dimensions: 25 in x 17-1/4 in x 24 in (635 mm x 438 mm x 610 mm)

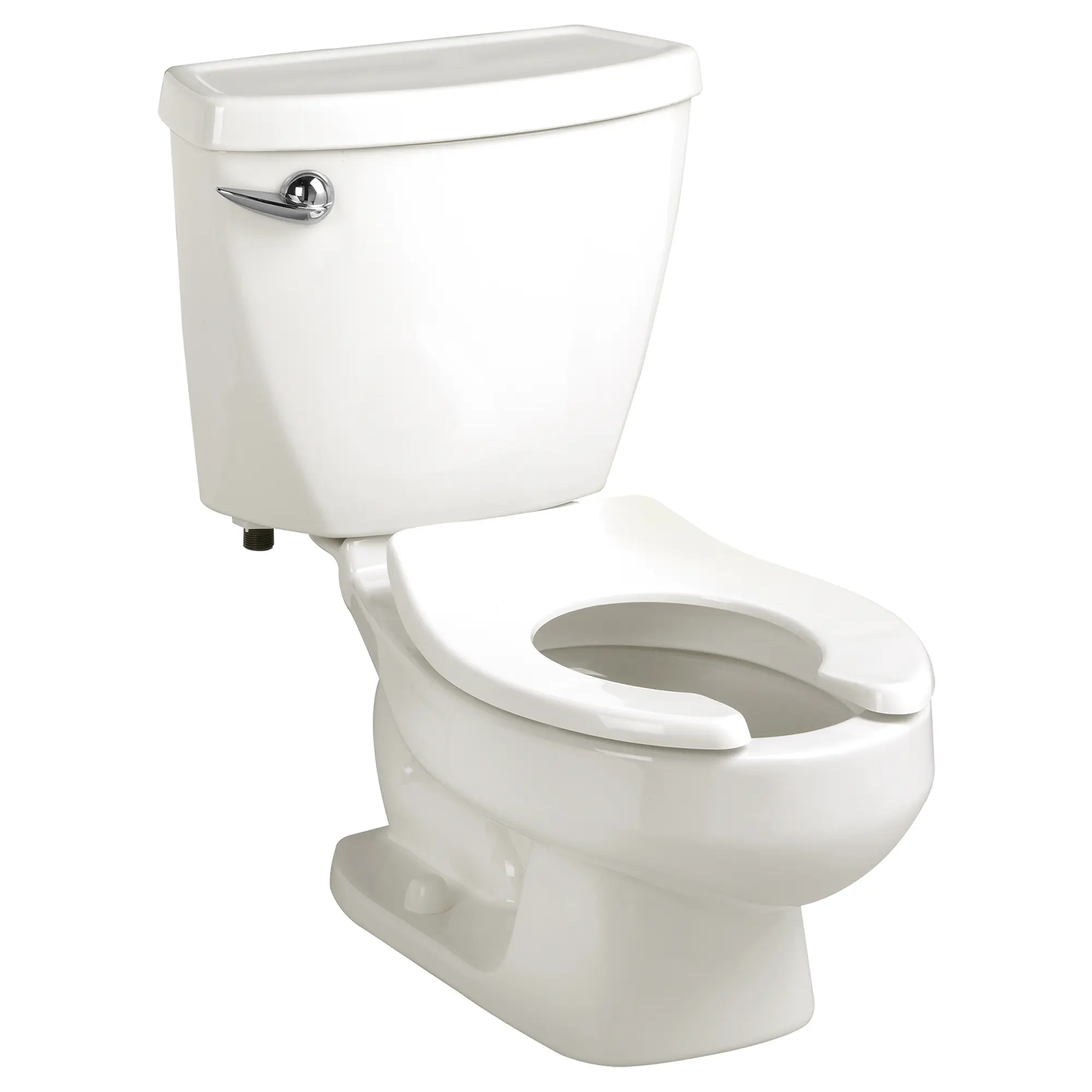

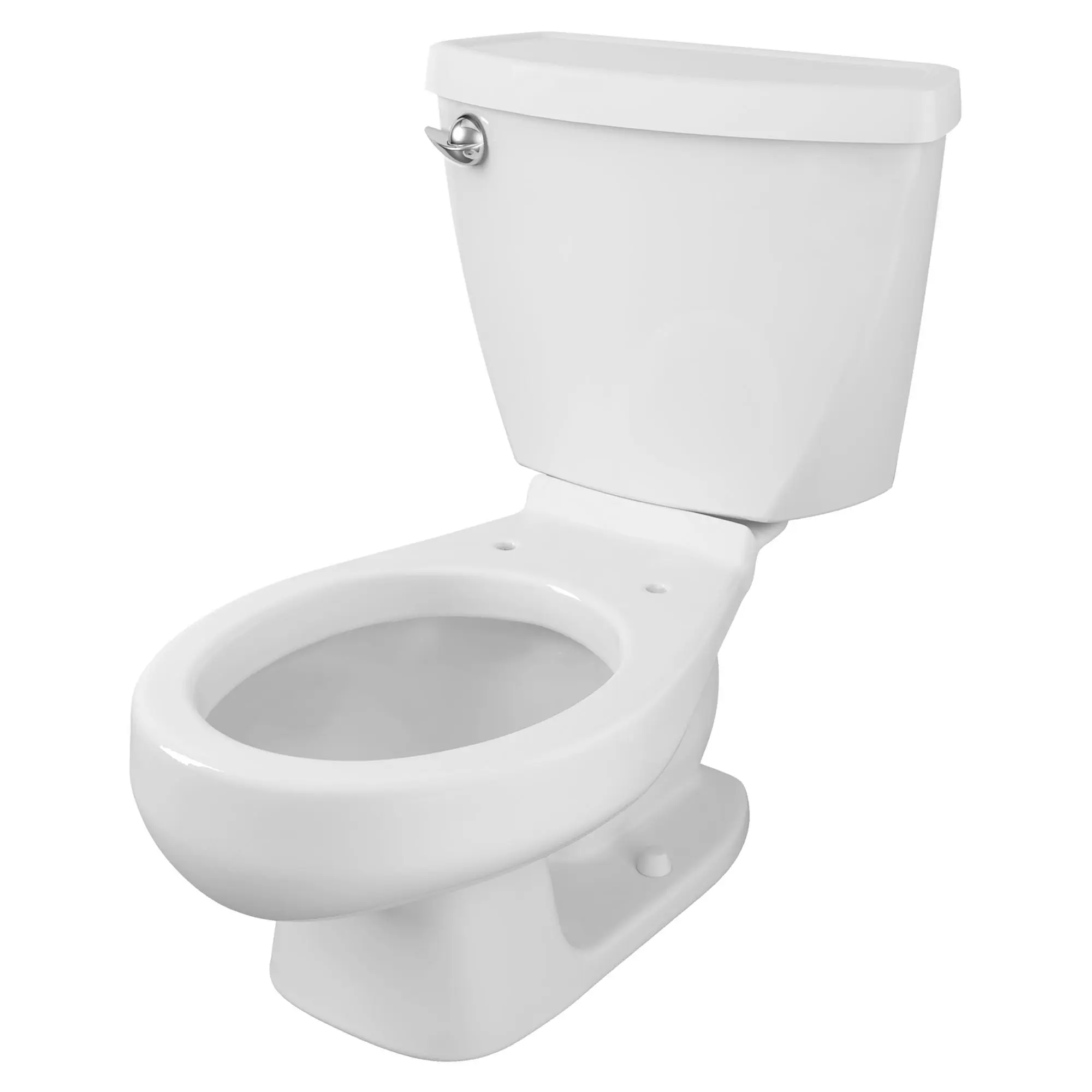

Baby Devoro Two-Piece 1.28 gpf/4.8 Lpf 10-1/4-Inch Height Elongated Toilet
1 lb (0.4 kg)
White (020)
388
Baby Devoro 10-1/4-Inch Height Elongated Bowl
32 lb (14.4 kg)
White
203
spacer
Baby Devoro 1.28 gpf/4.8 Lpf 10-Inch Rough Left-Hand Trip Lever Tank
25 lb (11.4 kg)
White
185
Baby Devoro 1.28 gpf/4.8 Lpf 10-Inch Rough Left-Hand Trip Lever Tank With Tank Cover Locking Device
25 lb (11.4 kg)
White
212
spacer
Baby Devoro 1.28 gpf/4.8 Lpf 10-Inch Rough Right-Hand Trip Lever Tank
25 lb (11.4 kg)
White
196
spacer
Commercial Open Front Toilet Seat for Baby Devoro Toilet Bowls
3 lb (1.2 kg)
White
60
Baby Devoro Two-Piece 1.28 gpf/4.8 Lpf 10-1/4-Inch Height Elongated Toilet
1 lb (0.4 kg)
White (020)
388
Baby Devoro 10-1/4-Inch Height Elongated Bowl
32 lb (14.4 kg)
White
203
spacer
Baby Devoro 1.28 gpf/4.8 Lpf 10-Inch Rough Left-Hand Trip Lever Tank
25 lb (11.4 kg)
White
185
Baby Devoro 1.28 gpf/4.8 Lpf 10-Inch Rough Left-Hand Trip Lever Tank With Tank Cover Locking Device
25 lb (11.4 kg)
White
212
spacer
Baby Devoro 1.28 gpf/4.8 Lpf 10-Inch Rough Right-Hand Trip Lever Tank
25 lb (11.4 kg)
White
196
spacer
Commercial Open Front Toilet Seat for Baby Devoro Toilet Bowls
3 lb (1.2 kg)
White
60
