Regalyn

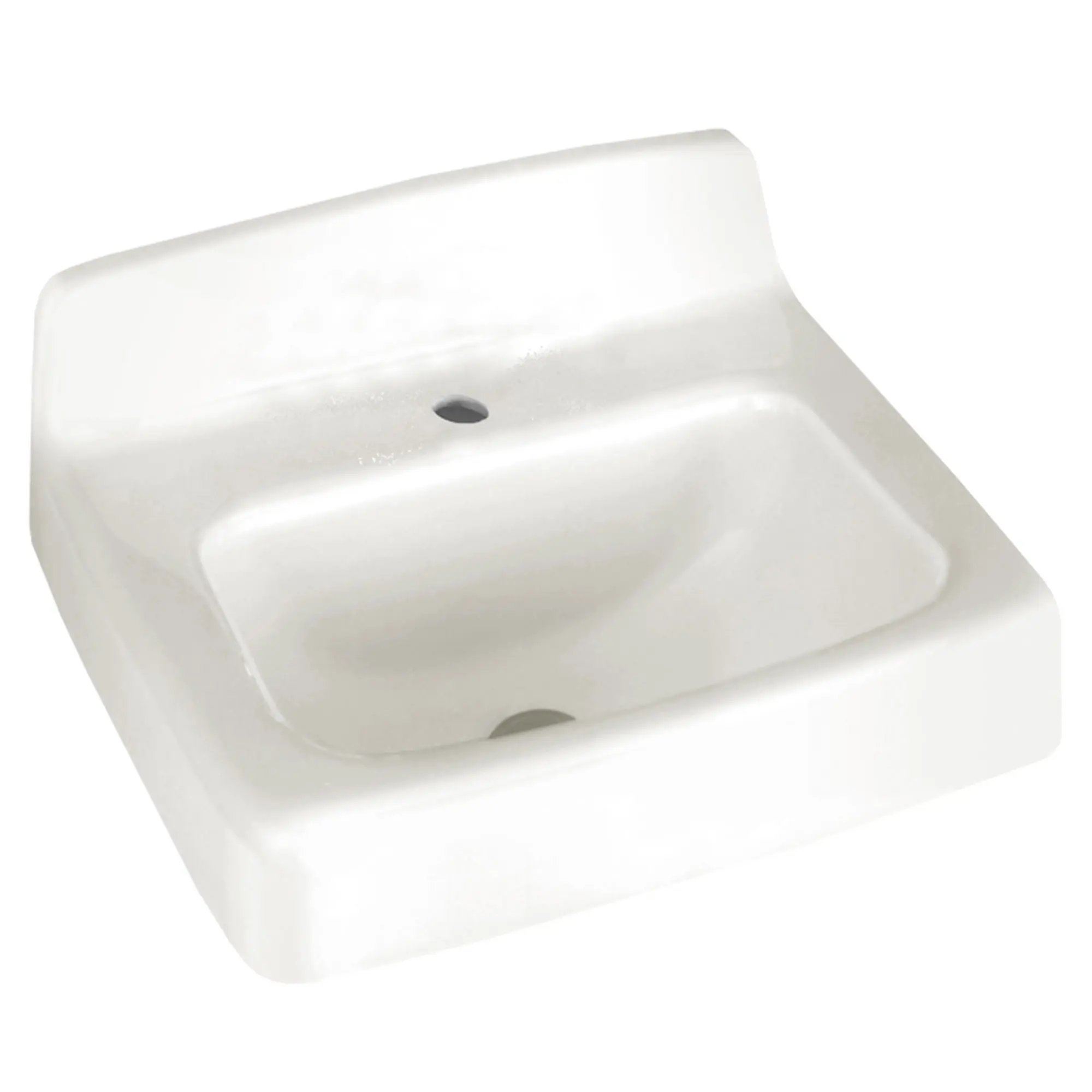

Regalyn Wall-Hung Bathroom Sink Center Hole Only

White 4867001.020 DISCONTINUED   Substitution Available (4869001.020)
List Price: $273.00
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Enameled cast iron material
  • Glossy porcelain finish
  • Supplied with hanger
  • Front overflow
  • Nominal Dimensions:
  • 19" x 17" (483 x 432mm)
  • Bowl Size:
  • 15-1/2" (394mm) wide,
  • 9-7/8" (251mm) front-to-back,
Technical Features
  • Enameled cast iron material
  • Glossy porcelain finish
  • Supplied with hanger
  • Front overflow
  • Nominal Dimensions:
  • 19" x 17" (483 x 432mm)
  • Bowl Size:
  • 15-1/2" (394mm) wide,
  • 9-7/8" (251mm) front-to-back,
Description
Net Weight
SKU
Color
List Price USD
Regalyn Wall-Hung Bathroom Sink Center Hole Only
57 lb (25.9 kg)
4867001.020 *
White (020)
273
Substitutions
Regalyn® Cast Iron Wall-Hung Sink With Center Hole Only
73 lb (33.1 kg)
4869001.020
White
568


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
Front To Back Length: 9-3/8
Side to Side Width: 14-7/16
Brand: American Standard
Category: Commercial Washbasins
Color / Finish: White
Collections: Regalyn
Length: 16-15/16
Width: 18-15/16
Residential or Commercial: Commercial
Sink Depth (to overflow): 0-3/4
Sink Width (front to back): 19-15/16
Sink Length (left to right): 19-15/16
Sink Shape: Rectangle
Subcategory: Commercial Wall Hung Washbasin
Warranty: Limited Lifetime Warranty
Download All Supporting Documents

Specification Sheet

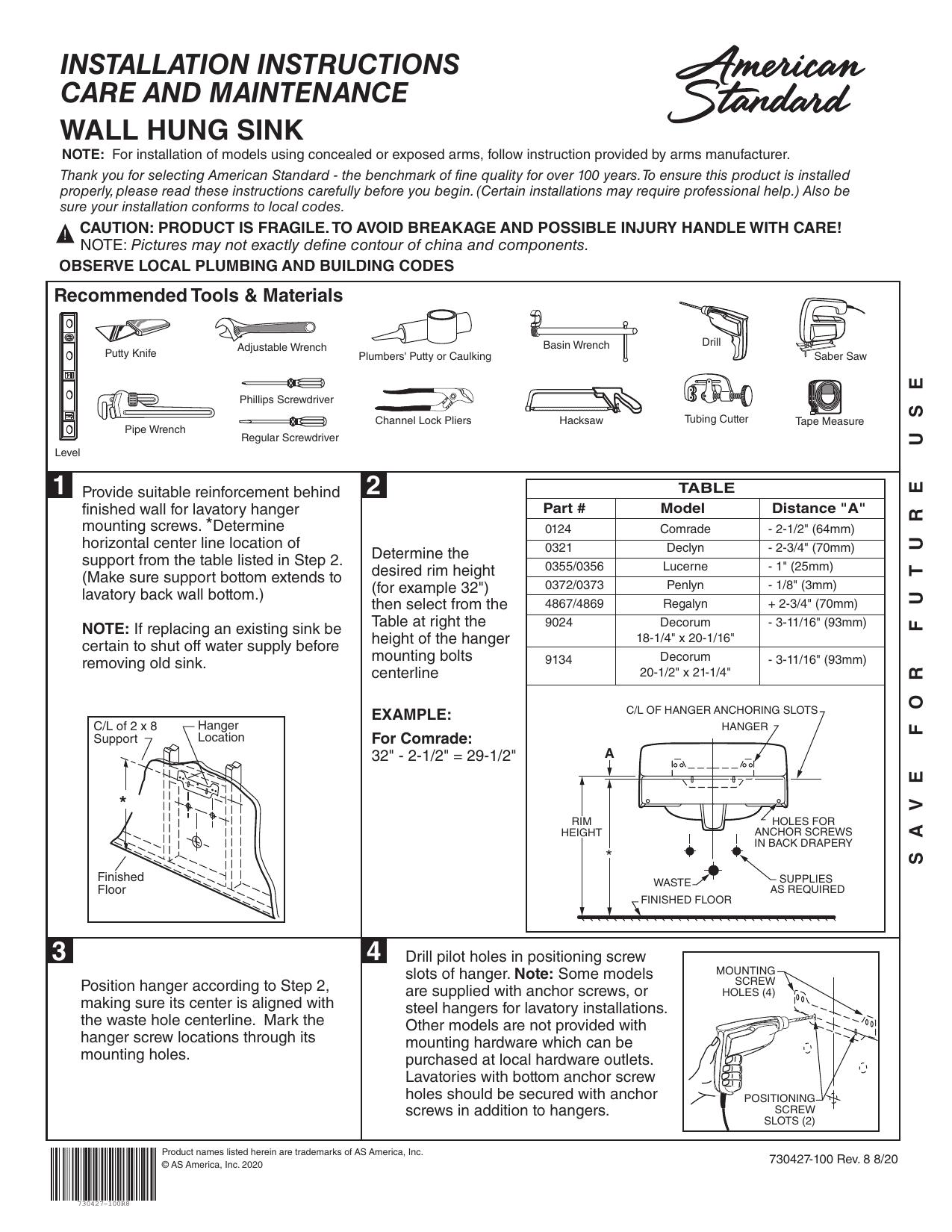

Installation Instructions
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
There are no design files currently available for this product
There are no videos currently available for this product
3D Objects are not currently available for this product
