Lucerne

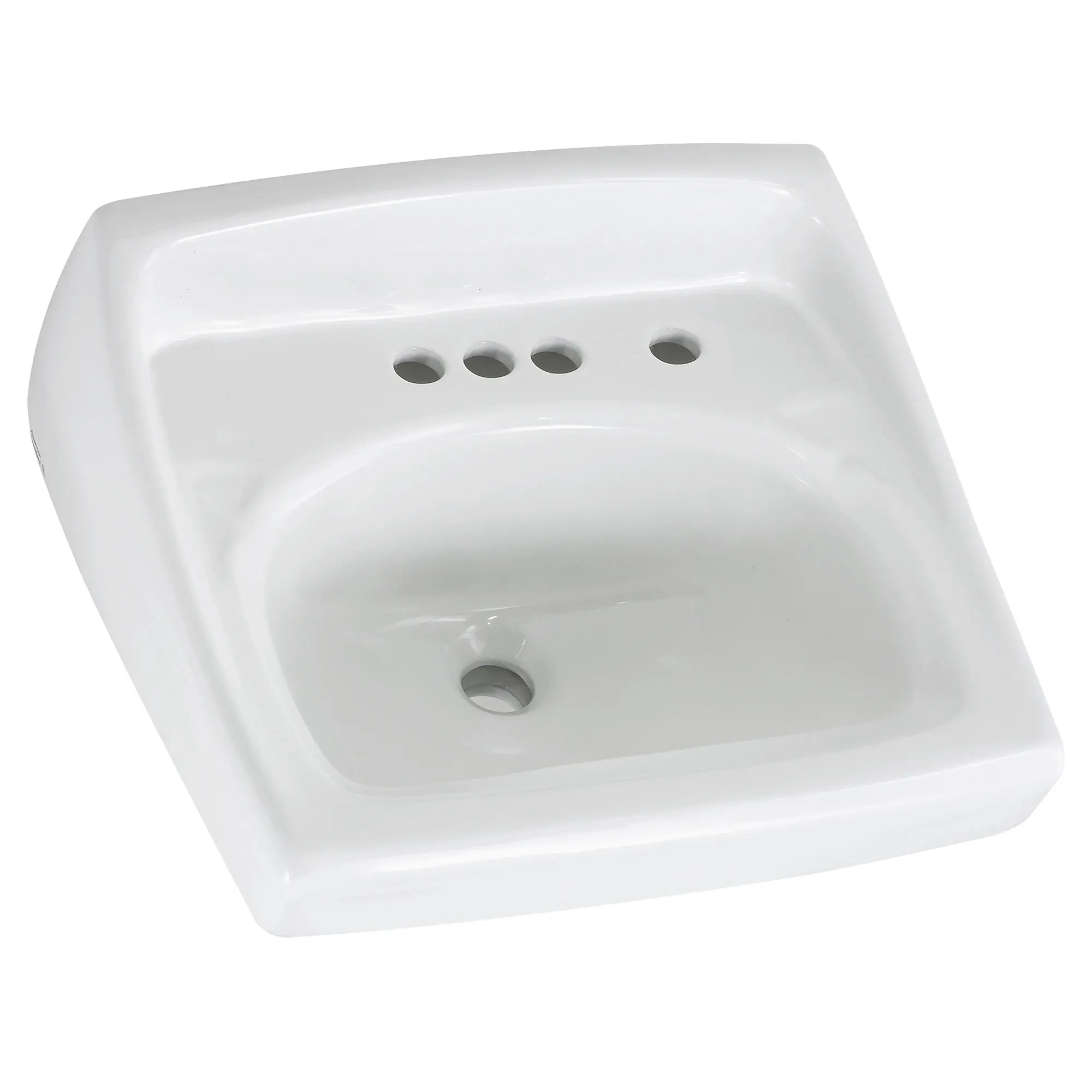

Lucerne® Wall-Hung Sink With 4-Inch Centerset and Extra Right-Hand Hole

American Standard - Style That Works Better. Lucerne's Unique D shaped Bowl has a smooth self draining deck area with contoured back and side splash shields. Meets ADA requirements when installed at a height according to guidelines.

White 0355034.020 DISCONTINUED
List Price: $135.00
ADA Compliant Environmental Product Declaration
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Wall-hung sink
  • For wall hanger (included) or concealed arms by others
  • Faucet holes on 4" (102 mm) centers
  • D-shaped bowl
  • Front overflow
  • Self-draining deck area with contoured back and side splash shields
  • Faucet ledge
  • Made of vitreous china
  • Long shank soap/lotion dispenser required (by others)
  • Extra hole measures 1-3/8" (35 mm) diameter
Technical Features
  • Wall-hung sink
  • For wall hanger (included) or concealed arms by others
  • Faucet holes on 4" (102 mm) centers
  • D-shaped bowl
  • Front overflow
  • Self-draining deck area with contoured back and side splash shields
  • Faucet ledge
  • Made of vitreous china
  • Long shank soap/lotion dispenser required (by others)
  • Extra hole measures 1-3/8" (35 mm) diameter
Description
Net Weight
SKU
Color
List Price USD
Lucerne® Wall-Hung Sink With 4-Inch Centerset and Extra Right-Hand Hole
42 lb (19.0 kg)
0355034.020
White (020)
135
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Front To Back Length: 10
Side to Side Width: 15
Top to Bottom Depth: 6-1/2
Brand: American Standard
Category: Commercial Washbasins
Color / Finish: White
Collections: Lucerne
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Length: 18-1/4
Width: 21-1/4
Residential or Commercial: Commercial
Sink Depth (to overflow): 1-5/8
Sink Width (front to back): 18-1/4
Sink Length (left to right): 21-1/4
Sink Shape: Rectangle
Sink Depth: 12.125
Subcategory: Commercial Wall Hung Washbasin
Warranty: Limited Lifetime Warranty
Download All Supporting Documents

Specification Sheet

Installation Instructions

Environmental Product Declaration
Download All Design Files
2D CAD Files
.dwg icon 2D CAD File
There are no videos currently available for this product
3D Objects are not currently available for this product
