Lucerne

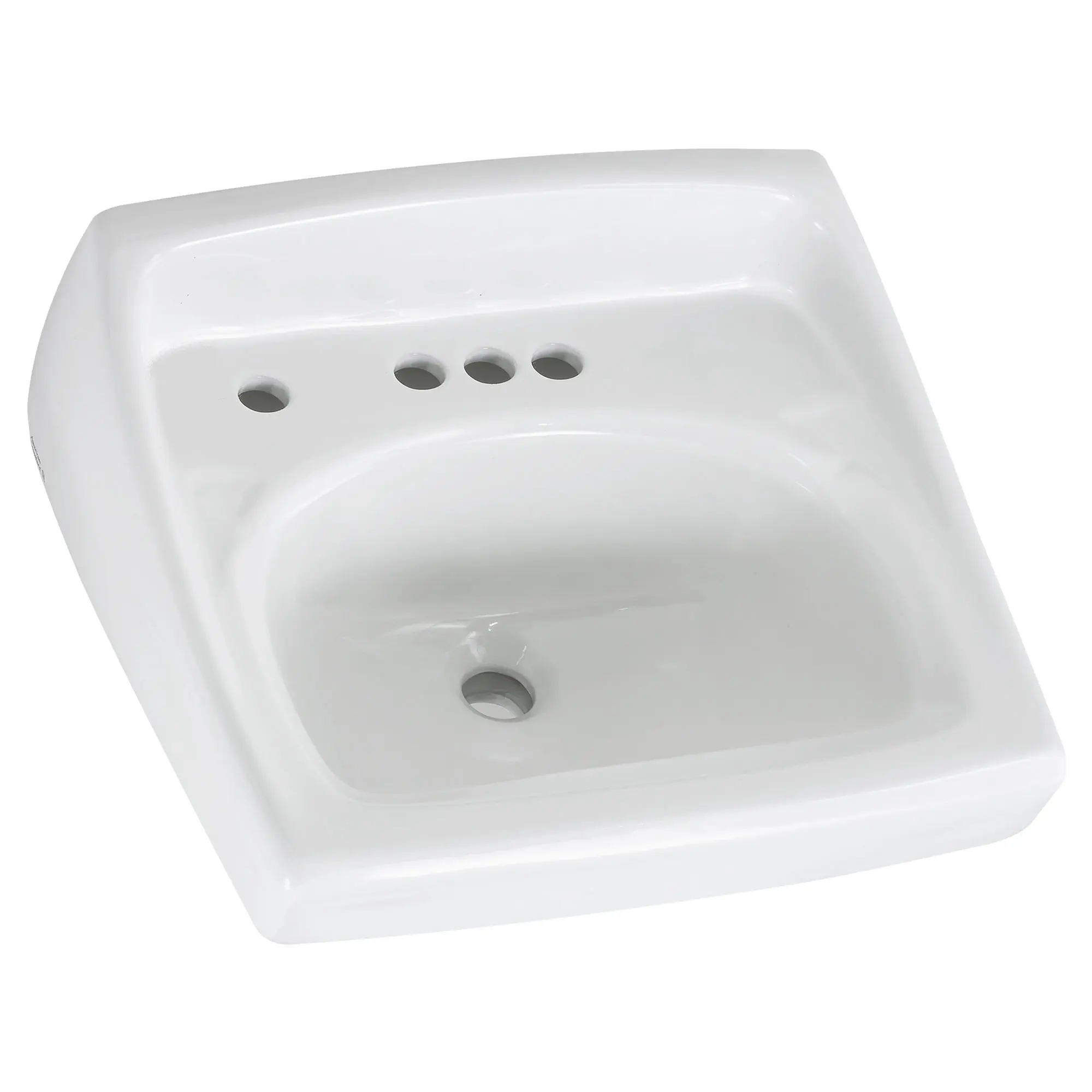

Lucerne Wall-Hung Sink With 4-Inch Centerset and Extra Left-Hand Hole

0355056.020 DISCONTINUED
List Price: $0.00
ADA Compliant Environmental Product Declaration
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Wall-hung sink
  • For wall hanger (included) or concealed arms by others
  • Faucet holes on 4" (102 mm) centers
  • D-shaped bowl
  • Front overflow
  • Self-draining deck area with contoured back and side splash shields
  • Faucet ledge
  • Made of vitreous china
  • Long shank soap/lotion dispenser required (by others)
  • Extra hole measures 1-3/8" (35 mm) diameter
Technical Features
  • Wall-hung sink
  • For wall hanger (included) or concealed arms by others
  • Faucet holes on 4" (102 mm) centers
  • D-shaped bowl
  • Front overflow
  • Self-draining deck area with contoured back and side splash shields
  • Faucet ledge
  • Made of vitreous china
  • Long shank soap/lotion dispenser required (by others)
  • Extra hole measures 1-3/8" (35 mm) diameter
Nominal Dimensions: 18-1/4 in x 21-1/4 in x 12 in (464 mm x 540 mm x 305 mm)
Description
Net Weight
SKU
Color
List Price USD
Lucerne Wall-Hung Sink With 4-Inch Centerset and Extra Left-Hand Hole
42 lb (19.0 kg)
0355056.020 *
0


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Front To Back Length: 10
Side to Side Width: 14-7/8
Top to Bottom Depth: 6-1/2
Brand: American Standard
Category: Commercial Washbasins
Color / Finish: White (020)
Collections: Lucerne
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Height: 12
Height: 12
Length: 18-1/4
Width: 21-1/4
Residential or Commercial: Commercial
Sink Depth (to overflow): 1-5/8
Sink Width (front to back): 18-1/4
Sink Length (left to right): 21-1/4
Sink Shape: Semicircle
Sink Depth: 7-3/8
Subcategory: Commercial Wall Hung Washbasin
Warranty: Limited Lifetime Warranty
Download All Supporting Documents

Specification Sheet

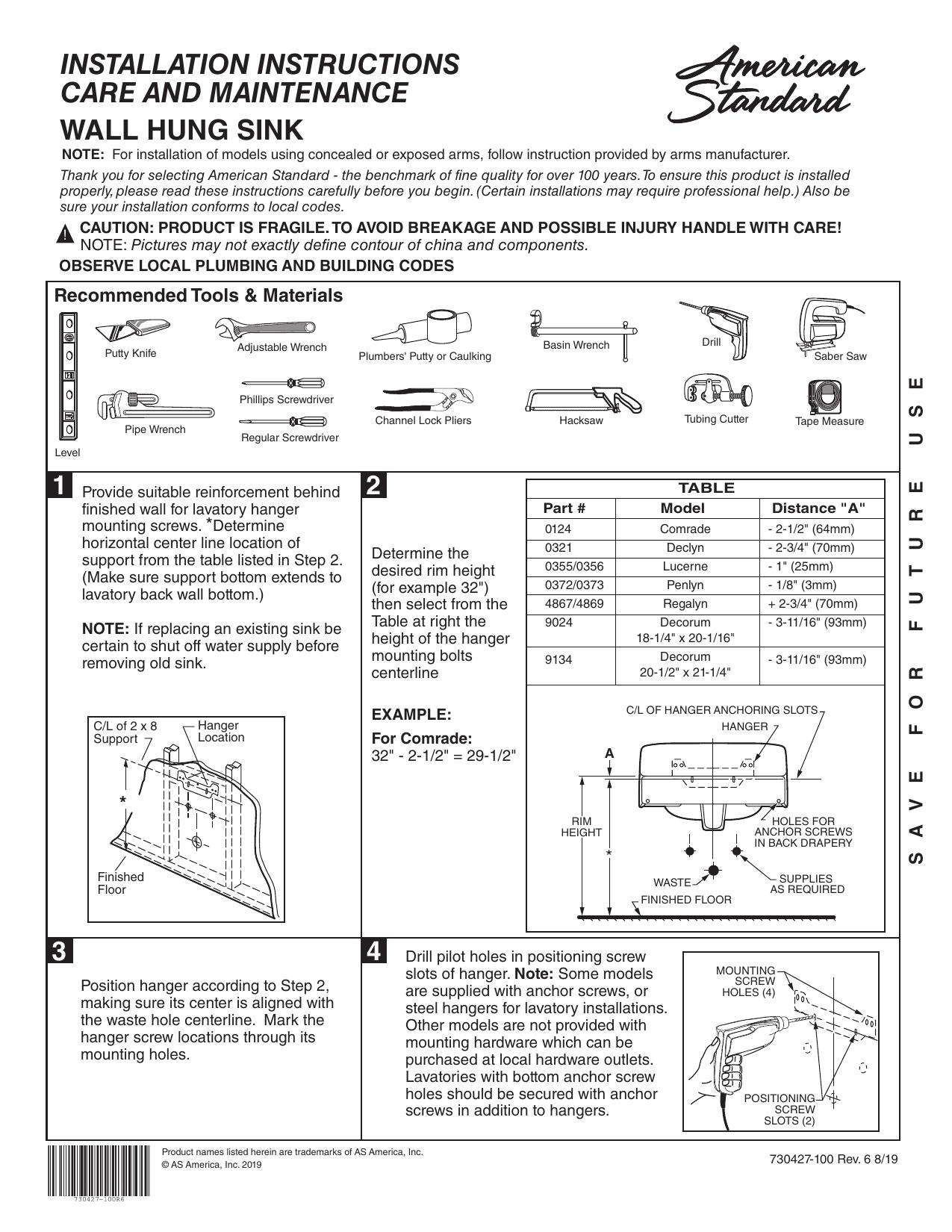

Installation Instructions

Environmental Product Declaration
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
2D CAD Files
.dwg icon 2D CAD File
There are no videos currently available for this product
3D Objects are not currently available for this product
