Solenoid + Thermostatic Mixing Valve Control Box, Dual Inlet

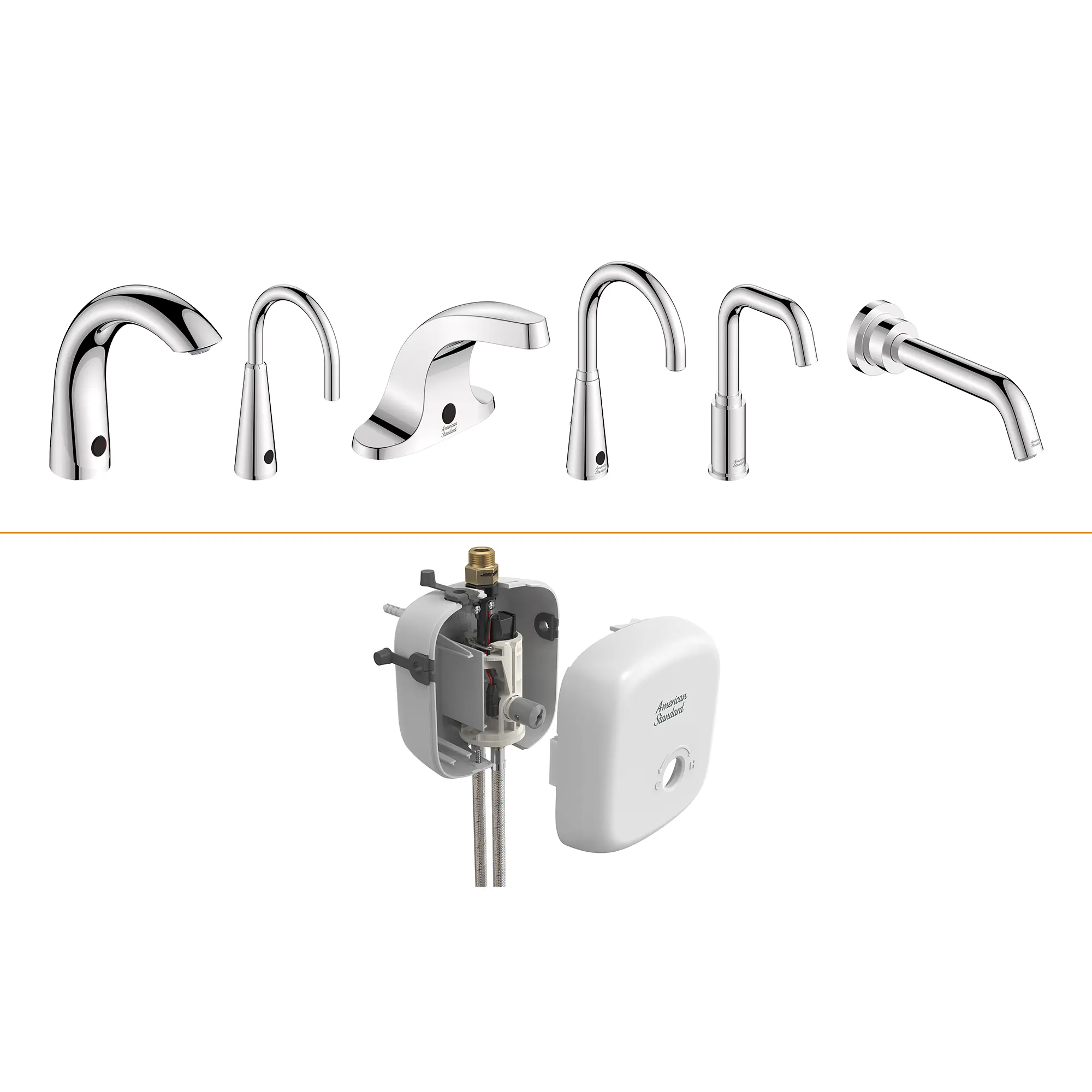

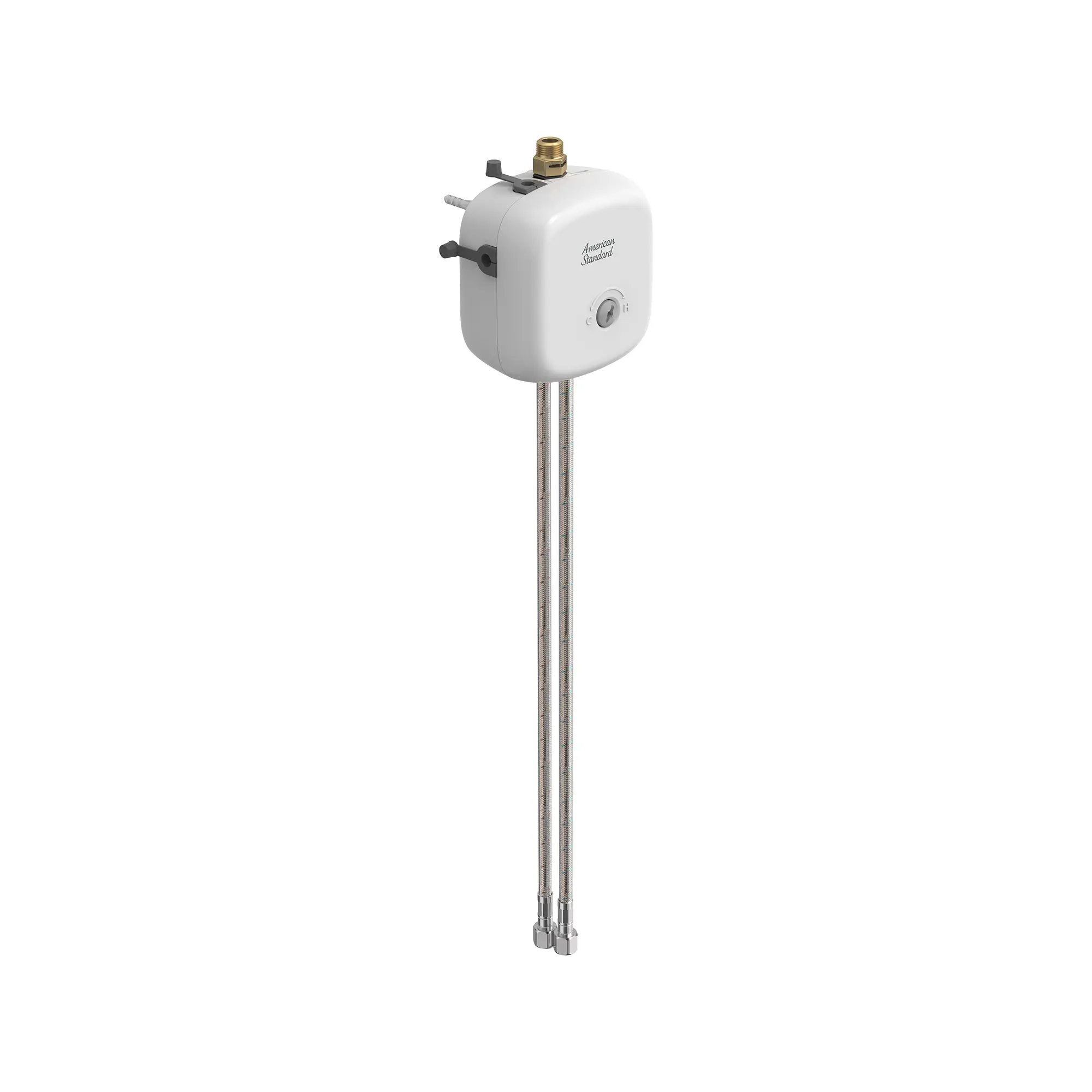

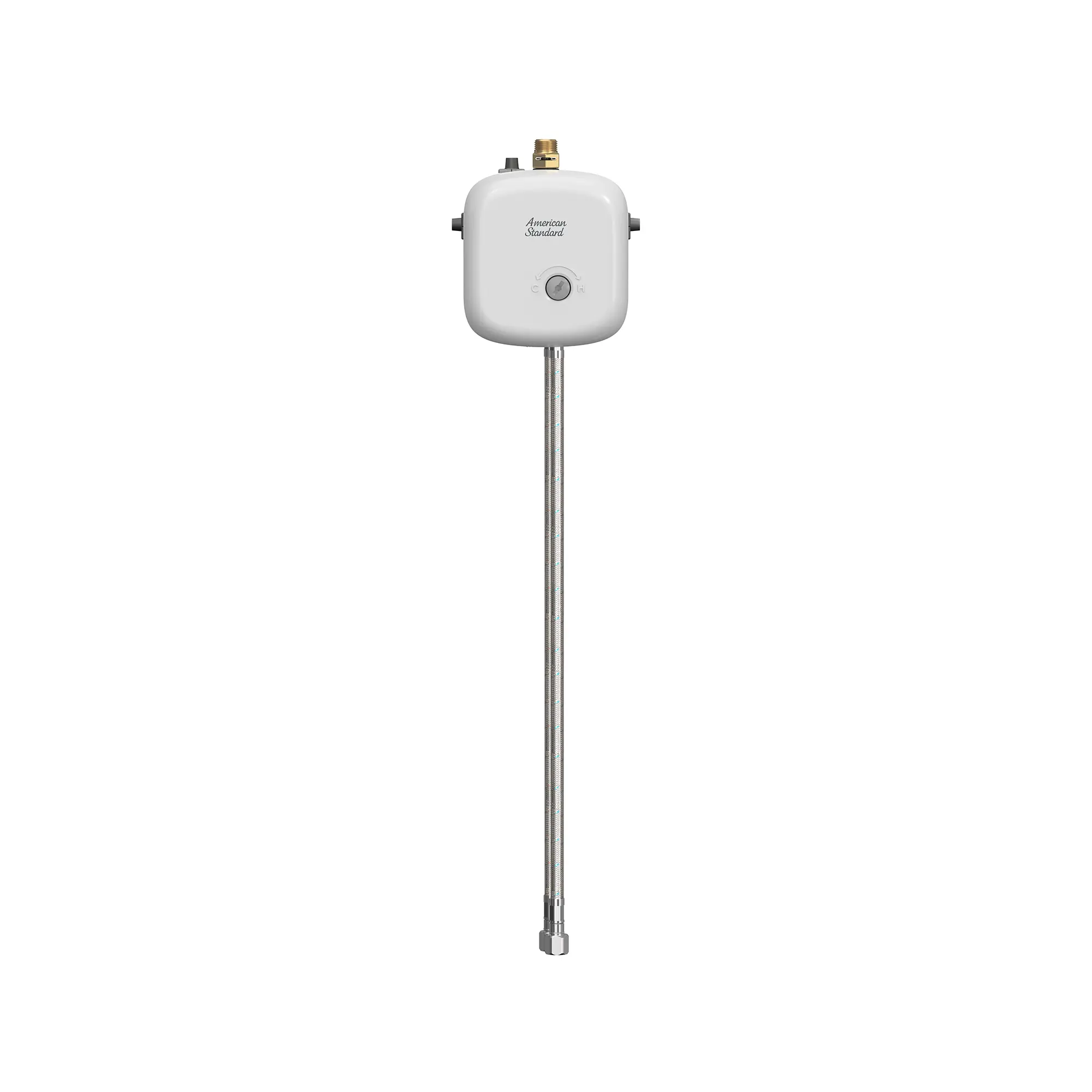

The Solenoid + Thermostatic Mixing Valve Control Box with Dual Inlet from American Standard is designed for easy installation and compatibility with an array of sensor faucet spouts and power supplies, each required and sold separately. The dual inlet control box includes the dependable SmarTherm thermostatic mixing valve, eliminating the need for a separate thermostatic valve box. The SmarTherm hot water temperature limiter provides optimal anti-scald protection, an automatic feature essential on sensor faucets, and is ASSE 1070 certified. The control box is interchangeable with existing sensor faucets and power supplies.

Features
  • SINGLE BOX SOLUTION: Control box houses thermostatic mixing valve and power source to eliminate the need for a secondary box and make installations and maintenance quick and easy
  • SIMPLIFIED MODULAR PLATFORM: Choose faucet style, add control box, and choose power supply to create the precise combination for every installation and make ordering easy. Each component is sold separately.
  • PROTECTION FROM DEBRIS: Filter protects mixing valve from debris buildup that can cause poor operation and clogs
  • LEAD COMPLIANT: Meets new NSF lead regulation
  • EASE OF AFTER SERVICE CARE: Control box houses mixing valve and power source in one compact unit for easy access
  • WORKS WITH EXISTING PRODUCTS: Updates are quick and easy so downtime is held to a minimum
  • COMPATIBILITY CHOICES: Choose from 6 faucet styles and 5 power options
Technical Features
  • Below deck thermostatic water mixing valve to be used with sensor faucets.
  • Anti-scald protection
  • Built-in check valves prevent cross-flow
  • 3/8" Stainless steel compression flex hoses, 20" length included
  • Lead Free: Valve contains = 0.1% to 0.25% total lead content by weighted average
  • ASSE 1070 certified down to 0.35 gpm
There are no additional components to display for this product
Brand: American Standard
Category: Commercial Components Other
Collections: Selectronic
Height: 597
Length: 99
Width: 132
Residential or Commercial: Commercial
Subcategory: Commercial Components
