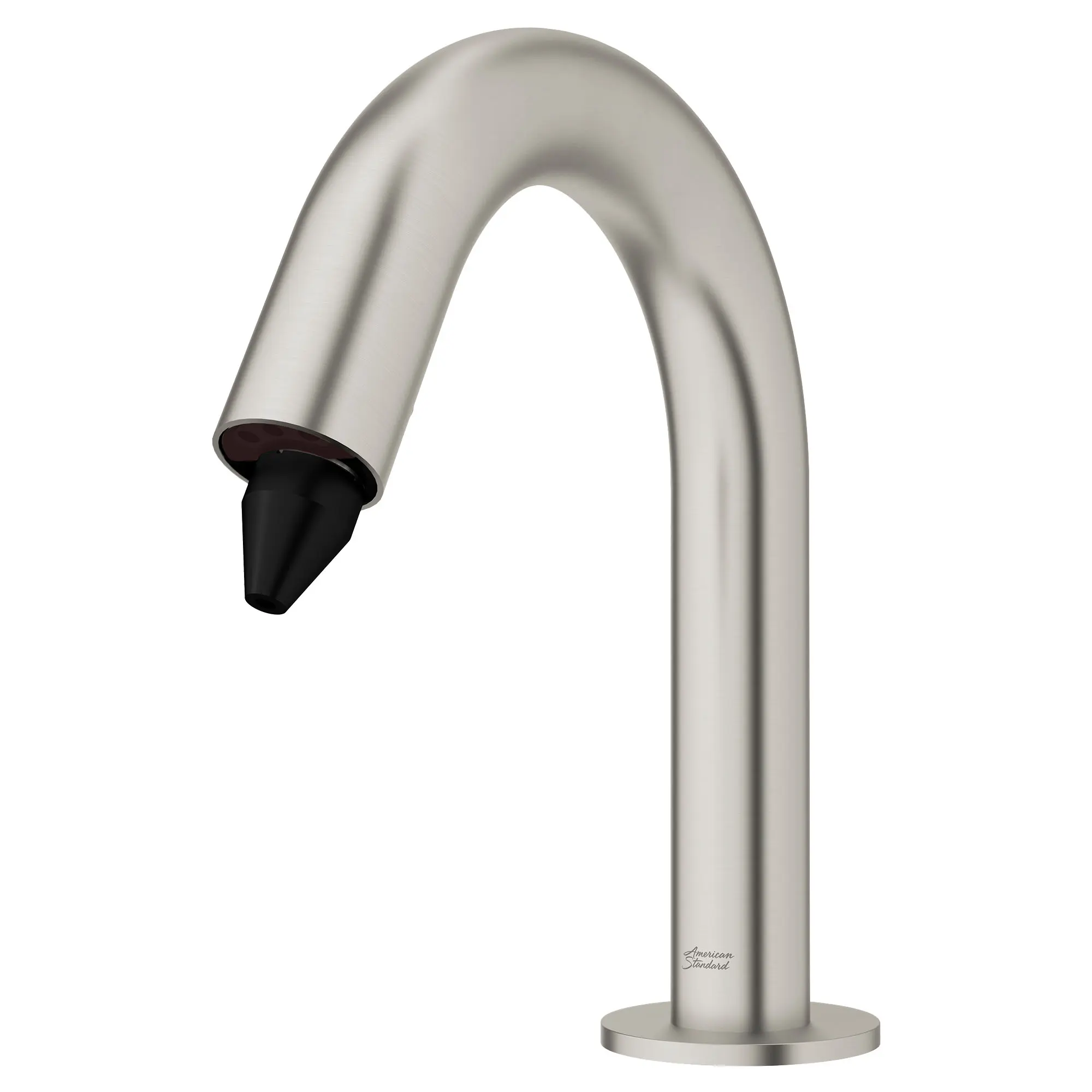

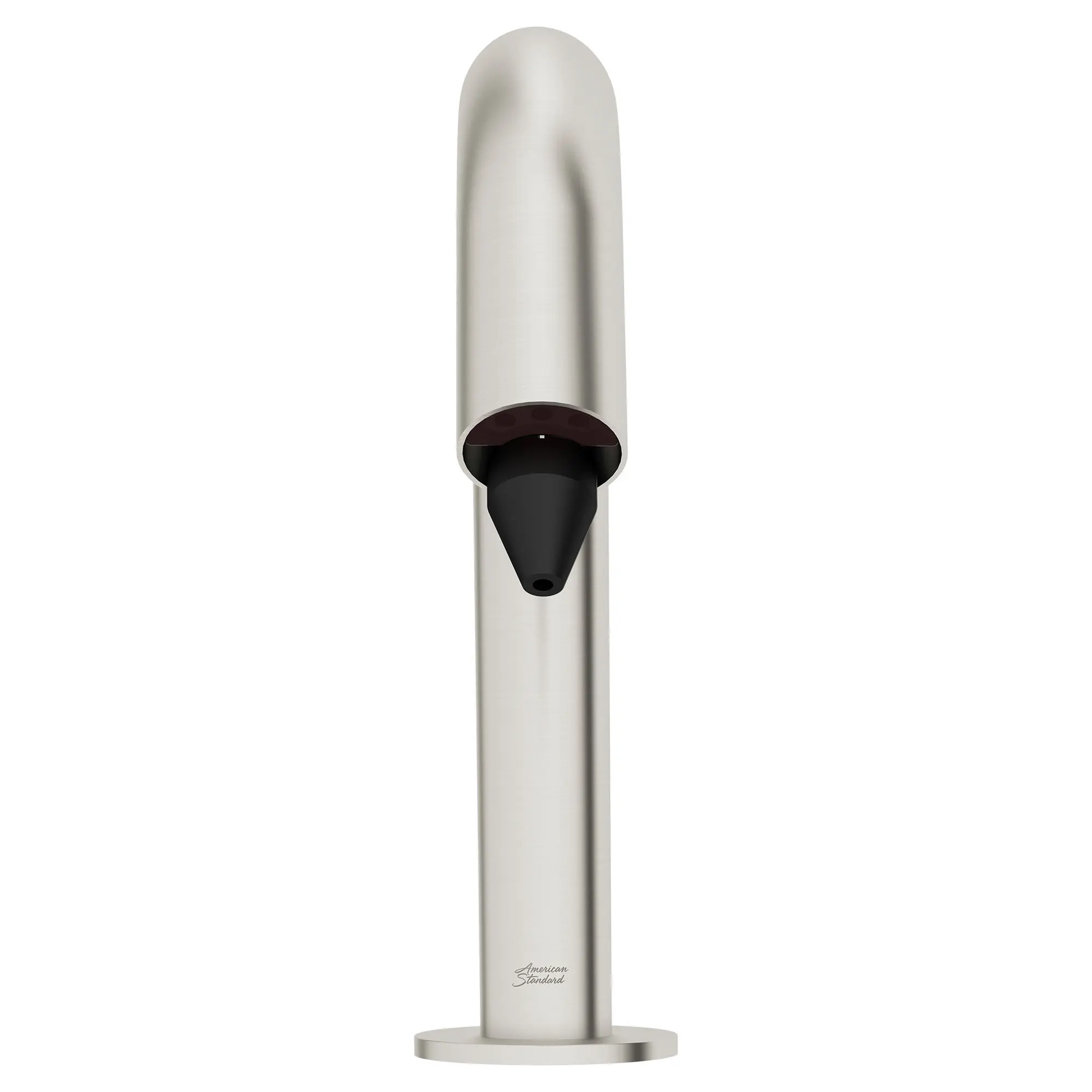

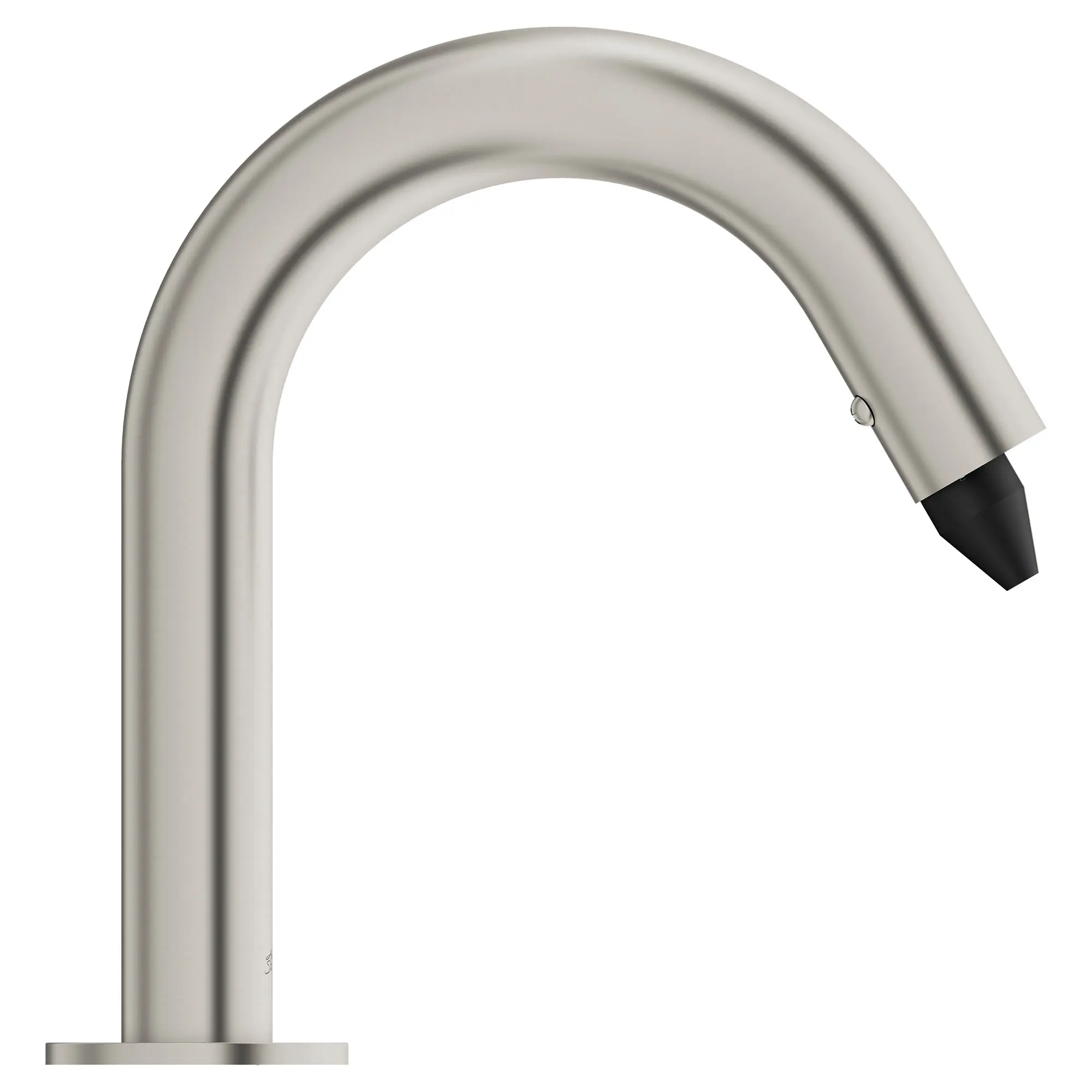

Touchless Sensor-Operated Foam Soap Dispenser, Battery Powered

The Touchless Foam Soap Dispenser from American Standard reduces the transmission of germs by eliminating a common bathroom touchpoint. Sleek, contemporary and backed by 150 years of American Standard reliability, this infrared dispenser is compatible with soap that meets viscosity requirements; no custom soap needed. With no-touch convenience, it releases a luxurious cleansing foam resulting in a more hygienic bathroom experience. Available with battery or AC power options to accommodate specific needs.

Brushed Nickel 7770100.295 DISCONTINUED
List Price: $691.00
ADA Compliant
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • CONTEMPORARY DESIGN — Sleek profile enhances every bathroom décor and complements American Standard touchless faucets
  • SOAP COMPATIBILITY — Uses any brand of foam soap that meets viscosity requirements; no custom soaps needed
  • LUXURIOUS FOAM SOAP — Air infused foam soap generator with 4 adjustable foam volume settings
  • EASY TO REFILL — 1.8L soap bottle with quick release button for convenient removal to fill and replace
  • DURABLE CONSTRUCTION — Brass body and shank ensure long-lasting performance
  • POWER OPTIONS — Battery-powered option includes 4 D-sized alkaline batteries; the AC option uses the existing American Standard plug-in or hard-wired power supplies, sold separately. One AC power kit can power the faucet and soap dispenser
Technical Features
  • Touchless operation limits the spread of germs
  • Uses universal bulk foam soap instead of proprietary cartridges
  • Soap Viscosity Range: 1 - 20 centipoise (cps)
  • Portion Control: 4 options to set the amount of soap dispensed per activation. Maximum of 1,800 portions per 1.8L bottle
  • Initialization Mode: Simplifies start-up by pumping soap through system
  • Includes 4 D-sized alkaline batteries
  • Battery Life: 100,000 uses
  • Low Battery Indicator: Blinks every 2 seconds
  • Includes 1,800 ml soap bottle with quick disconnect
  • Optional shank extension (8888004.002) available for thicker mounting surfaces
Nominal Dimensions: 6-1/2 in x 2 in x 6-3/4 in (165 mm x 51 mm x 171 mm)
Description
Net Weight
SKU
Color
List Price USD
Touchless Sensor-Operated Foam Soap Dispenser, Battery Powered
6 lb (2.6 kg)
7770100.295
Brushed Nickel (295)
691
7770100.002
Chrome (002)
594
Optional Components (Not Included)
Shank Extension for Touchless Soap Dispenser
0 lb (0.1 kg)
8888004.002
Chrome
27
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Batteries Included: Yes
Batteries Required: Yes
Brand: American Standard
Category: Commercial Fittings
Color / Finish: Brushed Nickel
Collections: Selectronic
Fitting Material: Brass
Touchless: Touchless
Fixture or Fitting Material: Brass
Number of Batteries Included: 4
Height: 6-3/4
Length: 6-1/2
Width: 2
Residential or Commercial: Commercial
Subcategory: Sensor Commercial Fittings
Download All Supporting Documents

Specification Sheet

Installation Instructions

Replacement Parts
