Serin® Touchless Wall-Mount Trim, Base Model, 0.35 gpm/1.3 Lpm

The Serin Wall-Mount Touchless Faucet from American Standard is part of our simplified 3-step modular ordering process for sensor faucets. Choose a faucet style, control box and power supply to meet the specific needs of every installation. This touchless faucet is a streamlined design that features a self-adjusting sensor in the tip of the spout that sets the activation range upon start-up by evaluating sink size and other factors. Hidden sensor and durable brass body reduces vandalism in high-traffic applications. Designed for easy installation and compatibility with solenoid only or solenoid + thermostatic mixing valve control box, and choice of power supply, each required and sold separately. Also requires rough-in valve R350, sold separately.

Order all 3 components—Faucet, Control Box, and Power Source—for a seamless installation.

Download the PDF for detailed instructions, or visit the Components tab below the product description to view all required items.

Features
  • SIMPLIFIED MODULAR PLATFORM: Choose faucet style, control box with solenoid or thermostatic mixing valve, and choice of power supply to create the precise combination for every installation and make ordering easy. Each component is sold separately.
  • DEPENDABLE ACTIVATION: Sensor located in the tip of the spout detects hand motion to turn water on and off
  • EASY REACH ADJUSTMENT: Can be adjusted from 6-in. to 9-in. from wall to outlet
  • AUTO PURGE: Faucet can be programmed to open at a pre-determined time after last use to purge the faucet and water lines of stagnant water
  • AUTO SHUT-OFF: Safety timer turns faucet off after 55 seconds to avoid overflow and water waste
  • COMPATIBILITY CHOICES: Choose solenoid or mixing valve control box, and 5 power options
Technical Features
  • CONTROL BOX MUST BE PURCHASED SEPARATELY
  • POWER KIT MUST BE PURCHASED SEPARATELY
  • R350 rough valve must be purchased separately
  • Touchless operation limits the spread of germs
  • Sensor in spout tip for streamlined style and reduced vandalism
  • Self-adjusting sensor automatically sets range for optimum performance
  • Adjustable Spout Reach: Easily adjustable from 6" (152 mm) – 9" (229 mm)
  • Vandal-resistant brass spout
  • Safety Timer: Automatically turns water off after 55 seconds
Description
Net Weight
SKU
Color
List Price USD
Serin® Touchless Wall-Mount Trim, Base Model, 0.35 gpm/1.3 Lpm
2 lb (1.1 kg)
Chrome (002)
422
Brushed Nickel (295)
650

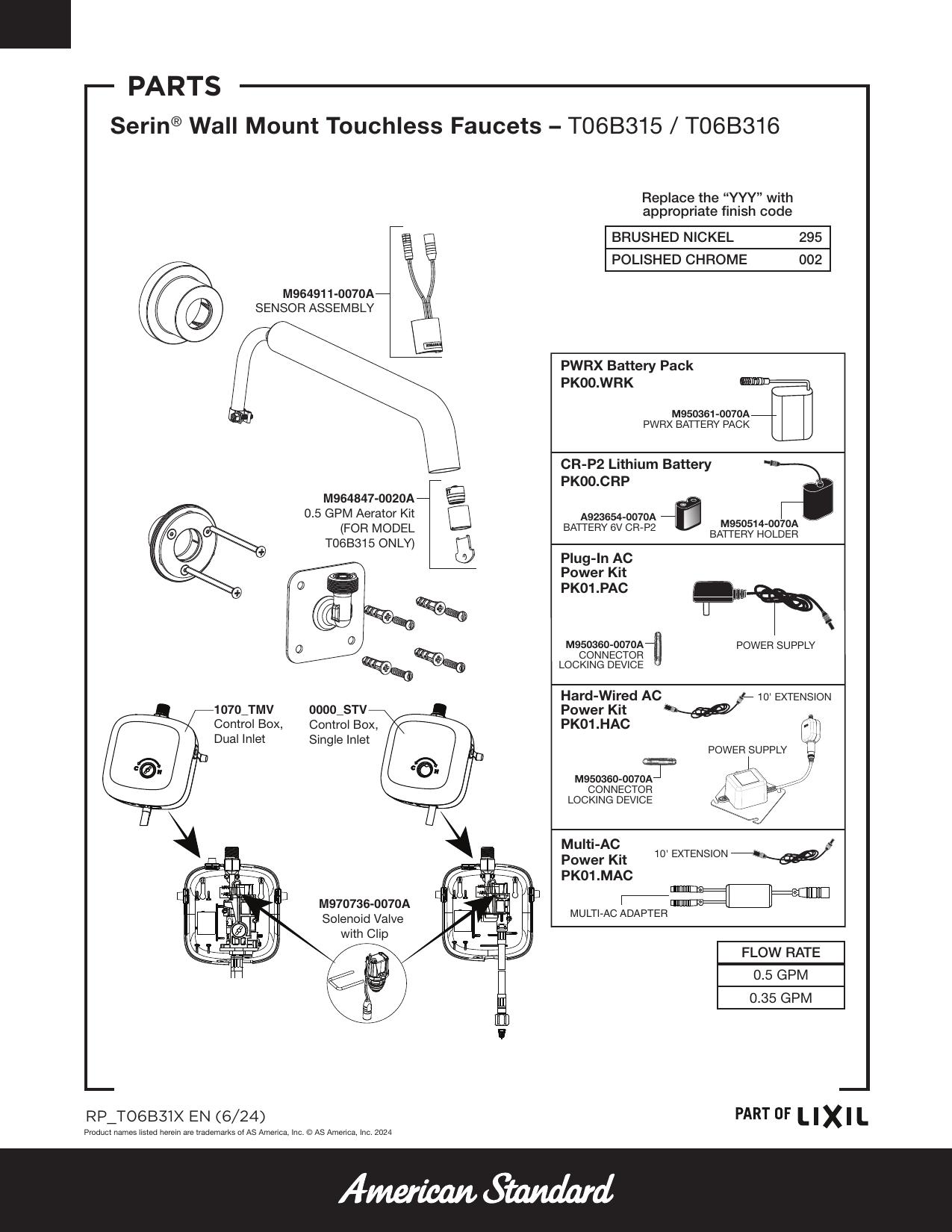

Required Components (Not Included)
Solenoid Only Control Box, Single Inlet
1 lb (0.4 kg)
270
spacer
Solenoid + Thermostatic Mixing Valve Control Box, Dual Inlet
1 lb (0.5 kg)
448
spacer
Selectronic® CR-P2 Lithium Power Kit
0 lb (0.2 kg)
No Finish
46
spacer
Selectronic® PWRX Power Kit
0 lb (0.2 kg)
No Finish
172
spacer
Selectronic® Hard Wired AC Power Kit
1 lb (0.3 kg)
No Finish
140
spacer
Selectronic® Multi-AC Power Kit
0 lb (0.1 kg)
No Finish
78
spacer
Selectronic® Plug-In AC Power Kit
1 lb (0.4 kg)
No Finish
102
spacer
Rough Valve for Serin Wall-Mount Faucet
3 lb (1.5 kg)
No Finish
146
Optional Components (Not Included)
Selectronic® Battery Back-Up Kit
0 lb (0.1 kg)
No Finish
96
Batteries Required: Yes
Brand: American Standard
Category: Commercial Fittings
Color / Finish: Chrome
Collections: Serin
Fitting Material: Brass and Metal,Zinc,Plastic
Spout Type: Shower/tub diverter
Touchless: Touchless
Fixture or Fitting Material: Brass and Metal<multisep/>Zinc<multisep/>Plastic
Gallons Per Minute (min-max): 0.35 GPM
Height: 85
Length: 242
Width: 70
Residential or Commercial: Commercial
Subcategory: Sensor Commercial Fittings
Warranty: 5 Year Limited Warranty
