Selectronic

Selectronic® Cast Touchless Faucet, Base Model, 0.5 gpm/1.9 Lpm

The Selectronic Cast Touchless Faucet from American Standard is part of our simplified 3-step modular ordering process for sensor faucets. Choose a faucet style, control box and power supply to meet the specific needs of every installation. This touchless faucet features a durable brass body, programmable, multifunction IR sensor, and optional auto purge to clear the faucet and water lines of stagnant water. Designed for easy installation and compatibility with solenoid only or solenoid + thermostatic mixing valve control box, and choice of power supply, each required and sold separately.

Order all 3 components—Faucet, Control Box, and Power Source—for a seamless installation.

Download the PDF for detailed instructions, or visit the Components tab below the product description to view all required items.

Chrome 605B115.002 DISCONTINUED
List Price: $318.00
Items REQUIRED for Install
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • SIMPLIFIED MODULAR PLATFORM: Choose faucet style, control box with solenoid or thermostatic mixing valve, and choice of power supply to create the precise combination for every installation and make ordering easy. Each component is sold separately.
  • DEPENDABLE ACTIVATION: Infrared sensor detects hand motion to turn water on and off and can be programmed with optional remote control
  • AUTO PURGE: Faucet can be programmed to open at a pre-determined time after last use to purge the faucet and water lines of stagnant water
  • AUTO SHUT-OFF: Safety timer turns faucet off after 55 seconds to avoid overflow and water waste
  • SINGLE-HOLE INSTALLATION: Can also accommodate multi-hole installation with optional 4-in. or 8-in. deck plates, sold separately
  • COMPATIBILITY CHOICES: Choose solenoid or mixing valve control box, and 5 power options
Technical Features
  • CONTROL BOX MUST BE PURCHASED SEPARATELY
  • POWER KIT MUST BE PURCHASED SEPARATELY
  • Touchless operation limits the spread of germs for a safer restroom
  • Vandal-resistant cast spout with single-hole installation
  • Adjustable Range: Detection zone can be adjusted manually or with optional remote control
  • Safety Timer: Automatically turns water off after 30 seconds
  • Auto Purge: Faucet can be programmed to periodically purge stagnant water
  • Fail-Safe Technology: Faucet automatically shuts off upon loss of power or dead battery
  • Optional deck plates and remote control available (sold separately)
Description
Net Weight
SKU
Color
List Price USD
Selectronic® Cast Touchless Faucet, Base Model, 0.5 gpm/1.9 Lpm
3 lb (1.4 kg)
605B115.002
Chrome (002)
318
Required Components (Not Included)
Solenoid Only Control Box, Single Inlet
1 lb (0.4 kg)
0000_STV
270
spacer
Solenoid + Thermostatic Mixing Valve Control Box, Dual Inlet
1 lb (0.5 kg)
1070_TMV
448
spacer
Selectronic® CR-P2 Lithium Power Kit
0 lb (0.2 kg)
PK00.CRP
No Finish
46
spacer
Selectronic® PWRX Power Kit
0 lb (0.2 kg)
PK00.WRK
No Finish
172
spacer
Selectronic® Hard Wired AC Power Kit
1 lb (0.3 kg)
PK01.HAC
No Finish
140
spacer
Selectronic® Multi-AC Power Kit
0 lb (0.1 kg)
PK01.MAC
No Finish
78
spacer
Selectronic® Plug-In AC Power Kit
1 lb (0.4 kg)
PK01.PAC
No Finish
102
Optional Components (Not Included)
Selectronic® 4-Inch Deck Plate
1 lb (0.2 kg)
605P400.002
Chrome
47
spacer
Selectronic® 8-Inch Deck Plate
2 lb (0.7 kg)
605P800.002
Chrome
87
spacer
Selectronic® Battery Back-Up Kit
0 lb (0.1 kg)
PK00.BBU
No Finish
96
Download Specification Sheet
Brand: American Standard
Category: Commercial Fittings
Color / Finish: Chrome
Collections: Selectronic
Gallons Per Minute (min-max): 0.5 GPM
Residential or Commercial: Commercial
Subcategory: Sensor Commercial Fittings
Warranty: 5 Year Limited Warranty
Download All Supporting Documents

Specification Sheet

Installation Instructions

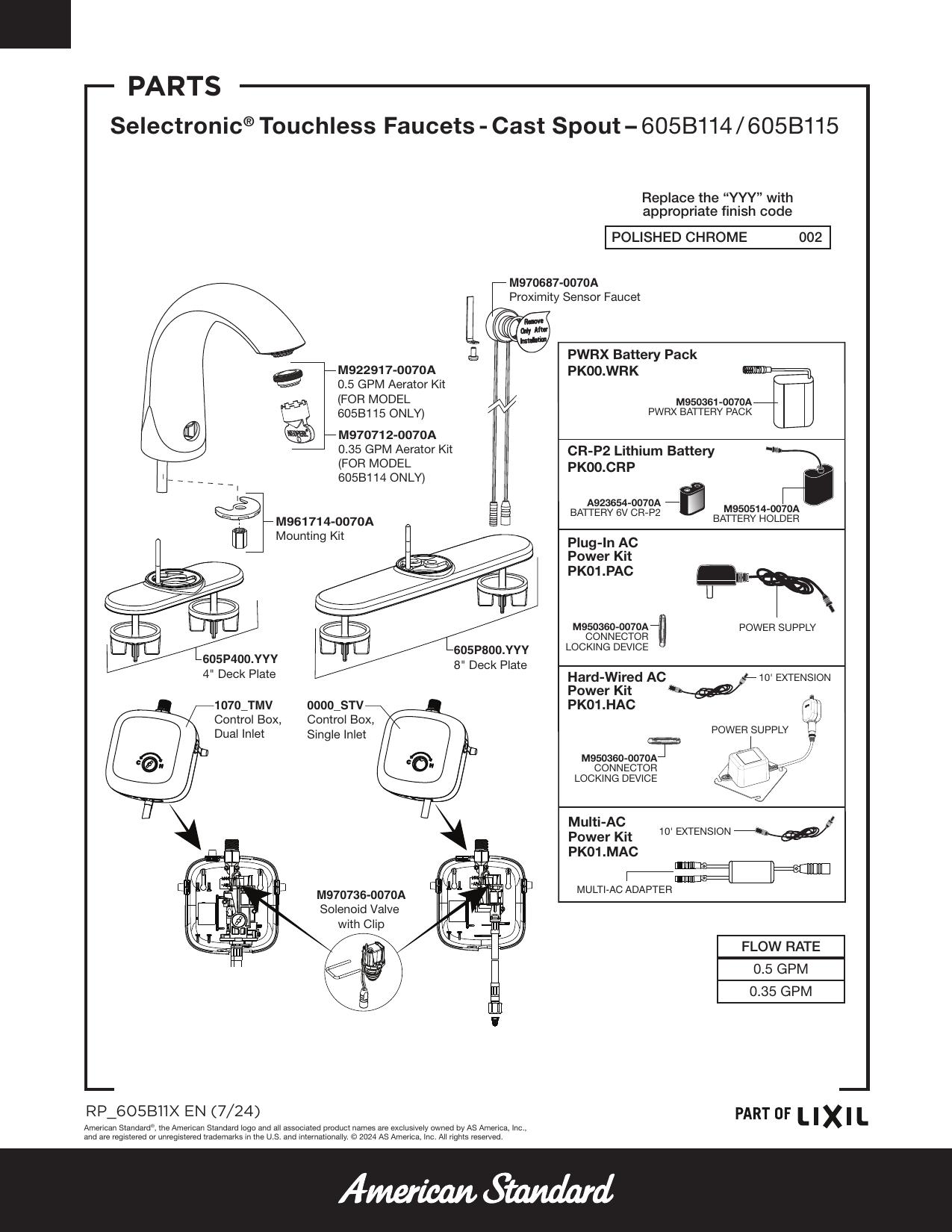

Replacement Parts
There are no design files currently available for this product
There are no videos currently available for this product
3D Objects are not currently available for this product
