Selectronic

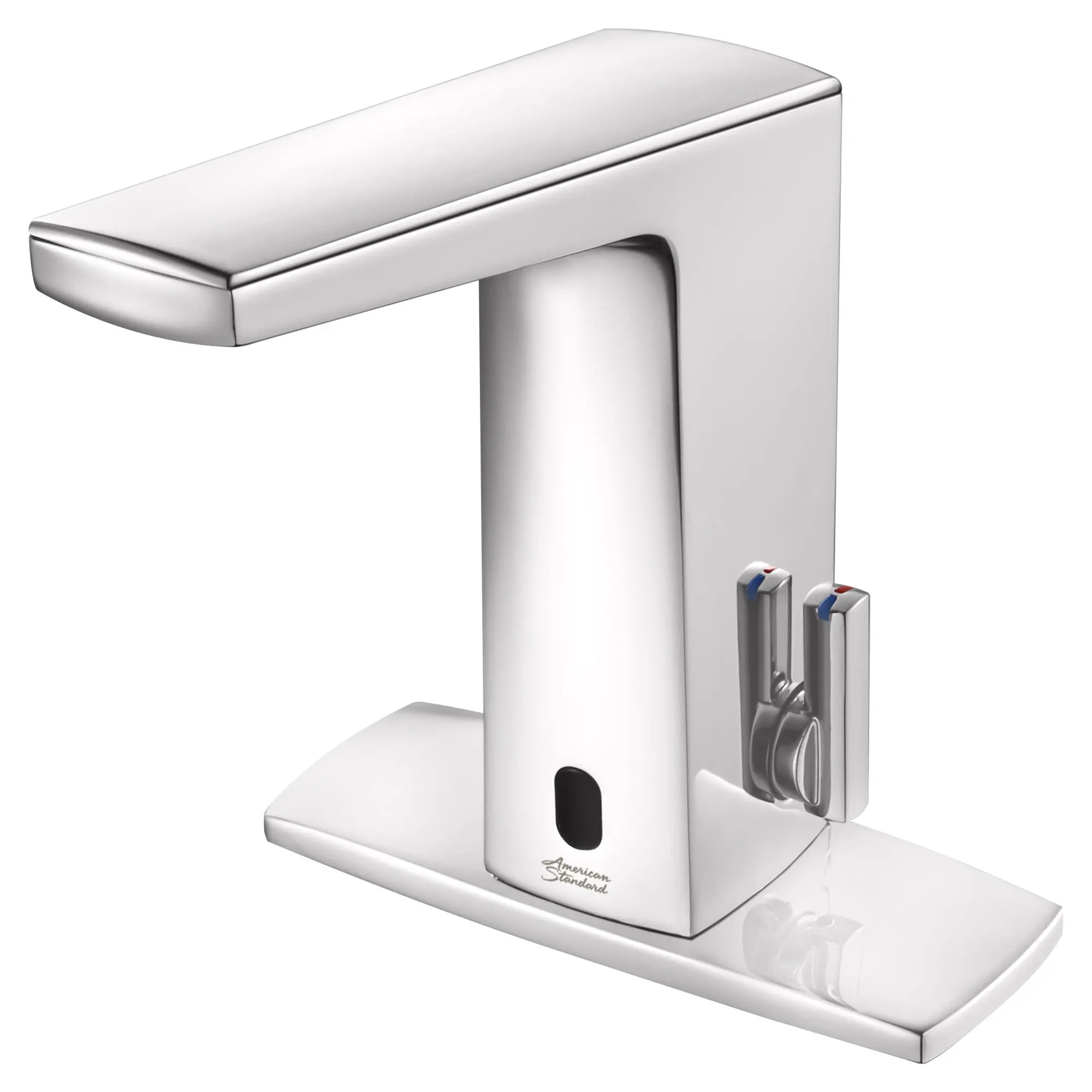

Paradigm® Selectronic® Touchless Faucet, Battery-Powered With SmarTherm Safety Shut-Off + ADM, 1.5 gpm/5.7 Lpm

Sleek and streamlined, the Paradigm Selectronic Integrated Faucet from American Standard takes a cue from modern design. It features the patented SmarTherm® Safety-Shut Off which is ASSE 1070 certified and automatically protects the user from scalding. The simple integrated design, with all electronics in the spout, is engineered for easy installation and maintenance to save time and money. It eliminates the control box and provides for a clean, clutter-free under-deck space. Available in Chrome and Brushed Nickel.

Chrome 7025315.002 DISCONTINUED
List Price: $627.00
ADA Compliant Water Efficient
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • 6-Year CR-P2 lithium battery installed in faucet
  • Touchless operation limits the spread of germs
  • SmarTherm® safety shut-off prevents accidental scalding. ASSE 1070 certified
  • Above-deck mixing with removable handle
  • Dual inlets for hot and cold water
  • Clean, integrated design. No control box below deck.
  • Easy installation and maintenance: Faucet installs from the top. All serviceable parts are easily accessible
  • Auto Purge: Periodically purges stagnant water
  • Vandal-resistant 1.5 gpm/5.7 Lpm pressure-compensating laminar flow outlet
  • Optional deck plate for 4-inch (102 mm) or 8-inch (203 mm) centers available
Technical Features
  • 6-year CR-P2 lithium battery installed in faucet
  • Touchless operation limits the spread of germs
  • SmarTherm® safety shut-off prevents accidental scalding. ASSE 1070 certified
  • Above-deck mixing with removable handle
  • Clean, integrated design. No control box below deck
  • Easy installation and maintenance: Faucet installs from the top. All serviceable parts are easily accessible
  • Auto Purge: Periodically purges stagnant water
  • Safety Timer: Automatically turns water off after 55 seconds
  • Dual inlets for hot and cold water
  • Optional deck plates and remote control available (sold separately)
Nominal Dimensions: 7-1/2 in x 2 in x 7-1/2 in (191 mm x 51 mm x 191 mm)
Description
Net Weight
SKU
Color
List Price USD
Paradigm® Selectronic® Touchless Faucet, Battery-Powered With SmarTherm Safety Shut-Off + ADM, 1.5 gpm/5.7 Lpm
5 lb (2.3 kg)
7025315.002 *
Chrome (002)
627
7025315.295 *
Brushed Nickel (295)
817
Optional Components (Not Included)
NextGen 8-Inch Deck Plate
1 lb (0.5 kg)
775P800.002 *
Chrome
97


Models marked with * are discontinued, but product may still be available while supplies last.
ADA Compliant: Yes
Barrier Free: Yes
Batteries Included: Yes
Batteries Required: Yes
Brand: American Standard
Category: Commercial Fittings
Color / Finish: Chrome
Collections: Selectronic
Fitting Connection Size Input: 9/16
Fitting Material: Cast Metal
Mount Type: Deck Mount
Spout Height: 6-11/16
Spout Type: Standard
Touchless: Touchless
Fixture or Fitting Material: Cast Metal
Gallons Per Minute (min-max): 1.5 GPM
Input Connection Type: Compression
Hardware Included: Yes
Number of Batteries Included: 1
Height: 7-1/2
Length: 7-1/2
Width: 2
Residential or Commercial: Commercial
Subcategory: Sensor Commercial Fittings
Warranty: 5 Year Limited Warranty
Water Efficient: Yes
Download All Supporting Documents

Installation Instructions

Replacement Parts

Safety Data Sheet
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
There are no design files currently available for this product
There are no videos currently available for this product
3D Objects are not currently available for this product
