Selectronic

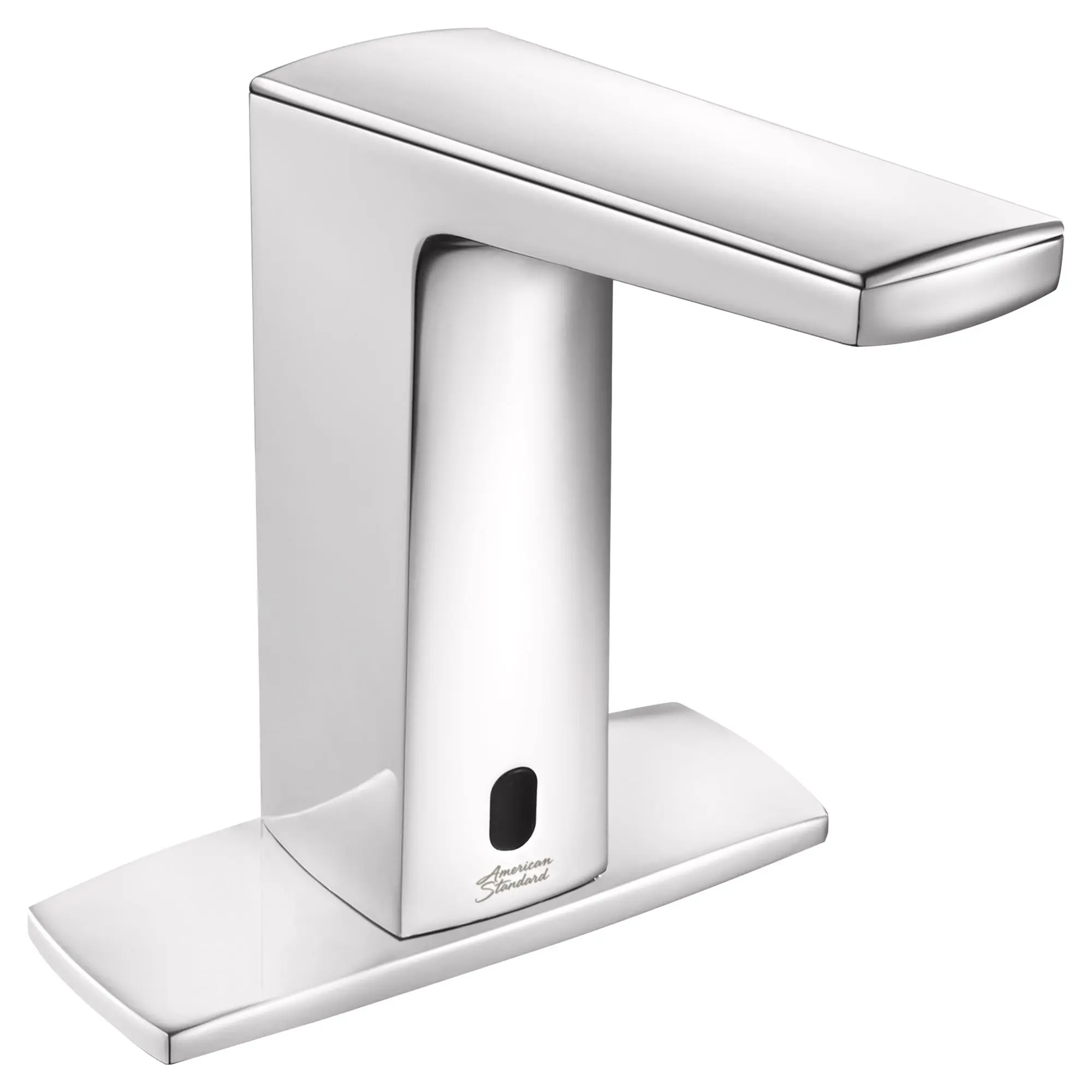

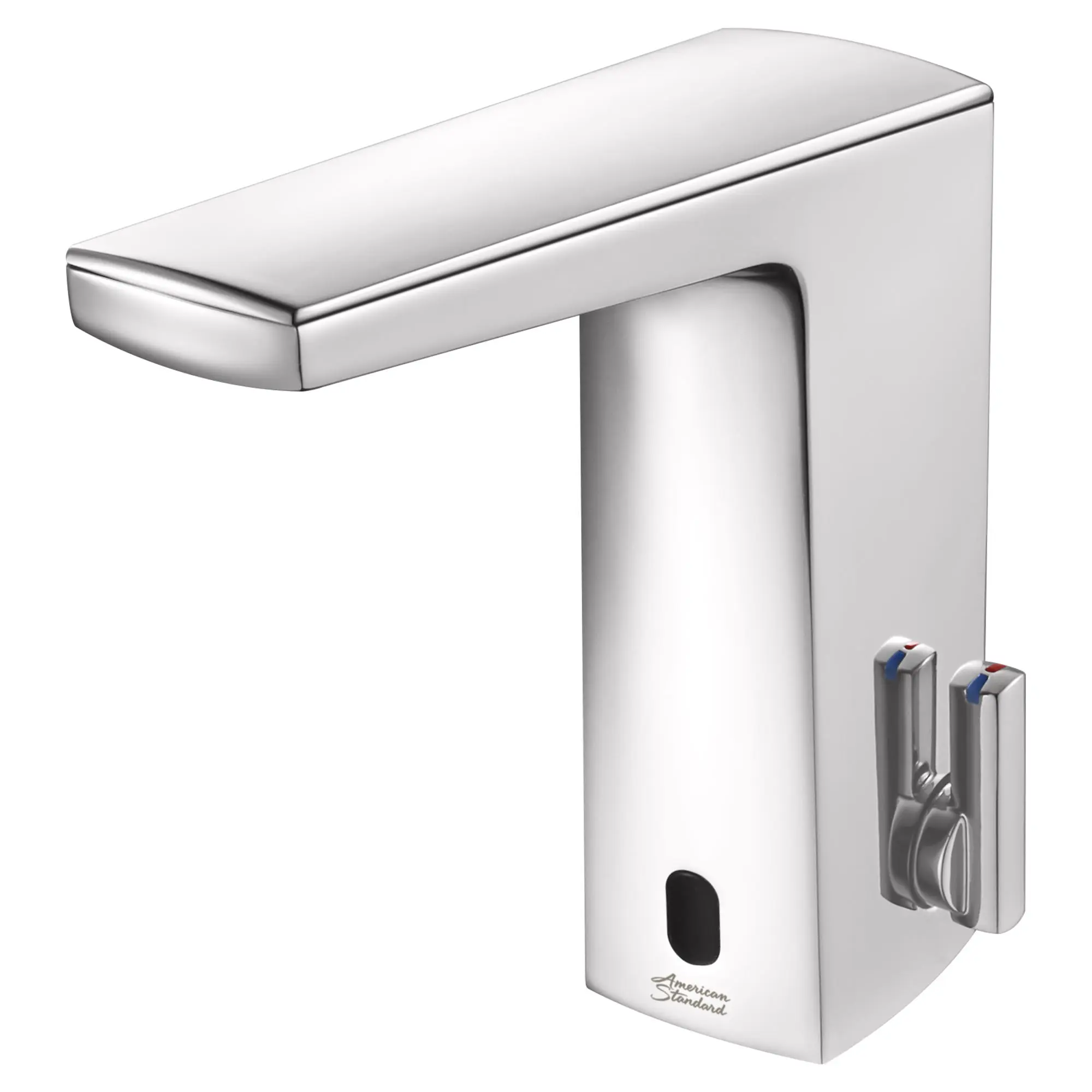

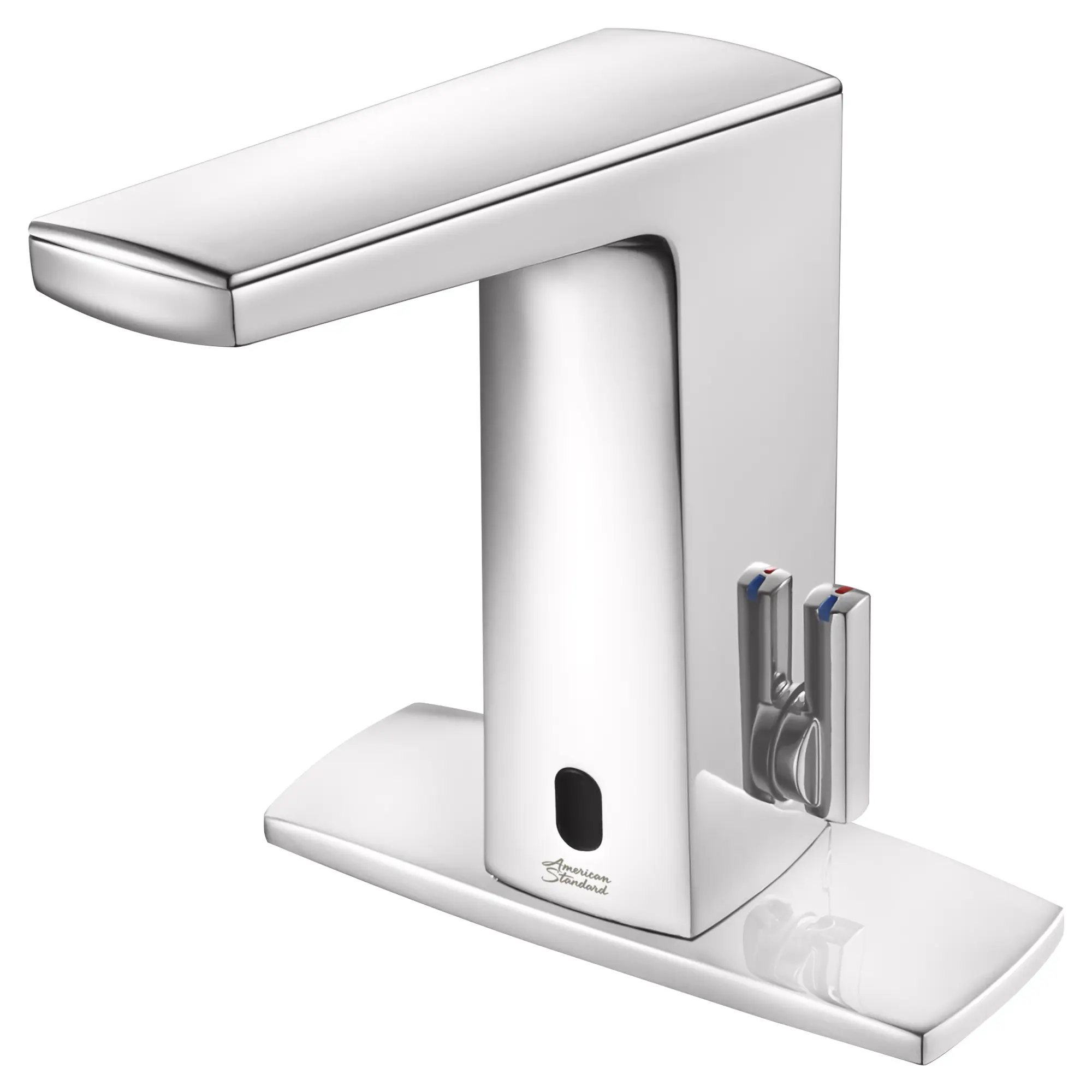

Paradigm® Selectronic® Touchless Faucet, Battery-Powered With Above-Deck Mixing, 0.35 gpm/1.3 Lpm

Sleek and streamlined, the Paradigm Selectronic Integrated Faucet from American Standard takes a cue from modern design. The simple integrated design, with all electronics in the spout, is engineered for easy installation and maintenance to save time and money. It eliminates the control box and provides for a clean, clutter-free under-deck space. Available in Chrome and Brushed Nickel.

Chrome 7025203.002 DISCONTINUED   Substitution Available (7037203.002)
List Price: $582.00
ADA Compliant Cal Green CEC Certified Water Efficient
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • 6-Year CR-P2 lithium battery installed in faucet
  • Touchless operation limits the spread of germs
  • Above-deck mixing with removable handle
  • Dual inlets for hot and cold water
  • Clean, integrated design. No control box below deck
  • Easy installation and maintenance: Faucet installs from the top. All serviceable parts are easily accessible.
  • Auto Purge: Periodically purges stagnant water
  • Safety Timer: Automatically turns water off after 55 seconds
  • Vandal-resistant 0.35 gpm/1.3 Lpm pressure-compensating multi-laminar spray
  • Optional deck plate for 4-inch (102 mm) or 8-inch (203 mm) centers available
Technical Features
  • 6-year CR-P2 lithium battery installed in faucet
  • Touchless operation limits the spread of germs
  • Above-deck mixing with removable handle
  • Clean, integrated design. No control box below deck
  • Easy installation and maintenance: Faucet installs from the top. All serviceable parts are easily accessible
  • Auto Purge: Periodically purges stagnant water
  • Safety Timer: Automatically turns water off after 55 seconds
  • Adjustable Range: Detection zone can be adjusted manually or with optional remote control
  • Dual inlets for hot and cold water
  • Optional deck plates and remote control available (sold separately)
Nominal Dimensions: 7-1/2 in x 2 in x 7-1/2 in (191 mm x 51 mm x 191 mm)
Description
Net Weight
SKU
Color
List Price USD
Paradigm® Selectronic® Touchless Faucet, Battery-Powered With Above-Deck Mixing, 0.35 gpm/1.3 Lpm
4 lb (1.9 kg)
7025203.002 *
Chrome (002)
582
7025203.295 *
Brushed Nickel (295)
677
Optional Components (Not Included)
Paradigm® 4-Inch Deck Plate
1 lb (0.4 kg)
702P400.002 *
Chrome
70
spacer
NextGen 8-Inch Deck Plate
1 lb (0.5 kg)
775P800.002 *
Chrome
97
Substitutions
Paradigm® Selectronic® Touchless Faucet, Battery-Powered With Above-Deck Mixing, 0.35 gpm/1.3 Lpm
3 lb (1.6 kg)
7037203.002
Chrome
570


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Batteries Included: Yes
Batteries Required: Yes
Brand: American Standard
Cal Green: Yes
Category: Commercial Fittings
CEC Certified: Yes
Color / Finish: Chrome
Collections: Selectronic
Fitting Connection Size Input: 9/16
Handle Height: 63/64
Fitting Material: Cast Metal
Mount Type: Deck Mount
Spout Height: 6-11/16
Spout Type: Standard
Touchless: Touchless
Fixture or Fitting Material: Cast Metal
Gallons Per Minute (min-max): 0.35 GPM
Input Connection Type: Compression
Hardware Included: Yes
Number of Batteries Included: 1
Height: 7-1/2
Length: 7-1/2
Width: 2
Residential or Commercial: Commercial
Subcategory: Sensor Commercial Fittings
Warranty: 5 Year Limited Warranty
Water Efficient: Yes
Download All Supporting Documents

Specification Sheet

Installation Instructions

Replacement Parts

Safety Data Sheet
