Features
- POWER KIT MUST BE PURCHASED SEPARATELY
- Touchless operation limits the spread of germs
- SmarTherm® safety shut-off prevents accidental scalding. ASSE 1070 certified
- Above-deck mixing with removable handle
- Dual inlets for hot and cold water
- Clean, integrated design. No control box below deck
- Easy installation and maintenance: Faucet installs from the top. All serviceable parts are easily accessible
- Auto Purge: Periodically purges stagnant water
- Vandal-resistant 0.35 gpm/1.3 Lpm pressure-compensating multi-laminar spray
- Optional deck plate for 4-inch (102 mm) or 8-inch (203 mm) centers available
Technical Features
- POWER KIT MUST BE PURCHASED SEPARATELY
- Touchless operation limits the spread of germs
- SmarTherm safety shut-off prevents accidental scalding. ASSE 1070 certified
- Above-deck mixing with removable handle
- Clean, integrated design. No control box below deck
- Easy installation and maintenance: Faucet installs from the top. All serviceable parts are easily accessible
- Auto Purge: Periodically purges stagnant water
- Safety Timer: Automatically turns water off after 55 seconds
- Dual inlets for hot and cold water
- Optional deck plates and remote control available (sold separately)
Nominal Dimensions: 7-1/2 in x 2 in x 7-1/2 in (191 mm x 51 mm x 191 mm)

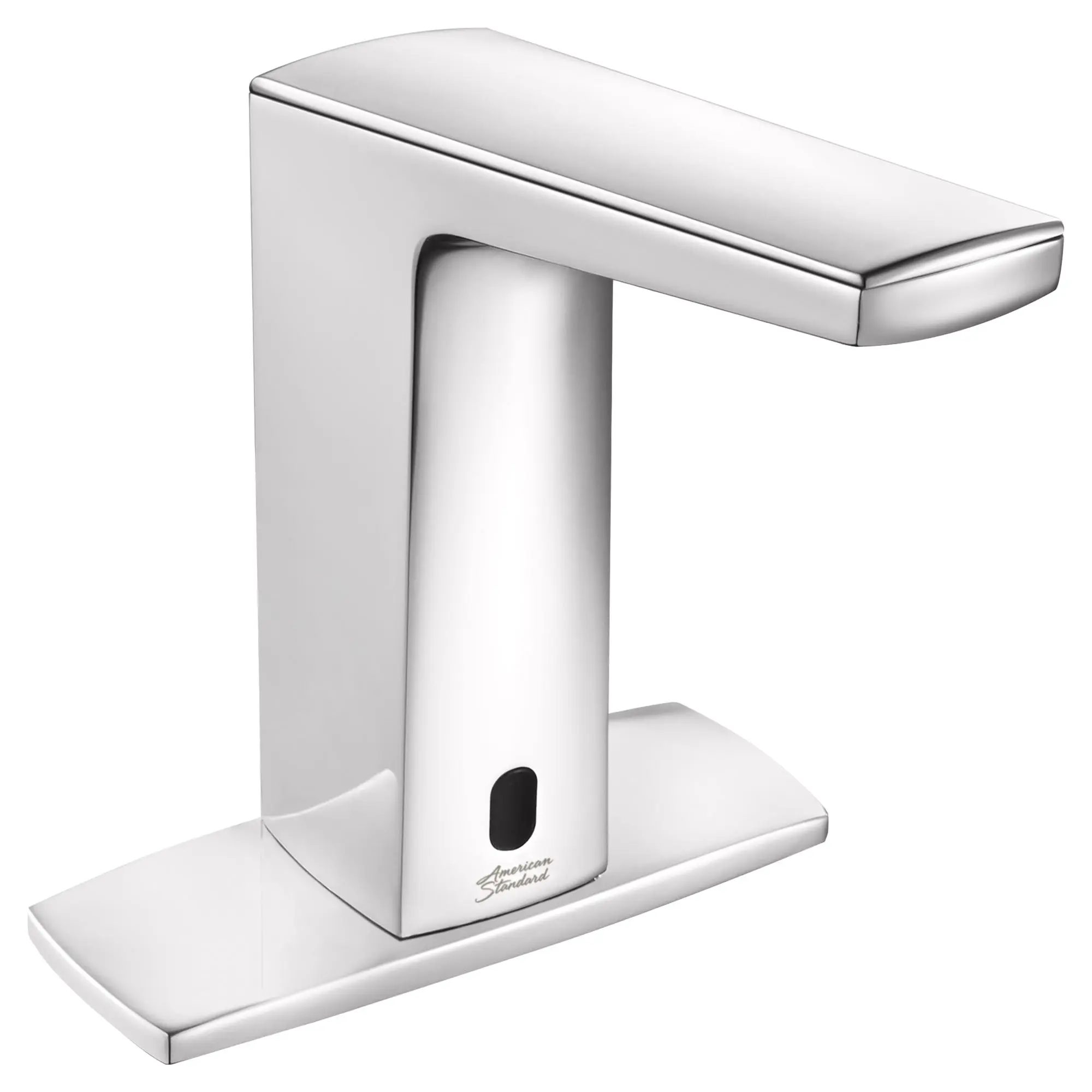

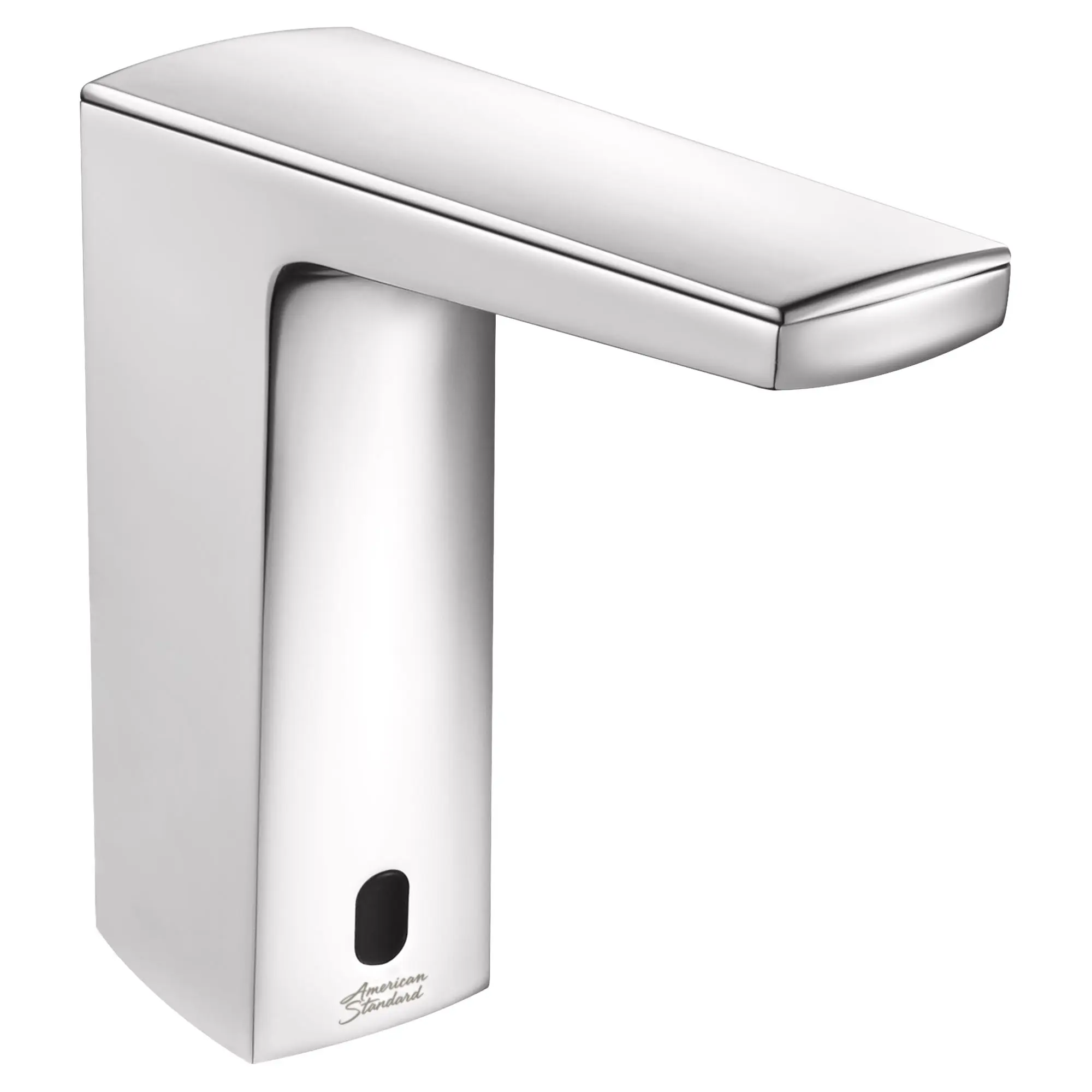

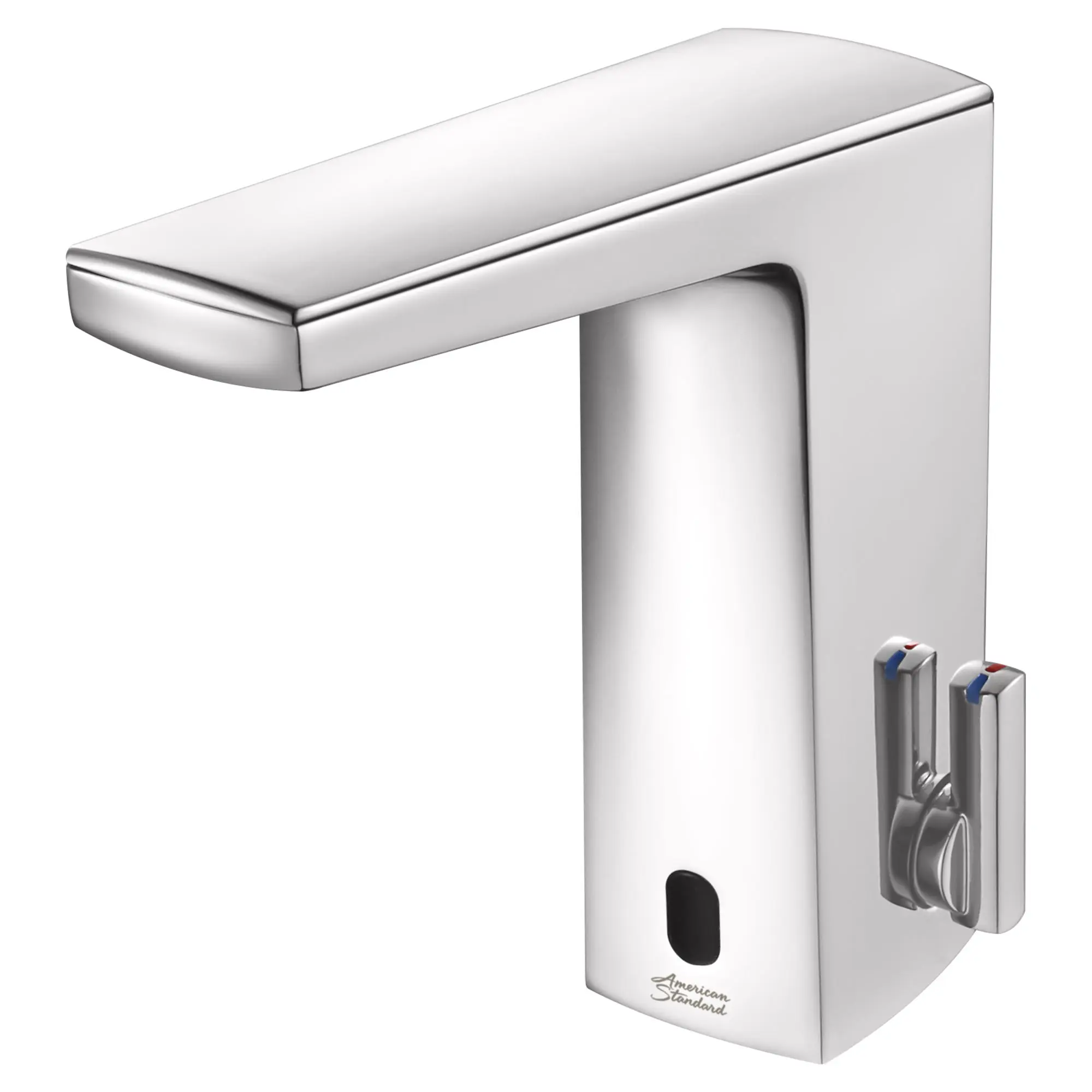

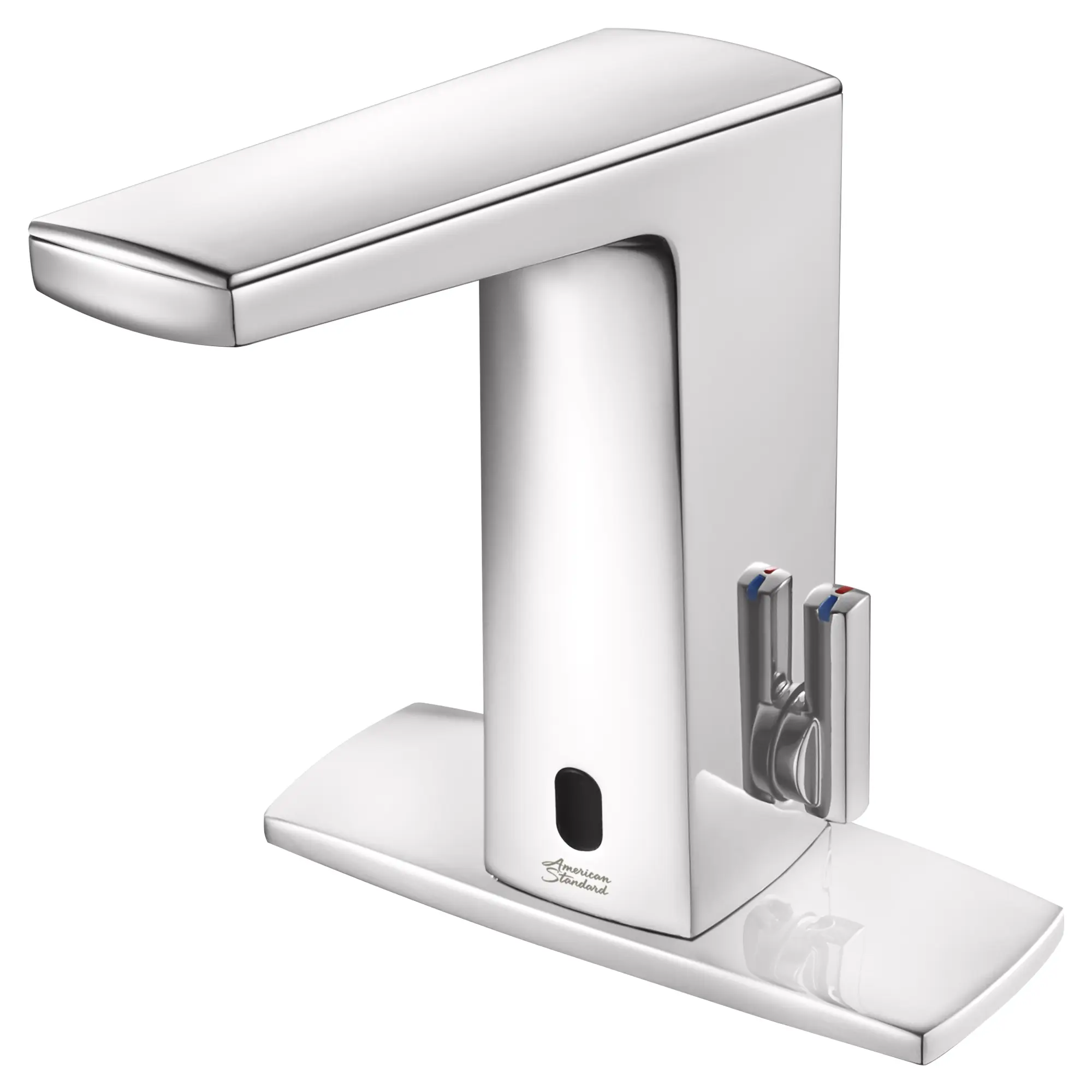

Paradigm® Selectronic® Touchless Faucet, Base Model With SmarTherm Safety Shut-Off + ADM, 0.35 gpm/1.3 Lpm
4 lb (1.8 kg)
Chrome (002)
650
Brushed Nickel (295)
723
Selectronic® PWRX Power Kit
0 lb (0.2 kg)
No Finish
172
spacer
Selectronic® Hard Wired AC Power Kit
1 lb (0.3 kg)
No Finish
140
spacer
Selectronic® Multi-AC Power Kit
0 lb (0.1 kg)
No Finish
78
spacer
Selectronic® Plug-In AC Power Kit
1 lb (0.4 kg)
No Finish
102
Paradigm® 4-Inch Deck Plate
1 lb (0.4 kg)
Chrome
70
spacer
NextGen 8-Inch Deck Plate
1 lb (0.5 kg)
Chrome
97
spacer
Selectronic® Battery Back-Up Kit
0 lb (0.1 kg)
No Finish
96
Paradigm® Selectronic® Touchless Faucet, Base Model With SmarTherm Safety Shut-Off + ADM, 0.35 gpm/1.3 Lpm
3 lb (1.5 kg)
Chrome
637
Paradigm® Selectronic® Touchless Faucet, Base Model With SmarTherm Safety Shut-Off + ADM, 0.35 gpm/1.3 Lpm
4 lb (1.8 kg)
Chrome (002)
650
Brushed Nickel (295)
723
Selectronic® PWRX Power Kit
0 lb (0.2 kg)
No Finish
172
spacer
Selectronic® Hard Wired AC Power Kit
1 lb (0.3 kg)
No Finish
140
spacer
Selectronic® Multi-AC Power Kit
0 lb (0.1 kg)
No Finish
78
spacer
Selectronic® Plug-In AC Power Kit
1 lb (0.4 kg)
No Finish
102
Paradigm® 4-Inch Deck Plate
1 lb (0.4 kg)
Chrome
70
spacer
NextGen 8-Inch Deck Plate
1 lb (0.5 kg)
Chrome
97
spacer
Selectronic® Battery Back-Up Kit
0 lb (0.1 kg)
No Finish
96
Paradigm® Selectronic® Touchless Faucet, Base Model With SmarTherm Safety Shut-Off + ADM, 0.35 gpm/1.3 Lpm
3 lb (1.5 kg)
Chrome
637
Models marked with * are discontinued, but product may still be available while supplies last.
