Selectronic

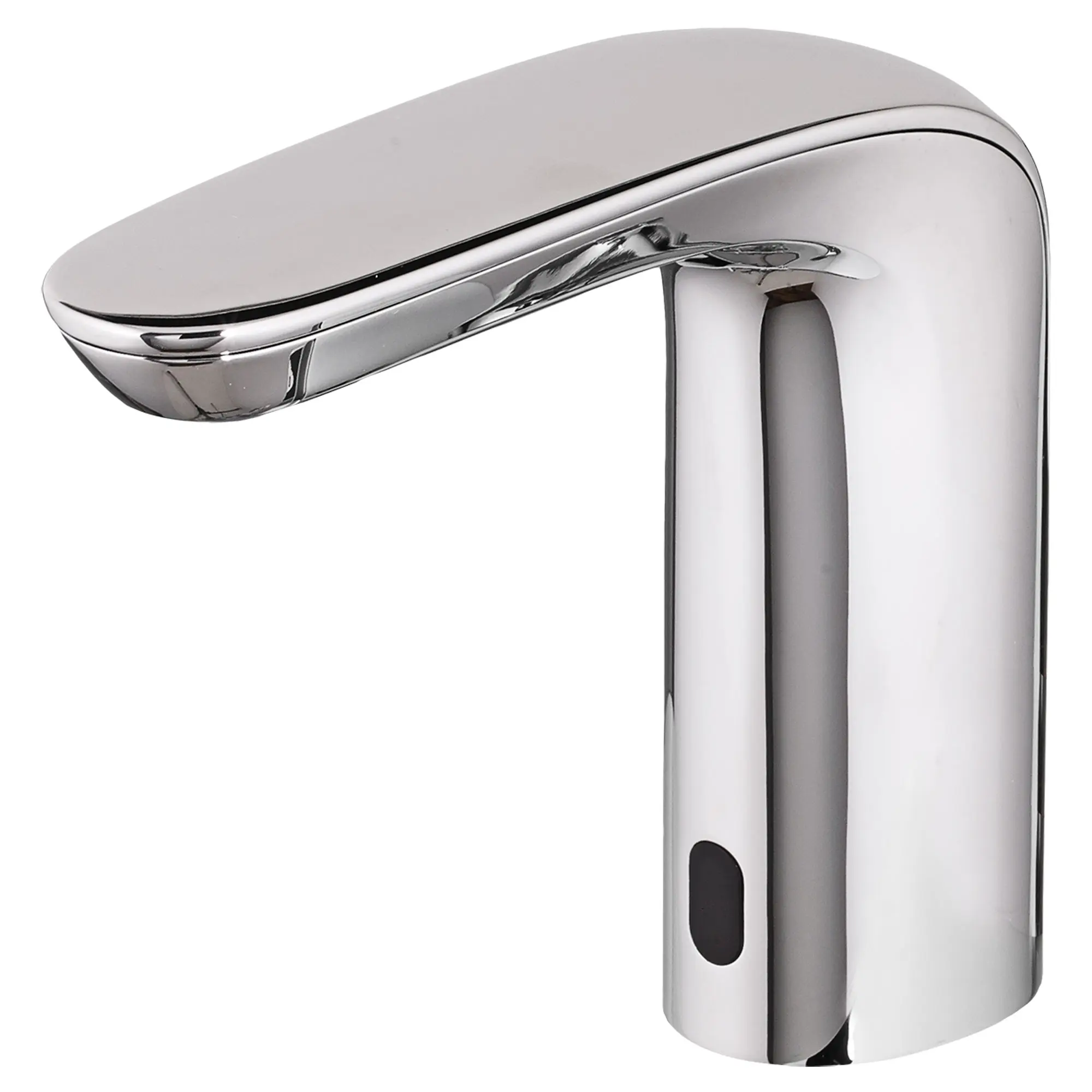

NextGen Selectronic® Touchless Faucet, Battery-Powered, 1.5 gpm/5.7 Lpm

This NextGen Selectronic Commercial Faucet from American Standard has a sleek, clean design that brings elevated style to the bathroom. The integrated electronics locates the sensor, battery and solenoid valve in the faucet spout and eliminates the need for a control box.

Chrome 7755115.002 DISCONTINUED   Substitution Available (7766115.002)
List Price: $522.00
ADA Compliant WaterSense Water Efficient Environmental Product Declaration
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • 6-Year CR-P2 lithium battery installed in faucet
  • Touchless operation limits the spread of germs
  • Single inlet for cold or tempered water
  • Clean, integrated design. No control box below deck
  • Easy installation and maintenance: Faucet installs from the top. All serviceable parts are easily accessible
  • Auto Purge: Periodically purges stagnant water
  • Safety Timer: Automatically turns water off after 55 seconds
  • Vandal-resistant 1.5 gpm/5.7 Lpm pressure-compensating laminar flow outlet

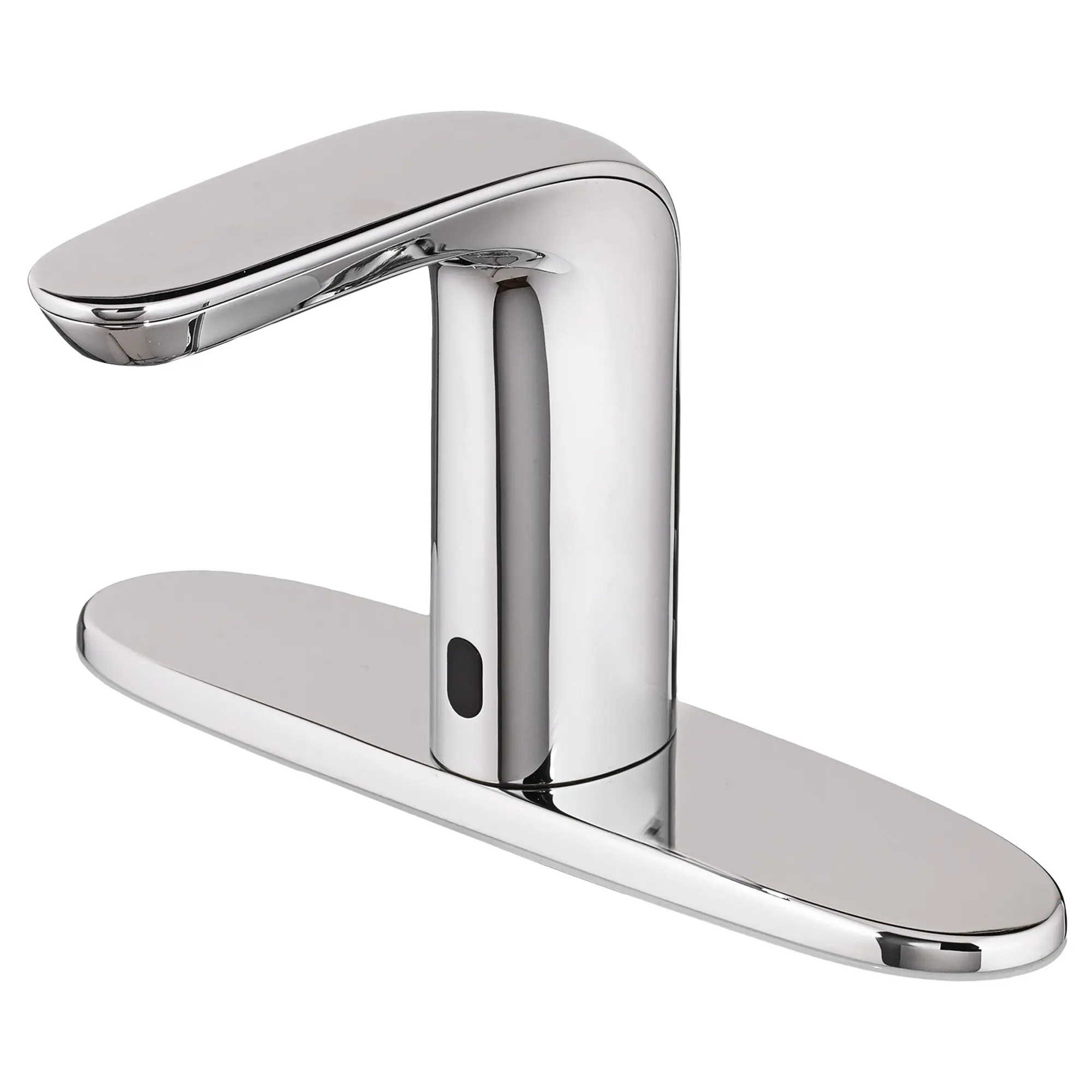

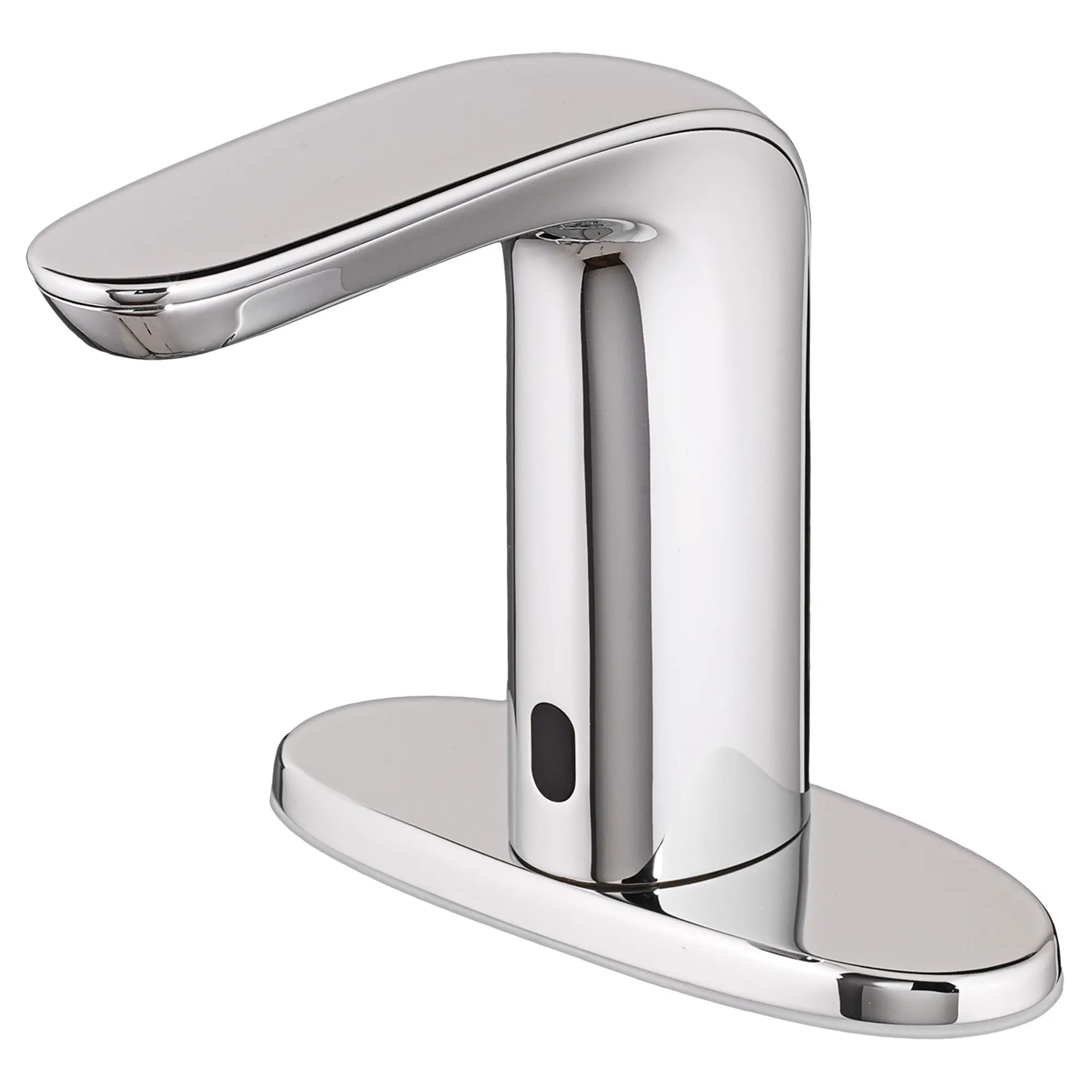

  • Optional deck plate for 4-inch (102 mm) or 8-inch (203 mm) centers available
Technical Features
  • 6-year CR-P2 lithium battery installed in faucet
  • Touchless operation limits the spread of germs
  • Clean, integrated design. No control box below deck
  • Less mixing
  • Easy installation and maintenance: Faucet installs from the top. All serviceable parts are easily accessible
  • Auto Purge: Periodically purges stagnant water
  • Safety Timer: Automatically turns water off after 55 seconds
  • Adjustable Range: Detection zone can be adjusted manually or with optional remote control
  • Single inlet for cold or tempered water
  • Optional deck plates and remote control available (sold separately)
Nominal Dimensions: 6-7/8 in x 1-7/8 in x 5-3/4 in (175 mm x 48 mm x 146 mm)
Description
Net Weight
SKU
Color
List Price USD
NextGen Selectronic® Touchless Faucet, Battery-Powered, 1.5 gpm/5.7 Lpm
3 lb (1.3 kg)
7755115.002 *
Chrome (002)
522
7755115.295 *
Brushed Nickel (295)
606
Substitutions
NextGen Selectronic® Touchless Faucet, Battery-Powered, 1.5 gpm/5.7 Lpm
2 lb (1.0 kg)
7766115.002
Chrome
512


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Batteries Included: Yes
Batteries Required: Yes
Brand: American Standard
Category: Commercial Fittings
Color / Finish: Chrome
Collections: Selectronic
WaterSense: Yes
Fitting Connection Size Input: 3/8
Handle Type: Electronic
Fitting Material: Cast Metal
Mount Type: Deck Mount
Fitting Number of Holes: 1
Spout Height: 5
Spout Type: Stationary
Touchless: Touchless
Fixture or Fitting Material: Cast Metal
Gallons Per Minute (min-max): 1.5 GPM
Input Connection Type: Compression
Hardware Included: Yes
Number of Batteries Included: 1
Height: 5-3/4
Length: 6-7/8
Width: 1-7/8
Residential or Commercial: Commercial
Subcategory: Sensor Commercial Fittings
Warranty: 5 Year Limited Warranty
Water Efficient: Yes
Download All Supporting Documents

Specification Sheet

Installation Instructions

Replacement Parts

Environmental Product Declaration
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
There are no design files currently available for this product
3D Objects are not currently available for this product
