Selectronic

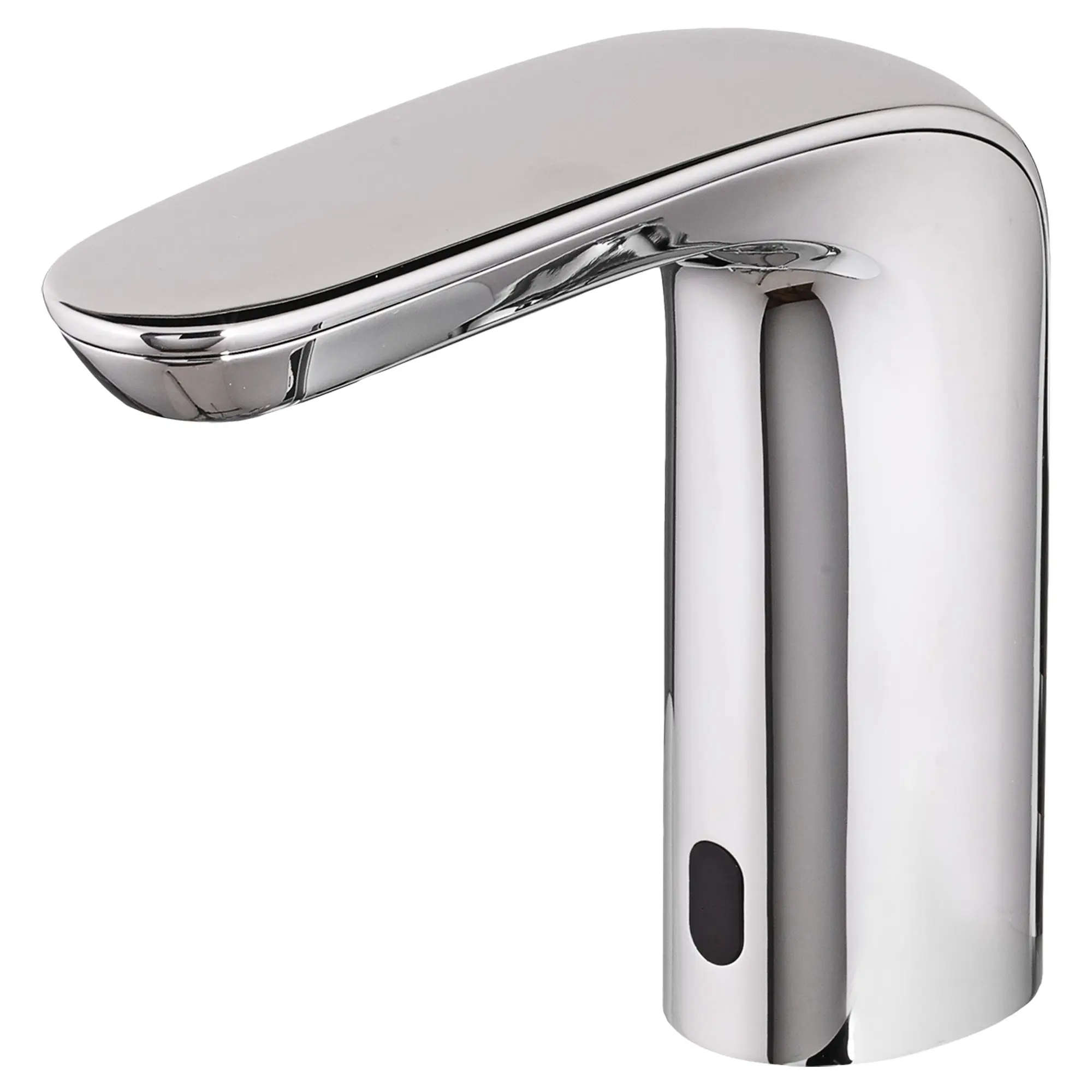

NextGen Selectronic® Touchless Faucet, Battery-Powered, 0.5 gpm/1.9 Lpm

The NextGen Selectronic DC Single-Hole Touchless Commercial Bathroom Faucet from American Standard has a sleek, clean profile that brings elevated style to the bathroom. Designed to withstand the rigors of heavy use in commercial settings, this hands-free faucet features integrated electronics including the sensor, battery and solenoid valve located in the faucet spout, eliminating the need for a control box. This touchless faucet helps to reduce the spread of germs and creates a cleaner bathroom environment.

Chrome 7755105.002 DISCONTINUED   Substitution Available (7766105.002)
List Price: $522.00
ADA Compliant Cal Green CEC Certified Water Efficient Environmental Product Declaration
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • 6-Year CR-P2 lithium battery installed in faucet
  • Touchless operation limits the spread of germs
  • Single inlet for cold or tempered water
  • Clean, integrated design. No control box below deck
  • Easy installation and maintenance: Faucet installs from the top. All serviceable parts are easily accessible
  • Auto Purge: Periodically purges stagnant water
  • Safety Timer: Automatically turns water off after 55 seconds
  • Vandal-resistant 0.5 gpm/1.9 Lpm pressure-compensating multi-laminar spray
  • Optional deck plate for 4-inch (102 mm) or 8-inch (203 mm) centers available
Technical Features
  • 6-year CR-P2 lithium battery installed in faucet
  • Touchless operation limits the spread of germs
  • Clean, integrated design. No control box below deck
  • Less mixing
  • Easy installation and maintenance: Faucet installs from the top. All serviceable parts are easily accessible
  • Auto Purge: Periodically purges stagnant water
  • Safety Timer: Automatically turns water off after 55 seconds
  • Adjustable Range: Detection zone can be adjusted manually or with optional remote control
  • Single inlet for cold or tempered water
  • Optional deck plates and remote control available (sold separately)
Nominal Dimensions: 6-7/8 in x 1-7/8 in x 5-3/4 in (175 mm x 48 mm x 146 mm)
Description
Net Weight
SKU
Color
List Price USD
NextGen Selectronic® Touchless Faucet, Battery-Powered, 0.5 gpm/1.9 Lpm
3 lb (1.3 kg)
7755105.002 *
Chrome (002)
522
7755105.295 *
Brushed Nickel (295)
680
Optional Components (Not Included)
NextGen 4-Inch Deck Plate
1 lb (0.3 kg)
775P400.002 *
Chrome
58
spacer
NextGen 8-Inch Deck Plate
1 lb (0.5 kg)
775P800.002 *
Chrome
97
Substitutions
NextGen Selectronic® Touchless Faucet, Battery-Powered, 0.5 gpm/1.9 Lpm
2 lb (0.9 kg)
7766105.002
Chrome
512


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Batteries Included: Yes
Batteries Required: Yes
Brand: American Standard
Cal Green: Yes
Category: Commercial Fittings
CEC Certified: Yes
Color / Finish: Chrome
Collections: Selectronic
Fitting Connection Size Input: 3/8
Handle Type: Electronic
Fitting Material: Cast Metal
Mount Type: Deck Mount
Fitting Number of Holes: 1
Spout Height: 5-3/4
Spout Type: Standard
Touchless: Touchless
Fixture or Fitting Material: Cast Metal
Gallons Per Minute (min-max): 0.5 GPM
Input Connection Type: Compression
Hardware Included: Yes
Number of Batteries Included: 1
Height: 5-3/4
Length: 6-7/8
Width: 1-7/8
Residential or Commercial: Commercial
Subcategory: Sensor Commercial Fittings
Warranty: 5 Year Limited Warranty
Water Efficient: Yes
Download All Supporting Documents

Specification Sheet

Installation Instructions

Replacement Parts

Environmental Product Declaration
