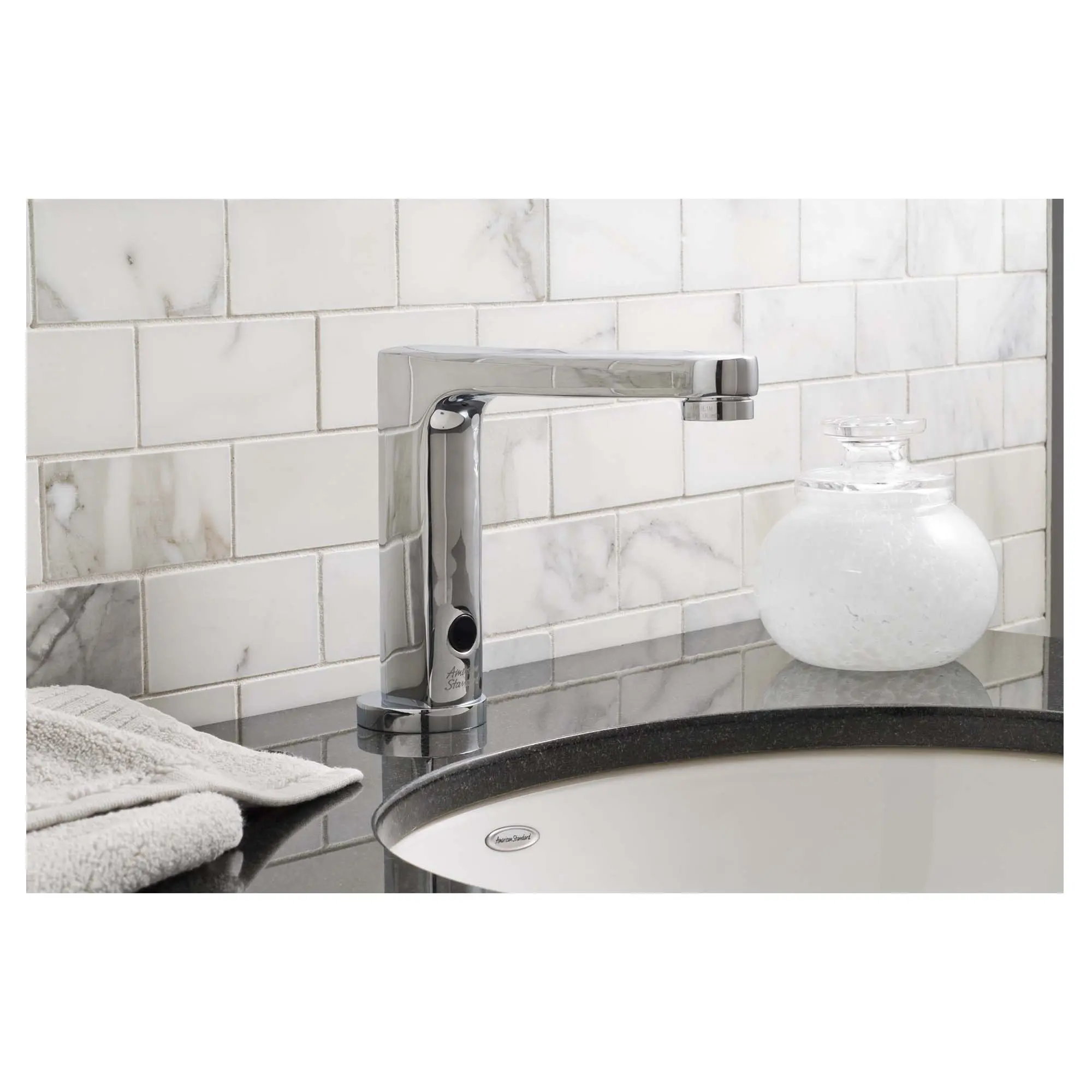

Moments® Selectronic® Touchless Faucet, Base Model, 1.5 gpm/5.7 Lpm

Flexible Selectronic® Platform with programmable, multi-function sensor. Hygienic, touch-free operation. Easy & Flexible Installation: Single post mounting with optional 4" & 8" deck plate. Water resistant solenoid enclosure mounts to wall. Durable Vandal-Resistant Brass Body: Ideal for high-use commercial applications. Self-Cleaning Solenoid Valve: Wiper spring prevents clogging. Easy to Service Integrated Strainer: Patented integrated strainer protects solenoid from debris. Strainer is enclosed in removable debris cup for easy service. Optional Auto Purge Feature: Faucet can be programmed to open at a pre-determined time after last use to purge the faucet and water lines. Safety Timer: Helps prevent vandalism by turning off the faucet if the sensor is covered for 55 seconds or more. Timing is adjustable with optional remote control.

Features
  • POWER KIT MUST BE PURCHASED SEPARATELY
  • Touchless operation limits the spread of germs
  • Single inlet for cold or tempered water
  • Vandal-resistant brass spout with single-hole installation
  • Sensor is easily programmed with optional remote control
  • Auto Purge: Periodically purges stagnant water
  • Safety Timer: Automatically turns water off after 55 seconds
  • Vandal-resistant 1.5 gpm/5.7 Lpm pressure-compensating aerator
  • Optional deck plate for 4-inch (102 mm) or 8-inch (203 mm) centers available
Technical Features
  • POWER KIT MUST BE PURCHASED SEPARATELY
  • Touchless operation limits the spread of germs
  • Single inlet for cold or tempered water
  • Vandal-resistant brass spout with single-hole installation
  • Adjustable Range: Detection zone can be adjusted manually or with optional remote control
  • Safety Timer: Automatically turns water off after 30 seconds
  • Auto Purge: Faucet can be programmed to periodically purge stagnant water
  • Fail-Safe Technology: Faucet automatically shuts off upon loss of power or dead battery
  • Optional deck plates, thermostatic mixing valve and remote control available (sold separately)
Nominal Dimensions: 8-1/4 in x 2-3/16 in x 6-1/4 in (210 mm x 56 mm x 159 mm)
Description
Net Weight
SKU
Color
List Price USD
Moments® Selectronic® Touchless Faucet, Base Model, 1.5 gpm/5.7 Lpm
7 lb (3.3 kg)
Chrome (002)
677
Brushed Nickel (295)
847
Required Components (Not Included)
Selectronic® CR-P2 Lithium Power Kit
0 lb (0.2 kg)
No Finish
46


Models marked with * are discontinued, but product may still be available while supplies last.
ADA Compliant: Yes
Barrier Free: Yes
Brand: American Standard
Category: Commercial Fittings
Color / Finish: Chrome
Collections: Selectronic
Drain Material: Metal
WaterSense: Yes
Fitting Connection Size Input: 3/8
Handle Type: Electronic
Fitting Material: Brass
Mount Type: Deck Mount
Fitting Number of Holes: 1
Spout Height: 6-1/4
Spout Type: Standard
Touchless: Touchless
Fixture or Fitting Material: Brass
Gallons Per Minute (min-max): 1.5 GPM
Input Connection Type: Compression
Height: 6-1/4
Length: 8-1/4
Width: 2-3/16
Residential or Commercial: Commercial
Subcategory: Sensor Commercial Fittings
Warranty: 5 Year Limited Warranty
Water Efficient: Yes
