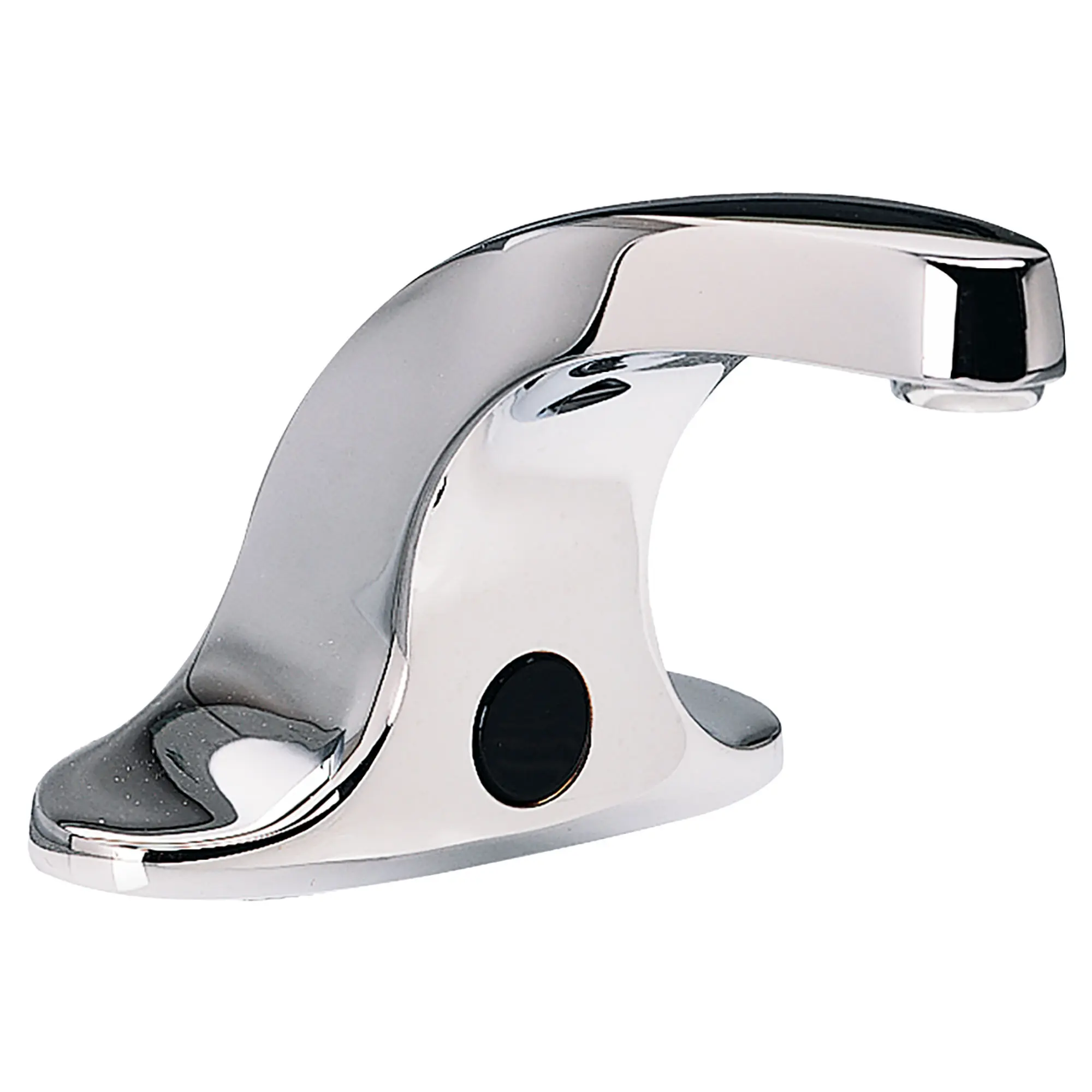

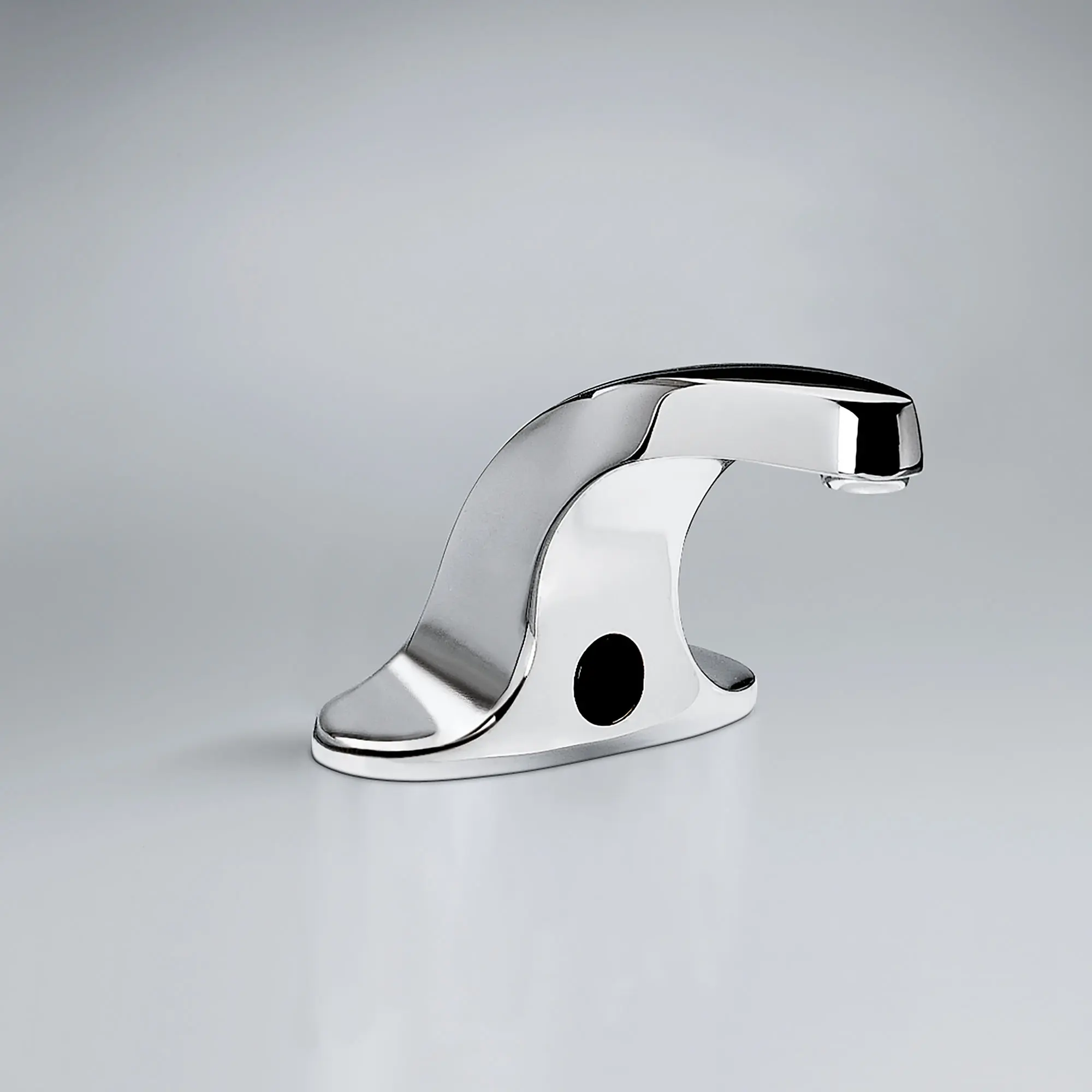

Innsbrook® Selectronic® Touchless Faucet, PWRX® 10-Year Battery, 0.5 gpm/1.9 Lpm

Every American Standard Commercial Faucets is designed to work flawlessly and dependably year after year, saving time, money and maintenance headaches.

Chrome 6053205.002 DISCONTINUED   Substitution Available (605B205.002)
List Price: $677.00
Cal Green CEC Certified Water Efficient WaterSense
Items REQUIRED for Install
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Includes 10-Year PWRX Battery
  • Touchless operation limits the spread of germs
  • Single inlet for cold or tempered water
  • Vandal-resistant cast 4-inch centerset spout
  • Sensor is easily programmed with optional remote control
  • Auto Purge: Periodically purges stagnant water
  • Safety Timer: Automatically turns water off after 55 seconds
  • Vandal-resistant 0.5 gpm/1.9 Lpm pressure-compensating multi-laminar spray
Technical Features
  • Includes 10-Year PWRX Battery
  • Touchless operation limits the spread of germs
  • Single inlet for cold or tempered water
  • Vandal-resistant cast 4-inch centerset spout
  • Sensor is easily programmed with optional remote control
  • Auto Purge: Periodically purges stagnant water
  • Safety Timer: Automatically turns water off after 55 seconds
  • Vandal-resistant 0.5 gpm/1.9 Lpm pressure-compensating multi-laminar spray
Nominal Dimensions: 6-7/8 in x 6-1/8 in x 4-7/8 in (175 mm x 156 mm x 124 mm)
Description
Net Weight
SKU
Color
List Price USD
Innsbrook® Selectronic® Touchless Faucet, PWRX® 10-Year Battery, 0.5 gpm/1.9 Lpm
9 lb (4.0 kg)
6053205.002 *
Chrome (002)
677
Required Components (Not Included)
Selectronic® PWRX Power Kit
0 lb (0.2 kg)
PK00.WRK
No Finish
172
spacer
Selectronic® Hard Wired AC Power Kit
1 lb (0.3 kg)
PK01.HAC
No Finish
140
spacer
Selectronic® Multi-AC Power Kit
0 lb (0.1 kg)
PK01.MAC
No Finish
83
spacer
Selectronic® Plug-In AC Power Kit
1 lb (0.4 kg)
PK01.PAC
No Finish
109
Optional Components (Not Included)
Selectronic® Battery Back-Up Kit
0 lb (0.1 kg)
PK00.BBU
No Finish
110
Substitutions
Innsbrook® Selectronic® Touchless Faucet, Base Model, 0.5 gpm/1.9 Lpm
8 lb (3.5 kg)
605B205.002 *
Chrome
516


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
Batteries Included: Yes
Brand: American Standard
Cal Green: Yes
Category: Commercial Fittings
CEC Certified: Yes
Color / Finish: Chrome
Collections: Selectronic
WaterSense: Yes
Fitting Connection Size Input: 9.52
Fitting Material: Brass
Mount Type: Deck Mount
Fitting Number of Holes: 1
Spout Height: 3-3/4
Spout Type: Standard
Touchless: Touchless
Fixture or Fitting Material: Brass
Gallons Per Minute (min-max): 0.5 GPM
Number of Batteries Included: 1
Height: 4-7/8
Length: 6-7/8
Width: 6-1/8
Residential or Commercial: Commercial
Subcategory: Sensor Commercial Fittings
Warranty: Limited Lifetime Warranty
Water Efficient: Yes
Download All Supporting Documents

Specification Sheet

Installation Instructions

Replacement Parts
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
REVIT Files
.rfa icon REVIT File
There are no videos currently available for this product
3D Objects are not currently available for this product
