Features
- Hygienic technology – Turns faucet on and off without touching
- Battery operated – Includes 7-year, long-life CR-P2 lithium battery, based on 150 uses per day
- Integrated controls – Controls are housed inside the faucet for easy installation and access; no under-sink mounting Easy installation and maintenance - Faucet installs from the top. All serviceable parts are easily accessible with the cover removed, saving time and money
- Cleaning mode – Deactivate water when cleaning the faucet by simply placing finger against sensor; after a series of short flashes, water will turn off and sensor will flash for 3 minutes, allowing ample time for cleaning
- Sleek styling – Compatible with any bathroom design, can easily replace a single control or dual control centerset faucet with optional deck plate, sold separately
- Water-saving design – Uses 0.5 gallons per minute. Saves 77% when compared to standard 2.2 gpm faucet
- Meets CALGreen and CEC requirements
- Lead-free - Lead-Free Faucet contains = 0.25% total lead Water-saving design – Uses 0.5 gallons per minute. Saves 77% when compared to standard 2.2 gpm faucet
Technical Features
- Touchless operation limits the spread of germs for a safer restroom
- Flexible Selectronic® Platform with programmable sensor
- CR-P2 lithium battery included
- Battery life: 7 years at 150 uses per day
- Clean, integrated design: All electronics contained infaucet spout. No control box below deck
- Single inlet: For cold or tempered water. Filter assembly protects the solenoid valve from debris
- Easy installation & maintenance: Faucet installs from the top. All serviceable parts are easily accessible
- 0.5 gpm pressure compensating, vandal-resistant multi-laminar spray
- Optional remote control (605XRCW) allows for customization
Nominal Dimensions: 6-7/8 in x 2-3/8 in x 5-7/8 in (175 mm x 60 mm x 149 mm)

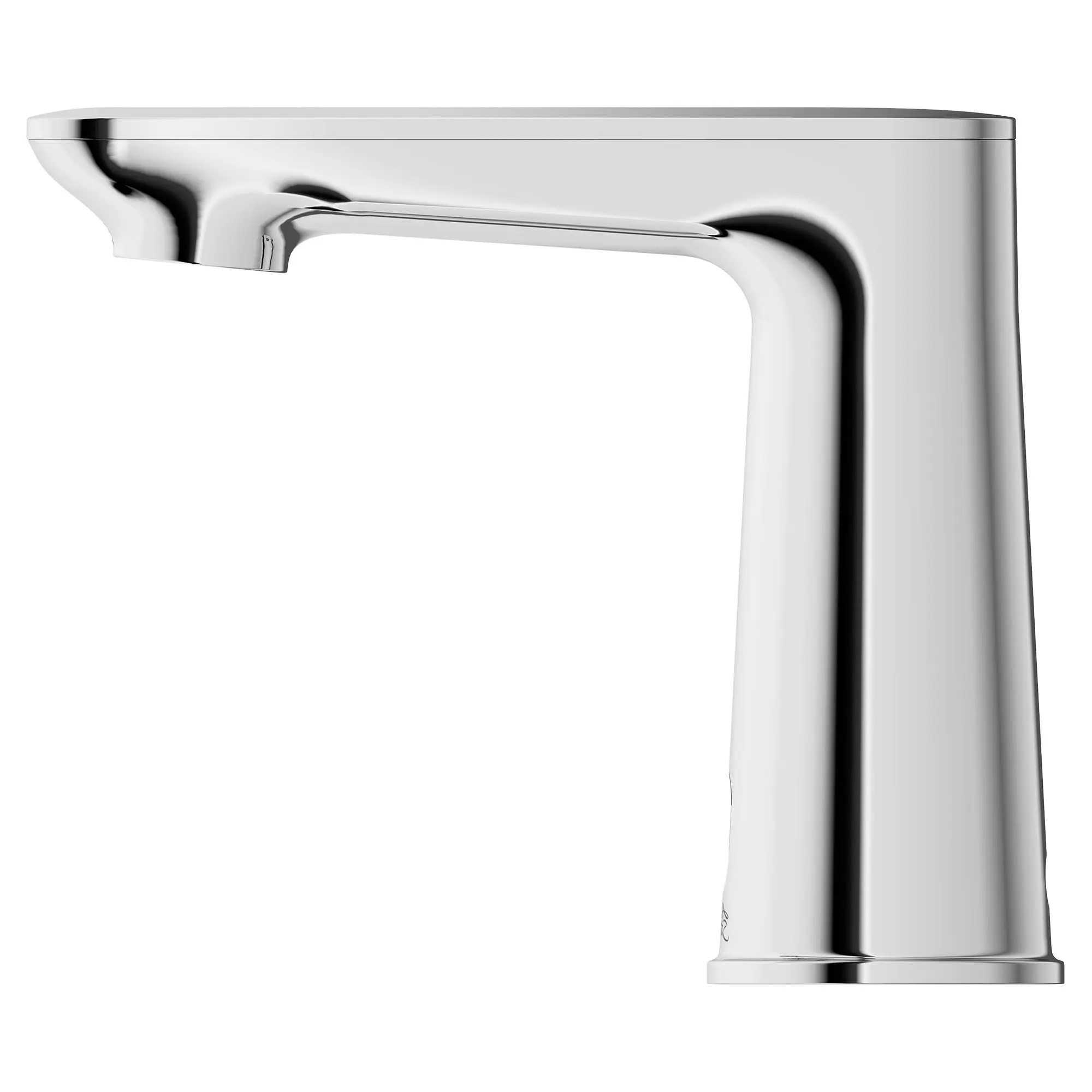

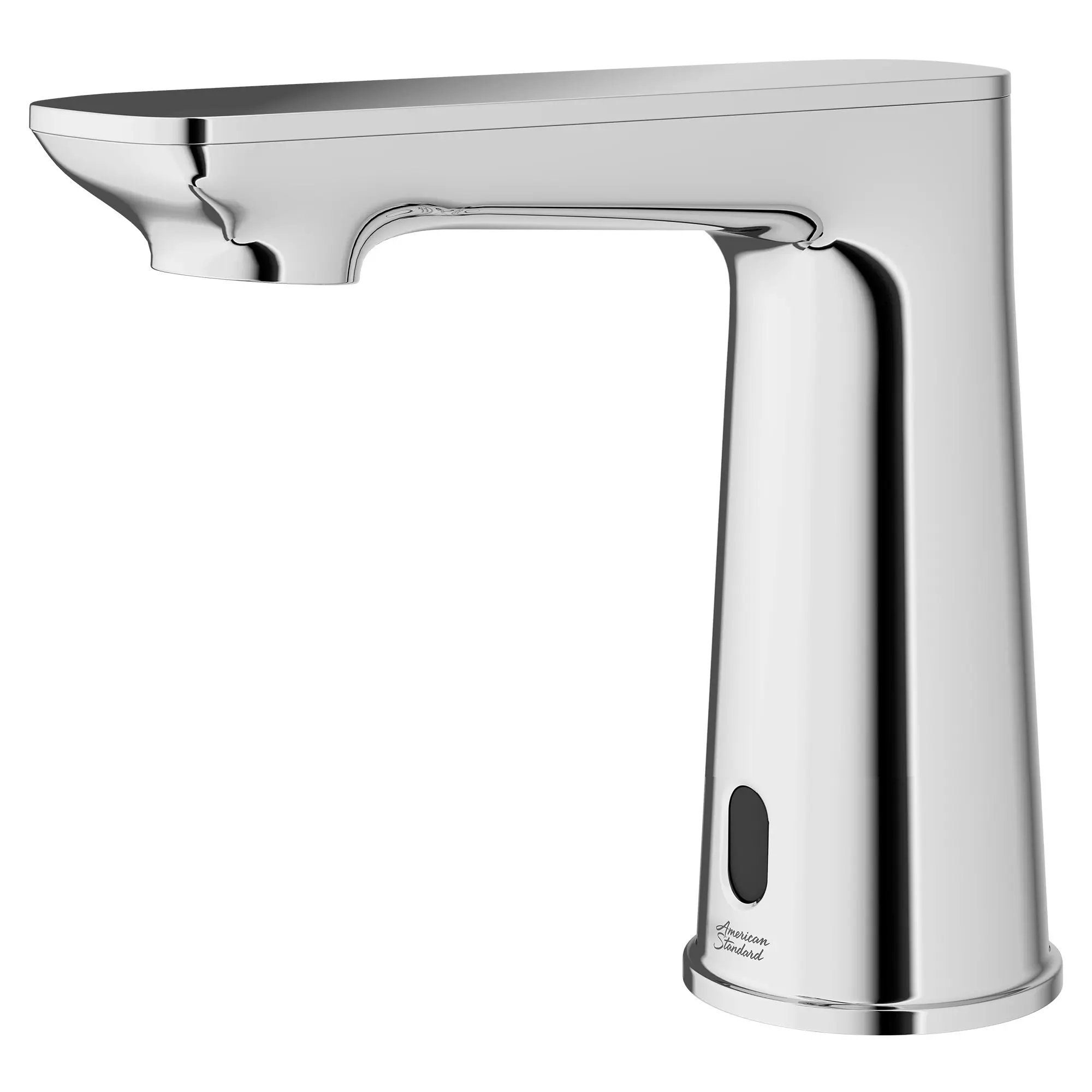

Clean IR Touchless Faucet, Less Mixer, Battery-Powered, 0.5 gpm/1.9 Lpm
1 lb (0.4 kg)
Chrome (002)
280
Brushed Nickel (295)
336
Clean IR® 4-Inch Deck Plate
0 lb (0.1 kg)
Chrome
29
spacer
Clean IR® 8-Inch Deck Plate
0 lb (0.1 kg)
Chrome
35
Clean IR Touchless Faucet, Battery-Powered with Above-Deck Mixing, 0.5 gpm/1.9 Lpm
1 lb (0.5 kg)
Chrome
348
Clean IR Touchless Faucet, Less Mixer, Battery-Powered, 0.5 gpm/1.9 Lpm
1 lb (0.4 kg)
Chrome (002)
280
Brushed Nickel (295)
336
Clean IR® 4-Inch Deck Plate
0 lb (0.1 kg)
Chrome
29
spacer
Clean IR® 8-Inch Deck Plate
0 lb (0.1 kg)
Chrome
35
Clean IR Touchless Faucet, Battery-Powered with Above-Deck Mixing, 0.5 gpm/1.9 Lpm
1 lb (0.5 kg)
Chrome
348
Models marked with * are discontinued, but product may still be available while supplies last.
