Features
- Laminar flow control in spout base. Plain spout end
- Field-convertible rigid/swivel gooseneck spout with 5" (127 mm) reach
- Cast brass valve bodies with 8-inch rigid copper connections
- 1/2-inch (13 mm) male threaded inlet shanks with brass coupling nuts
- Washerless ceramic disc valves assure drip-free performance
- Vandal-resistant wrist blade handles with red and blue indicators
- 1.5 gpm/5.7 Lpm pressure-compensating flow regulator
Technical Features
- Laminar flow control in spout base. Plain spout end
- Field-convertible rigid/swivel gooseneck spout with 5" (127 mm) reach
- Cast brass valve bodies with 8-inch rigid copper connections
- 1/2-inch (13 mm) male threaded inlet shanks with brass coupling nuts
- Washerless ceramic disc valves assure drip-free performance
- Vandal-resistant wrist blade handles with red and blue indicators
- 1.5 gpm/5.7 Lpm pressure-compensating flow regulator

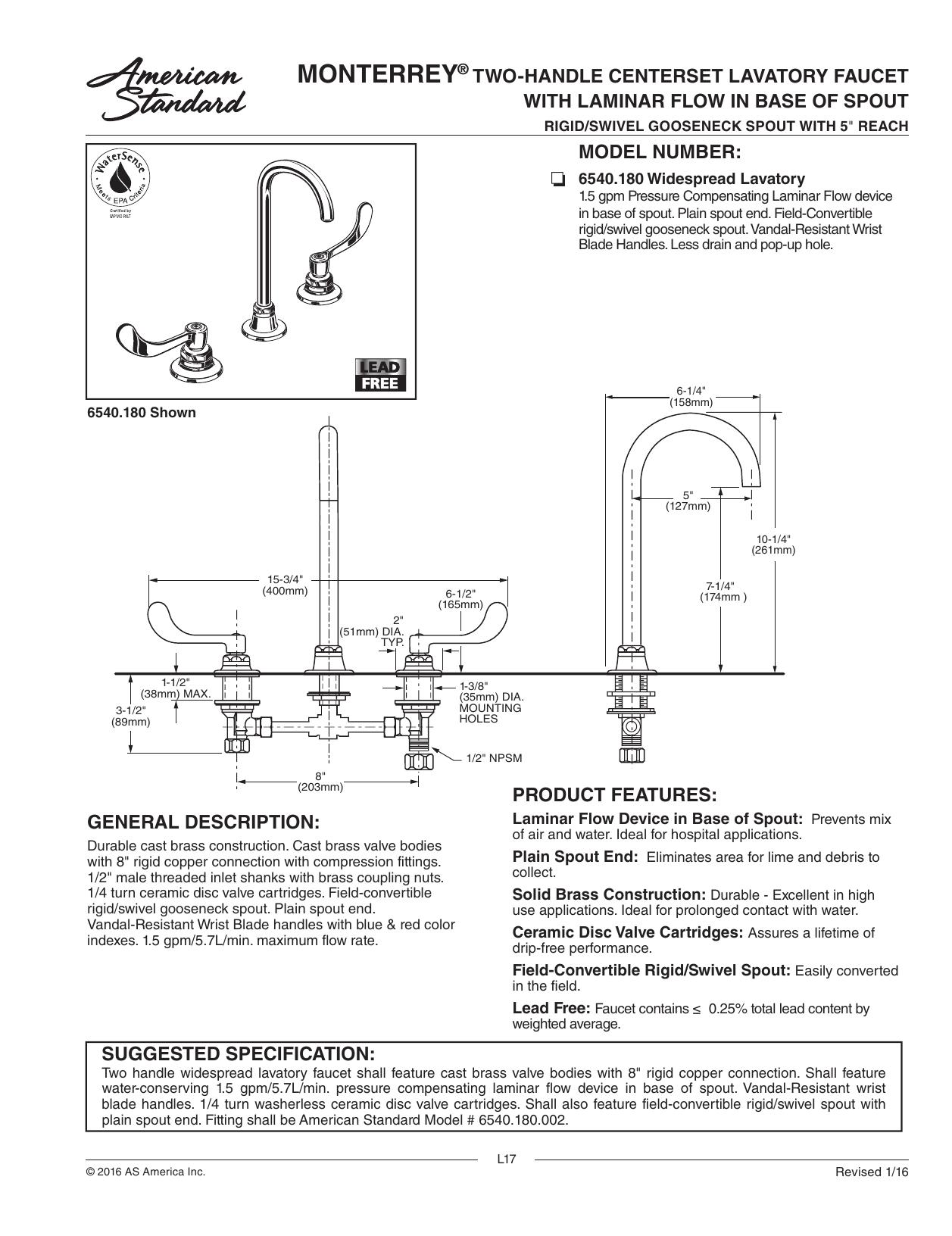

Nominal Dimensions: 6-1/4 in x 15-3/4 in x 10-1/4 in (159 mm x 400 mm x 260 mm)
