Monterrey® 8-Inch Widespread Gooseneck Faucet With 6-inch Wrist Blade Handles 1.5 gpm/5.7 Lpm

The Monterrey Widespread faucet from American Standard features an 8" gooseneck spout and 6" wrist blade handles. Made with solid brass, these industrial strength faucets withstand high use day in and day out, with minimal maintenance to help you save money.

Chrome 6540168.002 DISCONTINUED
List Price: $348.00
ADA Compliant Water Efficient WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Field-convertible rigid/swivel gooseneck spout with 8" (203 mm) reach
  • Cast brass valve bodies with 8" (203 mm) rigid copper connections
  • 1/2" (13 mm) male threaded inlet shanks with brass coupling nuts
  • Washerless ceramic disc valves assure drip-free performance
  • Vandal-resistant 6" (152 mm) wrist blade handles with red and blue indicators
  • 1.5 gpm/5.7 Lpm pressure-compensating aerator
Technical Features
  • Field-convertible rigid/swivel gooseneck spout with 8" (203 mm) reach
  • Cast brass valve bodies with 8" (203 mm) rigid copper connections
  • 1/2" (13 mm) male threaded inlet shanks with brass coupling nuts
  • Washerless ceramic disc valves assure drip-free performance
  • Vandal-resistant 6" (152 mm) wrist blade handles with red and blue indicators
  • 1.5 gpm/5.7 Lpm pressure-compensating aerator
Nominal Dimensions: 9.3 in x 19.5 in x 12.5 in (236 mm x 495 mm x 318 mm)
There are no additional components to display for this product

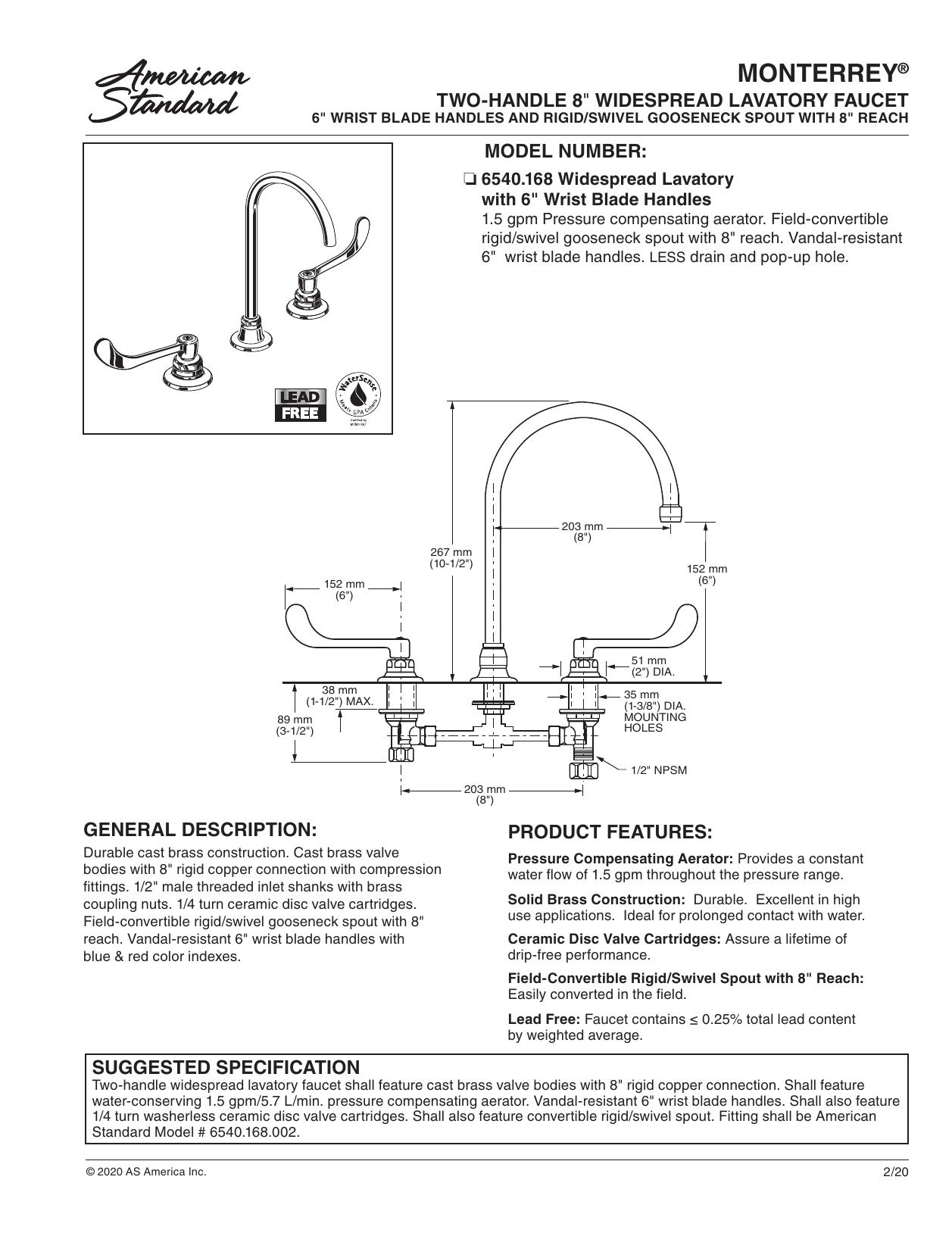

Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Brand: American Standard
Category: Commercial Fittings
Color / Finish: Chrome
Collections: Monterrey
WaterSense: Yes
Fitting Connection Size Input: 1/2
Handle Type: Lever
Fitting Material: Brass
Number of Handles: 2
Fitting Number of Holes: 3
Spout Height: 10-1/2
Spout Type: High Arc
Fixture or Fitting Material: Brass
Gallons Per Minute (min-max): 1.5 GPM
Hardware Included: Yes
Height: 12.5
Length: 9.3
Width: 19.5
Width: 19.5
Residential or Commercial: Commercial
Subcategory: Mechanical Commercial Fittings
Warranty: 5 Year Limited Warranty
Water Efficient: Yes
Download All Supporting Documents

Specification Sheet

Installation Instructions

Replacement Parts
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
There are no design files currently available for this product
3D Objects are not currently available for this product
