Monterrey

Monterrey® 8-Inch Widespread Cast Faucet With Wrist Blade Handles 1.5 gpm/5.7 Lpm With Flexible Underbody

The Monterrey Widespread Bathroom Faucet with Flexible Under-body features drip-free performance, solid brass construction, and a pressure compensating aerator for the greatest in commercial bathroom faucets.

Chrome 6500270.002 DISCONTINUED
List Price: $298.00
ADA Compliant Water Efficient WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Cast brass spout with 4-1/16" (103 mm) reach
  • Cast brass valve bodies with flexible connections for 6" – 12" (152 – 305 mm) C-C
  • 1/2" (13 mm) male threaded inlet shanks with brass coupling nuts
  • Washerless ceramic disc valves assure drip-free performance
  • Vandal-resistant wrist blade handles with red and blue indicators
  • 1.5 gpm/5.7 Lpm pressure-compensating aerator
Technical Features
  • Cast brass spout with 4-1/16" (103 mm) reach
  • Cast brass valve bodies with flexible connections for 6" – 12" (152 – 305 mm) C-C
  • 1/2" (13 mm) male threaded inlet shanks with brass coupling nuts
  • Washerless ceramic disc valves assure drip-free performance
  • Vandal-resistant wrist blade handles with red and blue indicators
  • 1.5 gpm/5.7 Lpm pressure-compensating aerator
Nominal Dimensions: 6-5/16 in x 15-3/4 in x 3-1/4 in (160 mm x 400 mm x 83 mm)
There are no additional components to display for this product

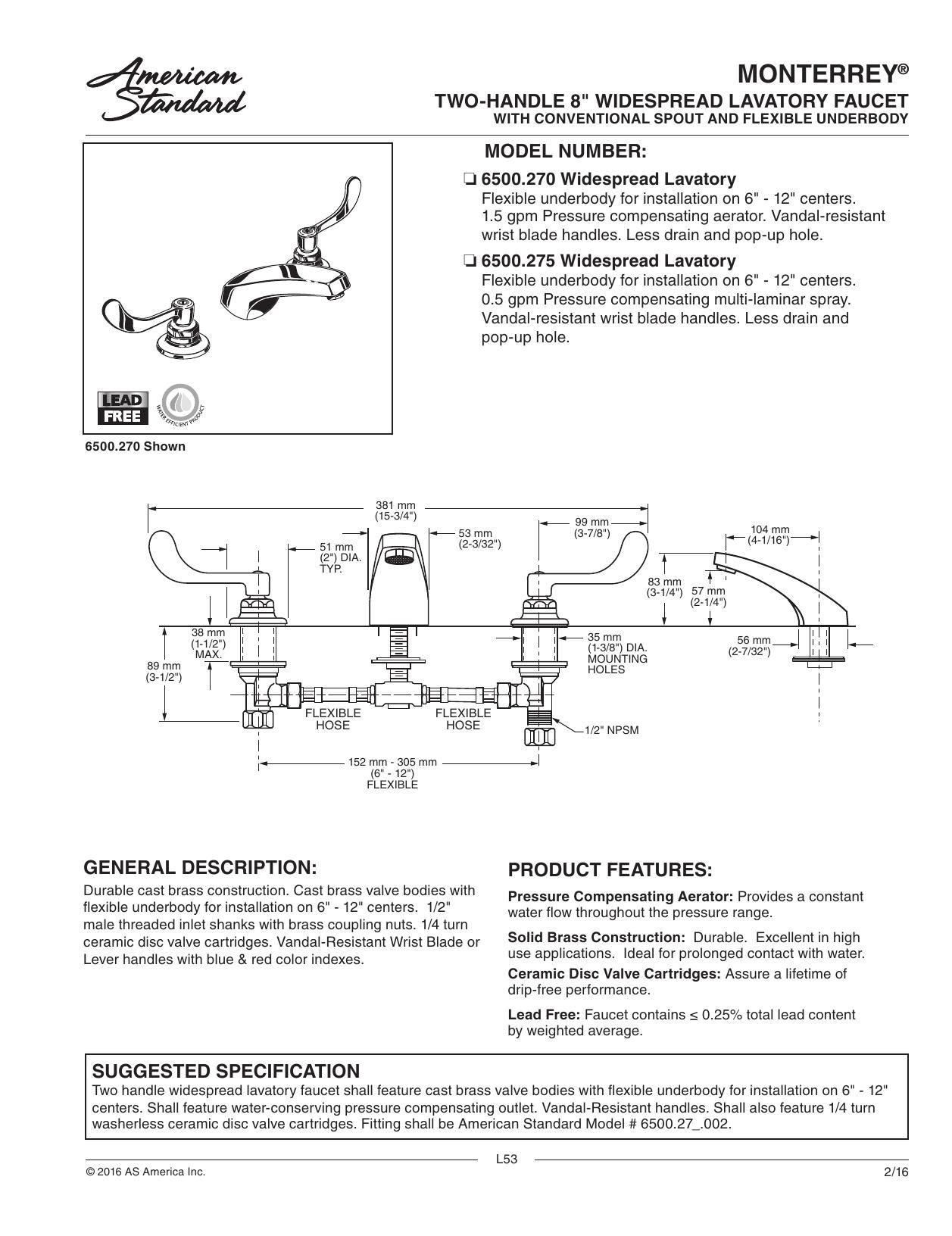

Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Brand: American Standard
Category: Commercial Fittings
Color / Finish: Chrome
Collections: Monterrey
WaterSense: Yes
Fitting Connection Size Input: 12.70
Handle Type: Lever
Fitting Material: Brass
Number of Handles: 2
Fitting Number of Holes: 3
Spout Height: 3-1/4
Spout Type: Standard
Fixture or Fitting Material: Brass
Gallons Per Minute (min-max): 1.5 GPM
Hardware Included: Yes
Height: 3-1/4
Length: 6-5/16
Width: 15-3/4
Residential or Commercial: Commercial
Subcategory: Mechanical Commercial Fittings
Warranty: 5 Year Limited Warranty
Water Efficient: Yes
Download All Supporting Documents

Specification Sheet

Installation Instructions

Replacement Parts
