Metering

Metering Pillar Tap Faucet With Extended Spout 0.5 gpm/1.9 Lpf

Every American Standard Commercial Faucets is designed to work flawlessly and dependably year after year, saving time, money and maintenance headaches.

Chrome 1340119.002 DISCONTINUED
List Price: $191.00
ADA Compliant Cal Green CEC Certified Water Efficient
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Ideal for public restrooms
  • Automatic shut-off stops water and energy waste
  • Vandal-resistant cast brass construction
  • Factory set for a maximum of 0.09 gallon flow per activation
  • Optional grid drain, mixing valve and deck plates are available (sold separately)
  • 0.5 gpm/1.9 Lpf pressure-compensating VR multi-laminar spray
Technical Features
  • Ideal for public restrooms
  • Automatic shut-off stops water and energy waste
  • Vandal-resistant cast brass construction
  • Factory set for a maximum of 0.09 gallon flow per activation
  • Optional grid drain, mixing valve and deck plates are available (sold separately)
  • 0.5 gpm/1.9 Lpf pressure-compensating VR multi-laminar spray
Nominal Dimensions: 6-7/16 in x 2-1/16 in x 5-1/8 in (164 mm x 52 mm x 130 mm)
Description
Net Weight
SKU
Color
List Price USD
Metering Pillar Tap Faucet With Extended Spout 0.5 gpm/1.9 Lpf
2 lb (1.0 kg)
1340119.002
Chrome (002)
191
Optional Components (Not Included)
Mechanical Mixing Valve
1 lb (0.3 kg)
021943-0070A
No Finish
111
spacer
Selectronic® 4-Inch Deck Plate
1 lb (0.2 kg)
605P400.002
Chrome
47
spacer
Selectronic® 8-Inch Deck Plate
2 lb (0.7 kg)
605P800.002
Chrome
87
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Brand: American Standard
Cal Green: Yes
Category: Commercial Fittings
CEC Certified: Yes
Color / Finish: Chrome
Collections: Metering
Fitting Connection Size Input: 9.52
Handle Height: 2.0
Handle Type: Knob
Fitting Material: Brass
Mount Type: Deck Mount
Fitting Number of Holes: 1
Spout Height: 2.0
Spout Type: Standard
Fixture or Fitting Material: Brass
Gallons Per Minute (min-max): 0.5 GPM
Hardware Included: Yes
Height: 5-1/8
Length: 6-7/16
Width: 2-1/16
Residential or Commercial: Commercial
Subcategory: Mechanical Commercial Fittings
Warranty: 5 Year Limited Warranty
Water Efficient: Yes
Download All Supporting Documents

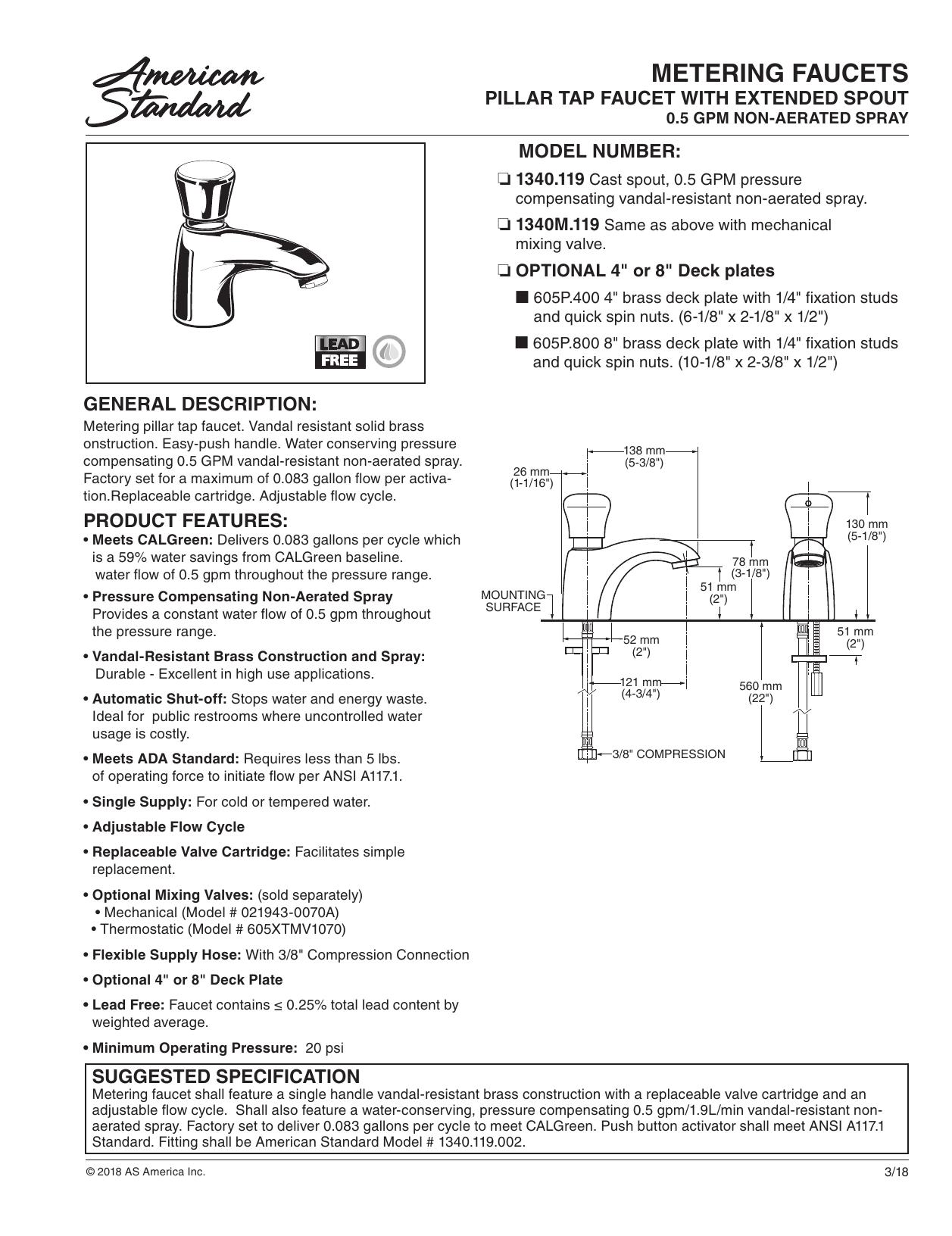

Specification Sheet

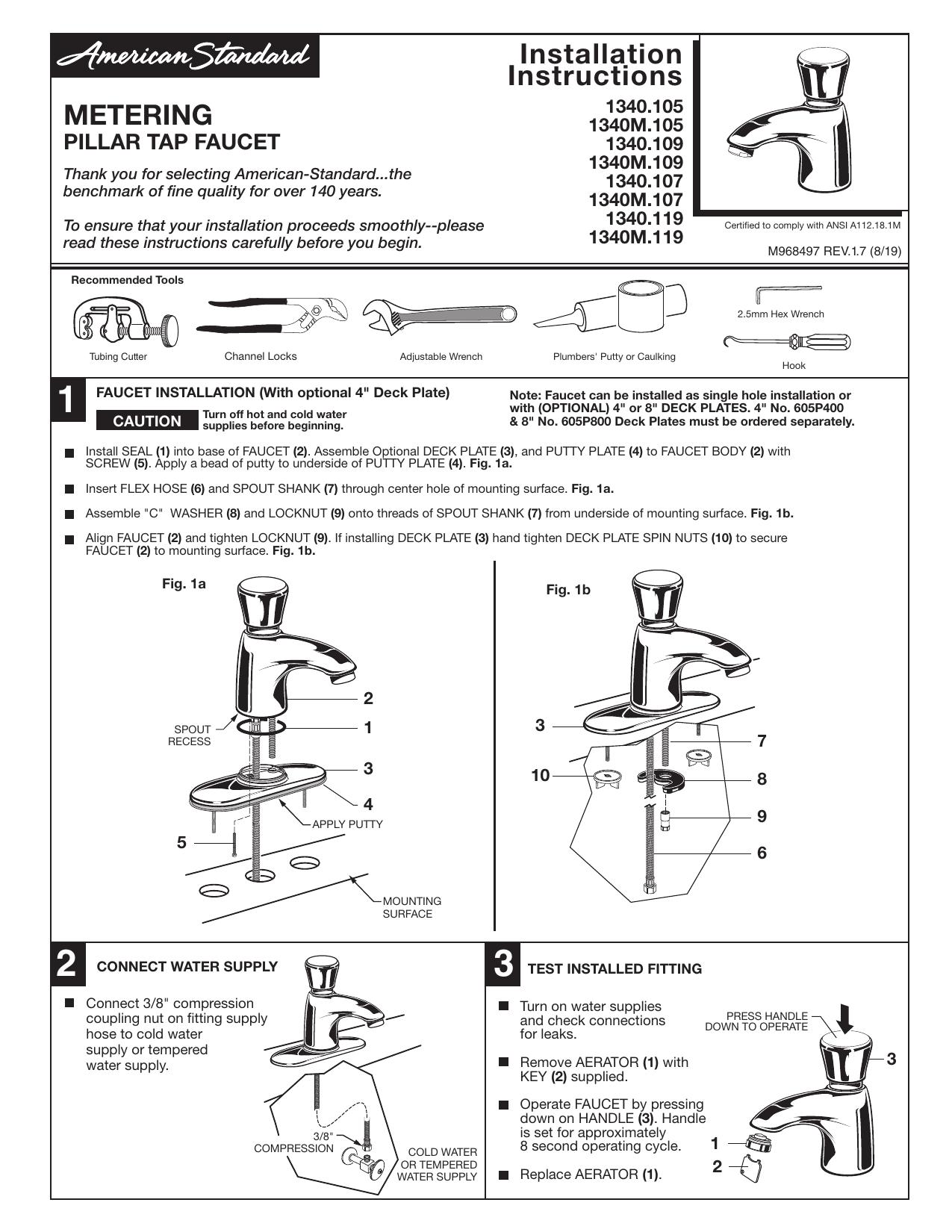

Installation Instructions

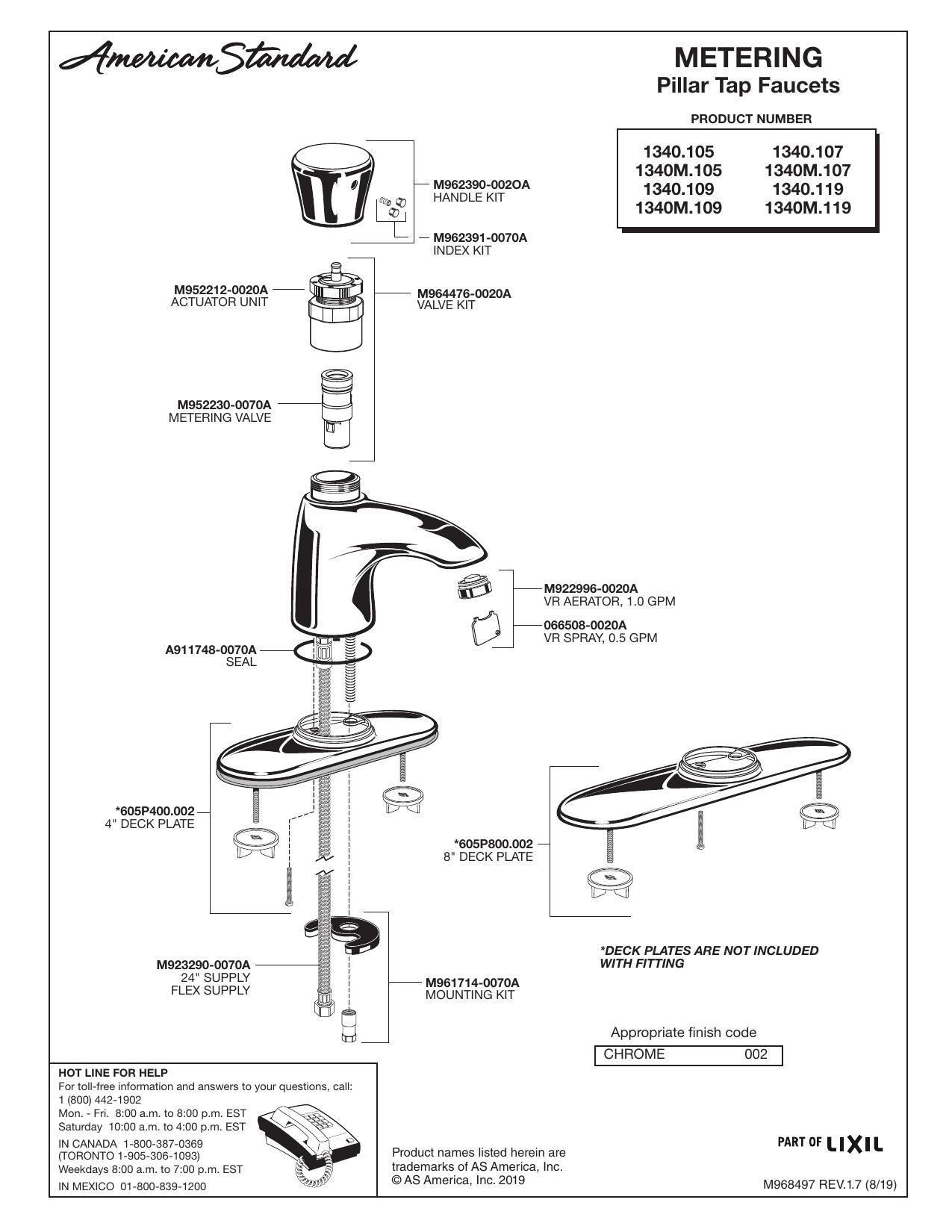

Replacement Parts
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
There are no design files currently available for this product
There are no videos currently available for this product
3D Objects are not currently available for this product
