Metering

Metering 8-Inch Widespread 2-Handle Faucet 1.0 gpm/3.8 Lpf

The Metering 8 Inch Widespread 2-Handle Bathroom Faucet from American Standard is engineered for durability and water-savings in commercial locations. This practical style combines a curved cast brass spout and ADA compliant push knobs with hot/cold indicators for safety. Designed to conserve water with automatic shut-off, this widespread faucet is the ideal choice for busy public places.

Chrome 1340825.002 DISCONTINUED
List Price: $402.00
ADA Compliant Cal Green CEC Certified Water Efficient
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Ideal for public restrooms
  • Automatic shut-off stops water and energy waste
  • Vandal-resistant cast brass construction
  • Factory set for a maximum of 0.17 gallons per cycle (gpc)
  • Optional grid drain available (sold separately)
  • 1.0 gpm/3.8 Lpf pressure-compensating VR aerator
Technical Features
  • Ideal for public restrooms
  • Automatic shut-off stops water and energy waste
  • Vandal-resistant cast brass construction
  • Factory set for a maximum of 0.17 gallons per cycle (gpc)
  • Optional grid drain available (sold separately)
  • 1.0 gpm/3.8 Lpf pressure-compensating VR aerator
Nominal Dimensions: 6.937 in x 10-1/8 in x 5-3/16 in (176 mm x 257 mm x 132 mm)
Description
Net Weight
SKU
Color
List Price USD
Metering 8-Inch Widespread 2-Handle Faucet 1.0 gpm/3.8 Lpf
5 lb (2.5 kg)
1340825.002 *
Chrome (002)
402
Optional Components (Not Included)
Grid Strainer Drain for Sinks
1 lb (0.4 kg)
2411015.002
Chrome
56
spacer
Offset Grid Strainer Drain for Sinks
1 lb (0.7 kg)
7723018.002
Chrome
129


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Brand: American Standard
Cal Green: Yes
Category: Commercial Fittings
CEC Certified: Yes
Color / Finish: Chrome
Department of Energy Certified: Yes
Collections: Metering
Fitting Connection Size Input: 12.70
Handle Height: 5-3/16
Handle Type: Knob
Fitting Material: Brass
Mount Type: Deck Mount
Fitting Number of Holes: 3
Spout Height: 3-5/8
Spout Type: Standard
Fixture or Fitting Material: Brass
Gallons Per Minute (min-max): 1 GPM
Hardware Included: Yes
Height: 5-3/16
Length: 6.937
Width: 10-1/8
Residential or Commercial: Commercial
Subcategory: Mechanical Commercial Fittings
Warranty: 5 Year Limited Warranty
Water Efficient: Yes
Download All Supporting Documents

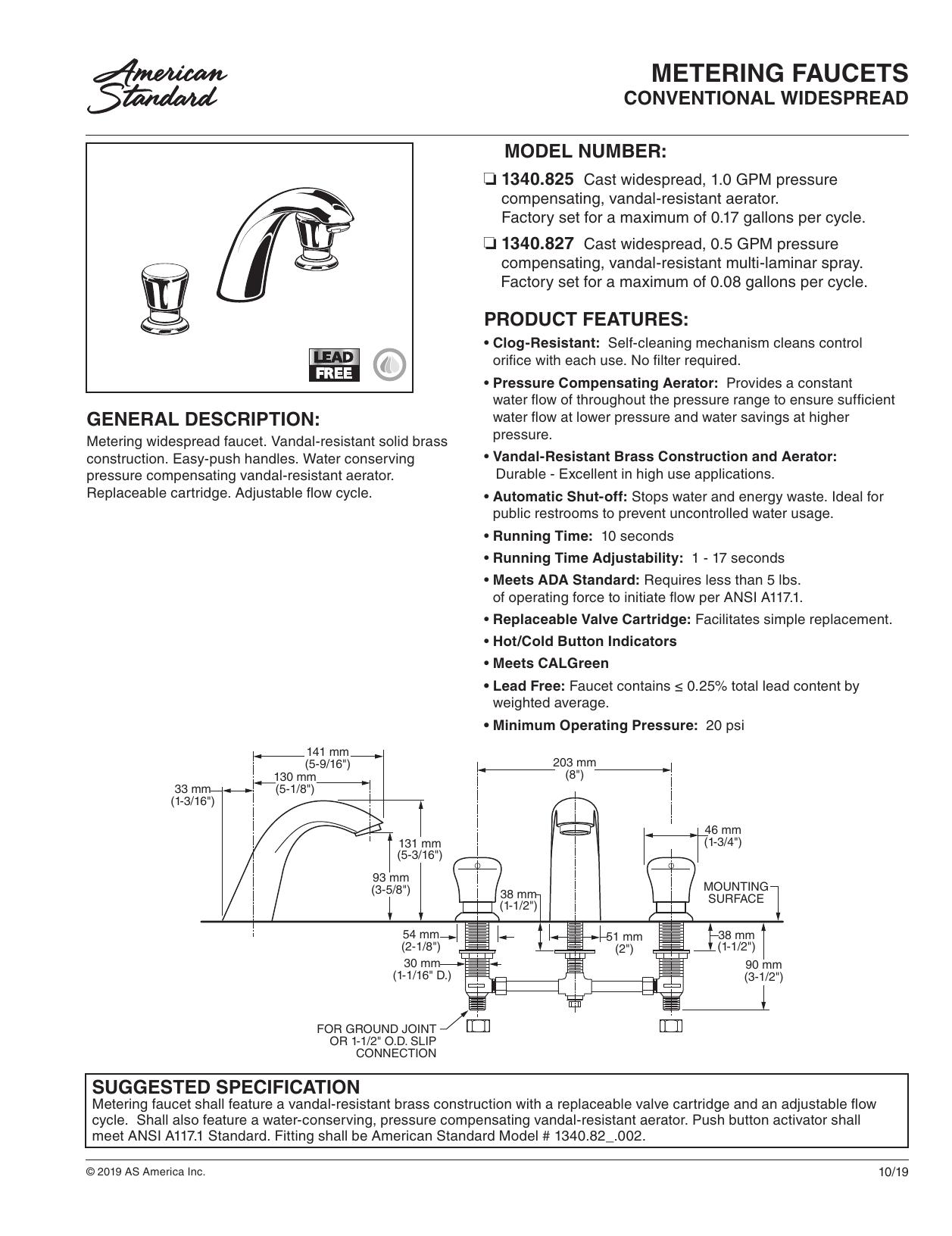

Specification Sheet

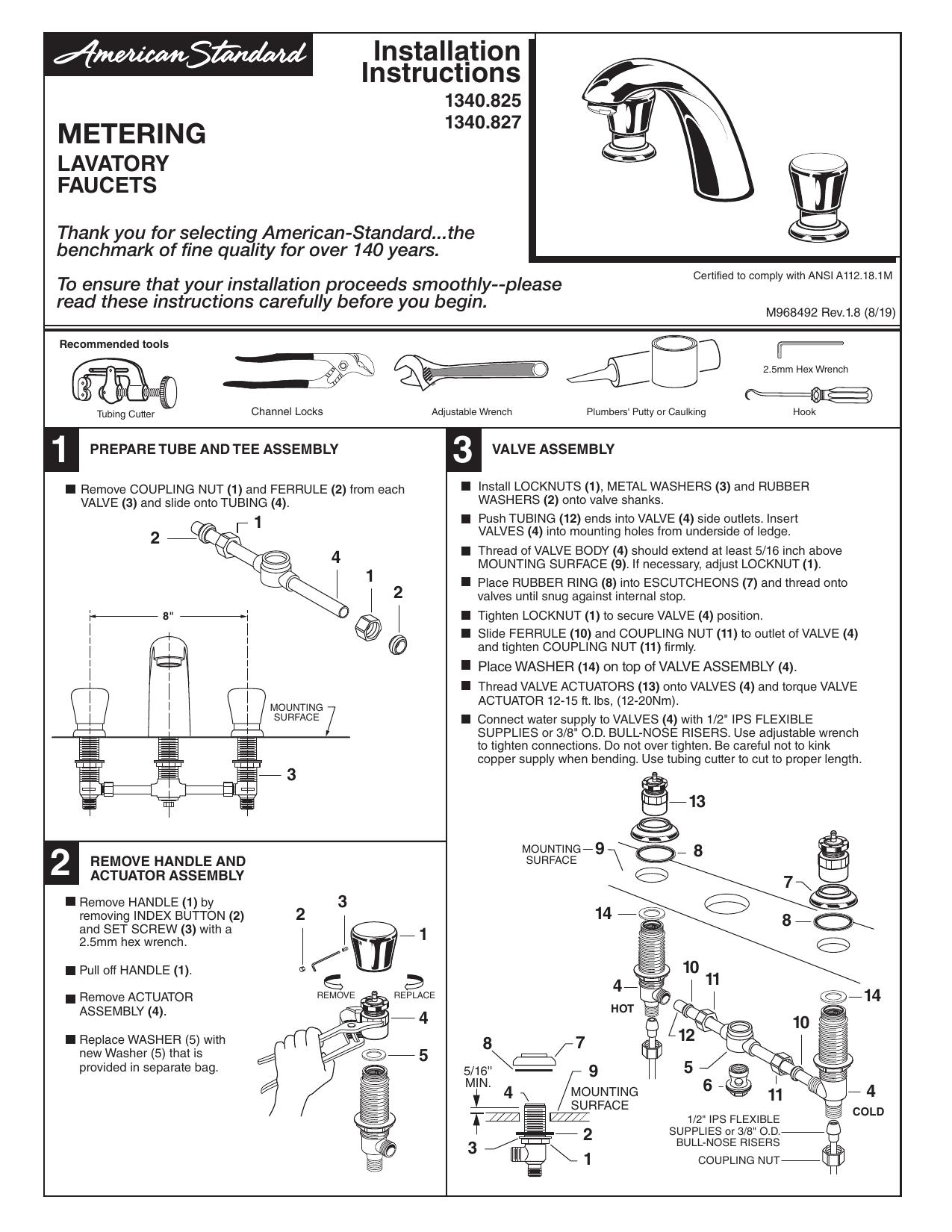

Installation Instructions

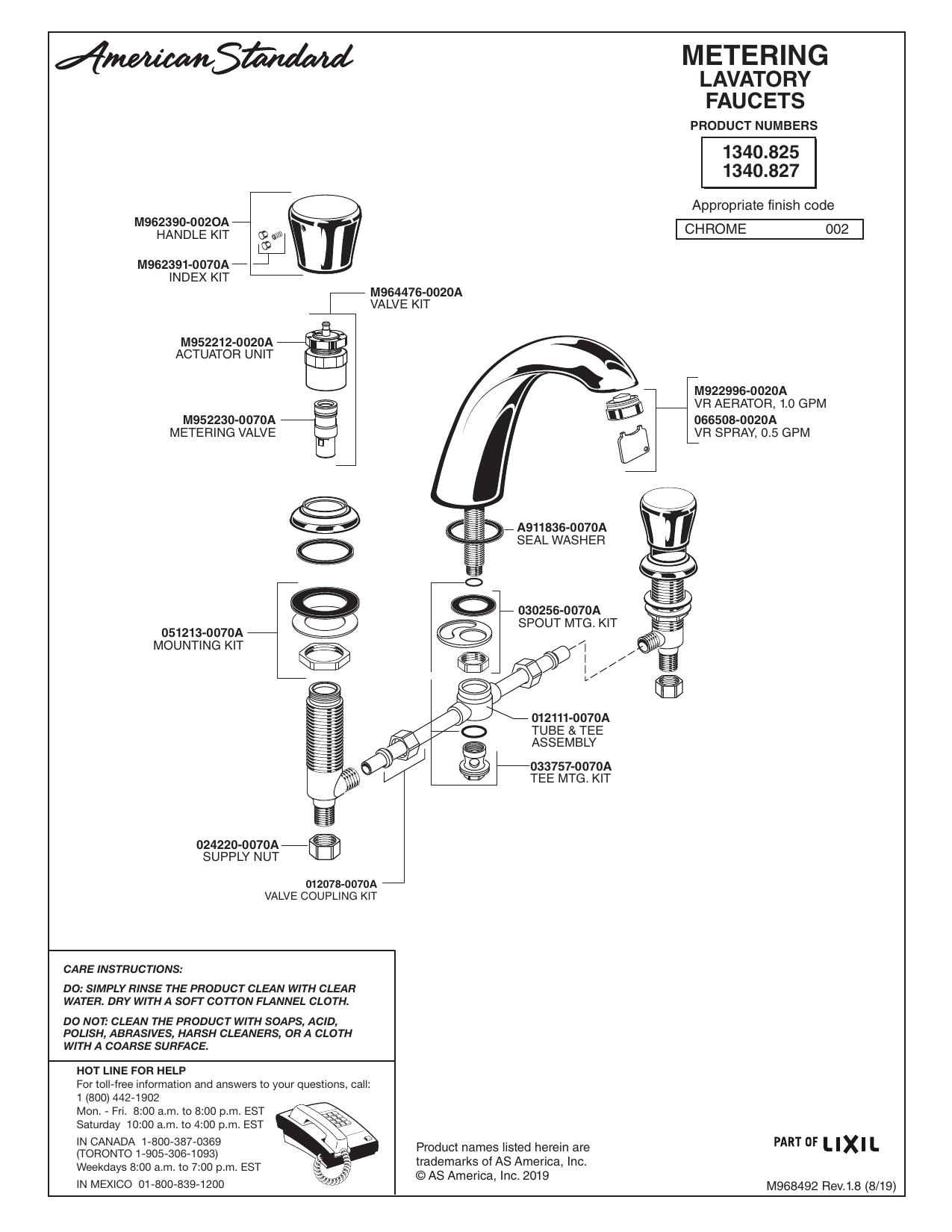

Replacement Parts
