Commercial Shower Systems

Commercial Shower System Trim Kit 1.5 gpm/5.7 Lpm with 36-Inch Slide-Grab Bar, Hand Shower and Showerhead

Chrome TU662SG213.002 DISCONTINUED
List Price: $661.00
ADA Compliant Cal Green CEC Certified Water Efficient WaterSense
Items REQUIRED for Install
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • For Flash® shower rough-in valves with choice of connections (sold separately)
  • 2-way rough diverter valve (R422 - sold separately)
  • Includes 3-function hand shower with pause feature
  • Pause Feature: Non-positive shut-off button on handle reduces flow to a trickle to meet ADA requirement
  • 2-way diverter valve trim kit
  • Fixed showerhead with arm and flange
  • 36" slide-grab bar meets the ANSI standard 250 lb pull test for grab bars
  • Metal wall escutcheon with metal lever handle. Red/blue indicator ring
  • 1.5 gpf/5.7 Lpm maximum flow rate
Technical Features
  • For Flash® shower rough-in valves with choice of connections (sold separately)
  • 2-way rough diverter valve (R422 - sold separately)
  • Includes 3-function hand shower with pause feature
  • Pause Feature: Non-positive shut-off button on handle reduces flow to a trickle to meet ADA requirement
  • 2-way diverter valve trim kit
  • Fixed showerhead with arm and flange
  • 36" slide-grab bar meets the ANSI standard 250 lb pull test for grab bars
  • Metal wall escutcheon with metal lever handle. Red/blue indicator ring
  • 1.5 gpm/5.7 Lpm maximum flow rate
Description
Net Weight
SKU
Color
List Price USD
Commercial Shower System Trim Kit 1.5 gpm/5.7 Lpm with 36-Inch Slide-Grab Bar, Hand Shower and Showerhead
12 lb (5.7 kg)
TU662SG213.002
Chrome (002)
661
Required Components (Not Included)
2-Way In-Wall Diverter Rough-In Valve With 2 Discrete Functions
2 lb (0.7 kg)
R422
No Finish
273
Separate Components
1/2-Inch NPT In-Line Vacuum Breaker
0 lb (0.1 kg)
1660400.002
Chrome
57
spacer
FloWise 1.5 gpm/5.7 L/min Water-Saving Fixed Showerhead
0 lb (0.1 kg)
1660710.002
Chrome
39
spacer
1.5 gpm/5.7 Lpf 3-Function Hand Shower With Pause Feature
1 lb (0.2 kg)
1660766.002
Chrome
79
spacer
Commercial 36-Inch Slide-Grab Bar
3 lb (1.5 kg)
1662236.002
Chrome
210
spacer
Metal Shower Hose
1 lb (0.3 kg)
8888035.002
Chrome
80
spacer
Wall Supply
1 lb (0.3 kg)
8888037.002
Chrome
57
spacer
Heritage Metal Lever Handle Trim Kit for Diverter Valves
2 lb (0.8 kg)
T342430.002
Chrome
123
spacer
Reliant 3® Valve Only Trim Kit With Double Ceramic Pressure Balance Cartridge With Lever Handle
2 lb (0.7 kg)
TU385500WD.002 *
Chrome
0


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Brand: American Standard
Cal Green: Yes
Category: Commercial Fittings
CEC Certified: Yes
Color / Finish: Chrome
Collections: Commercial Shower Systems
WaterSense: Yes
Gallons Per Minute (min-max): 1.5 GPM
Height: 37.5
Length: 0
Width: 7.4
Residential or Commercial: Commercial
Subcategory: Mechanical Commercial Fittings
Water Efficient: Yes
Download All Supporting Documents

Specification Sheet

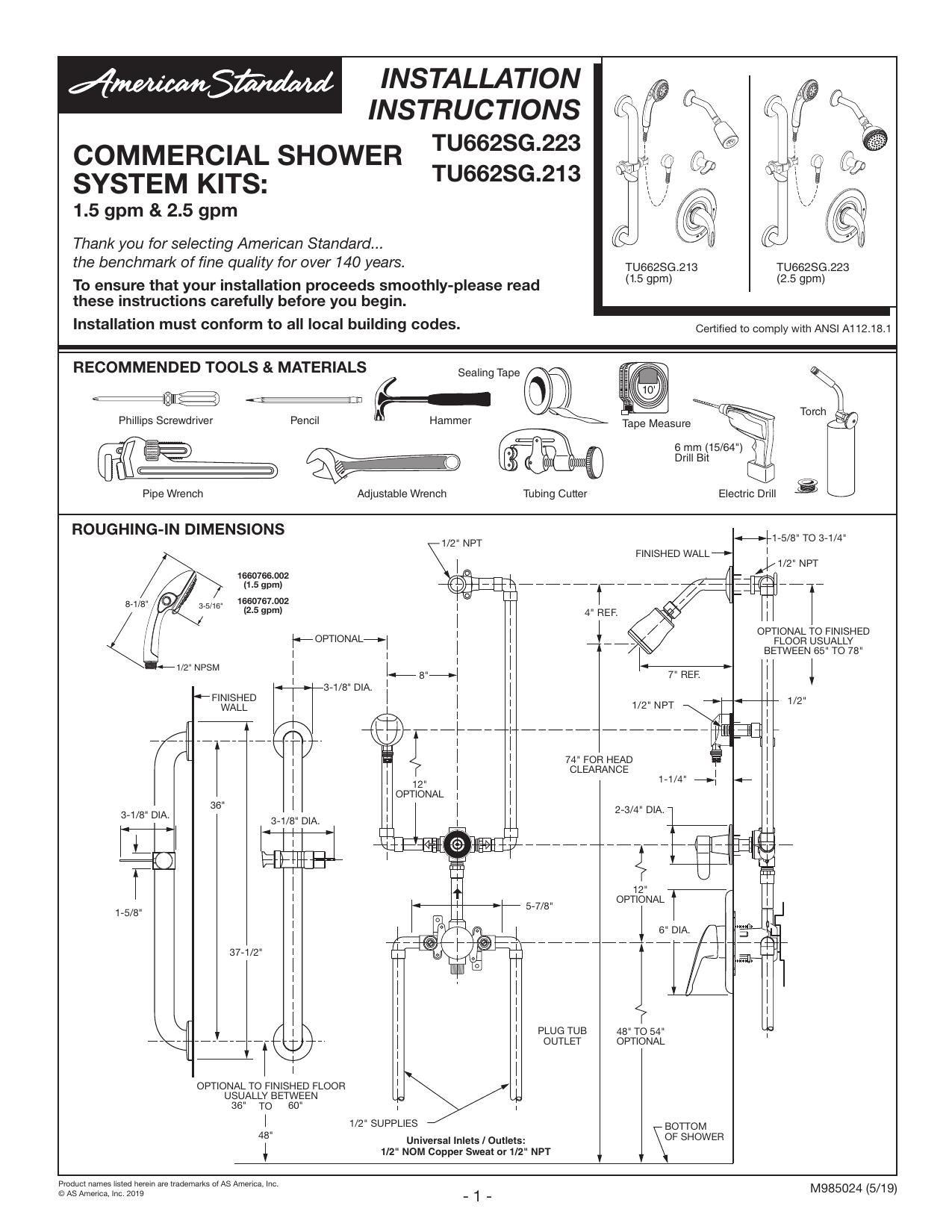

Installation Instructions

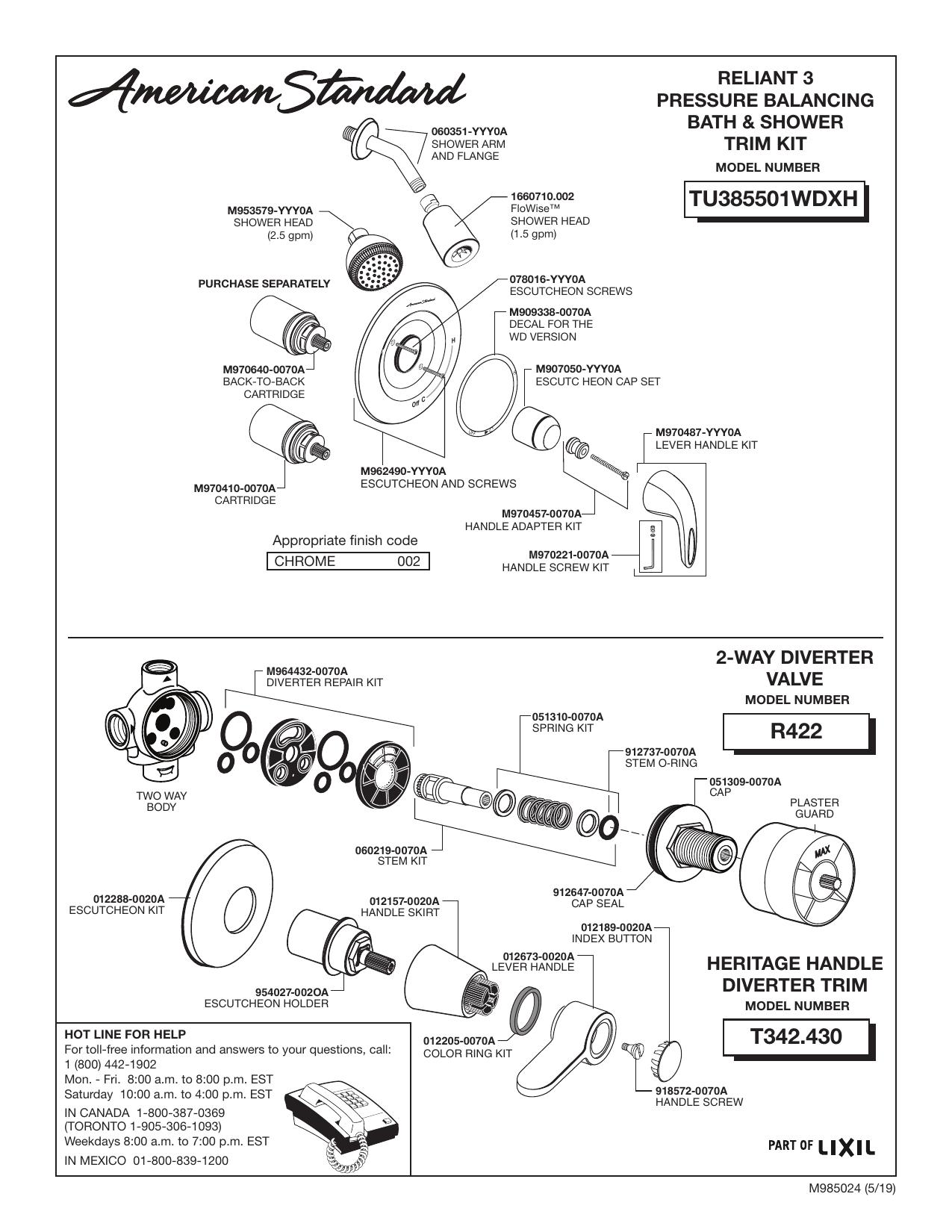

Replacement Parts
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
REVIT Files
.rfa icon REVIT File
There are no videos currently available for this product
3D Objects are not currently available for this product
