Townsend

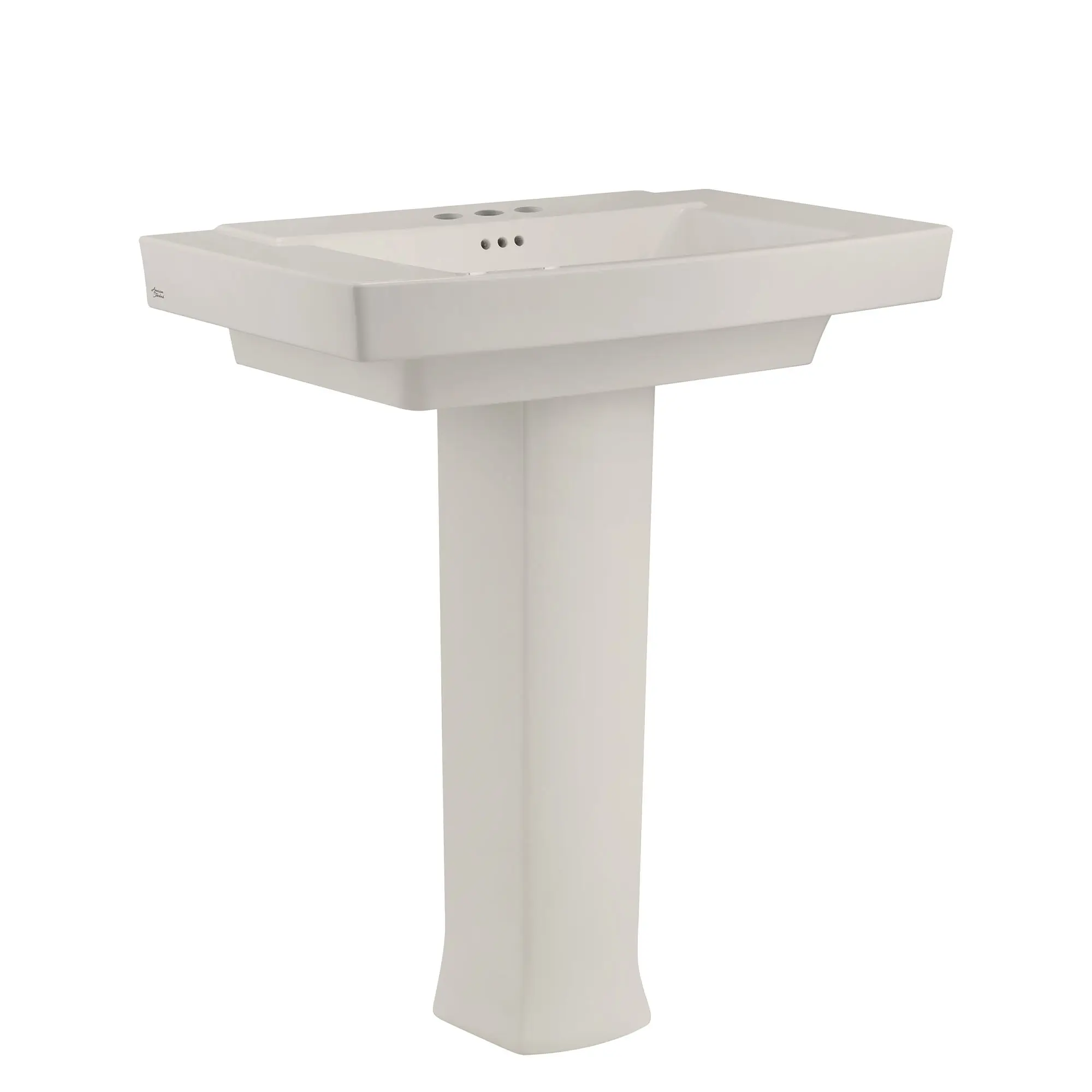

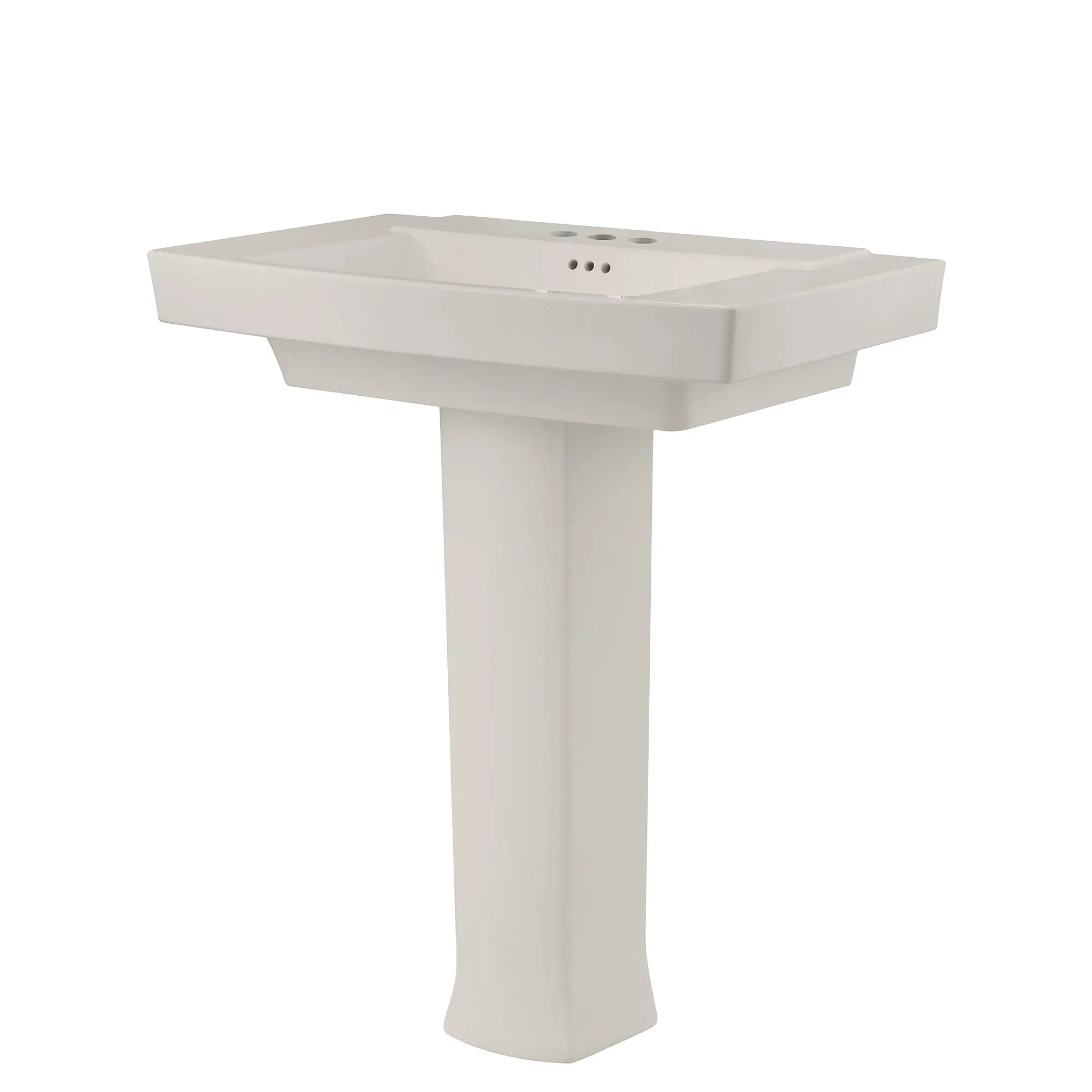

Townsend® 4-Inch Centerset Pedestal Sink Top and Leg Combination

0328400.222 DISCONTINUED
List Price: $0.00
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Lavatory plus Pedestal (White)
  • Faucet holes on 4" (102mm) centers
  • Classic styled rectangular pedestal lavatory (coordinates with Townsend Fixtures & Fittings)
  • Rear overflow
  • Supplied with mounting kit
  • Right Height for greater comfort during use
  • Faucet/soap/accessory ledge with generous shelf area (Faucet not included)
  • Fine fireclay construction
  • Bowl size:
  • 19" (485 mm) wide, 12 3/4" (324 mm) front to back, 5" (128 mm) deep
Technical Features
  • Raised faucet ledge
  • Rear overflow
  • Supplied with mounting kit
  • Design coordinates with Townsend® collection including new furniture offerings
  • Right height for greater comfort during use
  • Open back pedestal
  • Fine fireclay construction
Nominal Dimensions: 30 in x 19-1/2 in x 35-1/4 in (762 mm x 495 mm x 895 mm)
Description
Net Weight
SKU
Color
List Price USD
Townsend® 4-Inch Centerset Pedestal Sink Top and Leg Combination
1 lb (0.4 kg)
0328400.222 *
0
0328400.020 *
0
Separate Components
Townsend® Pedestal Leg
34 lb (15.6 kg)
0039001.222 *
0
spacer
Townsend® 4-Inch Centerset Pedestal Sink Top
53 lb (24.1 kg)
0328004.222 *
0


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
Front To Back Length: 12-3/4
Side to Side Width: 19
Top to Bottom Depth: 5
Brand: American Standard
Category: Washbasins
Color / Finish: Linen (222)
Collections: Townsend
Handle Material: Brass
Fixture Number of Holes: 3
Height: 35-1/4
Length: 30
Length: 30
Width: 19-1/2
Residential or Commercial: Residential
Sink Depth (to overflow): 7/8
Predrilled Holes: Yes
Sink Depth: 6
Subcategory: Pedestal Combo Washbasins
Download All Supporting Documents

Specification Sheet

Installation Instructions
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
2D CAD Files
.dwg icon 2D CAD File
REVIT Files
.rfa icon REVIT File
The 3D Models used on the website are for reference only and may not reflect the actual configuration of the product.
