Loft

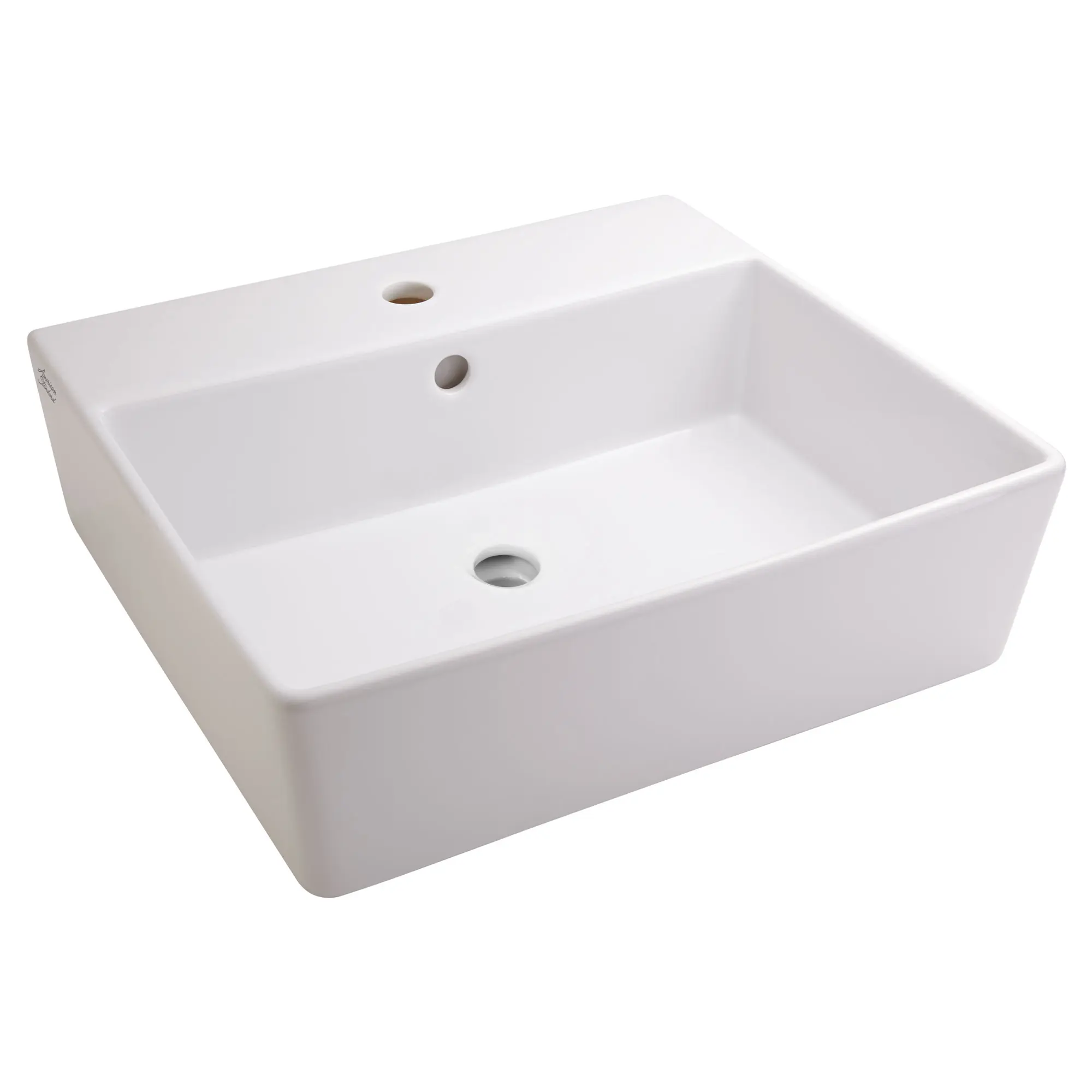

Loft® Above Counter Sink With Center Hole Only

Clean Contemporary Design. With sleek lines and striking, angular shapes, the Loft above counter sink is the perfect addition to the modern bathroom. Part of the Loft Collection, this rectangular sink is constructed of fire clay for beauty and durability. The integral faucet deck is pre-drilled with a single hole and designed to work with monoblock faucets.

White 0552001.020 DISCONTINUED
List Price: $310.00
ADA Compliant Enjoy More Rewards
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Rectangular above counter sink
  • Made from fire clay
  • Single hole faucet ledge
  • Rear overflow
  • Cutout template supplied

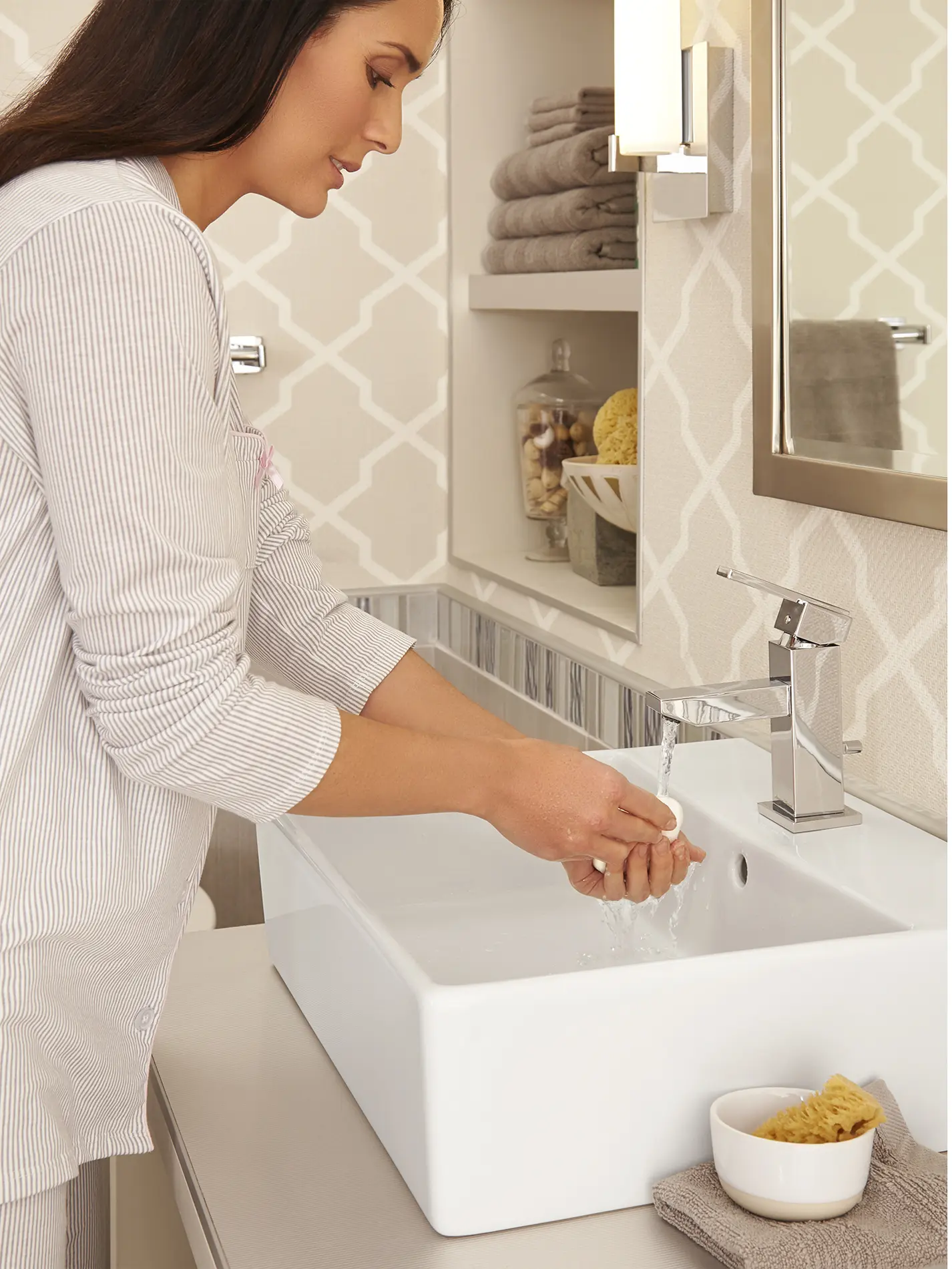

  • Shown with Times Square Monoblock 7184.101 faucet (Not included)
  • Nominal Dimensions:
  • 19-5/8" x 17-11/16" x 5-7/8" (499 mm x 449 mm x 150 mm)
  • Bowl Size:
  • 18-9/16" (wide) 14-5/8" (front to back) 5" (deep)
Technical Features
  • Above counter sink
  • Integral faucet deck for single hole faucet
  • Rear overflow
  • No glaze on back wall
  • Cut-out template supplied
  • Fine fireclay construction
There are no additional components to display for this product
Download Specification Sheet
ADA Compliant: Yes
Front To Back Length: 14-5/8
Side to Side Width: 18-9/16
Top to Bottom Depth: 5
Brand: American Standard
Category: Washbasins
Color / Finish: White
Collections: Loft
Fixture Material: Fireclay
Fixture Number of Holes: 1
Fixture or Fitting Material: Fireclay
Length: 19-5/8
Width: 15-3/4
Residential or Commercial: Residential
Below Counter Depth: 1-1/4
Predrilled Holes: Yes
Sink Depth: 5-7/8
Subcategory: Countertop Washbasins
Download All Supporting Documents

Specification Sheet

Installation Instructions
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
2D CAD Files
.dwg icon 2D CAD File
REVIT Files
.rfa icon REVIT File
There are no videos currently available for this product
3D Objects are not currently available for this product
