Aqualyn

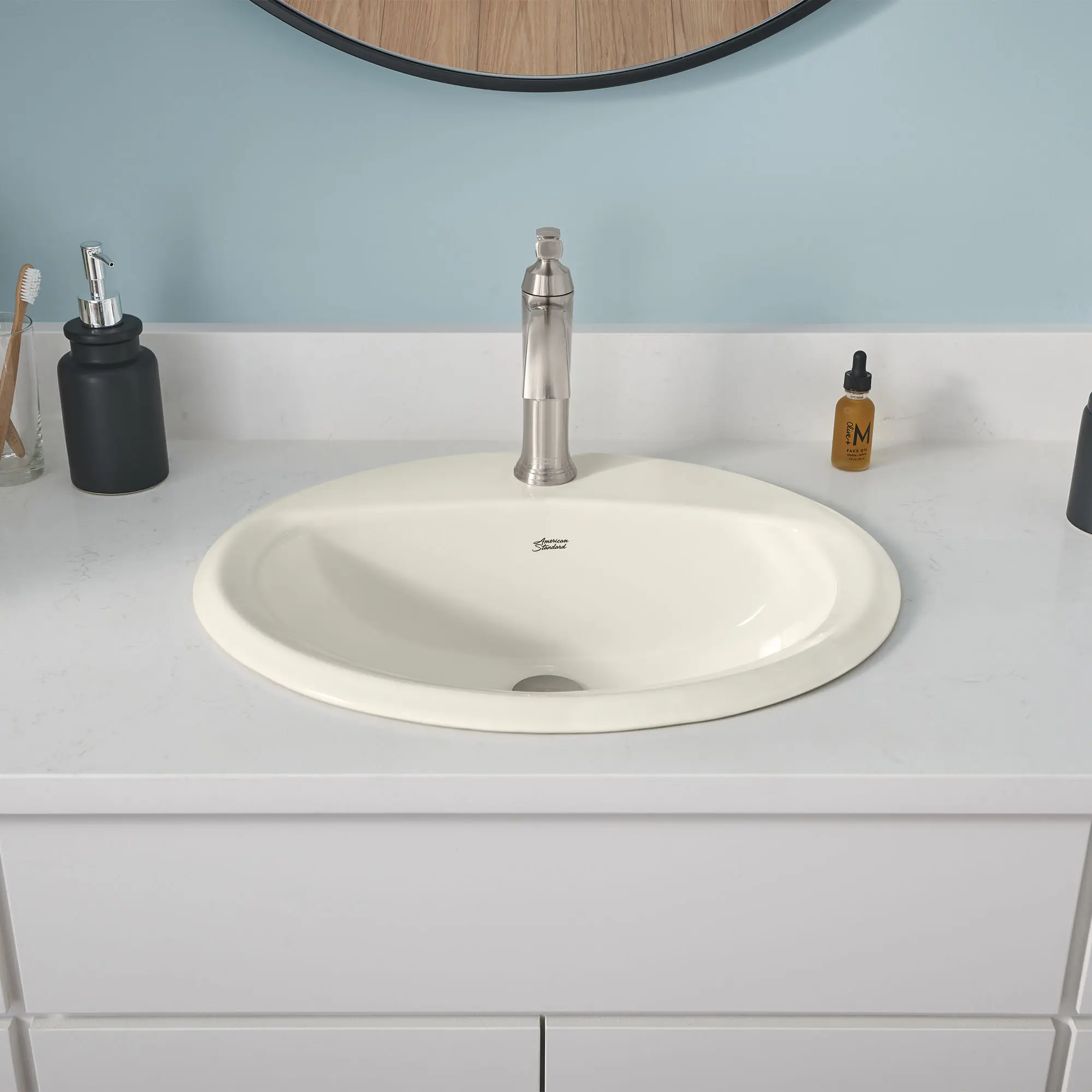

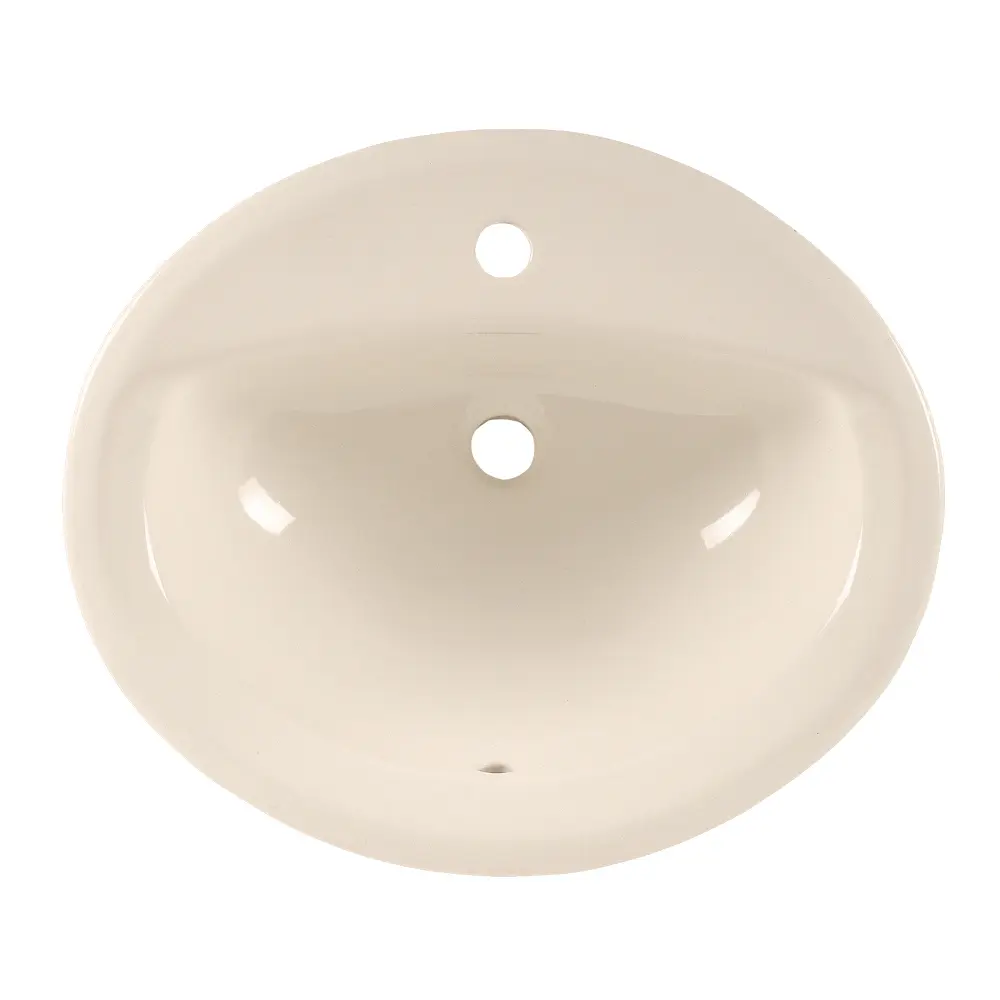

Aqualyn® Drop-In Sink With Center Hole Only

A celebration of clean lines. This contemporary countertop sink has crisp contours and a tapered edge that goes well with casual bathrooms. Made from high-gloss, stain-resistant Vitreous China. Available with a single hole or 4" or 8" center faucet holes, with or without a fourth hole for a liquid soap dispenser.

Linen 0475047.222 DISCONTINUED
List Price: $143.00
ADA Compliant
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Self-rimming oval counter top sink
  • Tapered edges for style
  • Front overflow
  • Supplied with cut-out template
  • 0475.047 not available in black
  • Nominal Dimensions:
  • 20-3/8" x 17-3/8" (518 x 441 mm)
  • Bowl Size:
  • 16" (406 mm) wide
Technical Features
  • Self-rimming oval drop-in sink
  • Tapered edges for style
  • Front overflow
  • Supplied with cut-out template
  • Made of vitreous china
There are no additional components to display for this product
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Front To Back Length: 10
Side to Side Width: 16
Top to Bottom Depth: 5-5/8
Brand: American Standard
Category: Washbasins
Color / Finish: Linen
Collections: Aqualyn
Fixture Material: Vitreous China
Fixture Number of Holes: 1
Fixture or Fitting Material: Vitreous China
Length: 20-3/8
Width: 17-3/8
Residential or Commercial: Residential
Below Counter Depth: 7-1/8
Sink Cutout Dimensions: 16-1/8 in x 19 in
Sink Depth (to overflow): 1-3/8
Predrilled Holes: Yes
Sink Depth: 0-1/2
Subcategory: Countertop Washbasins
Download All Supporting Documents

Specification Sheet
