Washbrook

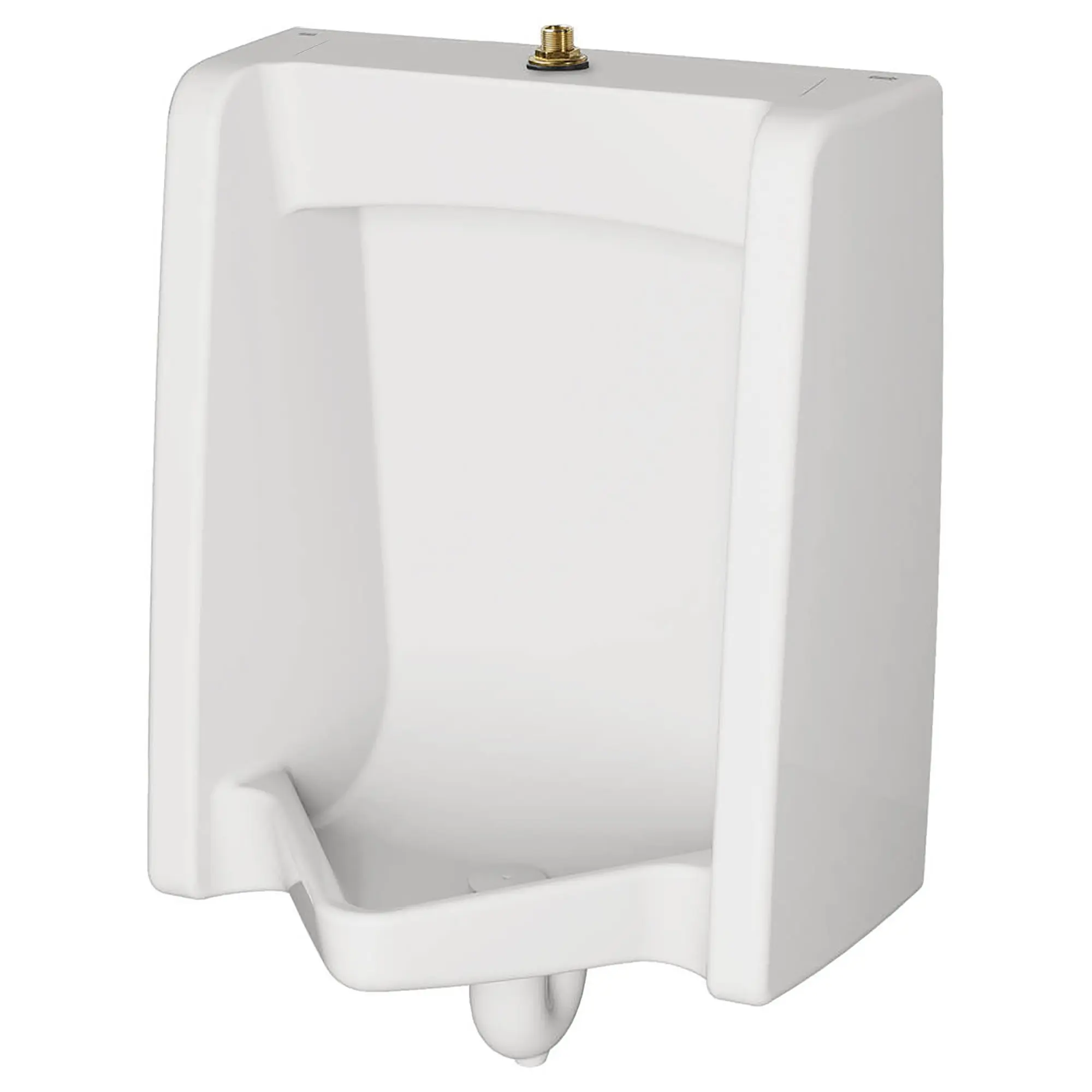

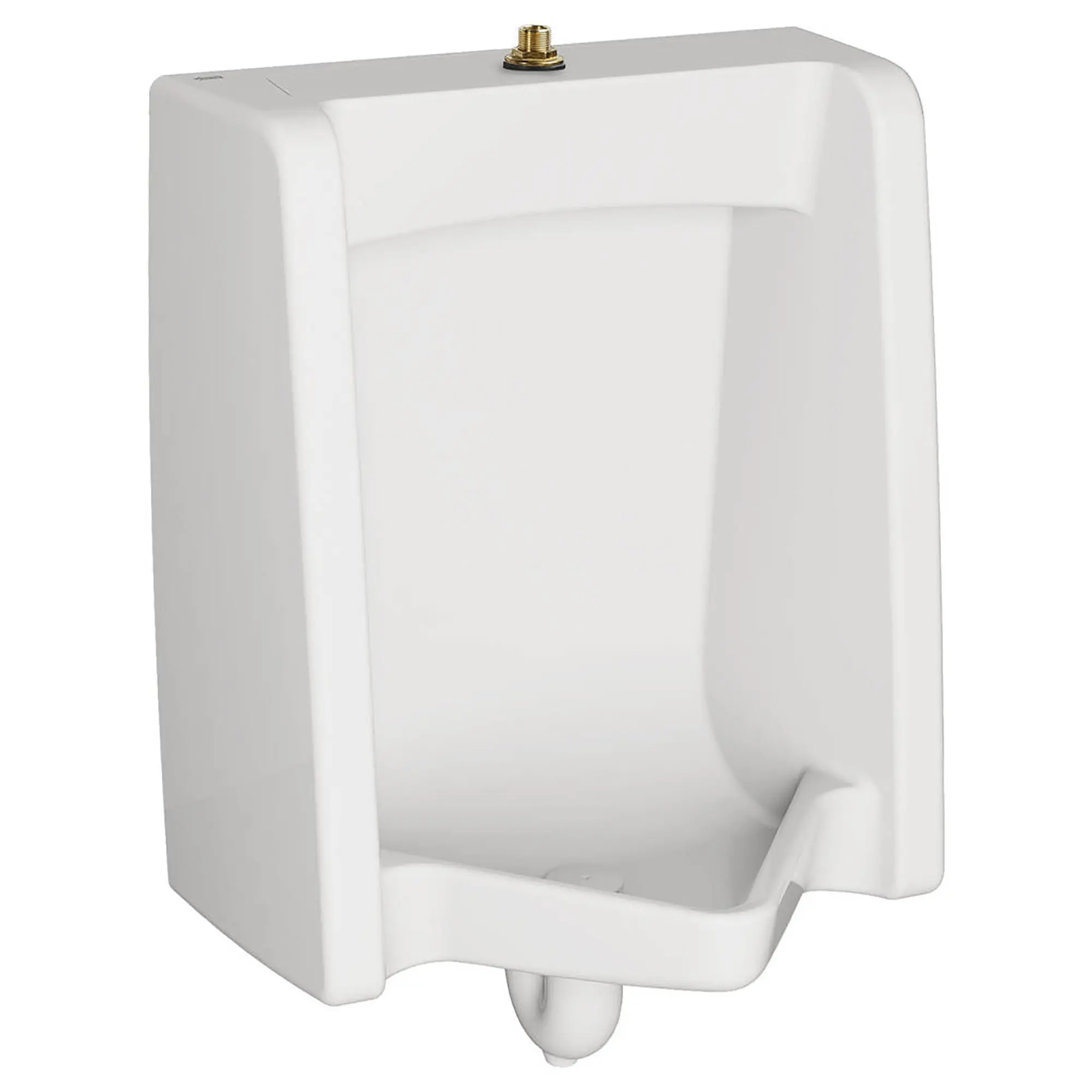

Washbrook® 0.125 – 1.0 gpf (0.47 – 3.8 Lpf) Top Spud Urinal With EverClean®

This ultra-high-efficiency, low-consumption universal urinal operates in the range of 0.125 GPF – 1.0 GPF. Choose a manual- or Selectronic® sensor-operated flush valve that suits your budget and water usage requirements. Features include a flushing rim and washout flush action for effectiveness, extended sides for privacy, and EverClean® surface that stays cleaner, longer.

White 6590001EC.020 DISCONTINUED
List Price: $387.00
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • High Efficiency Urinal (HEU) operates in the range of 0.125 gpf – 1.0 gpf (0.47 Lpf – 3.8 Lpf)
  • EverClean® Antimicrobial Surface inhibits the growth of stain and odor causing bacteria, mold and mildew on the surface
  • Flushing rim
  • Elongated 14" (356 mm) rim from finished wall
  • Powerful washdown action
  • Extended sides for privacy
  • 3/4" (19 mm) inlet spud with 2" (51 mm) threaded outlet connection
  • Two wall hangers included
  • Fixture only
  • Chrome plated non-metallic strainer included
Technical Features
  • High Efficiency Urinal (HEU) operates in the range of 0.125 gpf – 1.0 gpf (0.47 Lpf – 3.8 Lpf)
  • EverClean® Antimicrobial Surface inhibits the growth of stain and odor causing bacteria, mold and mildew on the surface
  • Flushing rim
  • Elongated 14" (356 mm) rim from finished wall
  • Powerful washdown action
  • Extended sides for privacy
  • 3/4" (19 mm) inlet spud with 2" (51 mm) threaded outlet connection
  • Two wall hangers included
  • Fixture only
  • Chrome plated non-metallic strainer included
Nominal Dimensions: 14-1/8 in x 18-7/8 in x 26-1/8 in (359 mm x 479 mm x 664 mm)
Description
Net Weight
SKU
Color
List Price USD
Washbrook® 0.125 – 1.0 gpf (0.47 – 3.8 Lpf) Top Spud Urinal With EverClean®
64 lb (29.0 kg)
6590001EC.020
White (020)
387
Separate Components
K-2 Wall Hanger Bracket
0 lb (0.1 kg)
047058-0070A
No Finish
7
spacer
Chrome Plated Non-Metallic Strainer
0 lb (0.0 kg)
7301242-100.0020A
Chrome
28
Optional Components (Not Included)
Vandal-Resistant Stainless Steel Strainer
0 lb (0.2 kg)
7381755-200.0020A
Chrome
32
Download Specification Sheet
Barrier Free: Yes
Brand: American Standard
Cal Green: Yes
Category: Urinals
CEC Certified: Yes
Color / Finish: White
Department of Energy Certified: Yes
Collections: Washbrook
WaterSense: Yes
Everclean: Yes
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Gallons Per Flush (min-max): 0.125 - 1.0 GPF
Input Connection Type: NPT (National Pipe Tapered Threads)
Height: 26-1/8
Length: 14-1/8
Width: 18-7/8
Residential or Commercial: Commercial
Subcategory: Top Spud Urinals
Warranty: 1 Year Limited Warranty
Water Efficient: Yes
Download All Supporting Documents

Specification Sheet

Installation Instructions
There are no design files currently available for this product
There are no videos currently available for this product
3D Objects are not currently available for this product
}
