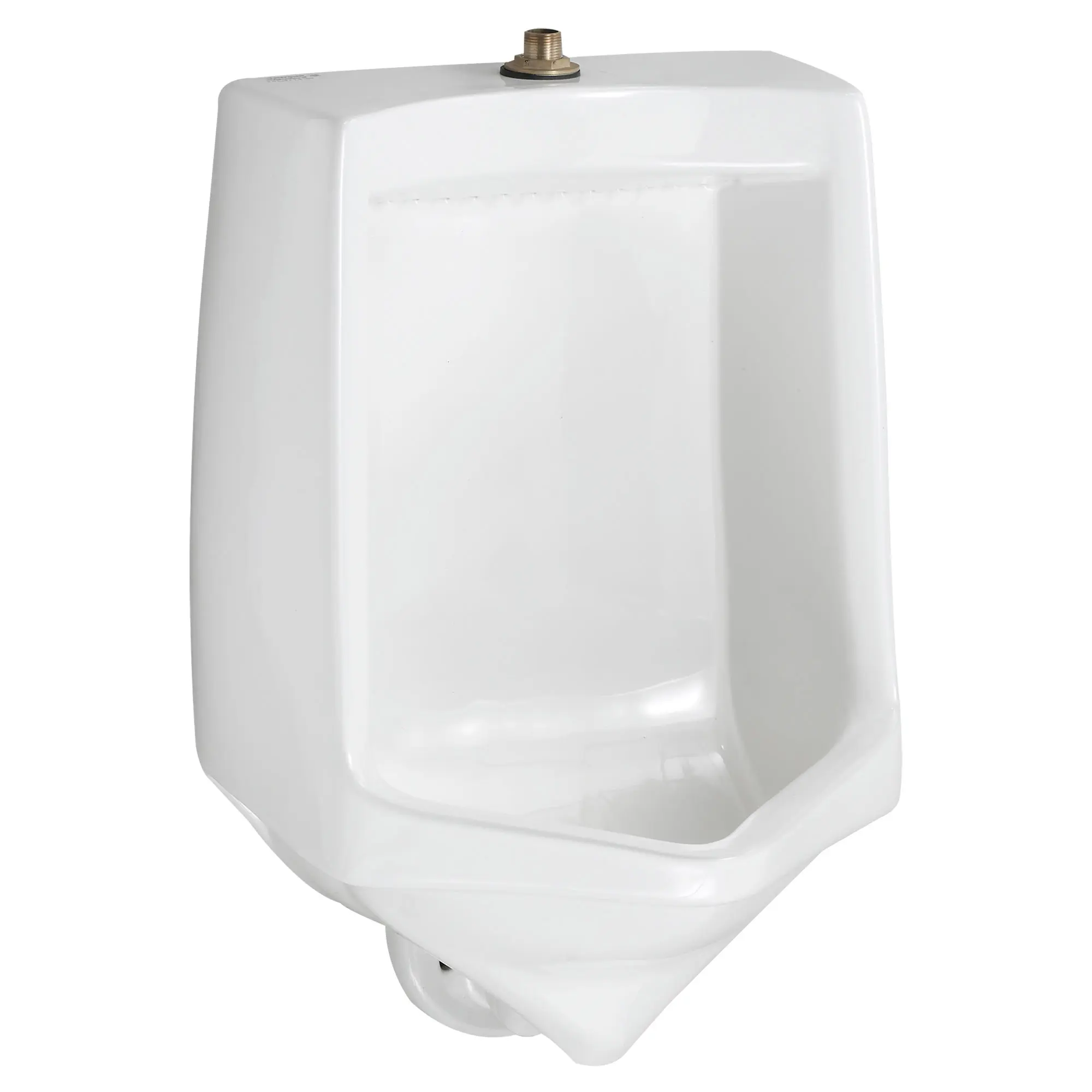

Trimbrook® 1.0 gpf/3.8 Lpf Top Spud Siphon Jet Urinal

This low-consumption urinal uses just 1.0 gallon per flush. Features include a flushing rim and siphon-jet flush action for effectiveness, and extended sides for privacy. Its versatile design could work well in traditional and casual commercial environments.

Features
  • Low consumption (1.0 gpf/3.8 Lpf)
  • Flushing rim
  • Siphon jet flush action
  • Extended sides for privacy
  • 3/4" (19 mm) inlet spud with 2" (51 mm) threaded outlet connection
  • Two wall hangers included
  • Fixture only
  • Vitreous china
  • 2 wall hangers
  • Meets ANSI flush requirements at 1.0 GPF
Technical Features
  • Low consumption (1.0 gpf/3.8 Lpf)
  • Flushing rim
  • Siphon jet flush action
  • Extended sides for privacy
  • 3/4" (19 mm) inlet spud with 2" (51 mm) threaded outlet connection
  • Two wall hangers included
  • Fixture only
Nominal Dimensions: 14 in x 17-1/2 in x 26-3/4 in (356 mm x 445 mm x 679 mm)
There are no additional components to display for this product
ADA Compliant: Yes
Barrier Free: Yes
Brand: American Standard
Category: Urinals
Color / Finish: White
Department of Energy Certified: Yes
Collections: Trimbrook
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Gallons Per Flush (min-max): 1 GPF
Input Connection Type: NPT (National Pipe Tapered Threads)
Height: 26-3/4
Length: 14
Width: 17-1/2
Residential or Commercial: Commercial
Subcategory: Top Spud Urinals
Warranty: 1 Year Limited Warranty
