Pintbrook System

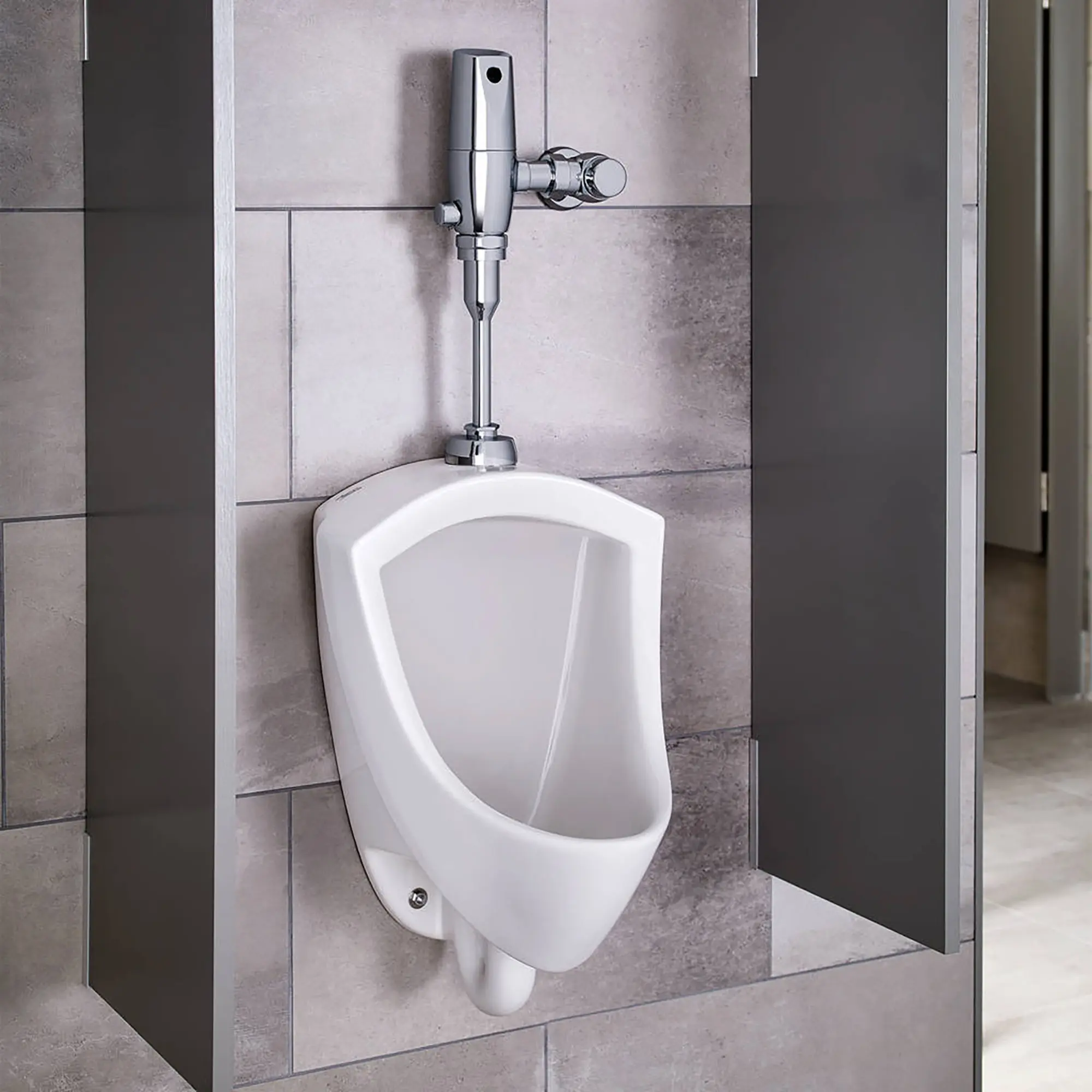

Pintbrook® Urinal System With Touchless Selectronic® Piston Flush Valve, 0.5 gpf/1.9 Lpf

The Pintbrook Urinal System from American Standard includes a battery-operated Selectronic flush valve and a flow rate of 0.5 gallons per flush to help save water. With a contoured, splash-resistant design and a sleek look, this urinal enhances the look of your commercial bathroom. The factory-installed CR-P2 lithium battery can last up to four years at 4,000 flushes per month. The flush valve requires no regular maintenance, with no diaphragm to change or filter screen to clean.Features

White 6002505.020 DISCONTINUED
List Price: $809.00
ADA Compliant Environmental Product Declaration Water Efficient WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Made in Mexico (USMCA compliant)
  • Powerful washdown flushing action
  • Optimized chinaware contours provide superior splash protection
  • 3/4" (19 mm) inlet spud with 2" (51 mm) outlet connection
  • Wall hangers included
  • Touchless piston-operated flush valve
  • 5-year CR-P2 lithium battery installed in valve
  • Exclusive DynaClean® self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Fully mechanical manual override can operate without power
Technical Features
  • Made in Mexico (USMCA compliant)
  • Powerful washdown flushing action
  • Optimized chinaware contours provide superior splash protection
  • 3/4" (19 mm) inlet spud with 2" (51 mm) outlet connection
  • Wall hangers included
  • Touchless piston-operated flush valve
  • 5-year CR-P2 lithium battery installed in valve
  • Exclusive DynaClean® self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Fully mechanical manual override can operate without power
Description
Net Weight
SKU
Color
List Price USD
Pintbrook® Urinal System With Touchless Selectronic® Piston Flush Valve, 0.5 gpf/1.9 Lpf
1 lb (0.4 kg)
6002505.020
White (020)
809
Separate Components
Pintbrook® 0.125 – 0.5 gpf (0.47 – 1.9 Lpf) Top Spud Urinal
37 lb (16.6 kg)
6002001.020
White
227
spacer
Ultima Selectronic Touchless Urinal Flush Valve, Piston-Type, Battery, 0.5 gpf/1.9 Lpf
8 lb (3.7 kg)
6063051.002
Chrome
582
ADA Compliant: Yes
Barrier Free: Yes
Batteries Included: Yes
Batteries Required: Yes
Brand: American Standard
Category: Urinals
Color / Finish: White
Flush Value: Exposed
Collections: Pintbrook System
WaterSense: Yes
Fitting Connection Size Input: 3/4
Fitting Material: Brass
Touchless: Touchless
Fixture or Fitting Material: Brass
Gallons Per Flush (min-max): .125 - .5 GPF
Input Connection Type: NPT (National Pipe Tapered Threads)
Hardware Included: Yes
Number of Output Valves: 1
Height: 994
Length: 366
Width: 364
Residential or Commercial: Commercial
Subcategory: Top Spud Urinals
Valve Input Diameter: 3/4
Valve Output Diameter: 3/4
Warranty: 5 Year Limited Warranty
Water Efficient: Yes
Download All Supporting Documents

Installation Instructions

Environmental Product Declaration

Environmental Product Declaration
Download All Design Files
2D CAD Files
.dwg icon 2D CAD File
REVIT Files
.rfa icon REVIT File
There are no videos currently available for this product
3D Objects are not currently available for this product
