Pintbrook

Pintbrook® 0.125 – 0.5 gpf (0.47 – 1.9 Lpf) Top Spud Urinal

The Pintbrook Urinal from American Standard is a smart, High Efficiency washdown urinal, operating in the range of 0.125 gpf to 0.50 gpf (0.47 Lpf/1.9 Lpf) to help save water. This optimized design is expertly crafted to provide superior splash protection. Features a 3/4" inlet top spud, and includes wall hangers for easy installation.

White 6002001.020 DISCONTINUED
List Price: $243.00
ADA Compliant Cal Green CEC Certified Environmental Product Declaration USMCA Compliant Water Efficient WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • High Efficiency Urinal (HEU) operates in the range of 0.125 gpf – 0.5 gpf (0.47 Lpf – 1.9 Lpf)
  • Great 1-pint flush alternate to popular Allbrook® urinal
  • Powerful washdown action
  • Optimized chinaware contours provide superior splash protection
  • 3/4" (19 mm) inlet spud with 2" (51 mm) threaded outlet connection
  • Two wall hangers included
  • Fixture only
  • Made in Mexico (USMCA compliant)
  • Chrome plated non-metallic strainer included
Technical Features
  • High Efficiency Urinal (HEU) operates in the range of 0.125 gpf – 0.5 gpf (0.47 Lpf – 1.9 Lpf)
  • Great 1-pint flush alternate to popular Allbrook® urinal.
  • Powerful washdown action
  • Optimized chinaware contours provide superior splash protection
  • 3/4" (19 mm) inlet spud with 2" (51 mm) threaded outlet connection
  • Two wall hangers included
  • Fixture only
  • Made in Mexico (USMCA compliant)
  • Chrome plated non-metallic strainer included.
Nominal Dimensions: 14-7/16 in x 14-5/16 in x 22-5/8 in (367 mm x 364 mm x 575 mm)
Description
Net Weight
SKU
Color
List Price USD
Pintbrook® 0.125 – 0.5 gpf (0.47 – 1.9 Lpf) Top Spud Urinal
37 lb (16.6 kg)
6002001.020
White (020)
243
Separate Components
K-2 Wall Hanger Bracket
0 lb (0.1 kg)
047058-0070A
No Finish
9
spacer
Chrome Plated Non-Metallic Strainer
0 lb (0.0 kg)
7301242-100.0020A
Chrome
32
Optional Components (Not Included)
Vandal-Resistant Stainless Steel Strainer
0 lb (0.2 kg)
7381755-200.0020A
Chrome
39

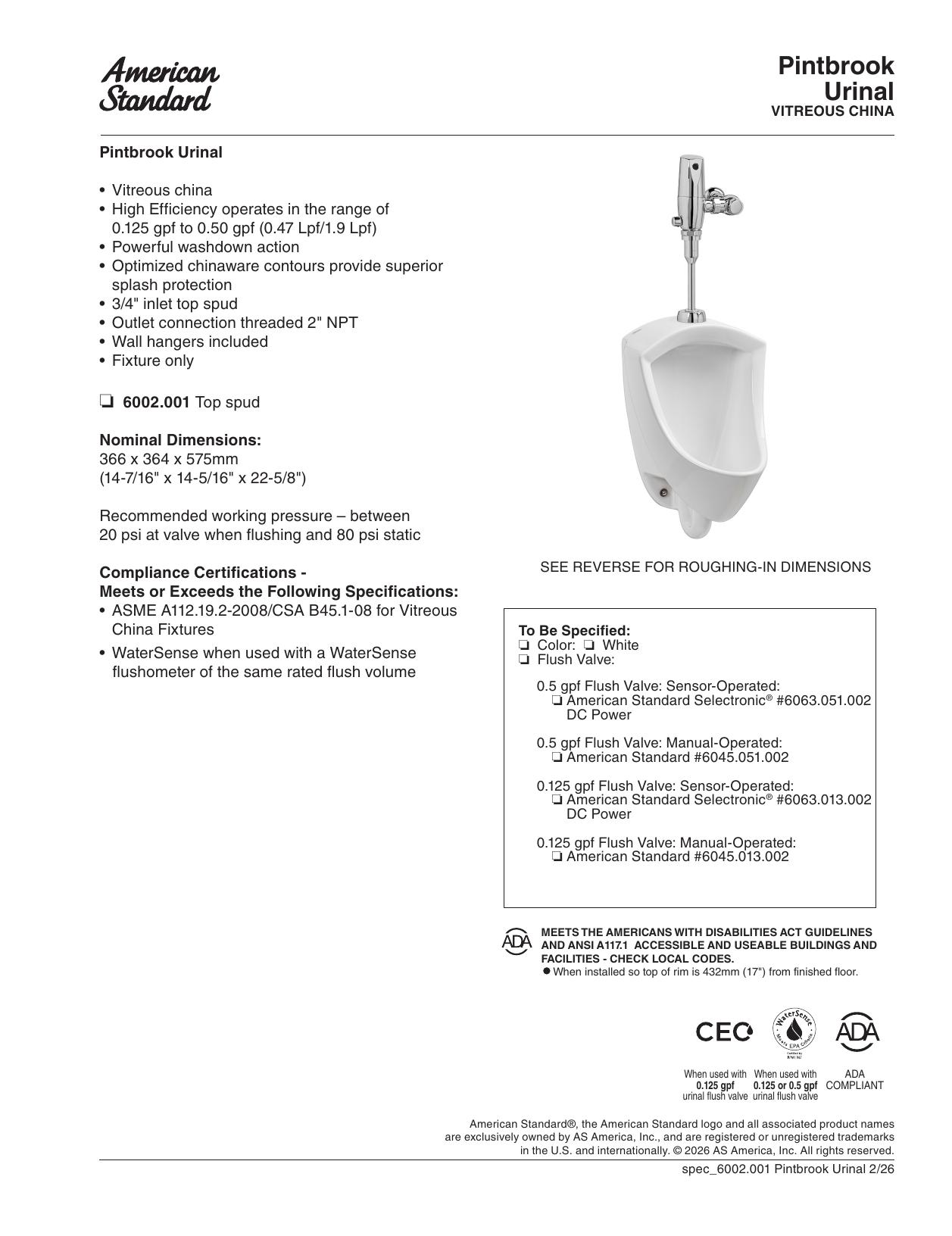

Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Brand: American Standard
Cal Green: Yes
Category: Urinals
CEC Certified: Yes
Color / Finish: White
Department of Energy Certified: Yes
Collections: Pintbrook
WaterSense: Yes
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Gallons Per Flush (min-max): 0.125 - .5 GPF
Input Connection Type: NPT (National Pipe Tapered Threads)
Height: 22-5/8
Length: 14-7/16
Width: 14-5/16
Residential or Commercial: Commercial
Subcategory: Top Spud Urinals
USMCA Compliant: Yes
Warranty: 1 Year Limited Warranty
Water Efficient: Yes
Download All Supporting Documents

Specification Sheet

Installation Instructions

Environmental Product Declaration

Environmental Product Declaration
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
2D CAD Files
.dwg icon 2D CAD File
REVIT Files
.rfa icon REVIT File
There are no videos currently available for this product
3D Objects are not currently available for this product
