Features
- High Efficiency Urinal (HEU) operates in the range of 0.125 gpf – 1.0 gpf (0.47 Lpf – 3.8 Lpf)
- Flushing rim
- Powerful washdown action
- Integral strainer
- 3/4" (19 mm) inlet spud
- Outlet spud with 1-1/2" (38 mm) tubing tailpiece
- Wall hanger included
- Fixture only
Technical Features
- High Efficiency Urinal (HEU) operates in the range of 0.125 gpf – 1.0 gpf (0.47 Lpf – 3.8 Lpf)
- Flushing rim
- Powerful washdown action
- Integral strainer
- 3/4" (19 mm) inlet spud
- Outlet spud with 1-1/2" (38 mm) tubing tailpiece
- Wall hanger included
- Fixture only
Nominal Dimensions: 12-3/4 in x 12-3/4 in x 18 in (324 mm x 324 mm x 457 mm)

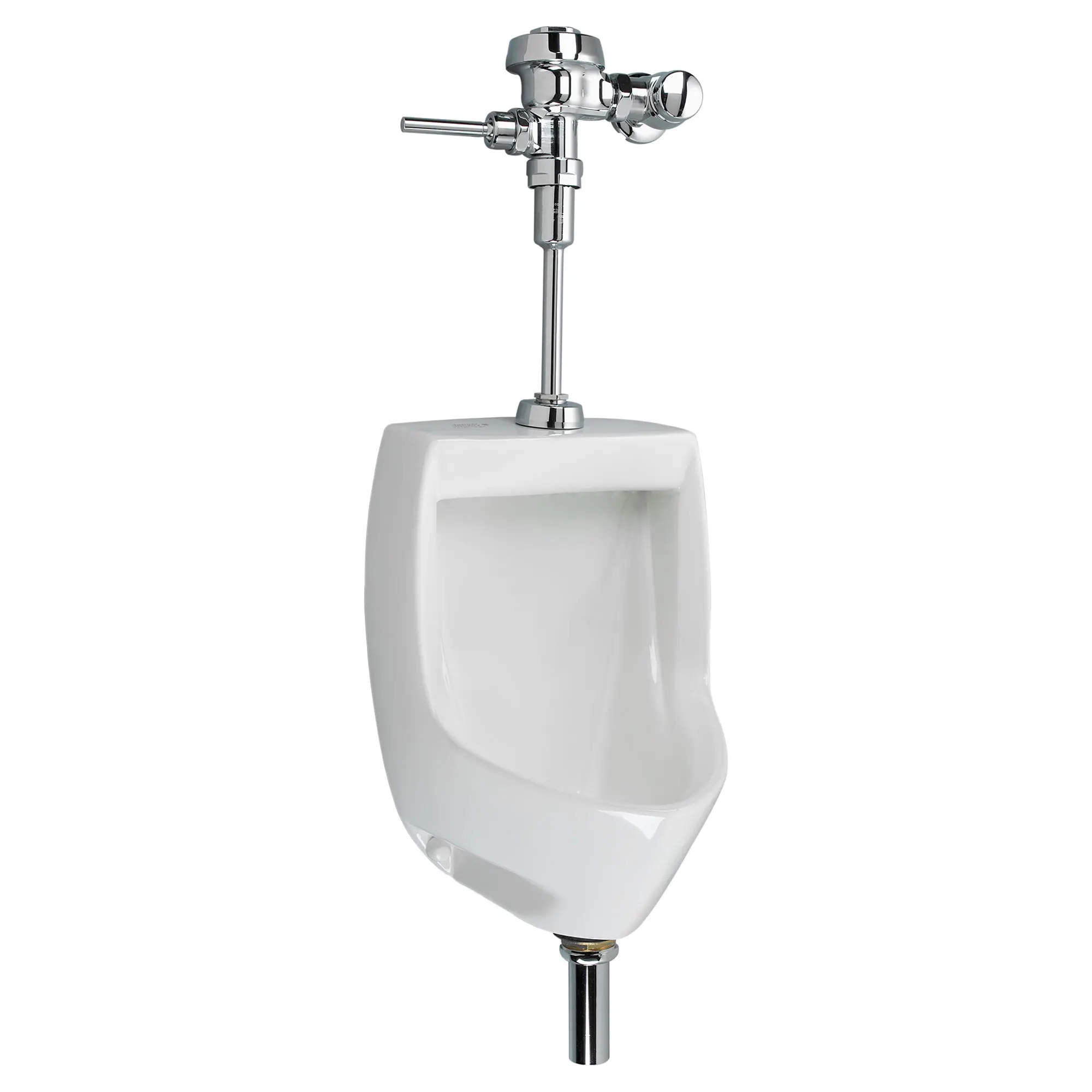

Maybrook® 0.125 – 1.0 gpf (0.47 – 3.8 Lpf) Top Spud Urinal
32 lb (14.5 kg)
White (020)
251
K-2 Wall Hanger Bracket
0 lb (0.1 kg)
No Finish
9
spacer
Chrome Plated Non-Metallic Strainer
0 lb (0.0 kg)
Chrome
32
Maybrook® 0.125 – 1.0 gpf (0.47 – 3.8 Lpf) Top Spud Urinal
32 lb (14.5 kg)
White (020)
251
K-2 Wall Hanger Bracket
0 lb (0.1 kg)
No Finish
9
spacer
Chrome Plated Non-Metallic Strainer
0 lb (0.0 kg)
Chrome
32
