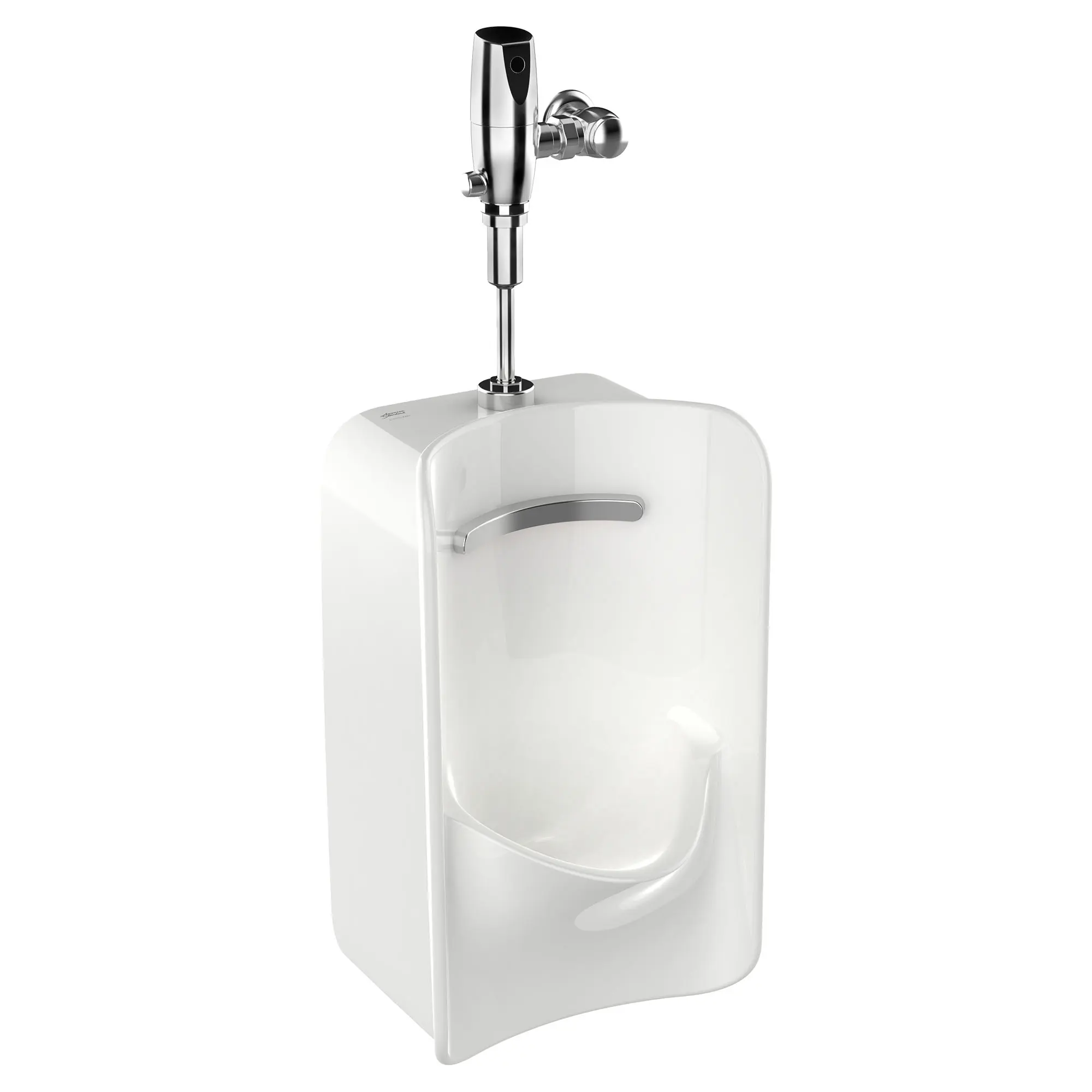

Greenbrook® 0.125 – 0.5 gpf (0.47 – 1.9 Lpf) Top Spud Urinal With EverClean®

White 6516002EC.020 DISCONTINUED
List Price: $827.00
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Highly aesthetic vitreous china urinal with large footprint
  • High Efficiency Urinal (HEU) operates in the range of 0.125 gpf – 0.5 gpf (0.47 Lpf – 1.9 Lpf)
  • Urinal has optimized surface contours and water flushing spreader that rinses inverted back wall for superior splash protection
  • EverClean® Antimicrobial Surface inhibits the growth of stain and odor causing bacteria, mold and mildew on the surface
  • 3/4" (19 mm) inlet spud with 2" (51 mm) threaded outlet connection
  • Two wall hangers included
  • Fixture only
  • Chrome plated non-metallic strainer included.
Technical Features
  • Highly aesthetic vitreous china urinal with large footprint
  • High Efficiency Urinal (HEU) operates in the range of 0.125 gpf – 0.5 gpf (0.47 Lpf – 1.9 Lpf)
  • Urinal has optimized surface contours and water flushing spreader that rinses inverted back wall for superior splash protection
  • EverClean® Antimicrobial Surface inhibits the growth of stain and odor causing bacteria, mold and mildew on the surface
  • 3/4" (19 mm) inlet spud with 2" (51 mm) threaded outlet connection
  • Two wall hangers included
  • Fixture only
  • Chrome plated non-metallic strainer included.
Nominal Dimensions: 15 in x 16-1/8 in x 27-1/2 in (381 mm x 410 mm x 699 mm)
Description
Net Weight
SKU
Color
List Price USD
Greenbrook® 0.125 – 0.5 gpf (0.47 – 1.9 Lpf) Top Spud Urinal With EverClean®
71 lb (32.0 kg)
6516002EC.020
White (020)
827
Optional Components (Not Included)
Vandal-Resistant Stainless Steel Strainer
0 lb (0.2 kg)
7381755-200.0020A
Chrome
32
Download Specification Sheet
Barrier Free: Yes
Brand: American Standard
Cal Green: Yes
Category: Urinals
CEC Certified: Yes
Color / Finish: White
Department of Energy Certified: Yes
Collections: Greenbrook
WaterSense: Yes
Everclean: Yes
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Gallons Per Flush (min-max): .125 - 0.5 GPF
Input Connection Type: NPT (National Pipe Tapered Threads)
Height: 27-1/2
Length: 15
Length: 15
Width: 16-1/8
Residential or Commercial: Commercial
Subcategory: Top Spud Urinals
Warranty: 1 Year Limited Warranty
Water Efficient: Yes
Download All Supporting Documents

Specification Sheet

Installation Instructions
Download All Design Files
2D CAD Files
.dwg icon 2D CAD File
REVIT Files
.rfa icon REVIT File
There are no videos currently available for this product
3D Objects are not currently available for this product
}
