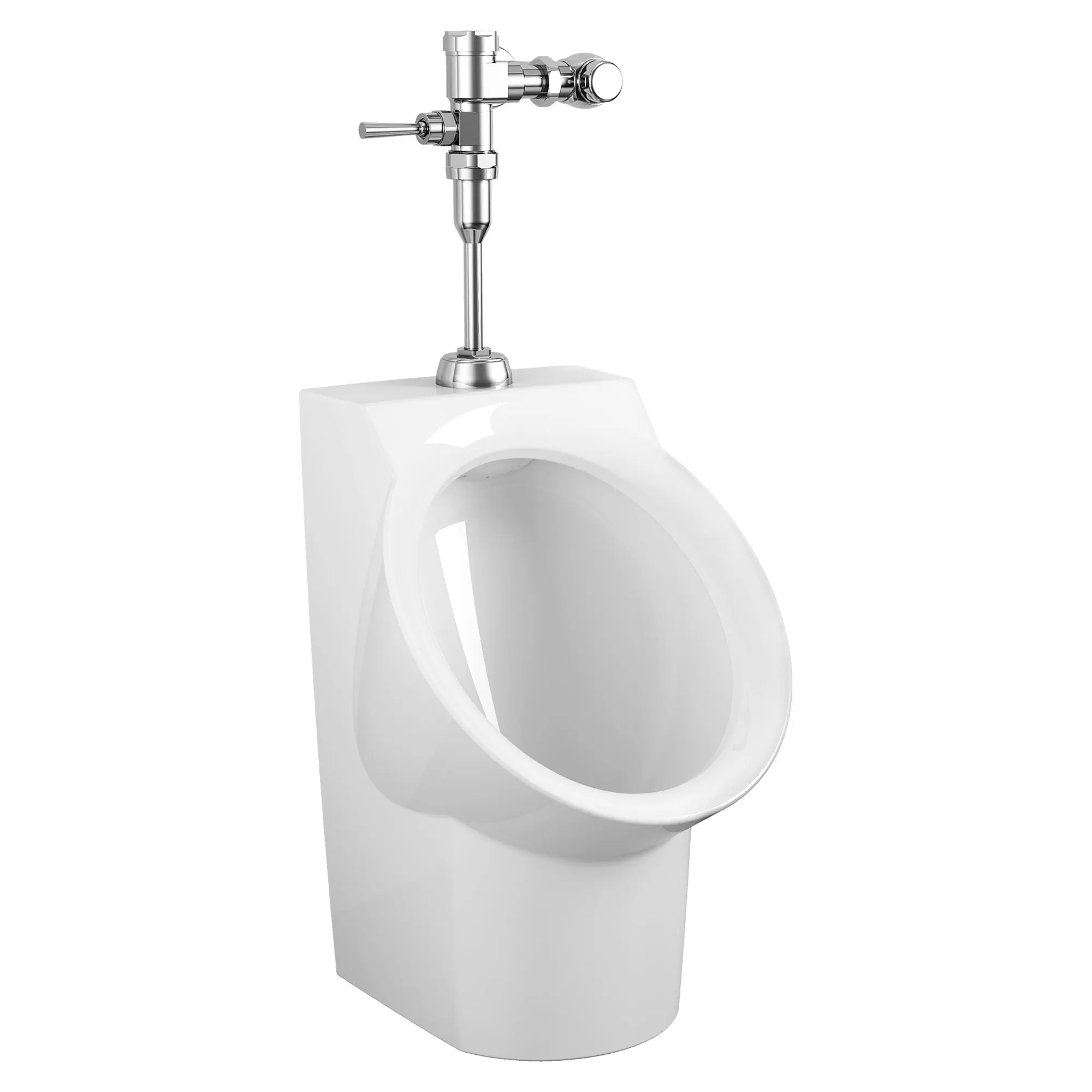

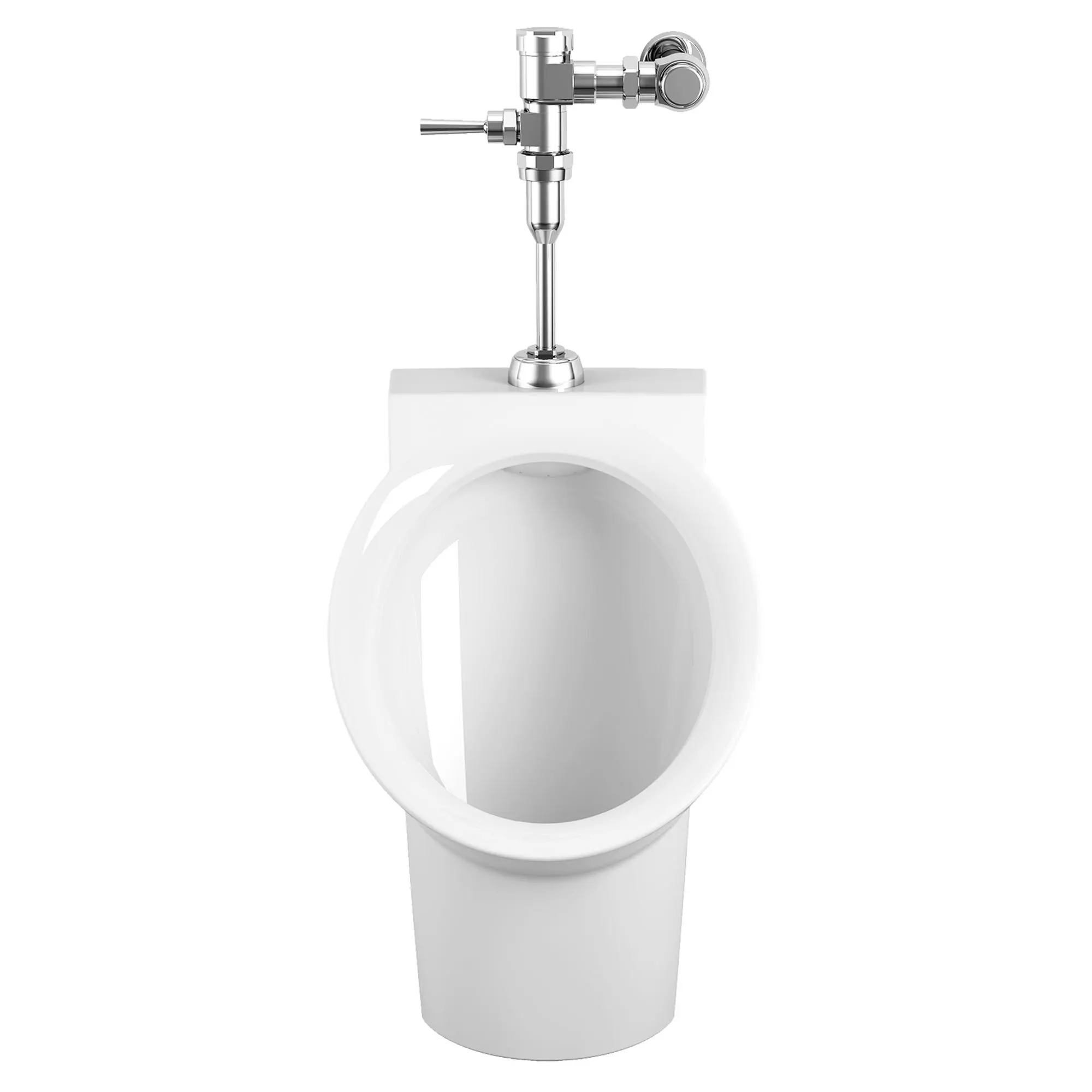

Decorum® EverClean® Urinal System With Manual Piston Flush Valve, 0.125 gpf/0.5 Lpf

The Decorum 0.125 gpf Urinal System is a high efficiency model designed to bring 87.5% water savings when compared to a 1.0 gpf system. With our revolutionary, permanent EverClean surface to help inhibit the growth of stain and odor-causing bacteria, mold, and mildew, the Decorum stays cleaner, longer. Meets California water savings regulations. Includes manual flushometer with no routine maintenance required to help save you time and money.  Deep sump reduces splashing Washout urinal works at 0.125 gpf (0.47 Lpf) Permanent EverClean® surface inhibits the growth of stain and odor-causing bacteria, mold, and mildew on the surface 3/4" inlet spud Outlet connection threaded 2" inside (NPTF) Strainer included Meets ANSI flush requirements at 0.125 gpf Meets California water savings regulations Sustainability CEC Listed  CALGreen CompliantAward Winning:Recipient of the Buildings Magazine 2016 Money-Saving Products, The Decorum 0.125 gpf Urinal System with Manual Flush Valve provides cost savings and supports commercial buildings.

Features
  • Sleek, modern, compact design
  • Permanent EverClean® surface inhibits the growth of stain and odor-causing bacteria, mold, and mildew on the surface
  • Powerful washdown action with deep sump that helps reduce splashing
  • 3/4" (19 mm) inlet spud with 2" (51 mm) outlet connection
  • Wall hangers included
  • Manual piston-operated flush valve
  • Exclusive DynaClean® self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Non-hold open handle provides automatic shut-off
Technical Features
  • Sleek, modern, compact design
  • Permanent EverClean® surface inhibits the growth of stain and odor-causing bacteria, mold, and mildew on the surface
  • Powerful washdown action with deep sump that helps reduce splashing
  • 3/4" (19 mm) inlet spud with 2" (51 mm) outlet connection
  • Wall hangers included
  • Manual piston-operated flush valve
  • Exclusive DynaClean® self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Non-hold open handle provides automatic shut-off
Description
Net Weight
SKU
Color
List Price USD
Decorum® EverClean® Urinal System With Manual Piston Flush Valve, 0.125 gpf/0.5 Lpf
1 lb (0.4 kg)
White (020)
558
Separate Components

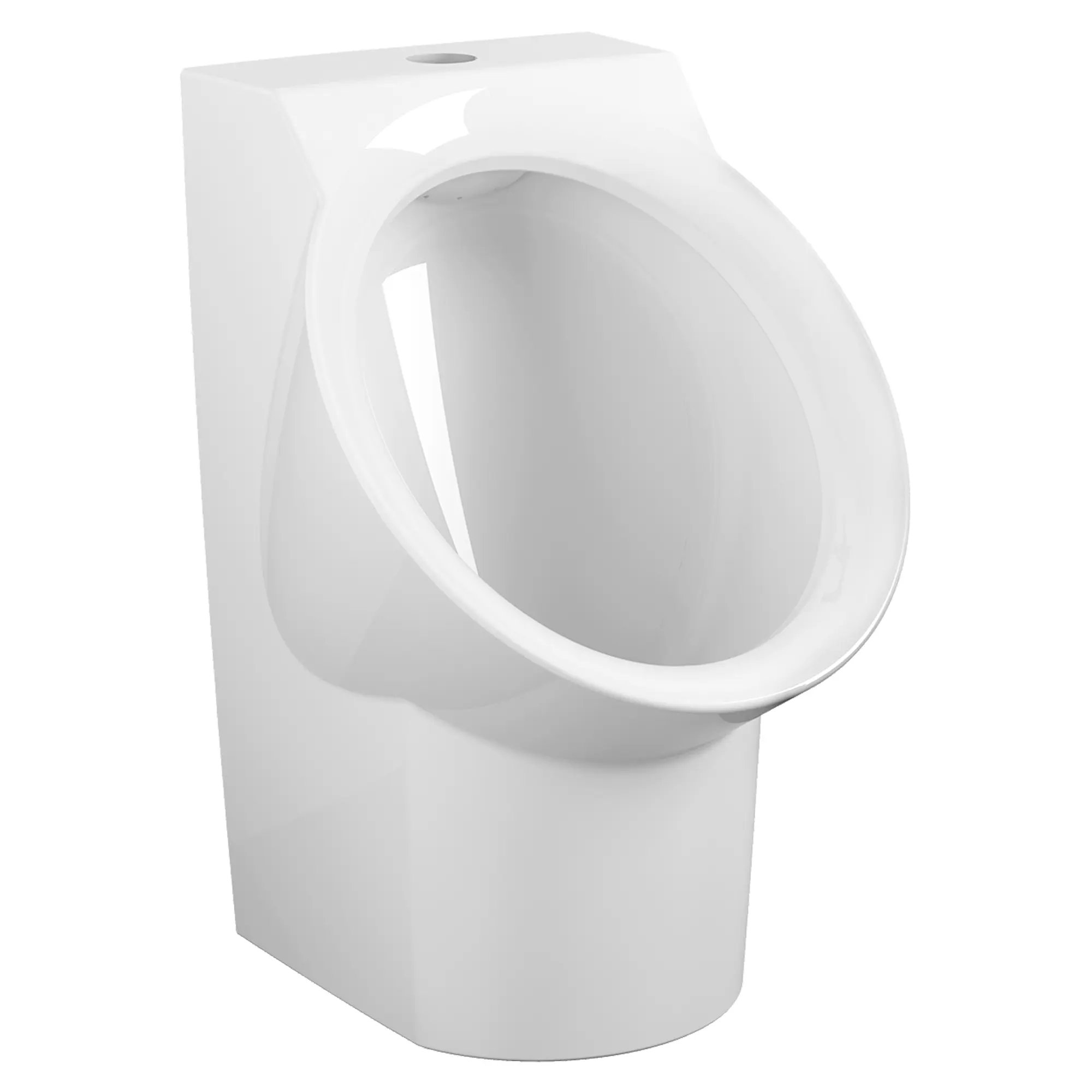

Decorum® 0.125 gpf/0.47 Lpf Top Spud Urinal With EverClean®
41 lb (18.4 kg)
White
284
spacer
Ultima Manual Urinal Flush Valve, Piston-Type, 0.125 gpf/0.5 Lpf
6 lb (2.6 kg)
Chrome
274
Barrier Free: Yes
Brand: American Standard
Cal Green: Yes
Category: Urinals
CEC Certified: Yes
Color / Finish: White
Flush Value: Exposed
Collections: Decorum System
WaterSense: Yes
Fitting Connection Size Input: 3/4
Fitting Material: Brass
Fixture or Fitting Material: Brass
Gallons Per Flush (min-max): 0.125 GPF
Input Connection Type: NPT (National Pipe Tapered Threads)
Hardware Included: Yes
Number of Output Valves: 1
Height: 890
Length: 356
Width: 338
Residential or Commercial: Commercial
Subcategory: Top Spud Urinals
Valve Input Diameter: 3/4
Valve Output Diameter: 3/4
Warranty: 5 Year Limited Warranty
Water Efficient: Yes
