Decorum

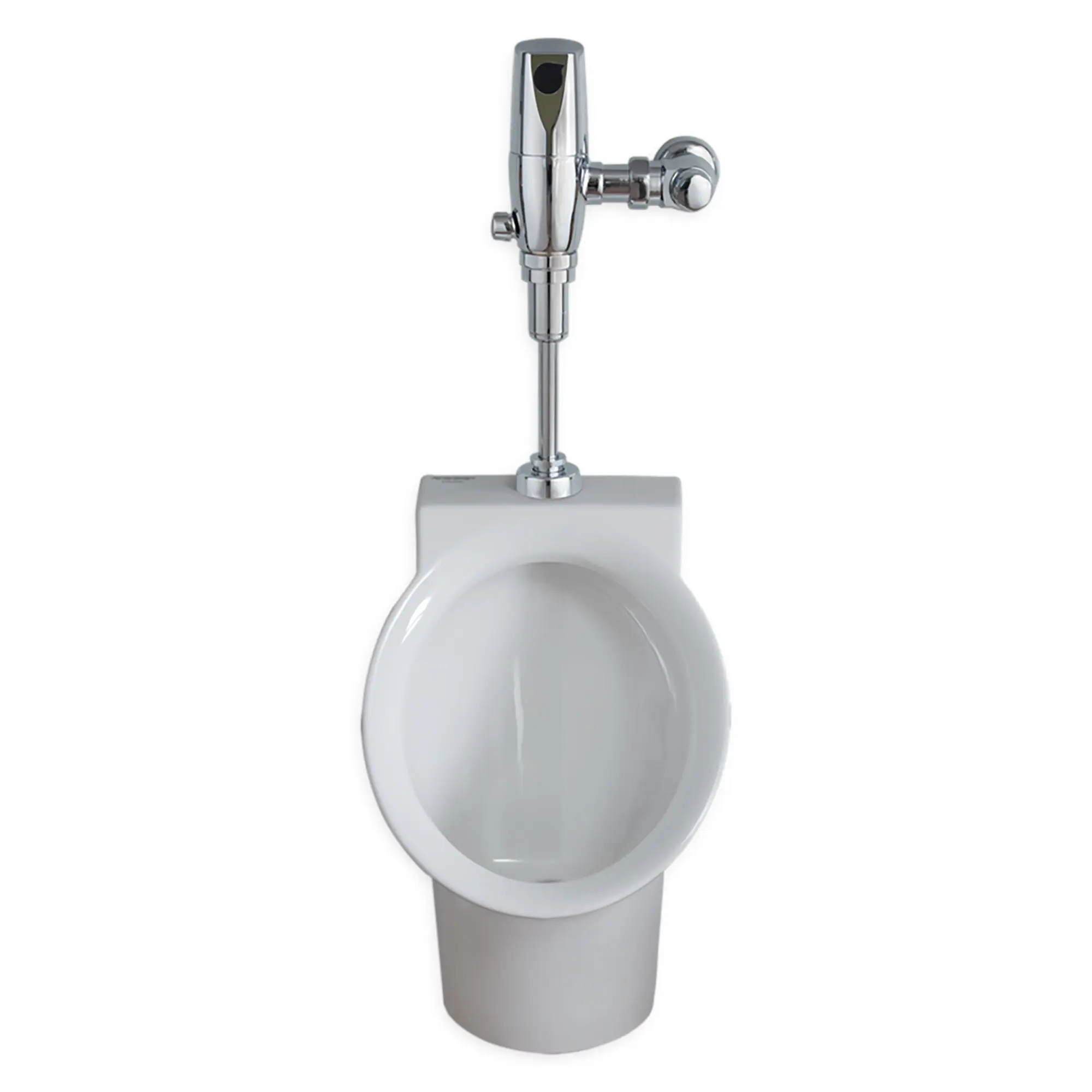

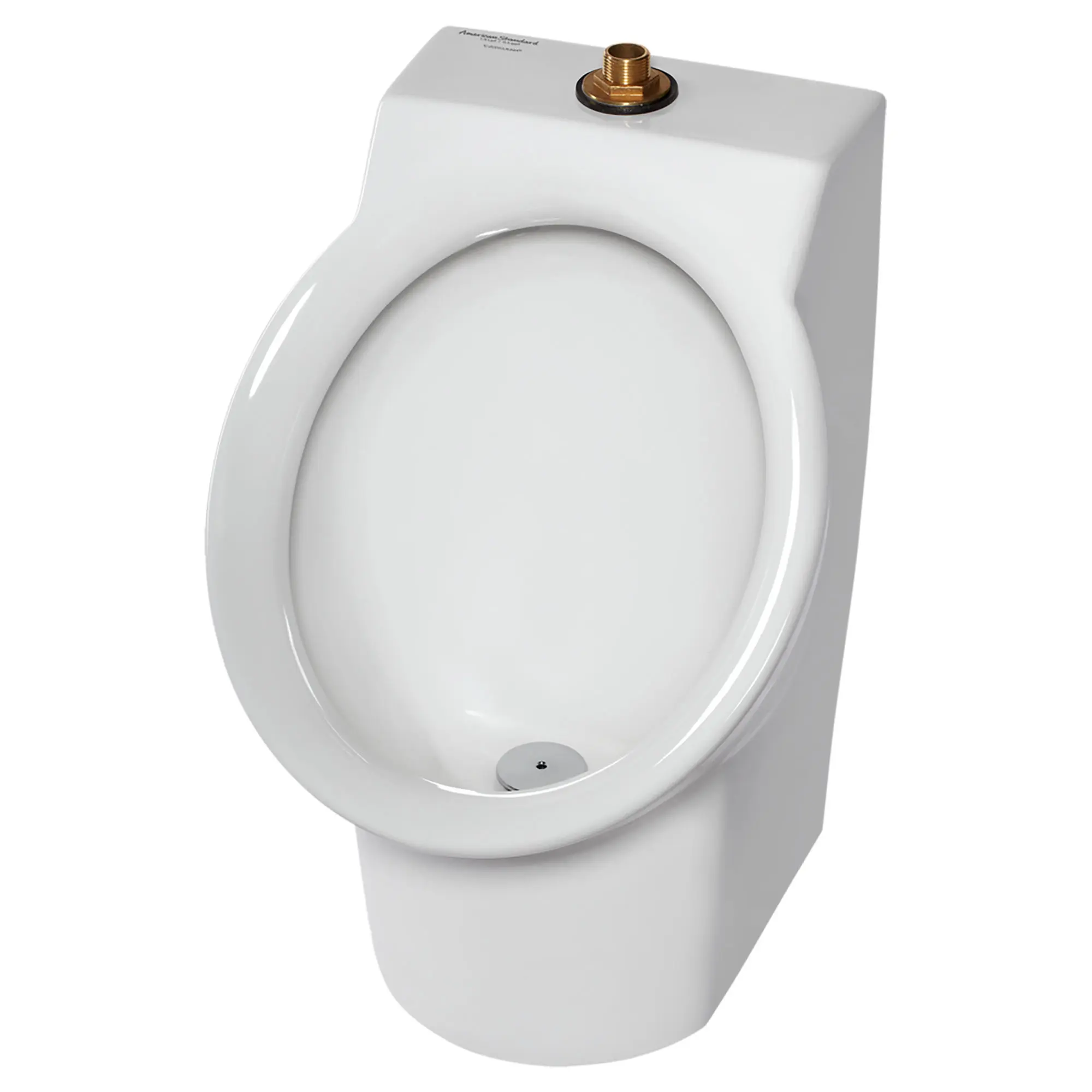

Decorum® 0.125 gpf/0.47 Lpf Top Spud Urinal With EverClean®

The Decorum 0.125 gpf high efficiency commercial urinal is sleek, modern, compact vitreous china design. Offering a Top Spud mounting.

White 6042001EC.020 DISCONTINUED
List Price: $305.00
ADA Compliant Cal Green CEC Certified Everclean Water Efficient WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Sleek, modern, compact design
  • High efficiency (0.125 gpf/0.47 Lpf)
  • Antimicrobial surface: EverClean® protects against mold, mildew, odor- and stain-causing bacteria
  • Powerful washdown action
  • Deep sump helps reduce splashing
  • 3/4" (19 mm) inlet spud with 2" (51 mm) threaded outlet connection
  • Two wall hangers included
  • Fixture only
  • Chrome plated non-metallic strainer included
Technical Features
  • Sleek, modern, compact design
  • High efficiency (0.125 gpf/0.47 Lpf)
  • EverClean® antimicrobial surface protects against mold, mildew, odor- and stain-causing bacteria
  • Powerful washdown action
  • Deep sump helps reduce splashing
  • 3/4" (19 mm) inlet spud with 2" (51 mm) threaded outlet connection
  • Two wall hangers included
  • Fixture only
  • Chrome plated non-metallic strainer included
Nominal Dimensions: 14 in x 13-5/16 in x 21-1/2 in (356 mm x 338 mm x 546 mm)
Description
Net Weight
SKU
Color
List Price USD
Decorum® 0.125 gpf/0.47 Lpf Top Spud Urinal With EverClean®
41 lb (18.4 kg)
6042001EC.020
White (020)
305
Separate Components
K-2 Wall Hanger Bracket
0 lb (0.1 kg)
047058-0070A
No Finish
8
spacer
Chrome Plated Non-Metallic Strainer
0 lb (0.0 kg)
7301242-100.0020A
Chrome
30
Optional Components (Not Included)
Vandal-Resistant Stainless Steel Strainer
0 lb (0.2 kg)
7381755-200.0020A
Chrome
36
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Brand: American Standard
Cal Green: Yes
Category: Urinals
CEC Certified: Yes
Color / Finish: White
Department of Energy Certified: Yes
Collections: Decorum
WaterSense: Yes
Everclean: Yes
Fixture Material: Vitreous China
Fixture or Fitting Material: Vitreous China
Gallons Per Flush (min-max): 0.125 GPF
Input Connection Type: NPT (National Pipe Tapered Threads)
Height: 21-1/2
Length: 14
Width: 13-5/16
Residential or Commercial: Commercial
Subcategory: Top Spud Urinals
Warranty: 1 Year Limited Warranty
Water Efficient: Yes
Download All Supporting Documents

Specification Sheet

Installation Instructions
Download All Design Files
2D CAD Files
.zip icon 2D CAD File
REVIT Files
.rfa icon REVIT File
There are no videos currently available for this product
3D Objects are not currently available for this product
