Manual Piston Flush Valve

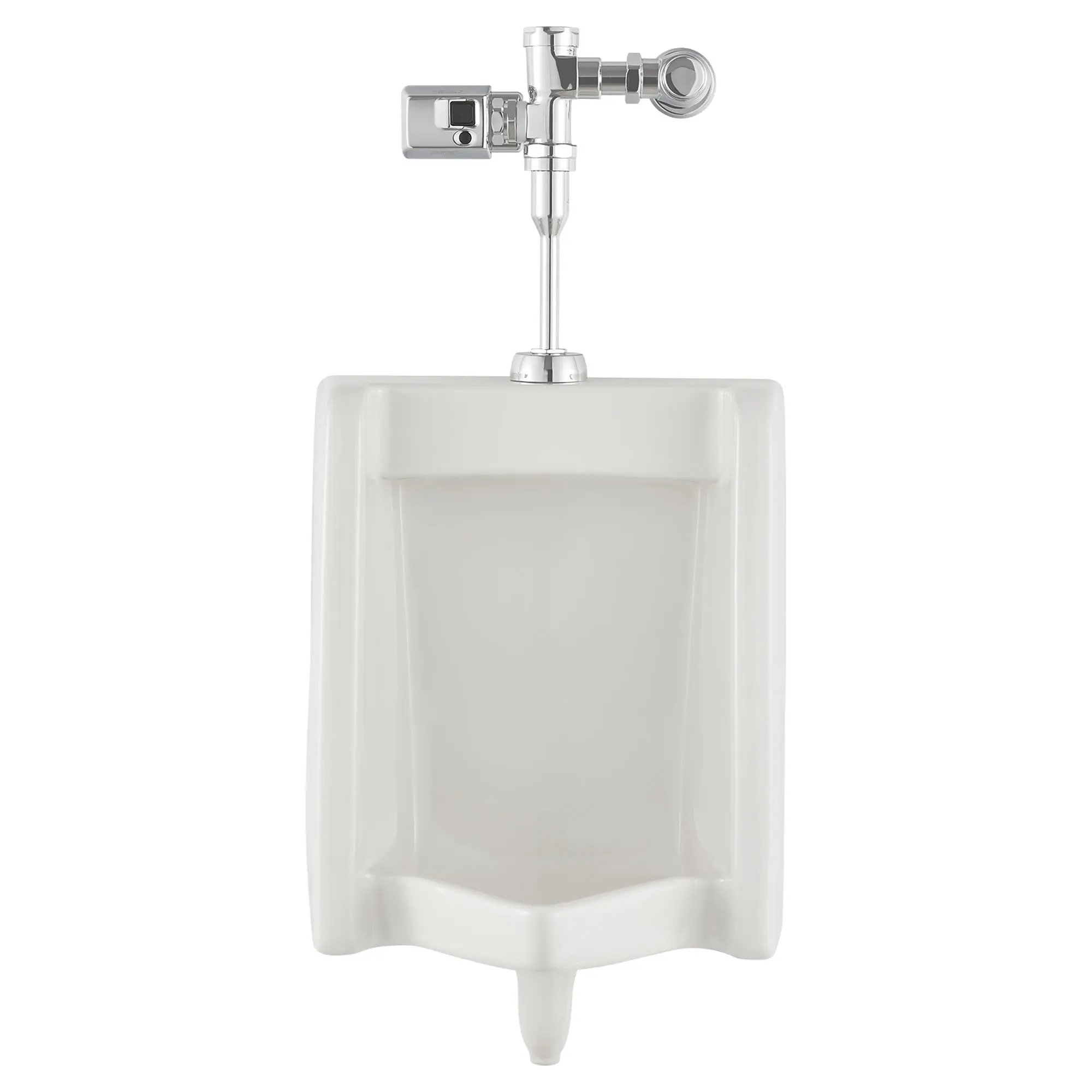

Ultima Touchless Sensor Urinal Flush Valve, Piston-Type, 0.125 gpf/0.5 Lpf

The manual urinal flush valve features a hygienic, touch free side-mount operator that will automatically flush the urinal. This WaterSense certified flush valve is designed to fit 3/4” top spud urinals and can be installed left or right handed.Features

Chrome 6045SM013.002 DISCONTINUED   Substitution Available (6063013.002)
List Price: $537.00
ADA Compliant Cal Green WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • For urinals with 3/4-inch (19 mm) exposed top spud
  • Includes 4 C-sized alkaline batteries
  • Touchless operation limits the spread of germs
  • Side-mount sensor-operated gear operator automatically flushes the valve
  • Exclusive DynaClean® self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Electronically operated override button
  • Can be install left- or right-handed
  • 11-1/2" (292 mm) rough-in
Technical Features
  • For urinals with 3/4-inch (19 mm) exposed top spud
  • Includes 4 C-sized alkaline batteries
  • Touchless operation limits the spread of germs
  • Side-mount sensor-operated gear operator automatically flushes the valve
  • Exclusive DynaClean® self-cleaning wiper spring technology
  • Integral wiper spring cleans refill orifice with every flush to help prevent valve run-on
  • Electronically operated override button
  • Can be install left- or right-handed
  • 11-1/2" (292 mm) rough-in
Description
Net Weight
SKU
Color
List Price USD
Ultima Touchless Sensor Urinal Flush Valve, Piston-Type, 0.125 gpf/0.5 Lpf
8 lb (3.7 kg)
6045SM013.002 *
Chrome (002)
537
Substitutions
Ultima Selectronic Touchless Urinal Flush Valve, Piston-Type, Battery, 0.125 gpf/0.5 Lpf
8 lb (3.7 kg)
6063013.002
Chrome
582


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Batteries Included: Yes
Brand: American Standard
Cal Green: Yes
Category: Urinals
Color / Finish: Chrome
Collections: Manual Piston Flush Valve
WaterSense: Yes
Fitting Connection Size Input: 3/4
Touchless: Touchless
Gallons Per Flush (min-max): .125 - .5 GPF
Input Connection Type: NPT (National Pipe Tapered Threads)
Number of Output Valves: 1
Height: 376
Length: 247
Width: 288
Residential or Commercial: Commercial
Rough In Size: 11.5
Subcategory: Back Spud Urinals
Download All Supporting Documents

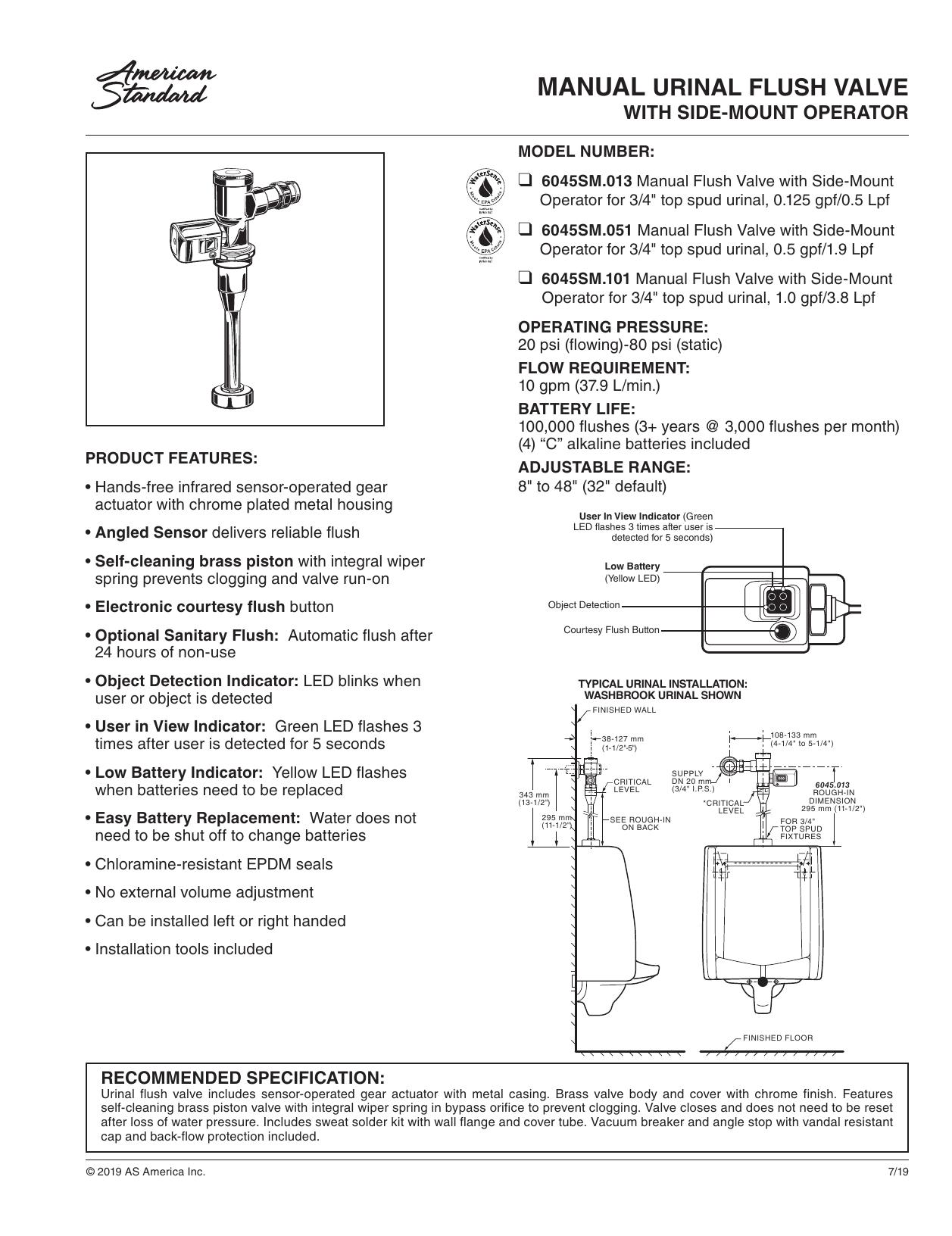

Specification Sheet

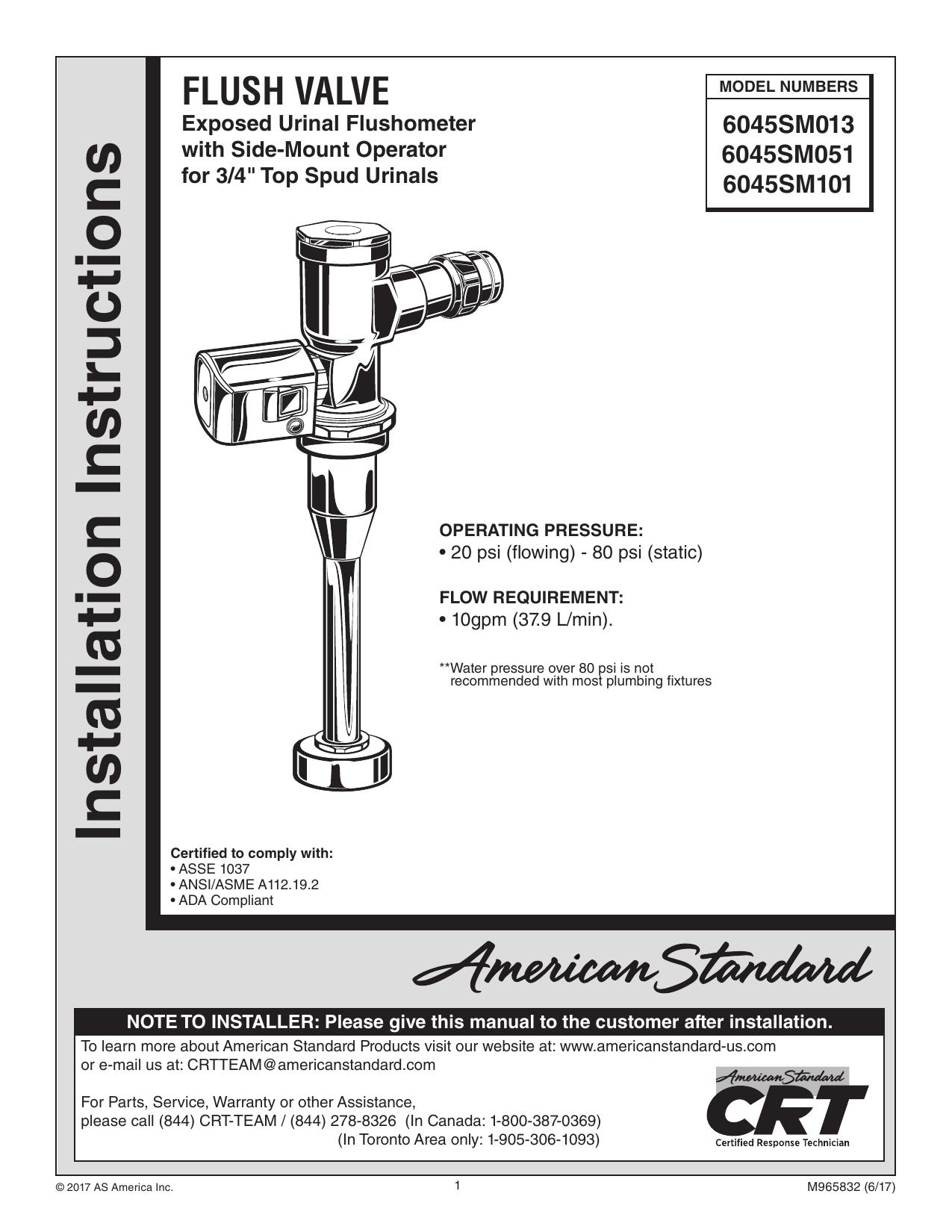

Installation Instructions

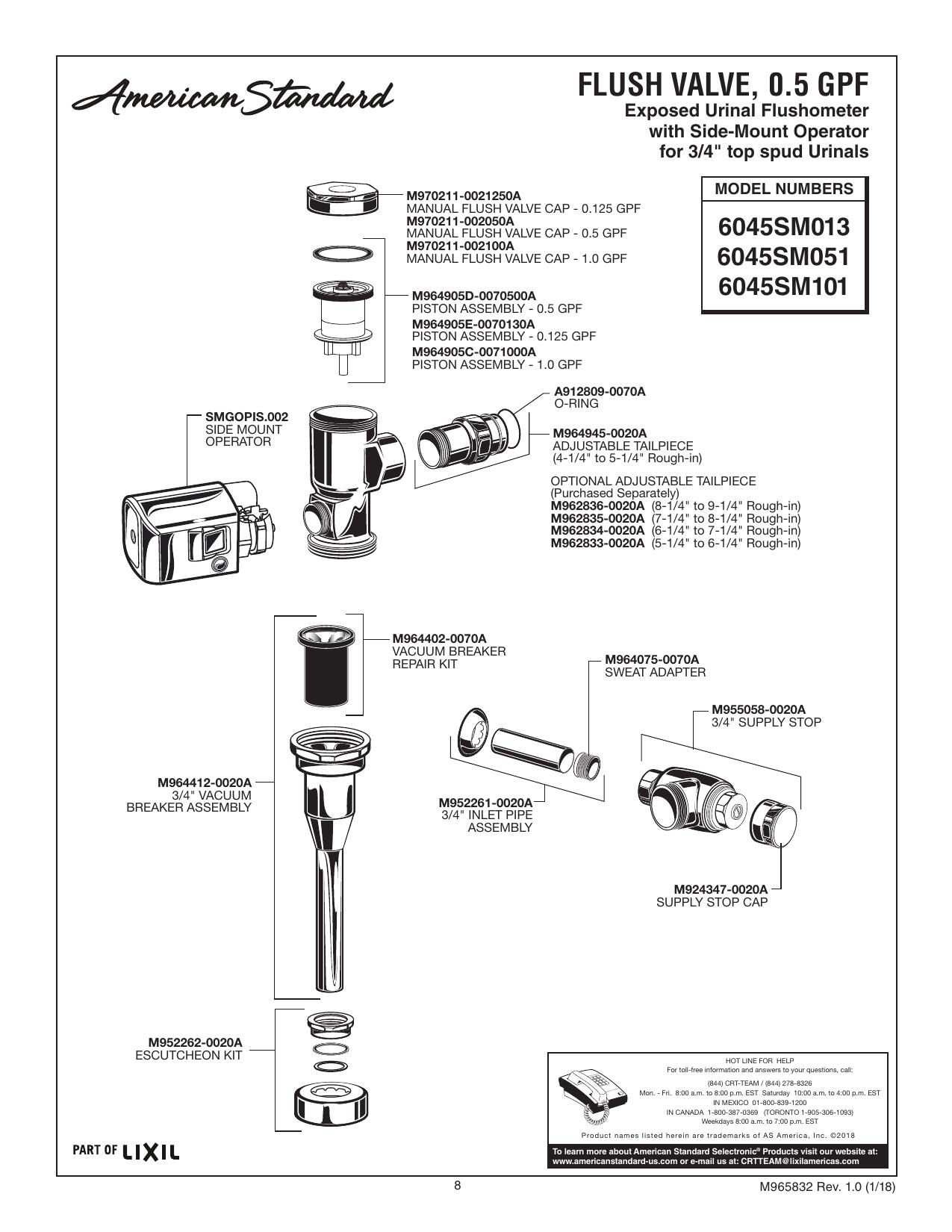

Replacement Parts
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
REVIT Files
.rfa icon REVIT File
3D Objects are not currently available for this product
