GROHE Zedra

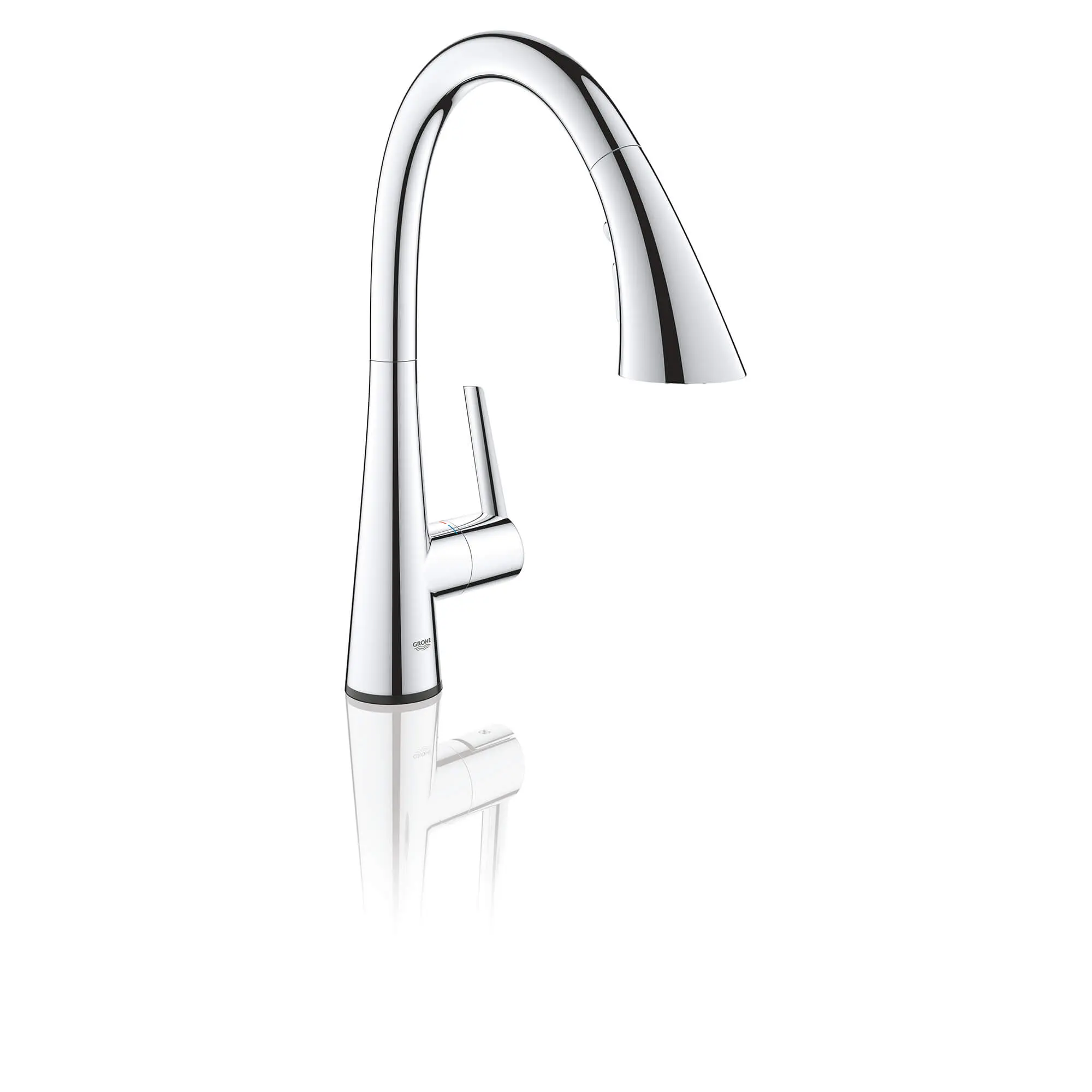

GROHE Zedra Single-Handle Pull Down Kitchen Faucet Triple Spray 1.75 GPM (6.6 L/min) with Touch Technology

The GROHE Zedra Touch Pull-Down Kitchen Faucet with Triple-Function Spray Head is a sleek, single-handle faucet that offers the convenience of touch activation. Just tap the spout with your wrist, elbow or fingertip to turn the water on and off. Ergonomic, pull-down spray head is distinctively flared for in-hand comfort when switching between three spray functions: regular stream for filling pots, shower spray for rinsing the sink or washing fruit, and a powerful blade spray to quickly clear food from plates. The Zedra Touch single-hole kitchen faucet is the perfect combination of style and substance. GROHE Zedra is the new name for Ladylux L2.

Chrome 30205002 DISCONTINUED
List Price: $937.00
ADA Compliant Cal Green CEC Certified Enjoy More Rewards Water Efficient
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • TOUCH TECHNOLOGY: Especially helpful when hands are messy, this touch kitchen faucet turns on and off with a touch of your hand, wrist or arm
  • 60-SECOND AUTO SHUT-OFF: Water will shut off automatically after 60-seconds to avoid accidents and conserve water
  • BATTERY OPERATED: Includes 6V lithium-battery Type CR-P2
  • PULL-DOWN TRIPLE-SPRAY FAUCET: Features triple-function spray head with regular stream, spray, powerful blade spray, plus pause to briefly stop water flow
  • SINGLE-HANDLE FAUCET: For manual operation, lever handle features GROHE SilkMove for smooth, precise control
  • FORWARD ROTATING HANDLE: Will not interfere with backsplash
  • SWIVEL CONVENIENCE: Faucet swivels 360° for island-friendly use and easy access to every corner of the kitchen sink
  • EASY TO CLEAN: Kitchen faucet sprayer features GROHE SpeedClean rubber nozzles to quickly wipe away limescale with your fingertip; activate cleaning mode by touching the faucet for 8 seconds to deactivate water flow
  • DURABLE FINISHES: GROHE StarLight coating maintains luster on brushed and polished finishes
  • LIMITED LIFETIME WARRANTY: GROHE warranties this kitchen faucet to be free of manufacturer defects, your assurance of quality design and performance
Technical Features
  • GROHE SilkMove
  • GROHE LongLife finish
  • 16" Faucet height
  • 8 9/16" Aerator height
  • 9 3/16" Faucet reach
  • Touch activation of water via skin contact
  • 6 V lithium-battery supply (type CR-P2)
  • CE approved and meets the requirements of IAPMO IGC 349-2017
  • Automatic safety stop after 60 sec. (factory set)
  • Pull-down spray with 3 spray types: laminar spray, shower spray, and blade spray (reduced water consumption by up to 50% and even stronger spray performance),1.75 gpm (6.6 L/min),Stop function - pause button to stop the water flow,Automatic return to laminar spray,Adjustable flow rate limiter,360° Swivel spout,Nylon braided flex hoses,GROHE Zedra is the new name for Ladylux L2
Nominal Dimensions: 10-1/16 in x 6-5/16 in x 16 in (256 mm x 160 mm x 406 mm)
Description
Net Weight
SKU
Color
List Price USD
GROHE Zedra Single-Handle Pull Down Kitchen Faucet Triple Spray 1.75 GPM (6.6 L/min) with Touch Technology
11 lb (5.1 kg)
30205002
Chrome (G00)
937
30205DC2
Supersteel (GDC)
1105
Models Using This Part
Shower Hose
1 lb (0.6 kg)
48472000
Chrome
61
spacer
Pull-Out Spray
0 lb (0.2 kg)
48473000
Chrome
101
spacer
Lever
1 lb (0.3 kg)
48476000
Chrome
55
spacer
Screw Ring
0 lb (0.0 kg)
48517000
Chrome
15
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Brand: GROHE
Cal Green: Yes
Category: Kitchen Faucets
CEC Certified: Yes
Color / Finish: Chrome
Department of Energy Certified: Yes
Collections: GROHE Zedra
Faucet Type: Mono block Pull Down
Fitting Connection Size Input: 3/8
Handle Type: Lever
Hose Length: 33
Mount Type: Sink Mount
Number of Handles: 1
Fitting Number of Holes: 1
Spout Height: 8-9/16
Spout Type: High Arc
Touchless: Touchless
Valve Material: Ceramic
Fixture or Fitting Material: Metal
Gallons Per Minute (min-max): 1.75
Handle Length: 5-1/4
Hose Included: Yes
Input Connection Type: Compression
Kitchen or Bathroom: Kitchen
Height: 16
Height: 16
Length: 10-1/16
Width: 6-5/16
Pull Down Faucet: Yes
Residential or Commercial: Residential
Subcategory: Mono Block Pull Down Kitchen Faucets
Warranty: 5 Year Limited Warranty
Water Efficient: Yes
Download All Supporting Documents

Specification Sheet

Installation Instructions

Installation Instructions

Replacement Parts
