GROHE Zedra

GROHE Zedra Single-Handle Pull Down Dual Spray Prep Faucet 1.75 GPM (6.6 L/min)

The GROHE Zedra Pull-Down Prep Sink Faucet with Dual-Function Spray Head has the sleek, contemporary look and innovative technology essential in today’s home. The ideal size for entertaining, food prep or any secondary sink, the Zedra features a pull-down spray head with button to easily switch between regular stream and shower spray functions. The Zedra is the perfect combination of style and substance. GROHE Zedra is the new name for Ladylux L2.

Chrome 32283003 DISCONTINUED
List Price: $472.00
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Easily switch between sprays with button on spray head
  • Forward rotating lever will not interfere with backsplash
  • Ceramic disc valve for a lifetime of drip-free performance
  • Full 360° swivel for maximum versatility and sink coverage
  • Speed Clean nozzles wipe clean with your fingertip
  • GROHE StarLight coating maintains a durable, lustrous finish
  • GROHE SilkMove ensures smooth, effortless handle operation
  • Lifetime limited warranty
Technical Features
  • GROHE SilkMove
  • GROHE StarLight
  • 15 7/16" Faucet height
  • 9" Aerator height
  • 6 9/16" Faucet reach
  • Pull-down dual spray: laminar spray and shower spray
  • Automatic return to laminar spray
  • Adjustable flow rate limiter
  • 360° Swivel spout
  • Nylon braided flex hoses,1.75 gpm (6.6 L/min),Compatible with GROHE Foot Control retro-fit set (30 310 000),GROHE Zedra is the new name for Ladylux L2
Nominal Dimensions: 7-5/8 in x 6-5/16 in x 15-7/16 in (194 mm x 160 mm x 392 mm)
Description
Net Weight
SKU
Color
List Price USD
GROHE Zedra Single-Handle Pull Down Dual Spray Prep Faucet 1.75 GPM (6.6 L/min)
8 lb (3.4 kg)
32283003
Chrome (G00)
472
32283DC3
Supersteel (GDC)
637

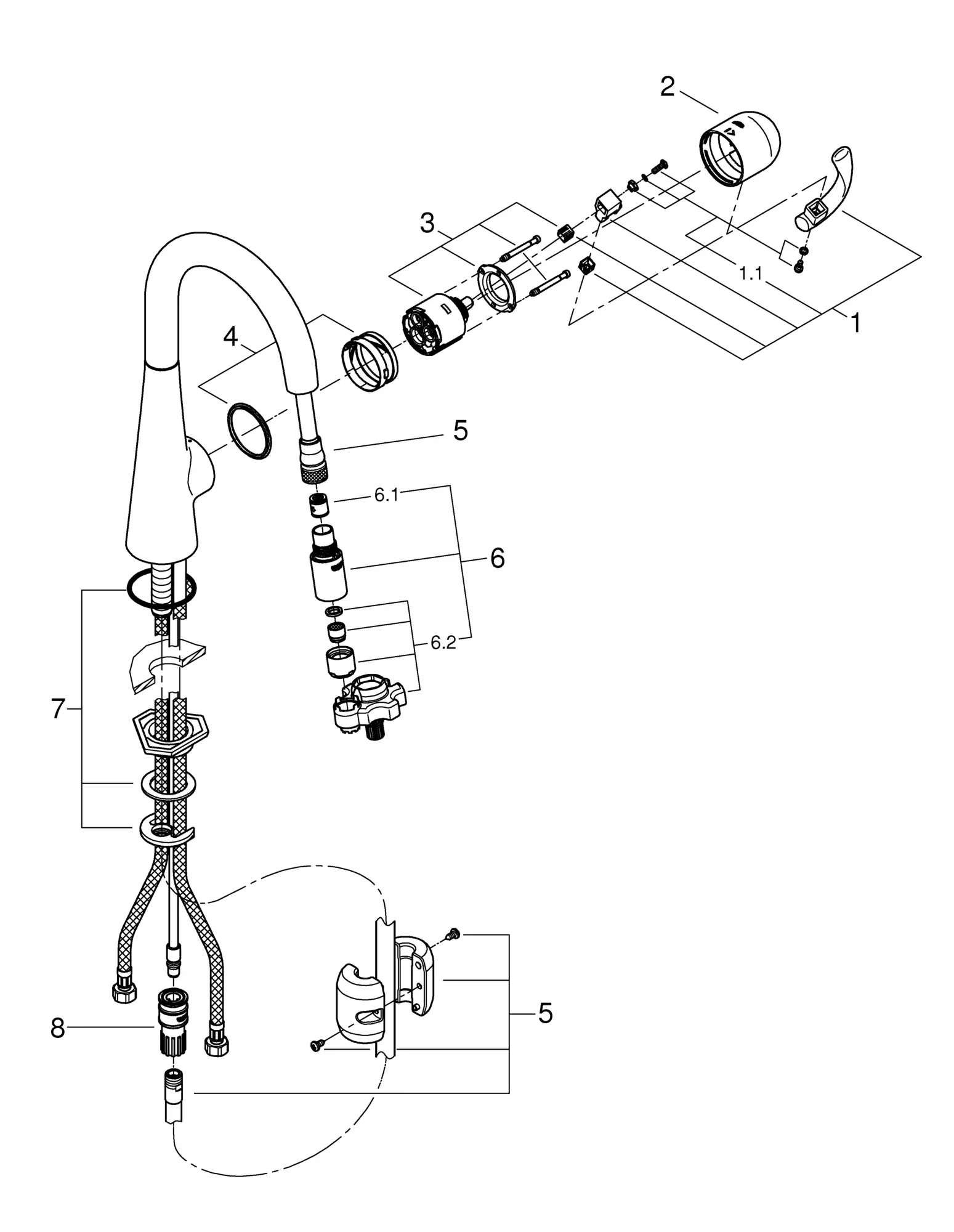

Models Using This Part
Shower Hose
1 lb (0.6 kg)
48472000
Chrome
55
spacer
Pull-Down Spray
0 lb (0.1 kg)
48475000
Chrome
48
48475DC0
Supersteel
55
spacer
Lever
1 lb (0.3 kg)
48476000
Chrome
52
48476DC0
Supersteel
107
spacer
Mounting Set
0 lb (0.1 kg)
48477000
Chrome
19
spacer
Screw Ring
0 lb (0.0 kg)
48517000
Chrome
14
Download Specification Sheet
Barrier Free: Yes
Brand: Grohe
Cal Green: Yes
Category: Kitchen Faucets
CEC Certified: Yes
Color / Finish: Chrome
Department of Energy Certified: Yes
Collections: GROHE Zedra
Faucet Type: Mono block Pull Down
Fitting Connection Size Input: 3/8
Handle Type: Lever
Hose Length: 30.875
Number of Handles: 1
Fitting Number of Holes: 1
Spout Height: 9
Valve Material: Ceramic
Fixture or Fitting Material: Zinc
Gallons Per Minute (min-max): 1.75
Handle Length: 5-1/4
Hose Included: Yes
Input Connection Type: Compression
Kitchen or Bathroom: Kitchen
Height: 15-7/16
Length: 7-5/8
Width: 6-5/16
Pull Down Faucet: Yes
Residential or Commercial: Residential
Subcategory: Mono Block Pull Down Kitchen Faucets
Warranty: Limited Lifetime Warranty
Water Efficient: Yes
Download All Supporting Documents

Specification Sheet

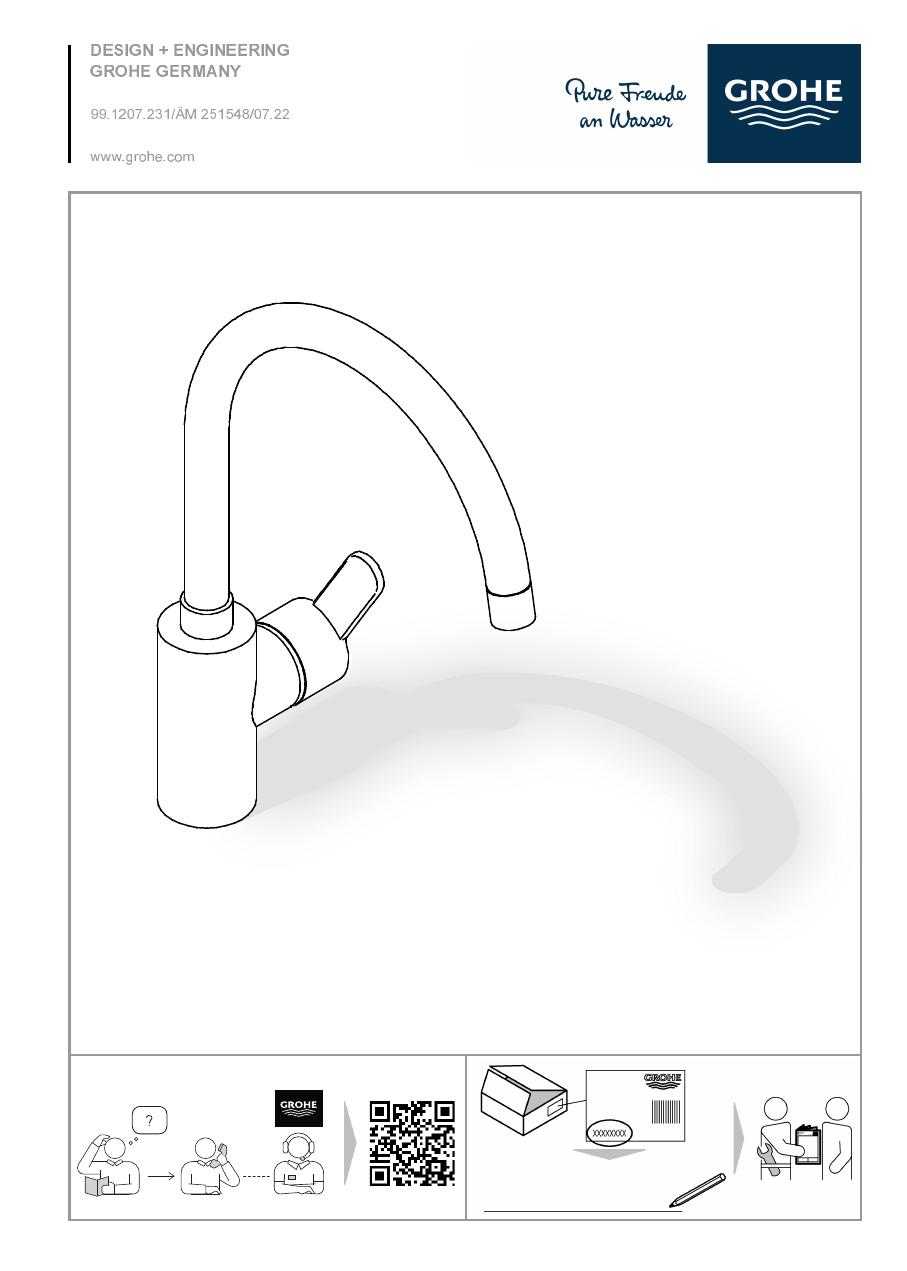

Installation Instructions

Replacement Parts
Download All Design Files
The 3D Models used on the website are for reference only and may not reflect the actual configuration of the product.
}
