GROHE Zedra

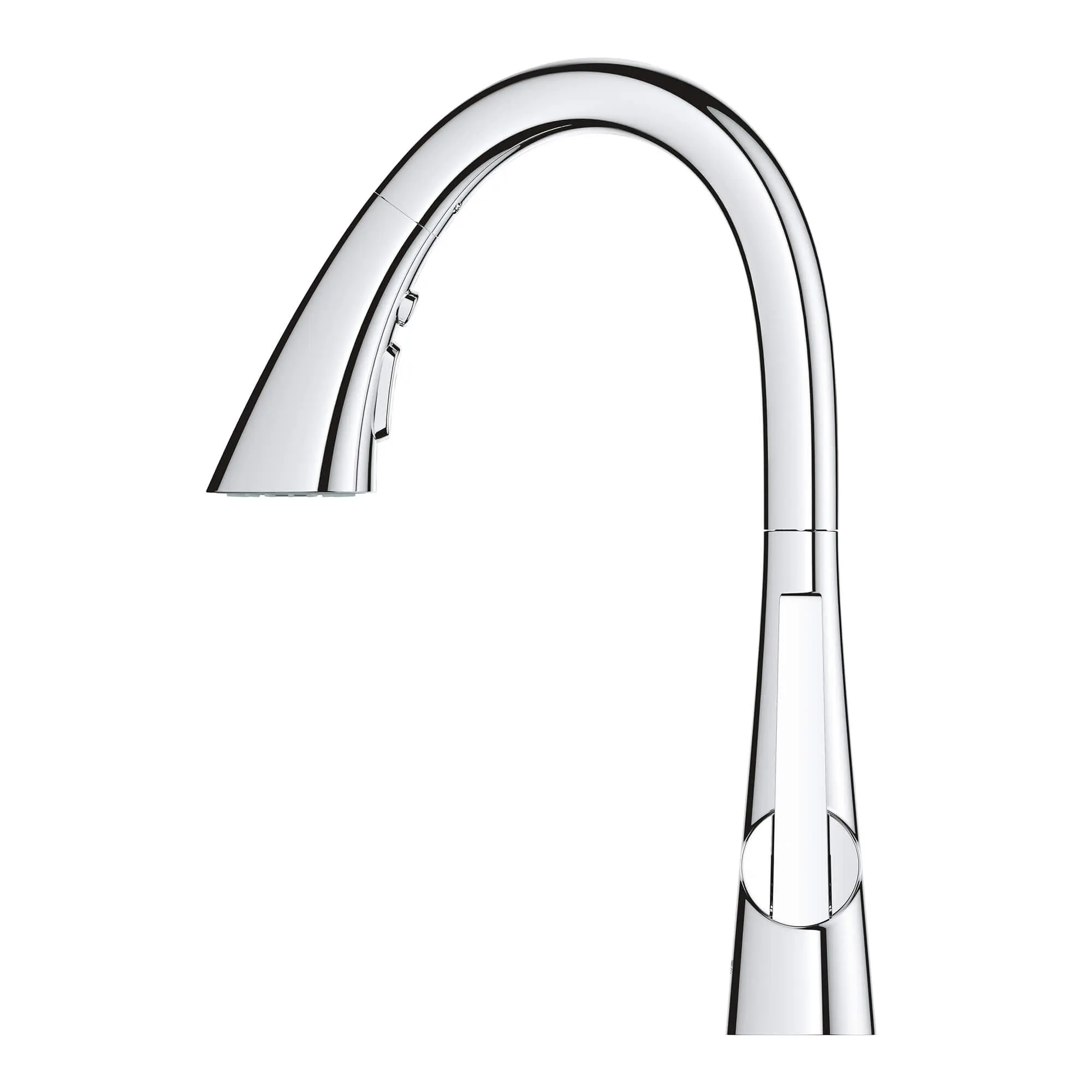

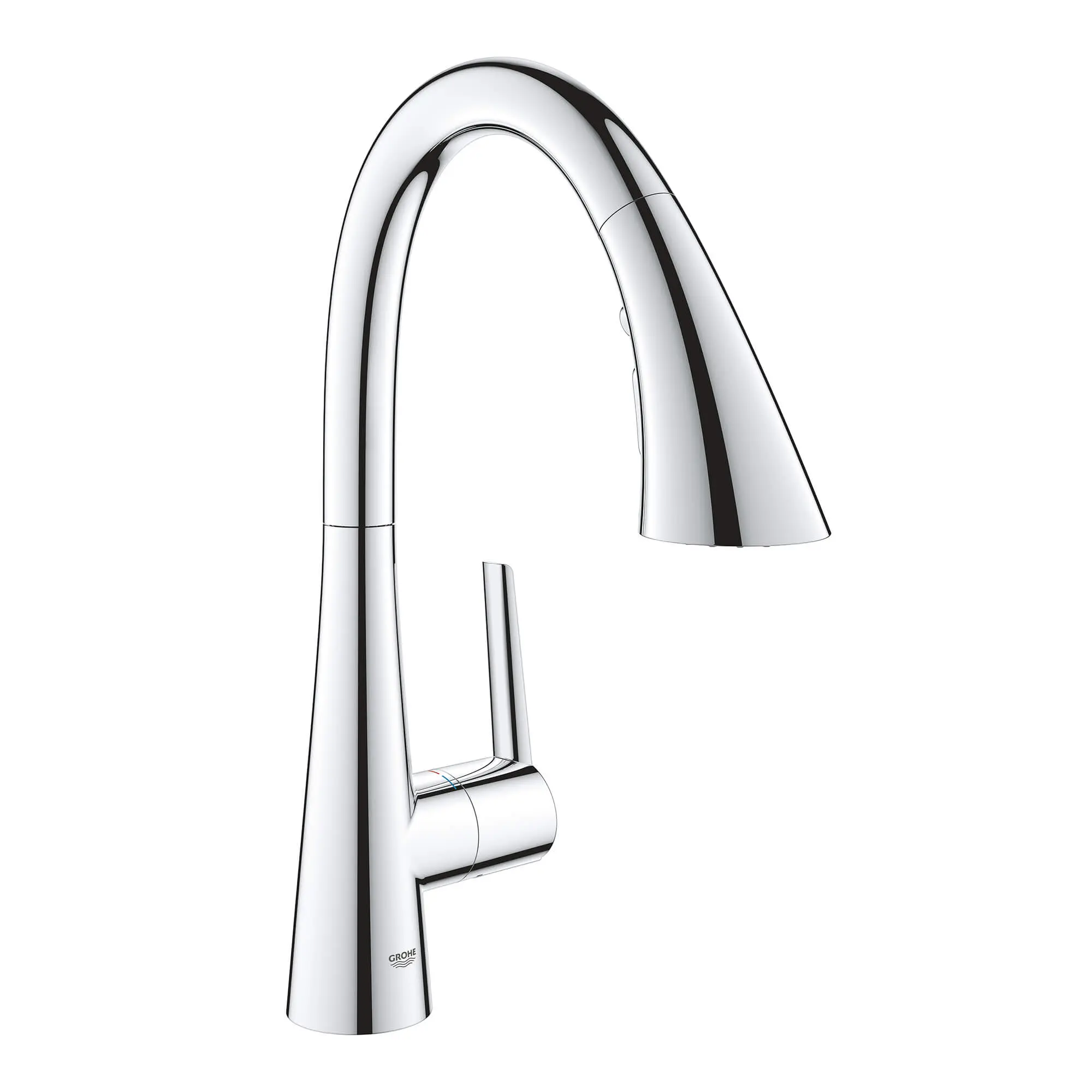

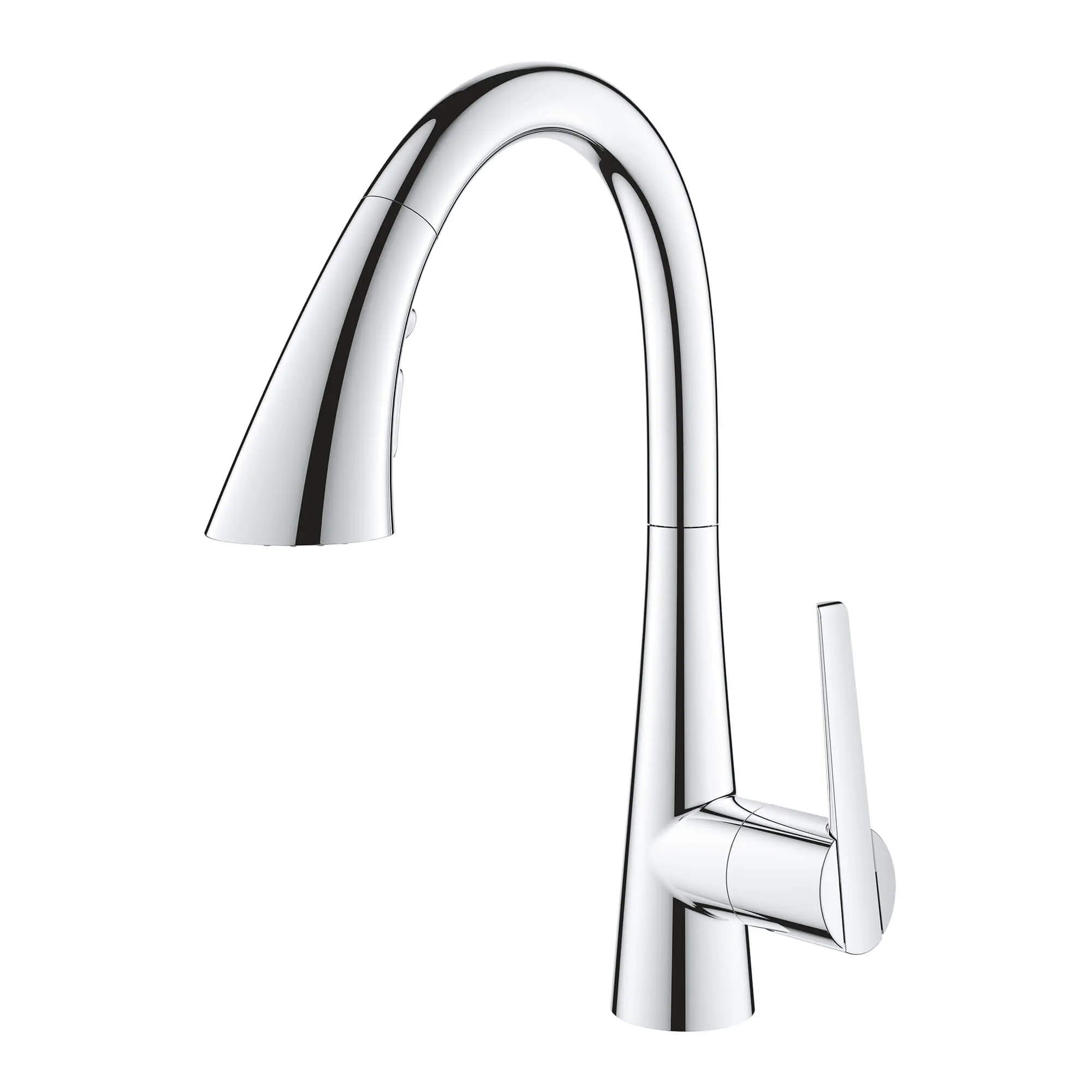

GROHE Zedra Single-Handle Pull Down Triple Spray Bar Faucet 1.75 GPM (6.6 L/min)

30368002 DISCONTINUED
List Price: $0.00
ADA Compliant Cal Green CEC Certified Enjoy More Rewards Water Efficient
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • PULL-DOWN BAR FAUCET: Features triple-function spray head with regular stream, spray, powerful blade spray, plus pause to briefly stop water flow
  • DRIP-FREE: German engineered kitchen faucet with quality ceramic disc valve to ensure leak-proof performance
  • EASY TO INSTALL: Fits single-hole sinks and countertops, with hoses included
  • FORWARD ROTATING HANDLE: Will not interfere with backsplash
  • EASY TO CLEAN: Kitchen faucet sprayer features GROHE SpeedClean rubber nozzles to quickly wipe away limescale with your fingertip
  • SINGLE-HANDLE FAUCET: Features GROHE SilkMove for smooth, precise handle control and operation
  • SWIVEL CONVENIENCE: Faucet swivels 360° for island-friendly use and easy access to every corner of the kitchen sink
  • DURABLE FINISHES: GROHE StarLight coating maintains luster on brushed and polished finishes
  • LIMITED LIFETIME WARRANTY: GROHE warranties this kitchen faucet to be free of manufacturer defects, your assurance of quality design and performance
  • GROHE Zedra is the new name for Ladylux L2
Technical Features
  • GROHE SilkMove
  • GROHE LongLife finish
  • Speed Clean anti-lime system
  • 15 1/4" Faucet height
  • 8 3/8" Aerator height
  • 7 15/16" Faucet reach
  • For bar sinks
  • Pull-down spray with 3 spray types: laminar spray, shower spray, and blade spray (reduced water consumption by up to 50% and even stronger spray performance)
  • Stop function - pause button to stop the water flow
  • Automatic return to laminar spray,Adjustable flow rate limiter,360° Swivel spout,Nylon braided flex hoses,1.75 gpm (6.6 L/min),Compatible with GROHE Foot Control retro-fit set (30 310 000),GROHE Zedra is the new name for Ladylux L2
Nominal Dimensions: 9 in x 6-5/16 in x 15-1/4 in (229 mm x 160 mm x 387 mm)
Description
Net Weight
SKU
Color
List Price USD
GROHE Zedra Single-Handle Pull Down Triple Spray Bar Faucet 1.75 GPM (6.6 L/min)
7 lb (3.2 kg)
30368002
0
303682432
0
30368DC2
0
30368GN2
0
Models Using This Part
Shower Hose
1 lb (0.6 kg)
48472000
0
spacer
Pull-Out Spray
0 lb (0.2 kg)
48473000
0
spacer
Lever
1 lb (0.3 kg)
48476000
0
spacer
Mounting Set
0 lb (0.1 kg)
48477000
0
spacer
Screw Ring
0 lb (0.0 kg)
48517000
0
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Brand: GROHE
Cal Green: Yes
CEC Certified: Yes
Color / Finish: Chrome (G00)
Department of Energy Certified: Yes
Collections: GROHE Zedra
Faucet Type: Bar Standard
Fitting Connection Size Input: 3/8
Handle Type: Lever
Mount Type: Deck Mount
Number of Handles: 1
Fitting Number of Holes: 1
Spout Height: 8-3/8
Fixture or Fitting Material: Zinc
Gallons Per Minute (min-max): 1.75
Handle Length: 5-1/4
Input Connection Type: Compression
Kitchen or Bathroom: Kitchen
Height: 15-1/4
Length: 9
Length: 9
Width: 6-5/16
Pull Down Faucet: Yes
Residential or Commercial: Residential
Warranty: Limited Lifetime Warranty
Water Efficient: Yes
Download All Supporting Documents

Specification Sheet

Installation Instructions

Replacement Parts
Download All Design Files
The 3D Models used on the website are for reference only and may not reflect the actual configuration of the product.
