Townsend

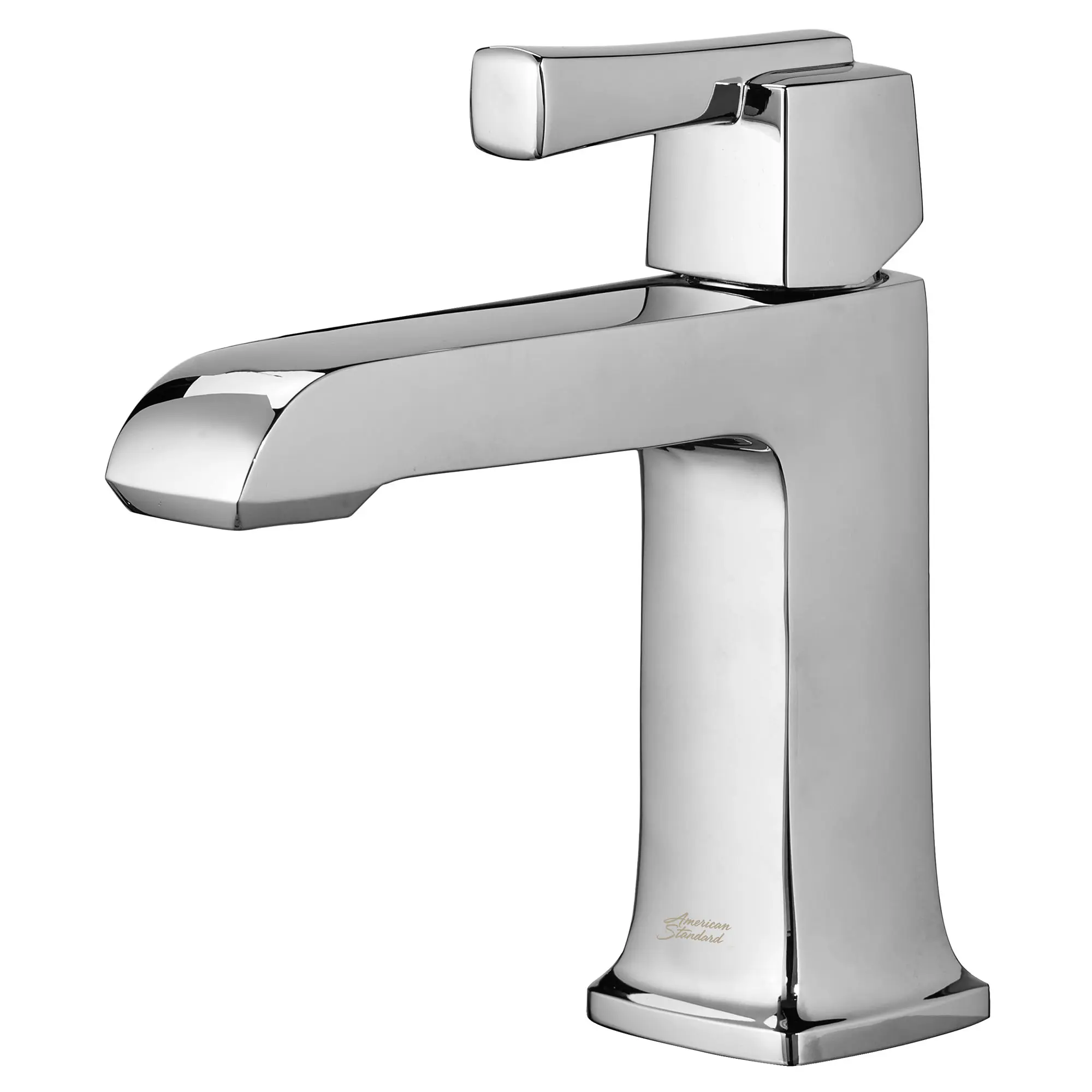

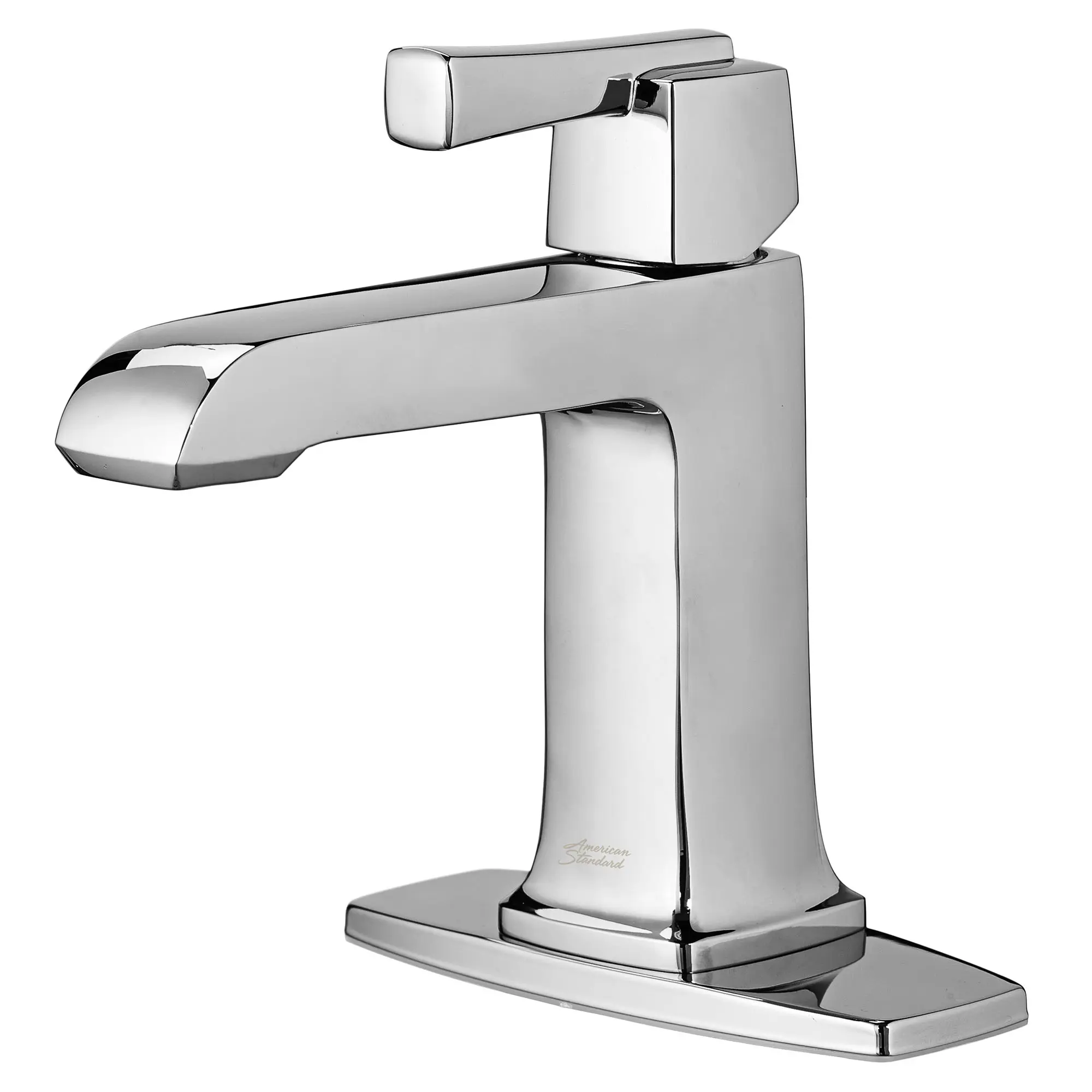

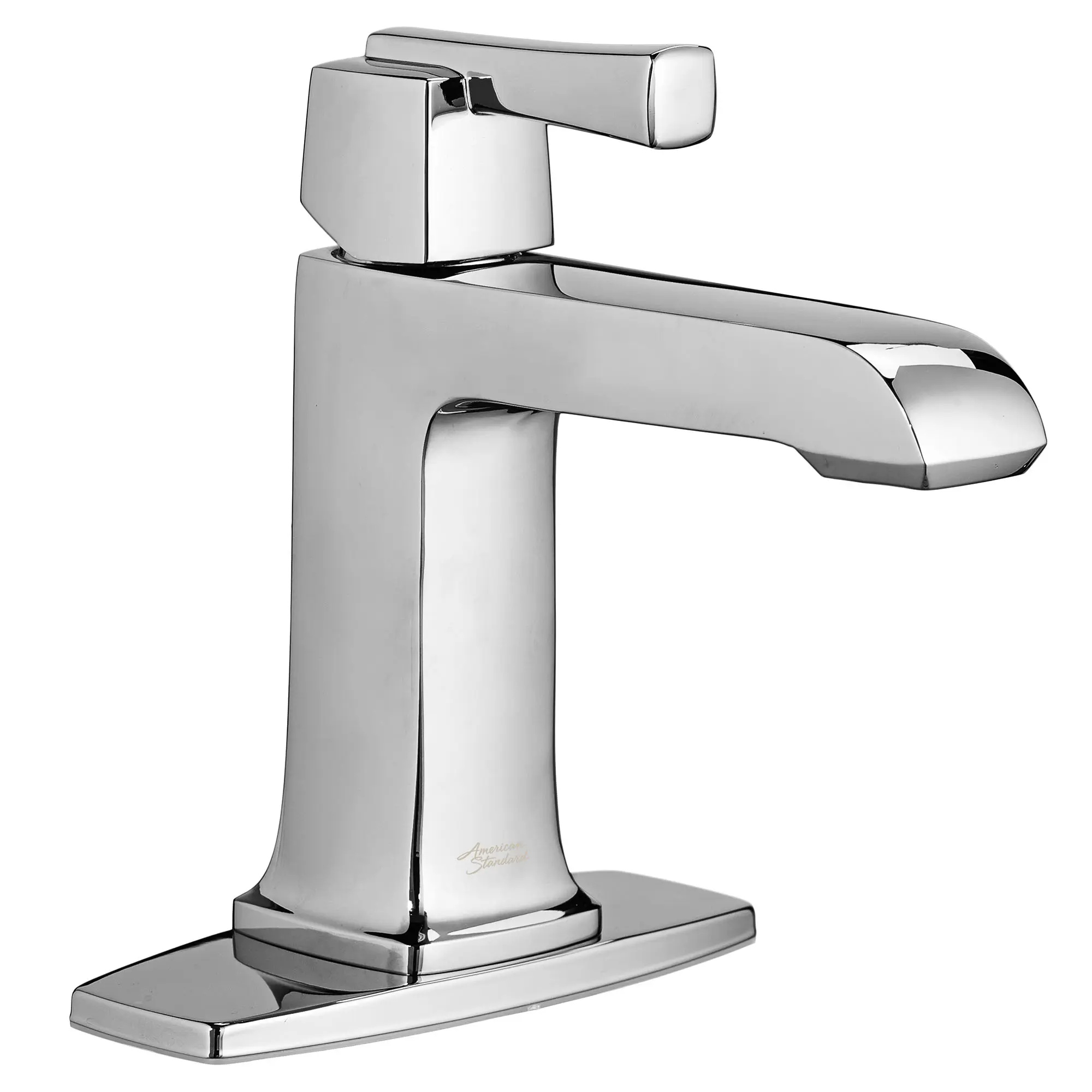

Townsend® Single Hole Single-Handle Bathroom Faucet 1.2 gpm/4.5 L/min With Lever Handle

The Townsend Single-Handle Single-Hole Bathroom Sink Faucet from American Standard is an elegant style defined by a single lever top handle and architectural details. Designed for durability, this metal bathroom faucet features an ADA-compliant metal lever handle and a push pop-up drain that is simple to use and quick to install, requiring fewer parts than a standard drain. The Townsend bathroom sink faucet is available in an array of beautiful, on-trend finishes to complement any bathroom style.

Chrome 7353101.002 DISCONTINUED
List Price: $333.00
ADA Compliant Cal Green CEC Certified Enjoy More Rewards Water Efficient WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • SINGLE-HANDLE FAUCET: For use on single-hole bathroom sink or on two- and three-hole sinks and countertops with deck plate, sold separately
  • DRIP-FREE: This one-handle bathroom faucet features quality ceramic disc valves ensuring drip-free performance for life
  • INCLUDES PUSH POP-UP DRAIN AND HOSES: Metal push pop-up drain and flexible stainless steel hoses for quick, easy installation
  • BUILT FOR RELIABILITY: Metal spout and handle ensures long-lasting dependability
  • SAVES WATER: Features 1.2 gpm/4.5 Lpm pressure-compensating aerator
  • DURABLE FINISHES: Faucet finish resists scratches, corrosion and easily wipes clean
  • WARRANTY: Limited lifetime warranty on function and finish
  • Water-conserving 1.2 gpm/4.5 Lpm pressure-compensating aerator
Technical Features
  • Brass construction
  • Washerless ceramic disc valve cartridges
  • Water-conserving 1.2 gpm/4.5 L/min pressure-compensating aerator
  • Cast brass spout
  • Braided flexible supply hoses with 3/8" (10 mm) compression connectors
  • Metal lever handle
  • Brass push pop-up drain
Nominal Dimensions: 7-1/4 in x 2-1/4 in x 7-13/16 in (184 mm x 57 mm x 198 mm)
Description
Net Weight
SKU
Color
List Price USD
Townsend® Single Hole Single-Handle Bathroom Faucet 1.2 gpm/4.5 L/min With Lever Handle
5 lb (2.5 kg)
7353101.002
Chrome (002)
333
7353101.013
Polished Nickel (013)
466
7353101.243
Matte Black (243)
483
7353101.278 *
Legacy Bronze (278)
483
7353101.295
Brushed Nickel (295)
466
7353101.GN0
Brushed Cool Sunrise (GN0)
504


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Brand: American Standard
Cal Green: Yes
Category: Bathroom Faucets
CEC Certified: Yes
Color / Finish: Chrome
Department of Energy Certified: Yes
Collections: Townsend
Drain Included: Yes
Drain Material: Metal
WaterSense: Yes
Faucet Type: Monoblock
Fitting Connection Size Input: 0-3/8
Handle Height: 7-13/16
Handle Type: Lever
Fitting Material: Brass
Mount Type: Deck Mount
Number of Handles: 1
Fitting Number of Holes: 1
Spout Height: 4-13/16
Spout Type: Standard
Valve Material: Ceramic
Fixture or Fitting Material: Brass
Gallons Per Minute (min-max): 1.2 GPM
Input Connection Type: Compression
Hardware Included: Yes
Height: 7-13/16
Length: 7-1/4
Width: 2-1/4
Residential or Commercial: Residential
Subcategory: Monoblock Bathroom Faucets
Valve Type: Volume Control Valves
Warranty: Limited Lifetime Warranty
Water Efficient: Yes
Download All Supporting Documents

Specification Sheet

Installation Instructions

Replacement Parts
Download All Design Files
REVIT Files
.rfa icon REVIT File
The 3D Models used on the website are for reference only and may not reflect the actual configuration of the product.
