Town Square® S

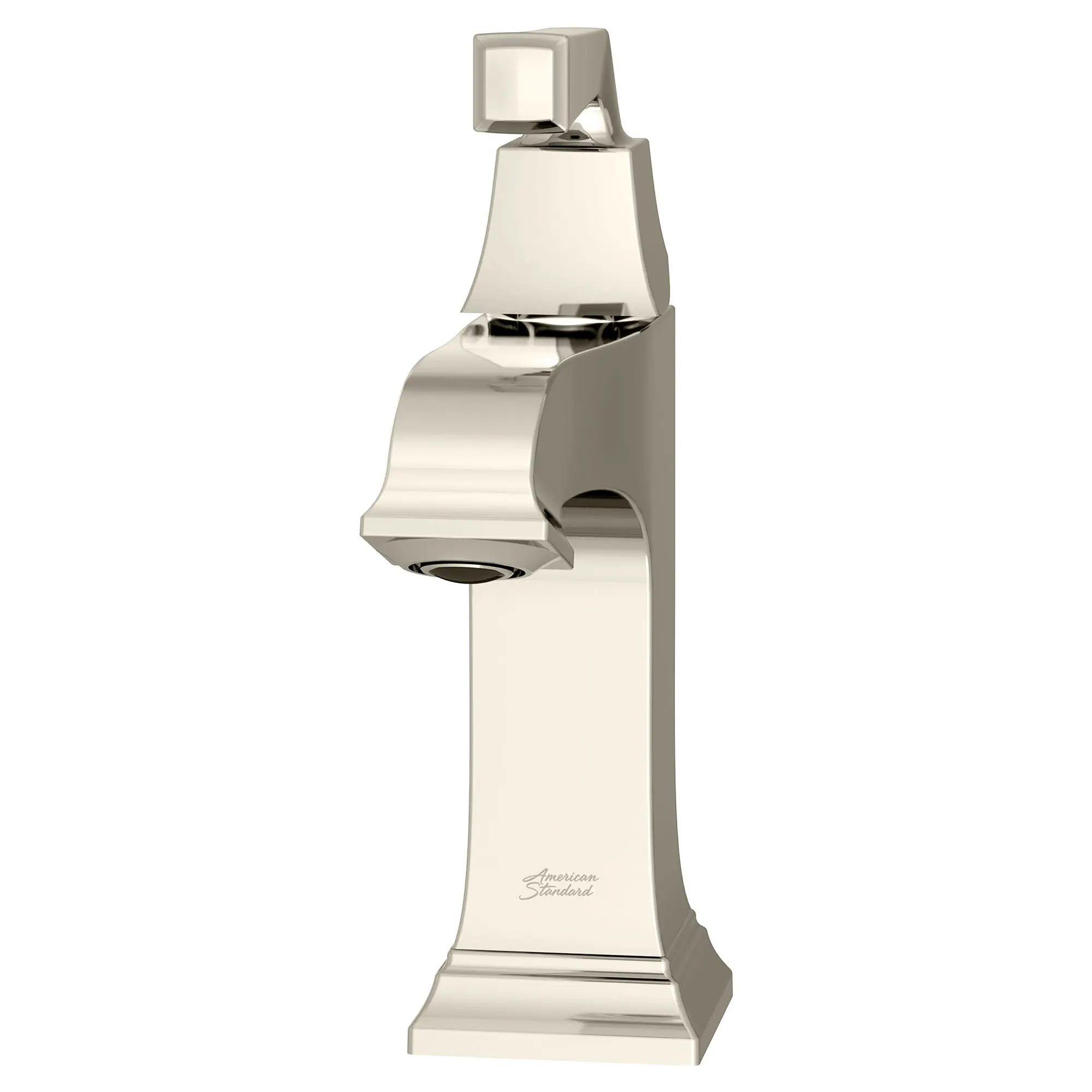

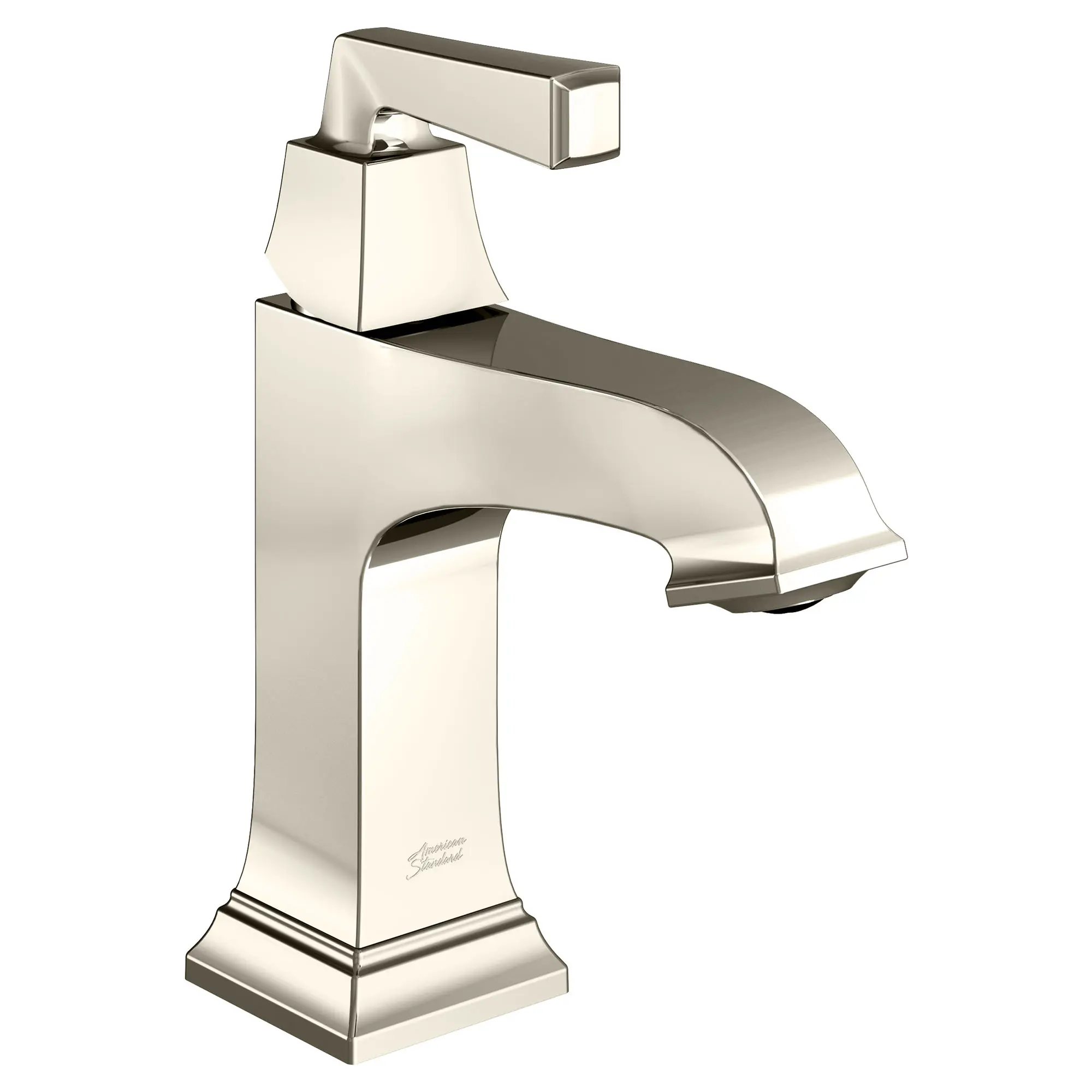

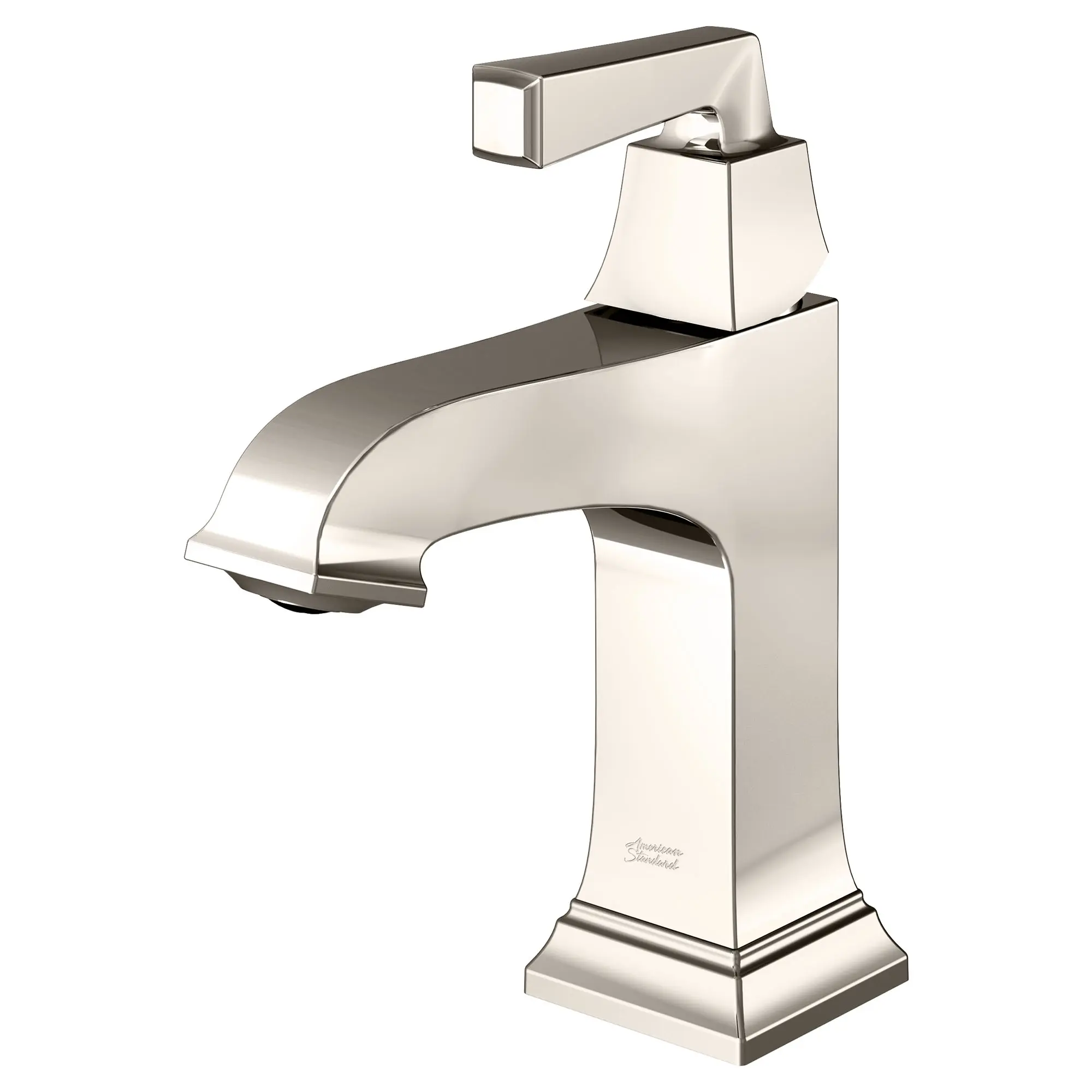

Town Square® S Single Hole Single-Handle Bathroom Faucet 1.2 gpm/4.5 L/min With Lever Handle

7455107.013 DISCONTINUED
List Price: $0.00
ADA Compliant Cal Green CEC Certified Enjoy More Rewards WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Cast Brass Spout
  • Braided Flexible Hoses with 3/8" Compression Connectors
  • Includes Push-Pop drain for ease of installation and use
  • Lead Free
  • Optional Escutcheon Plate available (2555.101P)
  • WaterSense Certified
  • CEC Compliant Product
Technical Features
  • Brass construction and washerless ceramic disc valve cartridge
  • Water-conserving 1.2 gpm/4.5 L/min pressure-compensating aerator
  • Braided flexible hoses with 3/8" (10 mm) compression connections
  • Metal lever handle
  • Brass push pop drain
There are no additional components to display for this product
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Brand: American Standard
Cal Green: Yes
CEC Certified: Yes
Color / Finish: Polished Nickel (013)
Department of Energy Certified: Yes
Collections: Town Square® S
Drain Included: Yes
Drain Material: Brass and Metal
WaterSense: Yes
Faucet Type: Monoblock
Fitting Connection Size Input: 9.52
Handle Height: 210
Handle Material: Zinc
Handle Type: Lever
Fitting Material: Brass,Metal/Plastic,Zinc
Mount Type: Deck Mount
Number of Handles: 1
Fitting Number of Holes: 1
Spout Height: 113
Spout Type: Mid Arc
Valve Material: Ceramic
Fixture or Fitting Material: Brass<multisep/>Metal/Plastic<multisep/>Zinc
Gallons Per Minute (min-max): 1.2 GPM
Handle Length: 74
Input Connection Type: Compression
Hardware Included: Yes
Height: 210
Length: 117
Width: 60
Width: 60
Residential or Commercial: Residential
Valve Type: Volume Control Valves
Warranty: Limited Lifetime Warranty
Download All Supporting Documents

Specification Sheet

Specification Sheet

Installation Instructions

Replacement Parts
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
REVIT Files
.rfa icon REVIT File
The 3D Models used on the website are for reference only and may not reflect the actual configuration of the product.
