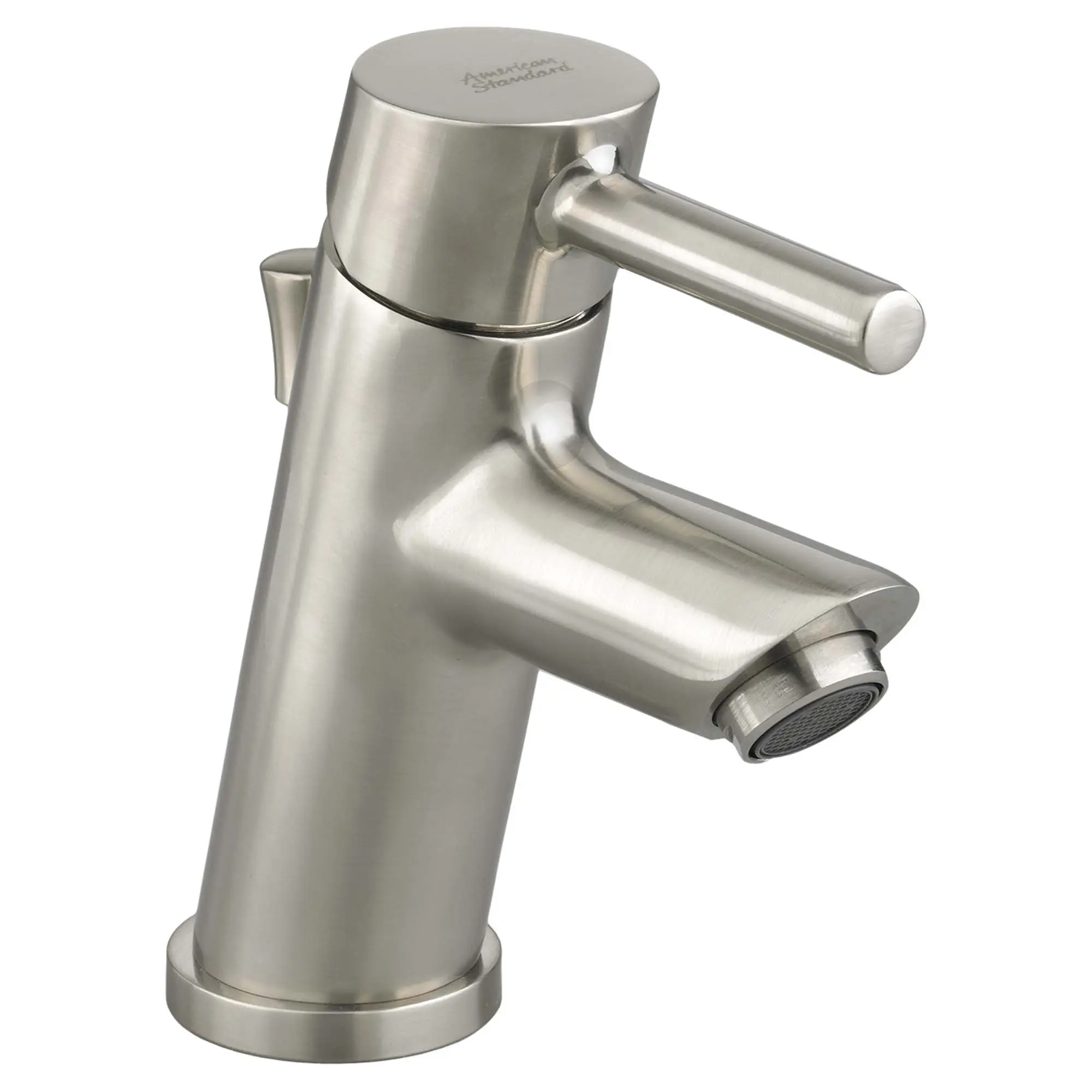

Serin® Single Hole Single-Handle Bathroom Faucet 1.2 gpm/4.5 L/min With Lever Handle

The Serin petite single-handle faucet may be smaller in stature, but it's just as stunning to behold. This faucet from our modern Serin® Collection is engineered to be more eco and user-friendly. Its compact design is packed with innovative features, designed to bring the best in style and performance. A lifetime of drip-free performance is guaranteed with a ceramic disc valve cartridge. An exclusive speed connect metal drain makes installation faster than ever, using fewer parts and no adjustments required. 1.2 gallons per minute (1.2 gpm/4.5 L/min) maximum flow rate helps to save water.

Brushed Nickel 2064131.295 FUTURE DISCONTINUATION
List Price: $389.00
ADA Compliant Cal Green CEC Certified Water Efficient WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Brass construction: Durable. Easy to clean. Ideal for prolonged contact with water
  • Ceramic disc valve cartridge: Assures a lifetime of smooth handle operation and drip-free performance
  • Lead free: Faucet contains equals or less than 0.25% total lead content by weighted average
  • Exclusive speed connect metal drain: Fewer parts. Installs in less time
  • Braided flexible supply hoses with 3/8" compression connectors
  • No adjustments required – seals the first time, every time
  • 20 inch (508 mm) flexible stainless steel cable – installs effortlessly in tight spaces
  • 1.2 gallons per minute (4.5 L/min) maximum flow rate helps to save water
  • Fitting can be mounted on 4" centers using optional escutcheon (2064.101P) or single hole mounting method
  • Choice of finishes: Available in Polished Chrome or Satin Nickel (PVD)
Technical Features
  • Brass construction
  • Washerless ceramic disc valve cartidges
  • Water-conserving 1.0 gpm/3.8 L/min pressure-compensating aerator
  • Cast brass spout
  • Braided flexible hoses with 3/8" (10mm) compression connectors
  • Metal lever handle
  • Metal Speed Connect® pop-up drain
Nominal Dimensions: 5-1/4 in x 2 in x 6 in (133 mm x 51 mm x 152 mm)
Description
Net Weight
SKU
Color
List Price USD
Serin® Single Hole Single-Handle Bathroom Faucet 1.2 gpm/4.5 L/min With Lever Handle
5 lb (2.2 kg)
2064131.295
Brushed Nickel (295)
389
2064131.002
Chrome (002)
289
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Brand: American Standard
Cal Green: Yes
Category: Bathroom Faucets
CEC Certified: Yes
Color / Finish: Brushed Nickel
Department of Energy Certified: Yes
Collections: Serin
Drain Included: Yes
Drain Material: Metal
WaterSense: Yes
Faucet Type: Monoblock
Fitting Connection Size Input: 9.52
Handle Height: 6
Handle Material: Metal
Handle Type: Lever
Fitting Material: Brass
Mount Type: Deck Mount
Number of Handles: 1
Fitting Number of Holes: 1
Speed Connect: Yes
Spout Height: 3-1/16
Spout Type: Standard
Valve Material: Ceramic
Fixture or Fitting Material: Brass
Gallons Per Minute (min-max): 1.2 GPM
Handle Length: 3-1/4
Input Connection Type: Compression
Hardware Included: Yes
Height: 6
Height: 6
Length: 5-1/4
Width: 2
Residential or Commercial: Residential
Subcategory: Monoblock Bathroom Faucets
Valve Type: Volume Control Valves
Warranty: Limited Lifetime Warranty
Water Efficient: Yes
Download All Supporting Documents

Specification Sheet

Installation Instructions

Replacement Parts
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
REVIT Files
.rfa icon REVIT File
The 3D Models used on the website are for reference only and may not reflect the actual configuration of the product.
