Delancey

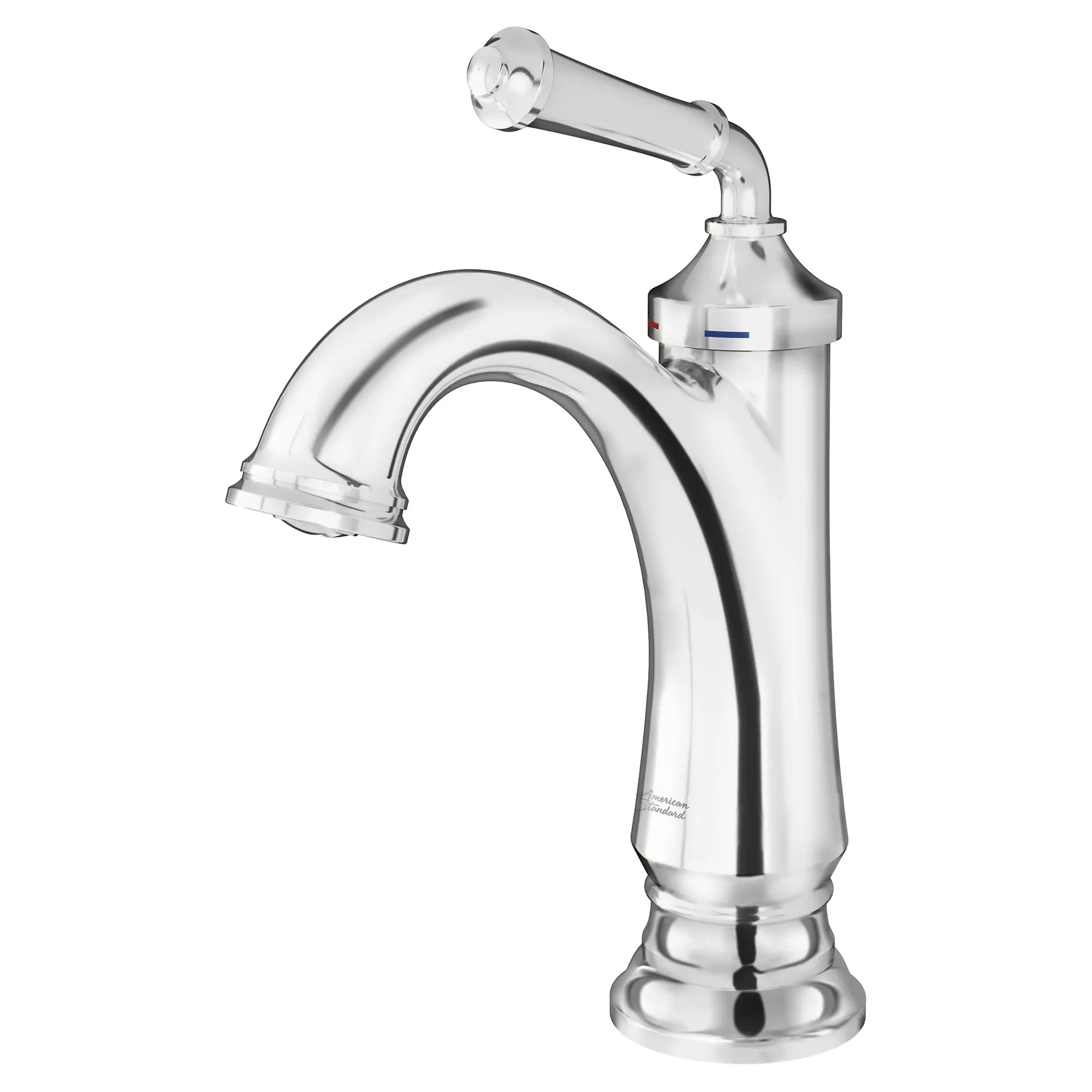

Delancey® Single Hole Single-Handle Bathroom Faucet 1.2 gpm/4.5 L/min With Lever Handle

Inspired by the finer points of classic architecture, the Delancey Bath Faucet Collection from American Standard captures the refined elegance of stately columns and sublime details. Enduring both in style and performance, drip-free Delancey faucets are available in beautiful, tarnish- and scratch-resistant finishes.

Chrome 7052114.002 DISCONTINUED
List Price: $244.00
ADA Compliant Cal Green CEC Certified WaterSense Water Efficient
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • LESS Drain
  • WITH Red/Blue temperature indicators
  • Ceramic Disc Valve Cartridge: Assures a lifetime of smooth handle operation and drip-free performance.
  • Adjustable Hot Limit Safety Stop: Limits the amount of hot water allowed to mix with cold. Reduces the risk of accidental scalding.
  • Lead Free: Faucet contains = 0.25% total lead content by weighted averag
Technical Features
  • Brass construction
  • Washerless ceramic disc valve cartridges
  • Water-conserving 1.2 gpm/4.5 L/min pressure-compensating aerator
  • Cast brass spout
  • Metal lever handle
  • Braided flexible hoses with 3/8" (10 mm) compression connectors
  • With Red/Blue temperature indicator markings
  • Less drain
Nominal Dimensions: 6-5/8 in x 2-3/8 in x 9-1/16 in (168 mm x 60 mm x 230 mm)
There are no additional components to display for this product
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Brand: American Standard
Cal Green: Yes
Category: Bathroom Faucets
CEC Certified: Yes
Color / Finish: Chrome
Collections: Delancey
WaterSense: Yes
Faucet Type: Monoblock
Fitting Connection Size Input: 0-3/8
Handle Height: 9-1/16
Handle Material: Zinc
Handle Type: Lever
Fitting Material: Brass
Mount Type: Deck Mount
Number of Handles: 1
Fitting Number of Holes: 1
Spout Height: 5-1/4
Spout Type: Low Arc
Valve Material: Ceramic
Fixture or Fitting Material: Brass
Gallons Per Minute (min-max): 1.2 GPM
Handle Length: 3-1/8
Input Connection Type: Compression
Hardware Included: Yes
Height: 9-1/16
Length: 6-5/8
Width: 2-3/8
Residential or Commercial: Residential
Subcategory: Monoblock Bathroom Faucets
Valve Type: Volume Control Valves
Warranty: Limited Lifetime Warranty
Water Efficient: Yes
