Reliant 3

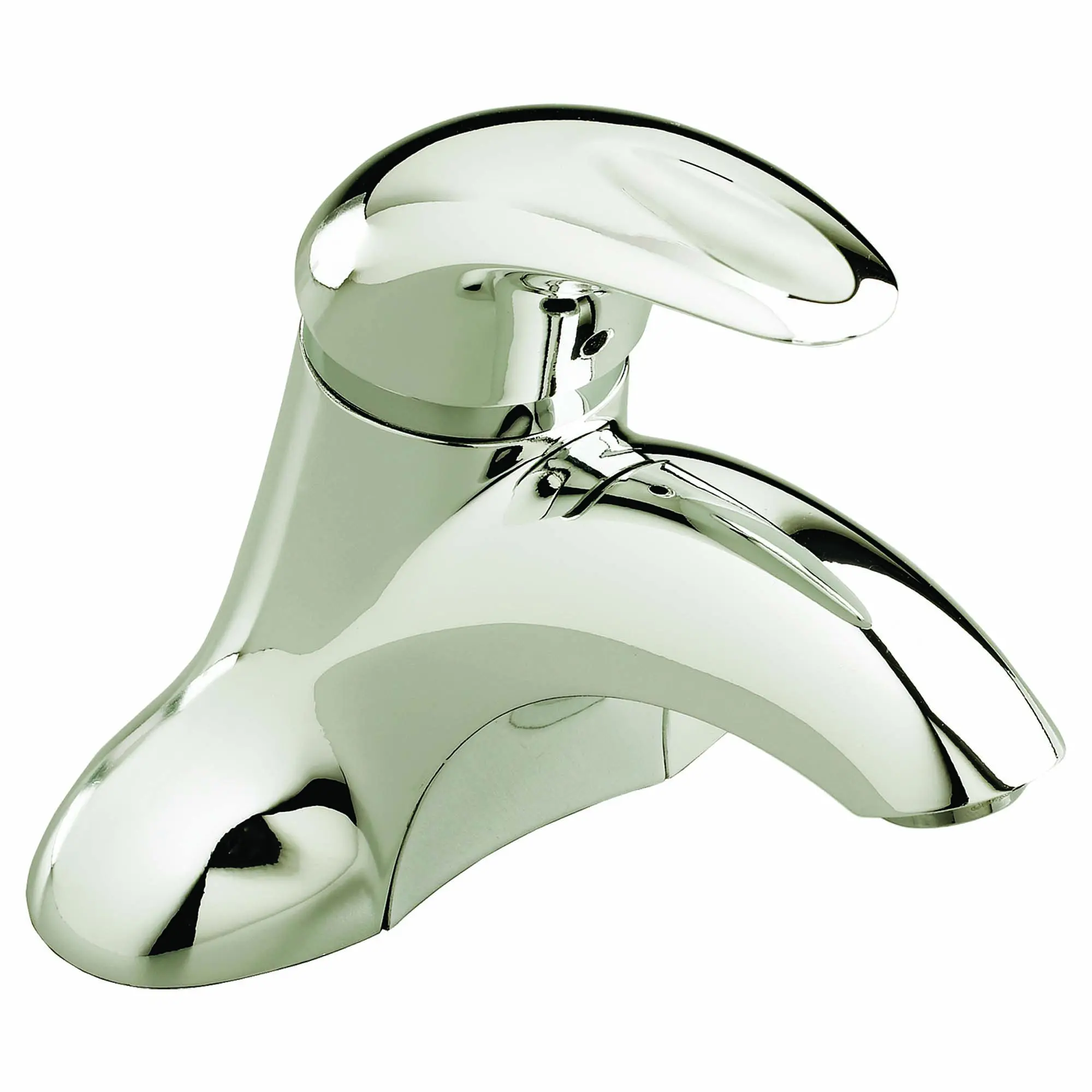

Reliant 3® 4-Inch Centerset Single-Handle Bathroom Faucet 1.2 gpm/4.5 L/min With Lever Handle

Style and comfort go hand in hand. This sleek, ergonomic model from our Reliant 3 Collection is ideal for casual bathrooms, and even modern ones. The faucet is easy to install by yourself and by hand-using Quick Spin Nuts. To help prevent accidental scalding, the metal ADA-approved handle has an adjustable hot-limit safety stop.

Brushed Nickel 7385004.295 DISCONTINUED
List Price: $266.00
ADA Compliant Cal Green CEC Certified WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Speed Connect from American Standard—the pre-assembled drain that makes American Standard the easiest brand bathroom faucet to instal
  • Cast Brass Waterway with Flexible Supply Hoses: Strong and durable. Less potential for leaks
  • Ceramic Disc Valve Cartridge: Assures smooth, precise valve control and a lifetime of drip-free, maintenance-free performance
  • Adjustable Hot Limit Safety Stop: Limits the amount of hot water allowed to mix with cold. Reduces the risk of accidental scalding
  • Low Lead: Meets NSF Standard 61/Section 9 & Prop 65 lead requirements
  • Exclusive Speed Connect Metal Drain: Fewer parts. Installs in less time.No adjustments required - seals the first time, every time.Flexible stainless steel cable - installs effortlessly in tight spaces
  • Choice of Finishes: Available in Polished Chrome or Brushed Nickel (PVD).
  • Simple One-Person Installation: Faucet drops in from top. Quick spin nuts secure faucet in place
  • Water-conserving 1.2 gpm/4.5 Lpm pressure-compensating aerator
Technical Features
  • Water-conserving 1.2 gpm/4.5 L/min pressure-compensating aerator
  • 47 mm ceramic disc valve cartridge with an adjustable Hot Limit Safety Stop
  • Cast brass waterway with flexible supply hoses
  • Braided flexible supply hoses with 3/8" (10 mm) compression connectors
  • Red/Blue index button included
  • Indexed Red/Blue metal lever handle
  • Less drain
  • Less pop-up rod
  • Less pop-up hole
Nominal Dimensions: 6-1/8 in x 6-1/16 in x 5-5/8 in (156 mm x 154 mm x 143 mm)
There are no additional components to display for this product
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Brand: American Standard
Cal Green: Yes
Category: Bathroom Faucets
CEC Certified: Yes
Color / Finish: Brushed Nickel
Collections: Reliant 3
WaterSense: Yes
Faucet Type: Centerset
Fitting Connection Size Input: 9.52
Handle Height: 5-5/8
Handle Material: Metal
Handle Type: Lever
Fitting Material: Metal
Mount Type: Deck Mount
Number of Handles: 1
Fitting Number of Holes: 3
Spout Height: 2-5/8
Spout Type: Mid Arc
Valve Material: Metal
Fixture or Fitting Material: Metal
Gallons Per Minute (min-max): 1.2 GPM
Handle Length: 4-1/2
Input Connection Type: Compression
Hardware Included: Yes
Height: 5-5/8
Length: 6-1/8
Width: 6-1/16
Residential or Commercial: Residential
Subcategory: Centerset Bathroom Faucets
Valve Type: Volume Control Valves
Warranty: Limited Lifetime Warranty
Download All Supporting Documents

Specification Sheet

Installation Instructions
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
2D CAD Files
.dwg icon 2D CAD File
REVIT Files
.rfa icon REVIT File
There are no videos currently available for this product
3D Objects are not currently available for this product
