Find Your Salesperson

Reliant 3

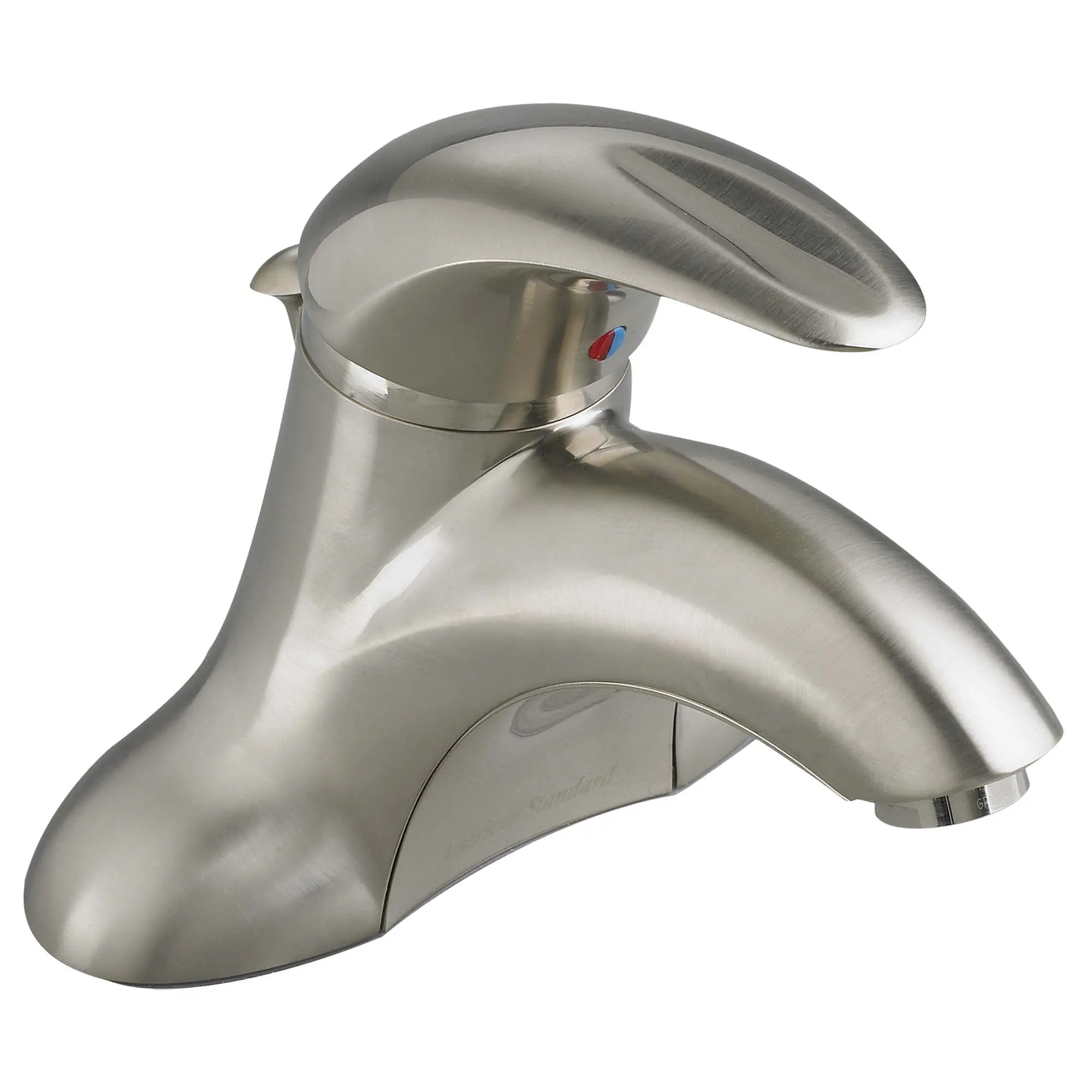

Reliant 3® 4-Inch Centerset Single-Handle Bathroom Faucet 1.2 gpm/4.5 L/min With Lever Handle

SustainabilityCEC ListedCALGreen Compliant

Brushed Nickel 7385000.295 DISCONTINUED
List Price: $295.00
ADA Compliant Cal Green CEC Certified WaterSense
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • FEWER INSTALL PARTS — Exclusive Speed Connect pop-up drain requires fewer parts and installs in less time
  • WATER TEMPERATURE SAFETY — Prevent accidental scalding with adjustable hot-limit safety stop
  • WATER EFFICIENT — EPA WaterSense certified with 1.2 gpm/4.5 L/min. maximum flow rate to save water without sacrificing performance
  • SUPPORTS SUSTAINABILITY — CEC Listed and CALGreen Compliant
  • ADA COMPLIANT — For ease of use
  • LIMITED LIFETIME WARRANTY — Product function and finish is guaranteed to be free from defect. See warranty for details.
Technical Features
  • Water-conserving 1.2 gpm/4.5 L/min pressure-compensating aerator
  • 47 mm ceramic disc valve cartridge with an adjustable Hot Limit Safety Stop
  • Cast brass waterway with flexible supply hoses
  • Braided flexible supply hoses with 3/8" (10 mm) compression connectors
  • Red/Blue index button included
  • Metal lever handle
  • Metal Speed Connect® pop-up drain
Nominal Dimensions: 6-1/8 in x 6-1/16 in x 5-5/8 in (156 mm x 154 mm x 143 mm)
There are no additional components to display for this product
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Brand: American Standard
Cal Green: Yes
Category: Bathroom Faucets
CEC Certified: Yes
Color / Finish: Brushed Nickel
Collections: Reliant 3
Drain Included: Yes
Drain Material: Metal
WaterSense: Yes
Faucet Type: Centerset
Fitting Connection Size Input: 9.52
Handle Height: 5-5/8
Handle Material: Metal
Handle Type: Lever
Fitting Material: Metal
Mount Type: Deck Mount
Number of Handles: 1
Fitting Number of Holes: 3
Speed Connect: Yes
Spout Height: 2-5/8
Spout Type: Mid Arc
Valve Material: Metal
Fixture or Fitting Material: Metal
Gallons Per Minute (min-max): 1.2 GPM
Handle Length: 4-1/2
Input Connection Type: Compression
Hardware Included: Yes
Height: 5-5/8
Length: 6-1/8
Width: 6-1/16
Residential or Commercial: Residential
Subcategory: Centerset Bathroom Faucets
Valve Type: Volume Control Valves
Warranty: Limited Lifetime Warranty
Download All Supporting Documents

Specification Sheet

Installation Instructions

Replacement Parts
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
2D CAD Files
.dwg icon 2D CAD File
REVIT Files
.rfa icon REVIT File
There are no videos currently available for this product
3D Objects are not currently available for this product
