Features
- Cast brass spout
- Metal lever handles
- Metal Speed Connect pop-up drain
- Fast and easy one person installation using an exclusive Speed Connect metal drain which uses fewer parts and no adjustments required to install in less time, even in tight spaces
- Ceramic disc valve cartridge assures a lifetime of drip-free performance
- ADA Compliant designed lever handle is ADA compliant, handicap accessible, and easy for all to use
- 1.2 gallons per minute (1.2 gpm/4.5 L/min.) maximum flow rate helps to save water
- 20” (500mm) long flexible stainless steel drain cable is pre-assembled to the faucet body
- Metal Speed Connect drain body with 1-1/4” (32 mm) tail piece
Technical Features
- Brass construction
- 1/4-turn washerless ceramic disc valve cartridges
- Water-conserving 1.2 gpm/4.5 L/min pressure-compensating aerator
- Cast brass spout
- Metal lever handles with Red/Blue indicators
- Metal Speed Connect® pop-up drain
Nominal Dimensions: 6-1/8 in x 9-1/2 in x 6-5/8 in (156 mm x 241 mm x 168 mm)

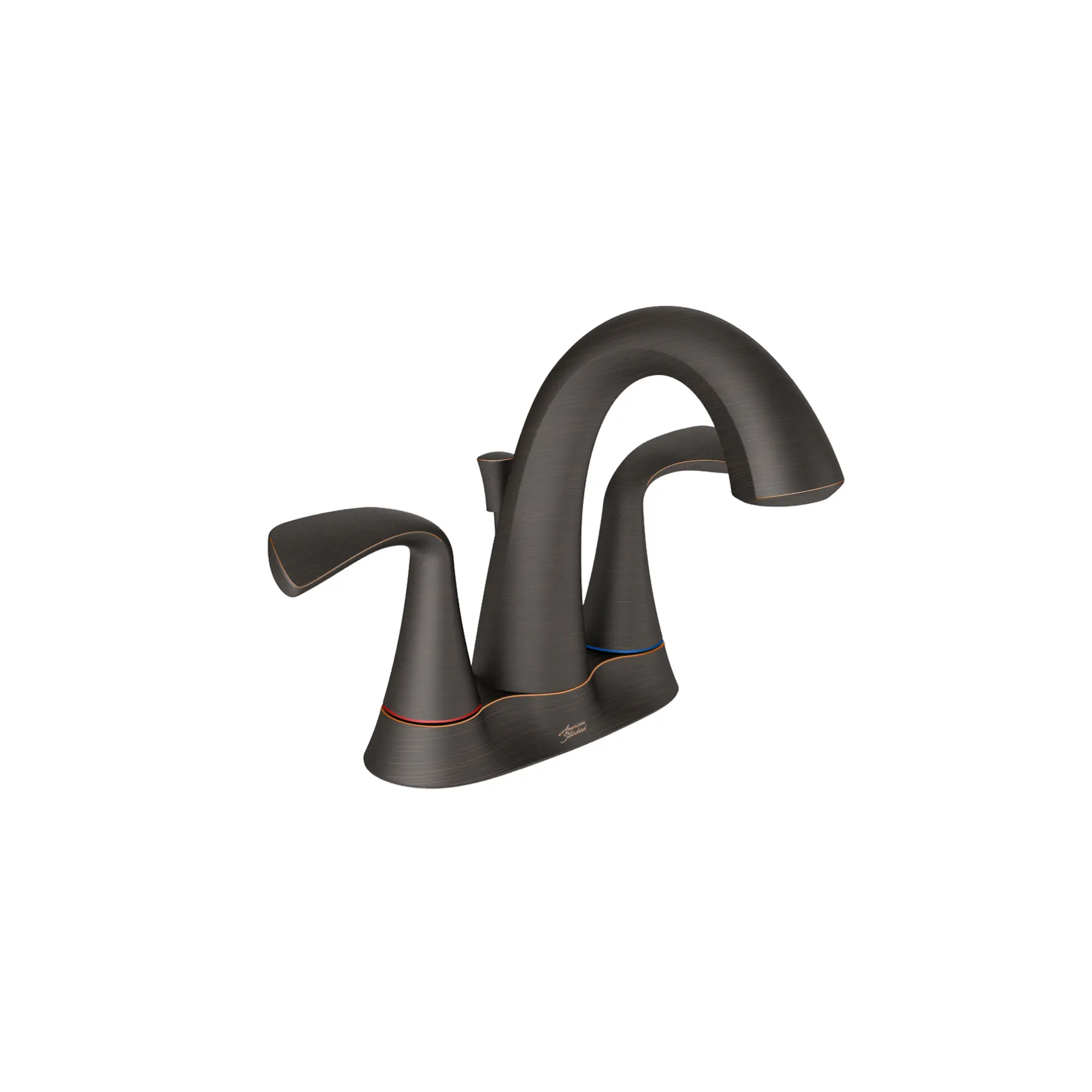

Fluent® 4-Inch Centerset 2-Handle Bathroom Faucet 1.2 gpm/4.5 L/min With Lever Handles
5 lb (2.3 kg)
Legacy Bronze (278)
301
Chrome (002)
201
Oil Rubbed Bronze (224)
294
Brushed Nickel (295)
293
Fluent® 4-Inch Centerset 2-Handle Bathroom Faucet 1.2 gpm/4.5 L/min With Lever Handles
5 lb (2.3 kg)
Legacy Bronze
331
Fluent® 4-Inch Centerset 2-Handle Bathroom Faucet 1.2 gpm/4.5 L/min With Lever Handles
5 lb (2.3 kg)
Legacy Bronze (278)
301
Chrome (002)
201
Oil Rubbed Bronze (224)
294
Brushed Nickel (295)
293
Fluent® 4-Inch Centerset 2-Handle Bathroom Faucet 1.2 gpm/4.5 L/min With Lever Handles
5 lb (2.3 kg)
Legacy Bronze
331
Models marked with * are discontinued, but product may still be available while supplies last.
