  • Studio® S 2.5 gpm/9.5 L/min Tub and Shower Trim Kit With Rain Showerhead, Double Ceramic Pressure Balance Cartridge With Lever Handle

Studio S

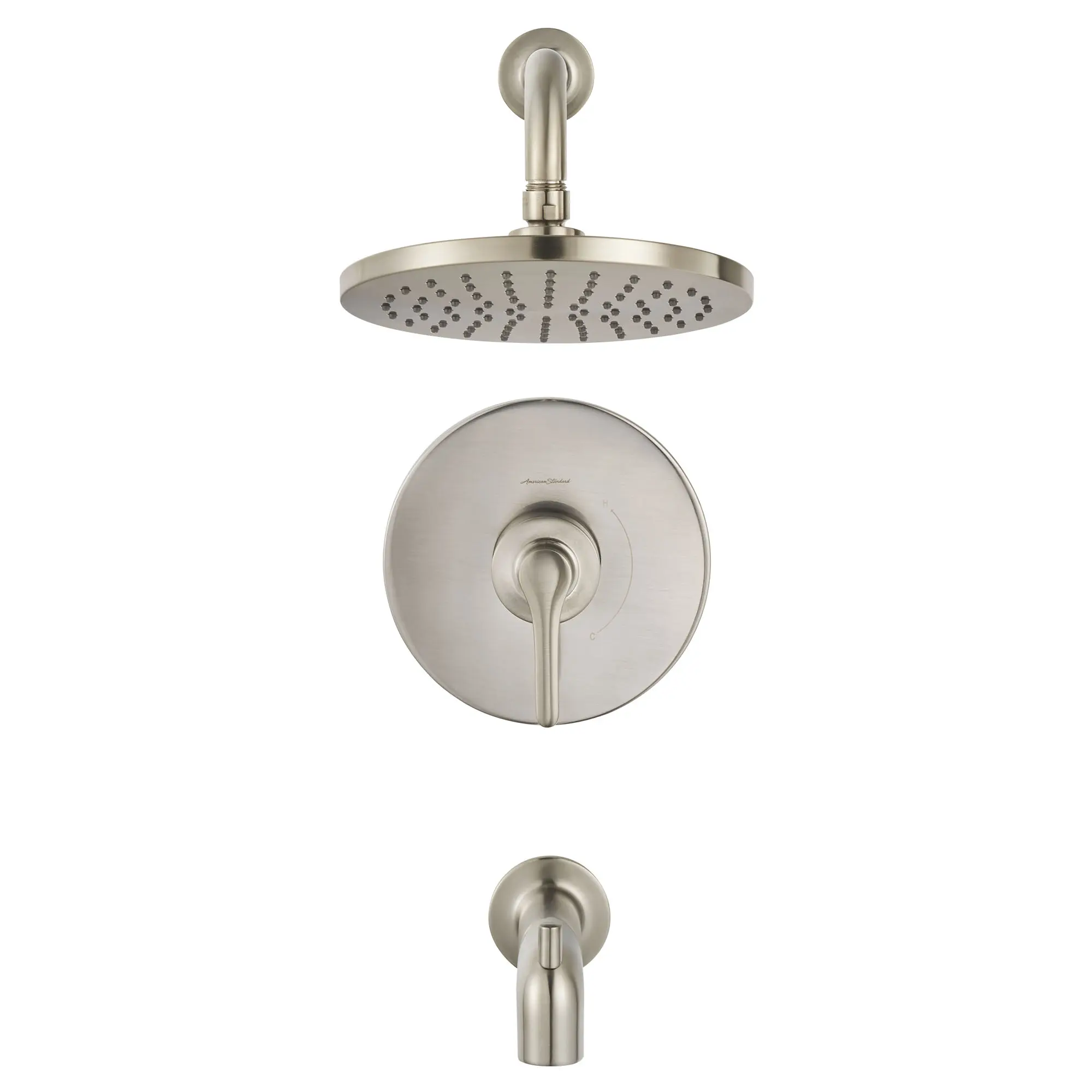

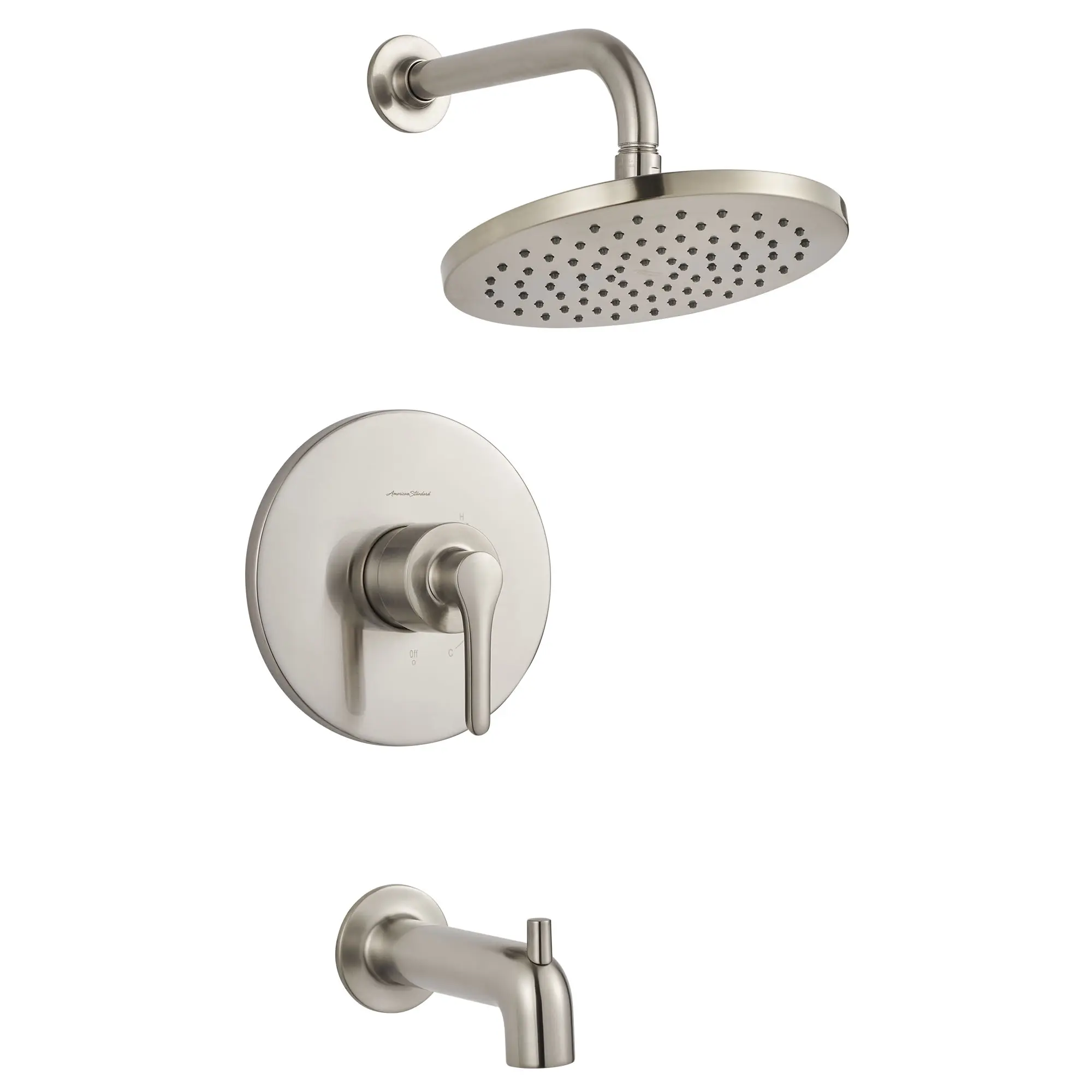

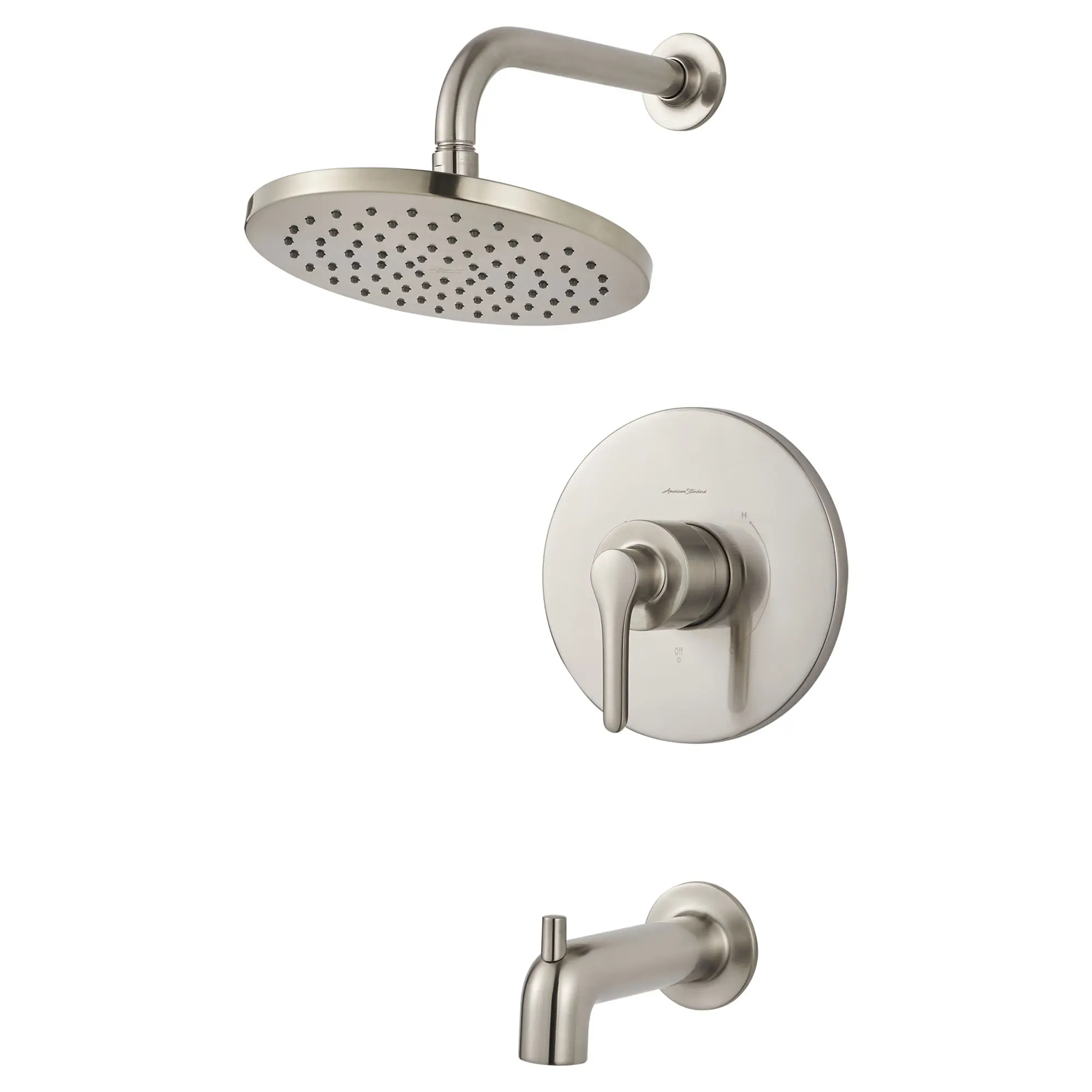

Studio® S 2.5 gpm/9.5 L/min Tub and Shower Trim Kit With Rain Showerhead, Double Ceramic Pressure Balance Cartridge With Lever Handle

The urban-inspired Studio S design is defined by sleek lines, superior performance, and lasting durability. It’s equipped with dependable, double ceramic pressure balance technology for consistent water temperature, anti-scald protection, and smooth, flawless operation. Featuring tarnish- and scratch-resistant finishes to coordinate with the entire Studio S Collection, it’s the perfect fusion of style and function for today’s modern bathroom. Requires Flash Shower Rough-in Valve, sold separately

Brushed Nickel TU105502.295 DISCONTINUED   Substitution Available (TU105508.295)
List Price: $496.00
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Includes One-Piece Cartridge: Simplifies installation and maintenance.
  • Double Ceramic Pressure Balance Cartridge: Combination of Ceramic Disc Mixing Valve and a Ceramic Balancing Spool in a one-piece cartridge.
  • Ceramic Disc Mixing Valve: Assures a lifetime of drip-free performance and smooth handle operation.
  • Ceramic Balancing Spool: Maintains a constant output temperature in response to changes in relative hot and cold supply pressure. Ceramic material is unaffected by mineral deposits and harsh water conditions.
  • Integrated Check Valves: Engineered to eliminate cross flow.
  • Adjustable Hot Limit Safety Stop: Limits the amount of hot water allowed to mix with cold. Reduces the risk of accidental scalding.
  • Comfort Zone: Offers a wider shower range to fine tune the desired temperature within the useful temperature zone.
  • Back-to-Back Capability: Hot and cold can be reversed quickly and easily.
  • 8" (200 mm) rain showerhead, 2.5 gpm/9.5 L/min maximum flow
  • 12" (300 mm) shower arm and flange,Brass wall escutcheon,Metal lever handle,Slip-on diverter tub spout,For Use with Flash Shower Rough-In Valves
Technical Features
  • Includes Double Ceramic pressure balance cartridge
  • 8" (200 mm) rain showerhead, 2.5 gpm/9.5 L/min maximum flow
  • 12" (300 mm) shower arm and flange
  • Brass wall escutcheon
  • Metal lever handle
  • Metal slip-on diverter tub spout
  • For use with Flash® shower rough-in valves
Nominal Dimensions: 15-13/16 in x 7-7/8 in x 7-5/16 in (402 mm x 200 mm x 186 mm)
Description
Net Weight
SKU
Color
List Price USD
Studio® S 2.5 gpm/9.5 L/min Tub and Shower Trim Kit With Rain Showerhead, Double Ceramic Pressure Balance Cartridge With Lever Handle
5 lb (2.1 kg)
TU105502.295 *
Brushed Nickel (295)
496
TU105502.002 *
Chrome (002)
363
TU105502.243 *
Matte Black (243)
532
Substitutions
Studio® S 1.8 gpm/6.8 L/min Tub and Shower Trim Kit With Rain Showerhead, Double Ceramic Pressure Balance Cartridge With Lever Handle
5 lb (2.1 kg)
TU105508.295
Brushed Nickel
639


Models marked with * are discontinued, but product may still be available while supplies last.
Download Specification Sheet
Brand: American Standard
Category: Bathroom Faucets
Color / Finish: Brushed Nickel
Collections: Studio S
Faucet Type: Bath Trim
Fitting Connection Size Input: 12.70
Handle Material: Metal
Fitting Material: Zinc
Fixture or Fitting Material: Zinc
Gallons Per Minute (min-max): 2.5 GPM
Input Connection Type: NPT (National Pipe Tapered Threads)
Hardware Included: Yes
Height: 7-5/16
Length: 15-13/16
Width: 7-7/8
Residential or Commercial: Residential
Subcategory: Bath Trim Bathroom Faucets
Valve Type: Pressure Balance Valves
Warranty: Limited Lifetime Warranty
Download All Supporting Documents

Specification Sheet

Installation Instructions

Replacement Parts
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
The 3D Models used on the website are for reference only and may not reflect the actual configuration of the product.
