Studio S

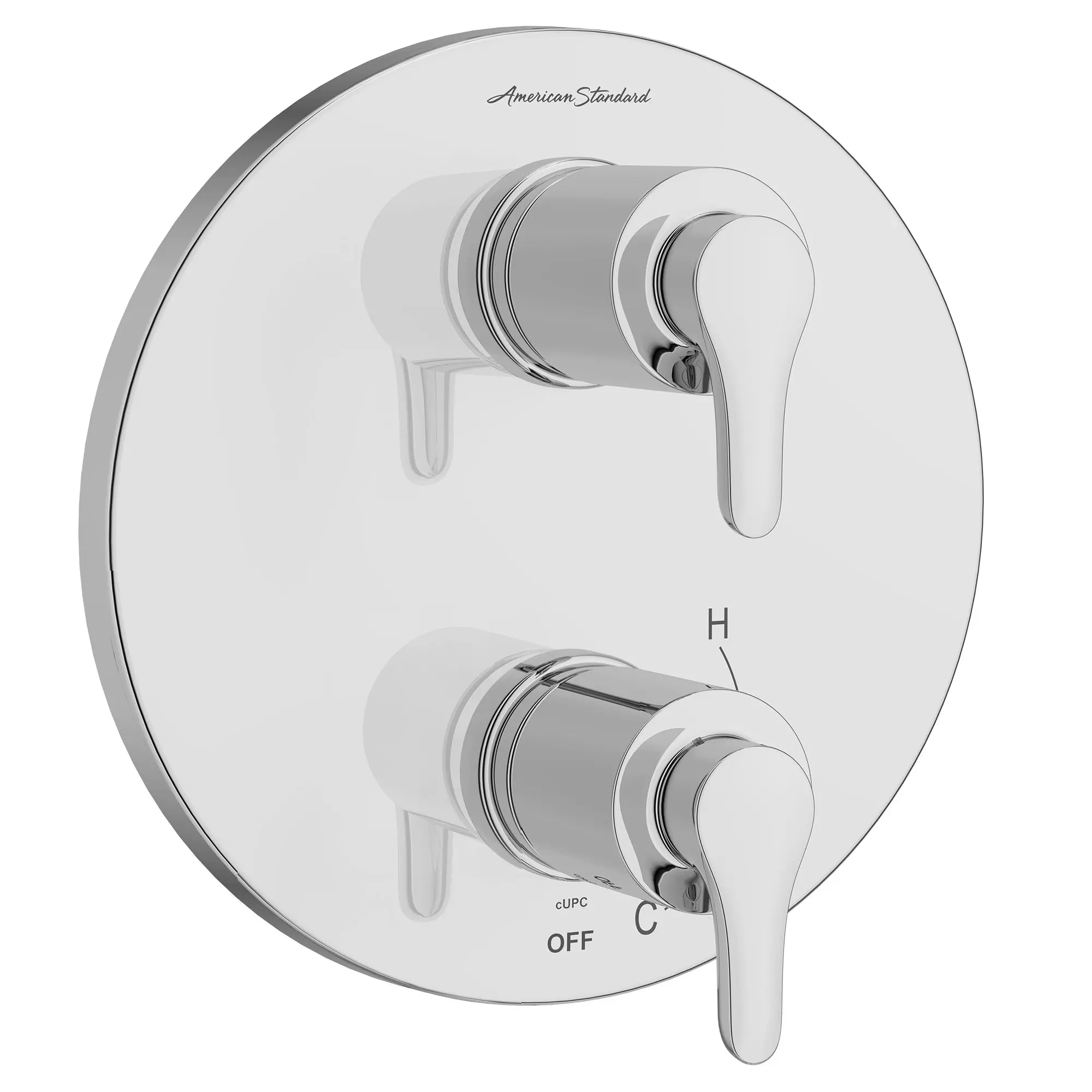

Studio® S 2-Handle Integrated Shower Diverter Trim Only

The urban-inspired Studio S 2-Handle pressure balance Integrated Shower Diverter Trim by American Standard is the perfect fusion of contemporary style and flawless functionality for today’s home. When paired with the exclusive Flash Rough-in Integrated Shower Diverter Valve, sold separately, you can easily alternate between water outlets. The Studio S Trim coordinates perfectly with the entire Studio S Collection. Requires Flash Rough-in Integrated Shower Diverter Valve RU520.

Chrome TU105740.002 DISCONTINUED
List Price: $321.00
ADA Compliant Enjoy More Rewards
Items REQUIRED for Install
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • INTUITIVE OPERATION: Bottom lever turns on the water and adjusts to desired temperature. Top lever diverts water to flow from specific outlet
  • DRIP-FREE PERFORMANCE AND COMFORT: Double ceramic pressure balance cartridge for drip-free reliability and consistent water temperature regardless of changes in hot/cold supply pressure
  • GREAT PRICE: Premium quality valve trim
  • ALL METAL CONSTRUCTION: Trim kit is made of metal for lasting dependability
  • INCLUDES: Discrete diverter valve and pressure balance cartridge M970787-0070A
  • REQUIRED: Flash® Rough-in Integrated Shower Diverter Valve RU520 with 2 or 3 way discrete capability, sold separately
Technical Features
  • Metal wall escutcheon
  • Metal lever handles
  • Requires Flash Rough-in Integrated Shower Diverter Valve RU520 with 2 or 3 way discrete capability
  • Includes discrete diverter and pressure balance cartridge M970787-0070A
  • 2 or 3 way shared flow functionality requires separate M970789-0070A shared cartridge to be purchased separately
Description
Net Weight
SKU
Color
List Price USD
Studio® S 2-Handle Integrated Shower Diverter Trim Only
2 lb (1.0 kg)
TU105740.002
Chrome (002)
321
TU105740.243
Matte Black (243)
434
TU105740.295
Brushed Nickel (006)
434
TU105740.GN0
Brushed Cool Sunrise (GN0)
466
Required Components (Not Included)
Pressure Balance Valve Rough-In with Integrated Diverter
1 lb (0.4 kg)
RU520
No Finish
300
Separate Components
Flash® 2-Way/3-Way Discrete Diverter
0 lb (0.0 kg)
M970787-0070A
No Finish
28
Optional Components (Not Included)
Flash® 2-Way/3-Way Shared Diverter
0 lb (0.0 kg)
M970789-0070A
No Finish
28
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Brand: American Standard
Category: Bathroom Faucets
Color / Finish: Chrome
Collections: Studio S
Handle Material: Metal
Input Connection Type: NPT (National Pipe Tapered Threads)
Hardware Included: Yes
Height: 200.00
Length: 93.40
Width: 200.00
Residential or Commercial: Residential
Subcategory: Bath Trim Bathroom Faucets
Valve Type: Diverter Valves
Warranty: Limited Lifetime Warranty
Download All Supporting Documents

Specification Sheet

Installation Instructions

Replacement Parts
Didn't find the PDF or file you were looking for? Reach out to our team via our Contact Form.
Download All Design Files
2D CAD Files
.dwg icon 2D CAD File
REVIT Files
.rfa icon REVIT File
The 3D Models used on the website are for reference only and may not reflect the actual configuration of the product.
