Features
- Includes One-Piece Cartridge: Simplifies installation and maintenance.
- Double Ceramic Pressure Balance Cartridge: Combination of Ceramic Disc Mixing Valve and a Ceramic Balancing Spool in a one-piece cartridge.
- Ceramic Disc Mixing Valve: Assures a lifetime of drip-free performance and smooth handle operation.
- Ceramic Balancing Spool: Maintains a constant output temperature in response to changes in relative hot and cold supply pressure. Ceramic material is unaffected by mineral deposits and harsh water conditions.
- Integrated Check Valves: Engineered to eliminate cross flow.
- Adjustable Hot Limit Safety Stop: Limits the amount of hot water allowed to mix with cold. Reduces the risk of accidental scalding.
- Comfort Zone: Offers a wider shower range to fine tune the desired temperature within the useful temperature zone.
- Back-to-Back Capability: Hot and cold can be reversed quickly and easily.
- Metal wall escutcheon
- Metal lever handle,For Use with Flash Shower Rough-In Valves
Technical Features
- Includes Double Ceramic pressure balance cartridge
- Metal wall escutcheon
- Metal lever handle
- For use with Flash® shower rough-in valves
Nominal Dimensions: 3-1/8 in x 7-1/2 in x 7-1/2 in (79 mm x 191 mm x 191 mm)

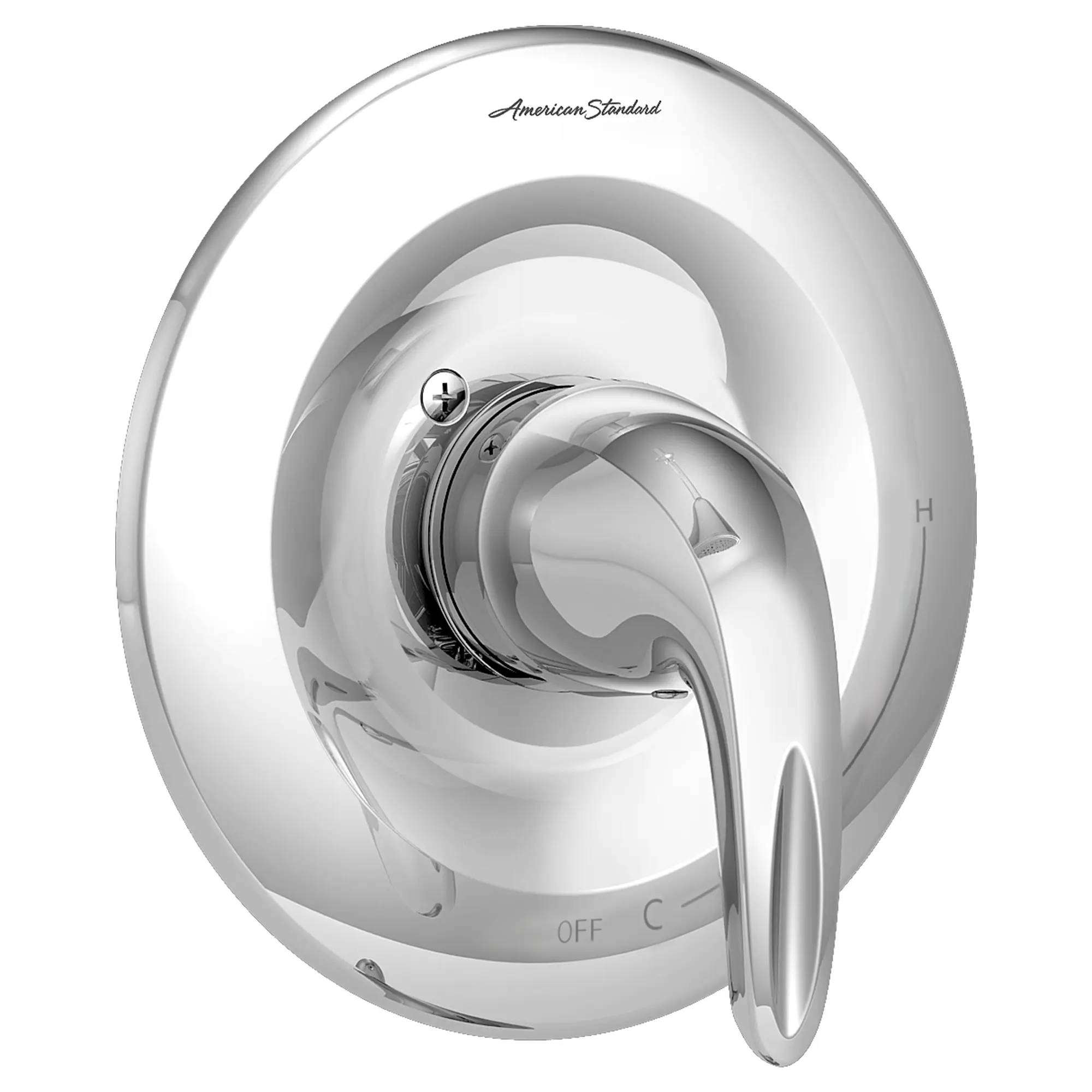

Reliant 3® Valve Only Trim Kit With Double Ceramic Pressure Balance Cartridge With Lever Handle
2 lb (0.7 kg)
Chrome (002)
121
Brushed Nickel (295)
163
Flash® Shower Rough-In Valve With Universal Inlets/Outlets
2 lb (0.8 kg)
No Finish
80
spacer
Flash® Shower Rough-In Valve With Universal Inlets/Outlets With Screwdriver Stops
2 lb (0.8 kg)
No Finish
115
spacer
Flash® Shower Rough-In Valve With Stub-Outs
2 lb (0.8 kg)
No Finish
85
spacer
Flash® Shower Rough-In Valve With Stub-Outs With Screwdriver Stops
2 lb (0.8 kg)
No Finish
115
spacer
Flash® Shower Rough-In Valve With PEX Inlets/Universal Outlets for Crimp Ring System
2 lb (0.8 kg)
No Finish
80
spacer
Flash® Shower Rough-In Valve With PEX Inlet Elbows/Universal Outlets for Crimp Ring System
2 lb (0.8 kg)
No Finish
106
spacer
Flash® Shower Rough-In Valve With PEX Inlet Elbows/Universal Outlets With Screwdriver Stops for Crimp Ring System
2 lb (0.8 kg)
No Finish
140
spacer
Flash® Shower Rough-In Valve With PEX Inlets/Universal Outlets With Screwdriver Stops for Crimp Ring System
2 lb (0.8 kg)
No Finish
115
spacer
Flash® Shower Rough-In Valve With PEX Inlets/Universal Outlets for Cold Expansion System
1 lb (0.7 kg)
No Finish
80
spacer
Flash® Shower Rough-In Valve With PEX Inlet Elbows/Universal Outlets for Cold Expansion System
2 lb (0.8 kg)
No Finish
106
spacer
Flash® Shower Rough-In Valve With PRX Inlet Elbows/Universal Outlets With Screwdriver Stops for Cold Expansion System
2 lb (0.8 kg)
No Finish
140
spacer
Flash® Shower Rough-In Valve With PEX Inlets/Universal Outlets With Screwdriver Stops for Cold Expansion System
2 lb (0.8 kg)
No Finish
115
spacer
Flash® Shower Rough-In Valve With CPVC Inlets/Universal Outlets
2 lb (0.8 kg)
No Finish
106
spacer
Flash® Shower Rough-In Valve With CPVC Inlets/Universal Outlets With Screwdriver Stops
2 lb (0.8 kg)
No Finish
140
Handle Adapter
0 lb (0.0 kg)
No Finish
9
Reliant 3® Valve Only Trim Kit With Double Ceramic Pressure Balance Cartridge With Lever Handle
2 lb (0.7 kg)
Chrome (002)
121
Brushed Nickel (295)
163
Flash® Shower Rough-In Valve With Universal Inlets/Outlets
2 lb (0.8 kg)
No Finish
80
spacer
Flash® Shower Rough-In Valve With Universal Inlets/Outlets With Screwdriver Stops
2 lb (0.8 kg)
No Finish
115
spacer
Flash® Shower Rough-In Valve With Stub-Outs
2 lb (0.8 kg)
No Finish
85
spacer
Flash® Shower Rough-In Valve With Stub-Outs With Screwdriver Stops
2 lb (0.8 kg)
No Finish
115
spacer
Flash® Shower Rough-In Valve With PEX Inlets/Universal Outlets for Crimp Ring System
2 lb (0.8 kg)
No Finish
80
spacer
Flash® Shower Rough-In Valve With PEX Inlet Elbows/Universal Outlets for Crimp Ring System
2 lb (0.8 kg)
No Finish
106
spacer
Flash® Shower Rough-In Valve With PEX Inlet Elbows/Universal Outlets With Screwdriver Stops for Crimp Ring System
2 lb (0.8 kg)
No Finish
140
spacer
Flash® Shower Rough-In Valve With PEX Inlets/Universal Outlets With Screwdriver Stops for Crimp Ring System
2 lb (0.8 kg)
No Finish
115
spacer
Flash® Shower Rough-In Valve With PEX Inlets/Universal Outlets for Cold Expansion System
1 lb (0.7 kg)
No Finish
80
spacer
Flash® Shower Rough-In Valve With PEX Inlet Elbows/Universal Outlets for Cold Expansion System
2 lb (0.8 kg)
No Finish
106
spacer
Flash® Shower Rough-In Valve With PRX Inlet Elbows/Universal Outlets With Screwdriver Stops for Cold Expansion System
2 lb (0.8 kg)
No Finish
140
spacer
Flash® Shower Rough-In Valve With PEX Inlets/Universal Outlets With Screwdriver Stops for Cold Expansion System
2 lb (0.8 kg)
No Finish
115
spacer
Flash® Shower Rough-In Valve With CPVC Inlets/Universal Outlets
2 lb (0.8 kg)
No Finish
106
spacer
Flash® Shower Rough-In Valve With CPVC Inlets/Universal Outlets With Screwdriver Stops
2 lb (0.8 kg)
No Finish
140
Handle Adapter
0 lb (0.0 kg)
No Finish
9
