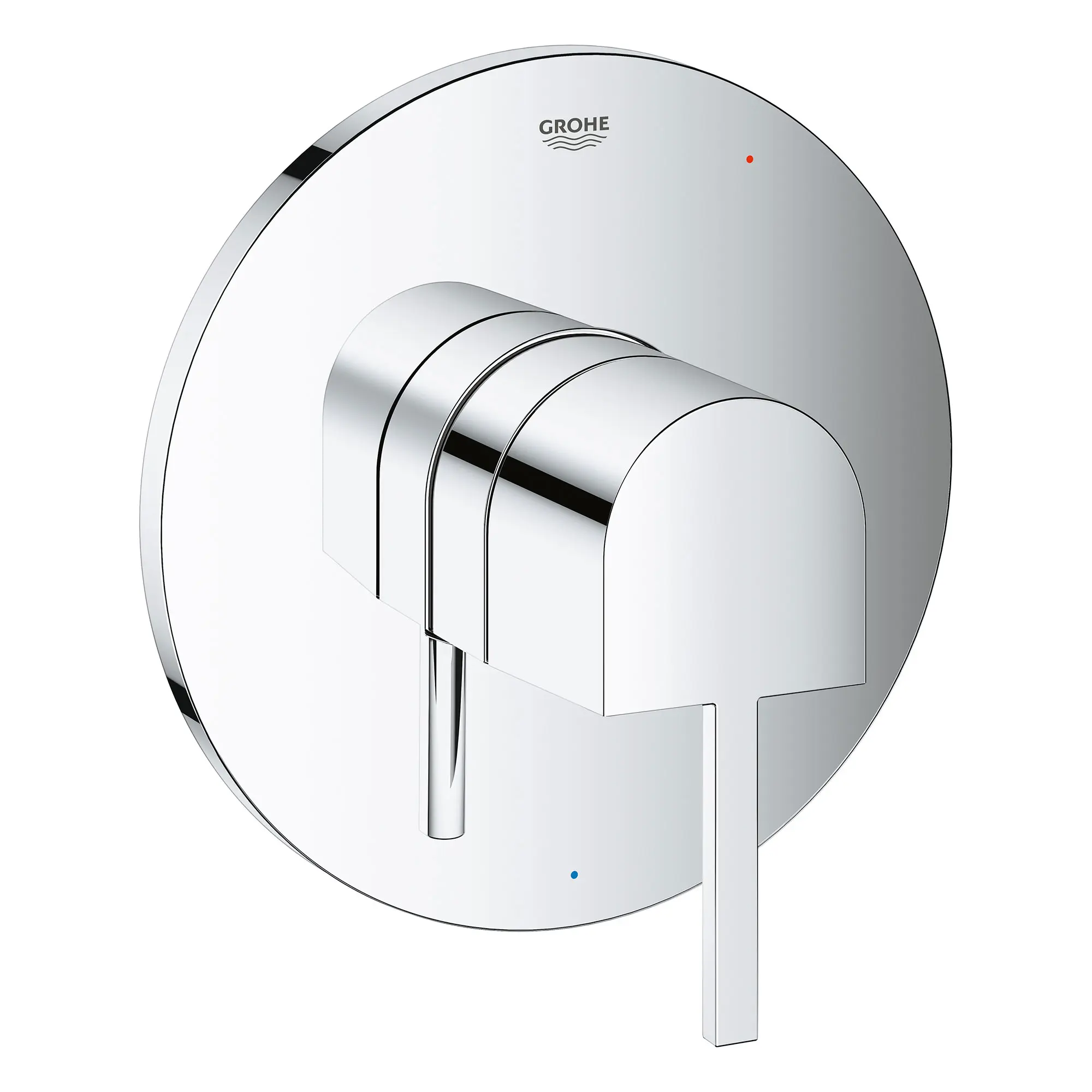

Pressure Balance Valve Trim with Cartridge

Elegant or minimalist, GROHE Plus Pressure Balance Valve Trim with Cartridge combines the clean, linear angles of a cube with the gentle curves of a circle making it a distinctive choice no matter the design aesthetic. Finely crafted for superior function, the Plus trim is equipped with a double ceramic pressure balance cartridge for consistent water temperature and smooth, flawless operation. Requires GrohSafe 3.0 Rough-in Valve, sold separately.

Chrome 29331003 DISCONTINUED
List Price: $290.00
ADA Compliant Enjoy More Rewards
Items REQUIRED for Install
Features Components Specifications Supporting Files Design Files 3D AR Viewer Videos
Features
  • Includes one-piece cartridge to simplify installation and maintenance
  • Double ceramic pressure balance cartridge features a ceramic disc mixing valve and a ceramic balancing spool
  • Ceramic disc mixing valve ensures a lifetime of drip-free performance and smooth handle operation
  • Ceramic balancing spool maintains a constant water temperature
  • Integrated check valves are engineered to eliminate cross flow
  • Adjustable hot limit safety stop reduces the risk of accidental scalding
  • Offers a wide comfort zone to fine tune to the desired temperature
  • Requires GrohSafe 3.0 Rough-in Valve (35 110), (35 111), (35 112), (35 113), (35 114 not sold in Canada), (35 115), or (35 116) (sold separately)
Technical Features
  • GROHE LongLife finish
  • GROHE SilkMove
  • Metal handle
  • Metal trim plate with GROHE QuickFix
  • Includes pressure balance cartridge with double ceramic technology
  • 5.2gpm (bottom) and 3.0gpm (top port) at 45psi (19 L/min)
  • Requires GrohSafe 3.0 Rough-in Valve (35 110), (35 111), (35 112), (35 113), (35 114 not sold in Canada), (35 115), or (35 116) (sold separately)
Nominal Dimensions: 6-1/4 in x 3-11/16 in x 6-1/4 in (159 mm x 94 mm x 159 mm)
Description
Net Weight
SKU
Color
List Price USD
Pressure Balance Valve Trim with Cartridge
2 lb (0.9 kg)
29331003
Chrome (G00)
290
29331EN3
Brushed Nickel (GEN)
406
Required Components (Not Included)
Pressure Balance Rough-In Valve 1/2" Universal
2 lb (0.8 kg)
35110000
No Finish
108
spacer
Pressure Balance Rough-In Valve 1/2" PEX Crimp (ASTM F1960) Inlets
2 lb (0.8 kg)
35111000
No Finish
108
spacer
Pressure Balance Rough-In Valve 1/2" PEX Cold Expansion (ASTM F1960) Inlets
2 lb (0.8 kg)
35112000
No Finish
108
spacer
Pressure Balance Rough-In Valve 1/2" Stub-out Inlets/Outlets
2 lb (0.8 kg)
35113000
No Finish
108
spacer
Pressure Balance Rough-In Valve 1/2" CPVC Inlets
2 lb (0.9 kg)
35114000
No Finish
131
spacer
Pressure Balance Rough-In Valve 1/2" PEX Crimp (ASTM F1807) Elbow Inlets
2 lb (0.9 kg)
35115000
No Finish
145
spacer
Pressure Balance Rough-In Valve 1/2" PEX Cold Expansion (ASTM F1960) Elbow Inlets
2 lb (0.9 kg)
35116000
No Finish
131
Download Specification Sheet
ADA Compliant: Yes
Barrier Free: Yes
Brand: GROHE
Category: Bathroom Faucets
Color / Finish: Chrome
Collections: Plus
Faucet Type: Bath Trim
Handle Material: Metal
Handle Type: Lever
Fitting Material: Zinc
Fixture or Fitting Material: Zinc
Kitchen or Bathroom: Bath
Height: 6-1/4
Length: 6-1/4
Width: 3-11/16
Residential or Commercial: Residential
Subcategory: Bath Trim Bathroom Faucets
Valve Type: Pressure Balance Valves
Warranty: Limited Lifetime Warranty
Download All Supporting Documents

Specification Sheet

Installation Instructions
